Topic: 1964 28HP Evinrude starts and dies – Page 5

This topic has 47 replies, 8 voices, and was last updated 2 years, 9 months ago by bob-d.

Viewing 8 posts - 41 through 48 (of 48 total)

← 1 2 3 4 5

Author

Posts
June 17, 2022 at 8:17 pm #261605
fleetwin
Participant
US Member
dave-bernard wrote:

I am seeing the gasket for bowl does not encircle the little hole in pic #2. ????????????
- This reply was modified 2 years, 9 months ago by dave-bernard.
Good eye Dave! What carburetor would that crazy gasket actually fit on???
June 17, 2022 at 8:45 pm #261607
bob-d
Participant
US Member
Don, that was my exact question as well !

Bob D
June 17, 2022 at 10:38 pm #261613
frankr
Participant
US MEMBER PAY BY CHECK
It fits early 1950’s 25hp motors

1 user thanked author for this post.

bob-d
June 18, 2022 at 9:23 am #261627
fleetwin
Participant
US Member
frankr wrote:

It fits early 1950’s 25hp motors

Frank

I’m assuming the early 25hp carbs had a similar idle passage (up through the side of the bowl into the side of the body), so how did that gasket seal up the passage on those engines? Perhaps they had a different idle circuit passage?
June 18, 2022 at 9:25 am #261628
fleetwin
Participant
US Member
bob-d wrote:

Don, that was my exact question as well !

Bob D

Bob- I too, would definitely keep the original nozzle from your 28hp carb in place.

This will be a good lesson for all of us, surely an easy enough mistake to make, not that easy to diagnose.
June 18, 2022 at 11:01 am #261630
bob-d
Participant
US Member
Don, not only a good lessson for all, but a very expensive one as well.
I shot the proverbial parts canon at the old girl.
Looking for the problem, I replaced the fuel pump, hose from tank, coils, points, condensers ……..all for a $3 gasket.
The only reason I didn’t replace the carb, was because I couldn’t find one.
Well at least she should be reliable on the lake this summer??
Again my thanks to Dave B for his sharp eye. I would have never figured it out.
Bob D
June 18, 2022 at 11:50 am #261636
frankr
Participant
US MEMBER PAY BY CHECK
Old ones had a brass tube sticking down into the float bowl to transport fuel up to the idle circuit.
June 18, 2022 at 1:47 pm #261640
bob-d
Participant
US Member
Yep Frank that’s the one.

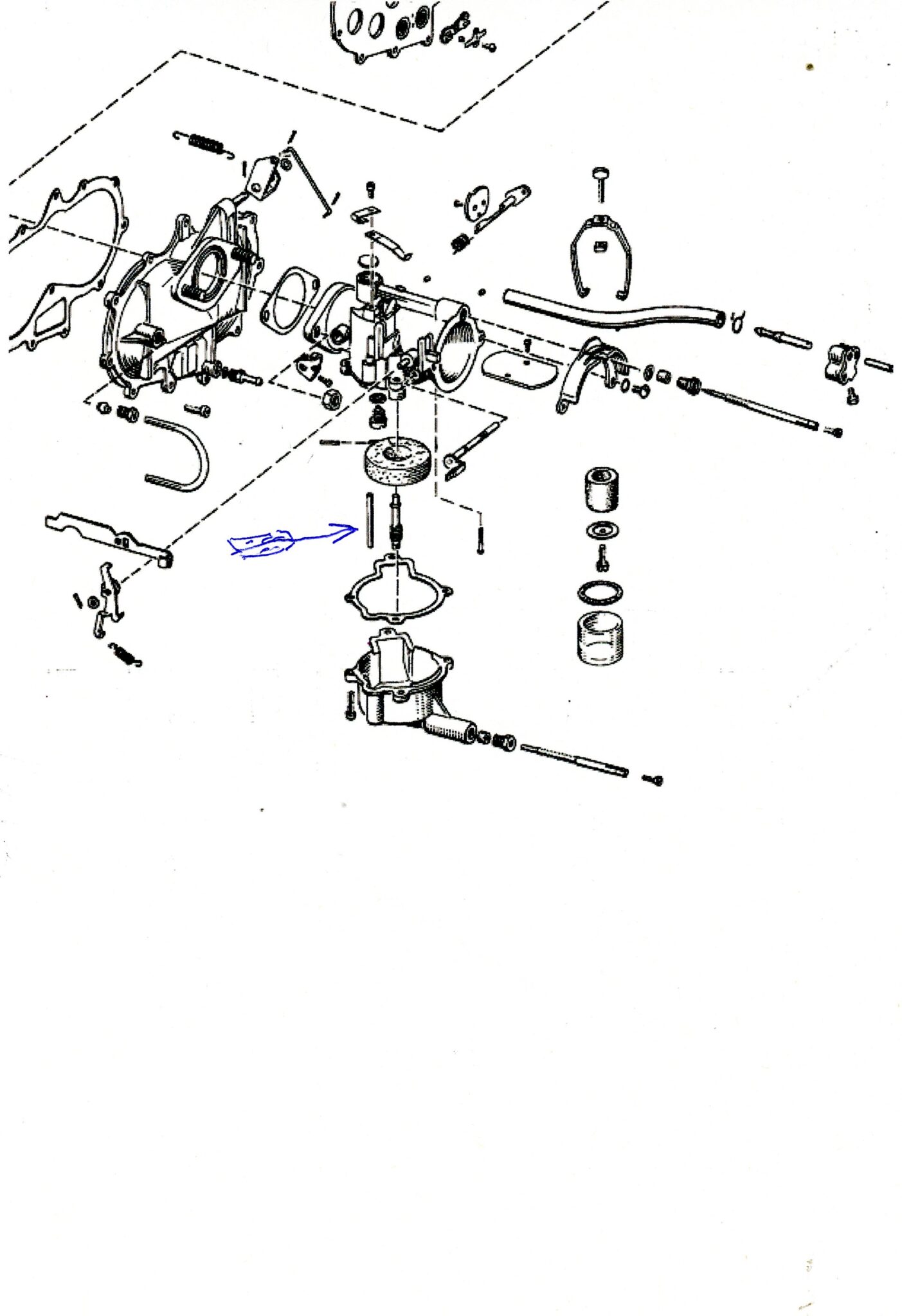

The diagram even shows the infamous half moon gasket.
Lesson learned…….double check all new purchased parts against the parts diagram.
Thanks again,

Bob D
