Topic: 1967 Sea King 6.5 HP – Antique Outboard Motor Club,Inc

This topic has 9 replies, 4 voices, and was last updated 3 years, 6 months ago by elgin2.

Viewing 10 posts - 1 through 10 (of 10 total)

Author

Posts
July 7, 2021 at 6:53 pm #242189
BayouBengal
Participant
I cleaned up this motor and it will run ok until it gets warm. I’m thinking at least one of the coils need to be changed out but I can’t find any (part number A12231). Anyone have any suggestions.
July 7, 2021 at 7:14 pm #242203
Buccaneer
Participant
US Member
Do the coils look the same as the OMC ones?
https://www.ahlstrandmarine.com/products/ignition-coil-wards-sea-king-gale-buccaneer-spiegel-up-to-40-hp.html

Prepare to be boarded!
July 7, 2021 at 9:56 pm #242218
frankr
Participant
US MEMBER PAY BY CHECK
Model number would help. I suspect it was made by Chrysler (??). Try a Mercury dealer. Mercury was the last owner of Chrysler.

Also llangsoutboards.com
- This reply was modified 3 years, 6 months ago by frankr.
July 8, 2021 at 5:58 am #242225
BayouBengal
Participant
Frank, model number is 27906A made by Chrysler. And it looks like Laing’s may have one, but for $125, wow, don’t know if I want it that bad.

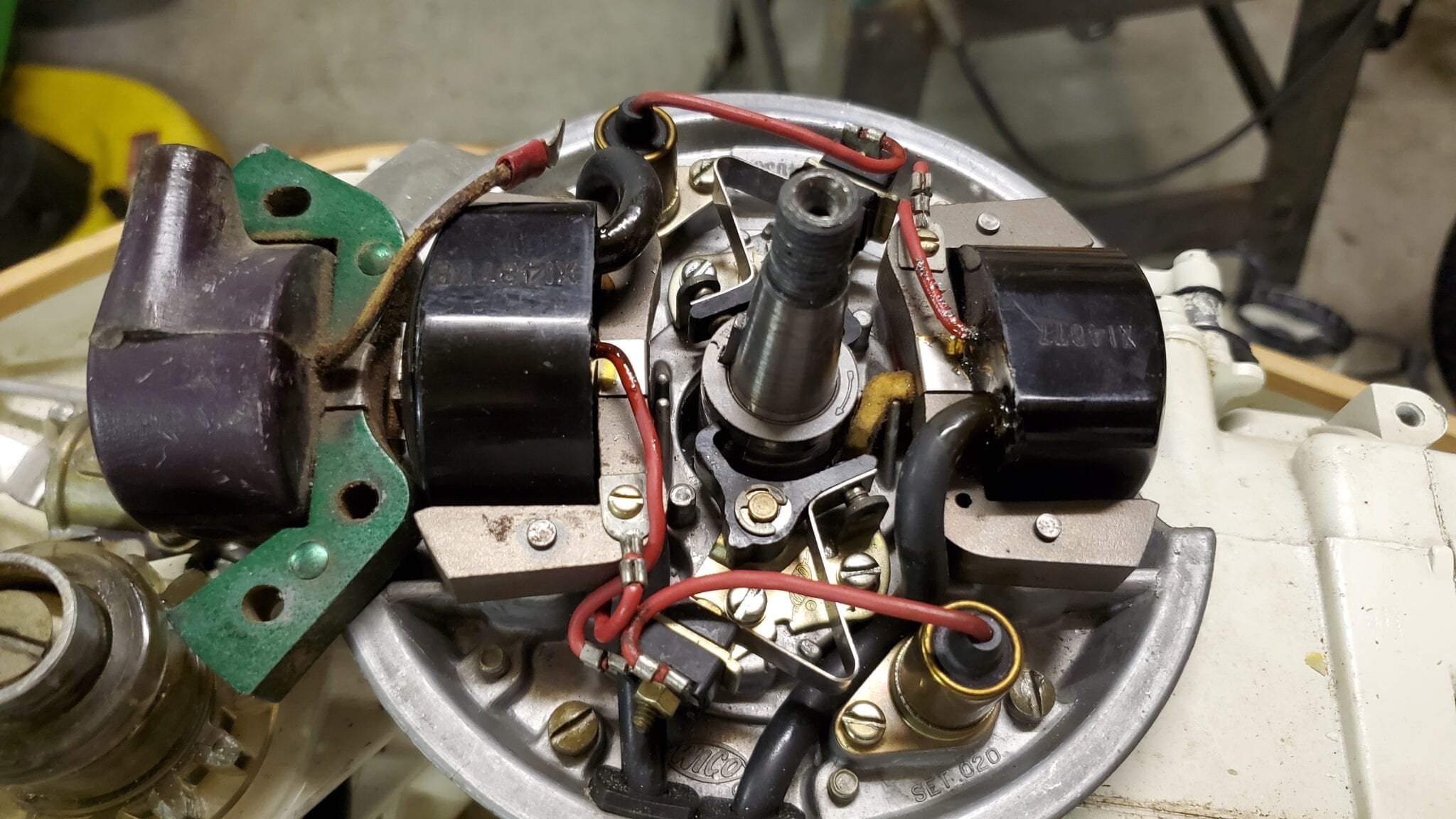

Buc, it looks close to the OMC coils. Here’s a couple of pictures with an old OMC coil next to the ones on the motor. It’s only slightly bigger and I think there would be room to get it in there. Are you suggesting to drill and tap some holes to try and make it work.
- This reply was modified 3 years, 6 months ago by BayouBengal.
- This reply was modified 3 years, 6 months ago by BayouBengal.
- This reply was modified 3 years, 6 months ago by BayouBengal.
July 8, 2021 at 8:06 am #242239
Buccaneer
Participant
US Member
In some cases, a person can remove a good OMC coil from it’s laminates,
and install it on the original laminates of the motor you’re fixing.
Just depends “if” and how much the original laminates may need
to machined to fit the OMC coil, and what clearance issues, or
issues routing the spark plug wire.

Prepare to be boarded!
July 8, 2021 at 9:45 am #242240
frankr
Participant
US MEMBER PAY BY CHECK
That is a Wico mag. Wico condensers have a known reliability problem. Just sayin—

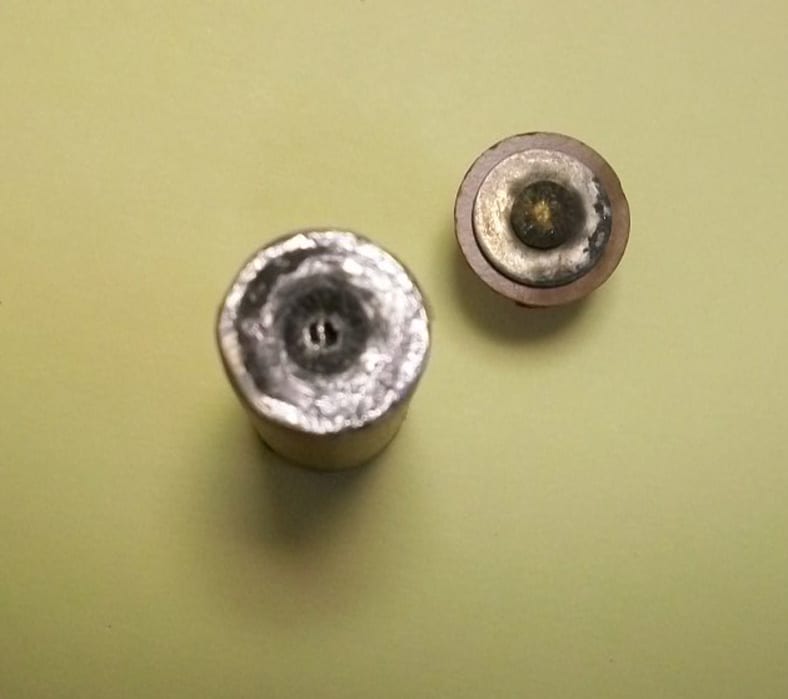

EDIT: This is a Wico condenser that I tore apart. You can see the black burn marks where it was arcing between the foil roll and the end cap.
- This reply was modified 3 years, 6 months ago by frankr.
- This reply was modified 3 years, 6 months ago by frankr.
July 8, 2021 at 10:21 am #242249
elgin2
Participant
US Member
I had the same issue with a `66 20hp Chrysler. Replaced the condensers and the problem went away. Points need to be polished to a chrome finish too.
July 8, 2021 at 5:04 pm #242266
BayouBengal
Participant
Do you think it would pose a problem if I replaced these condensers with some OMC condensers?
July 8, 2021 at 6:46 pm #242280
Buccaneer
Participant
US Member
Not sure of the MFD rating of your old Wico condensers, but if you
find a part number on one, someone may be able to look it up.
That said, if you can make an OMC fit, I’d try it.
The bolt down hole may be “off”, and the OMC lead wire shorter,
but perhaps both issues can be overcome.

Prepare to be boarded!
July 9, 2021 at 9:26 am #242313
elgin2
Participant
US Member
I used the Vishay 1839HQ,220nF on mine.
