1970 Johnson 20hp electric starter

Home › Forum › Ask A Member › 1970 Johnson 20hp electric starter

Viewing 10 posts - 1 through 10 (of 14 total)
1 2
  • Author
    Posts
  • October 29, 2020 at 4:19 pm #219628
    Goman
    Participant

      Hello All,

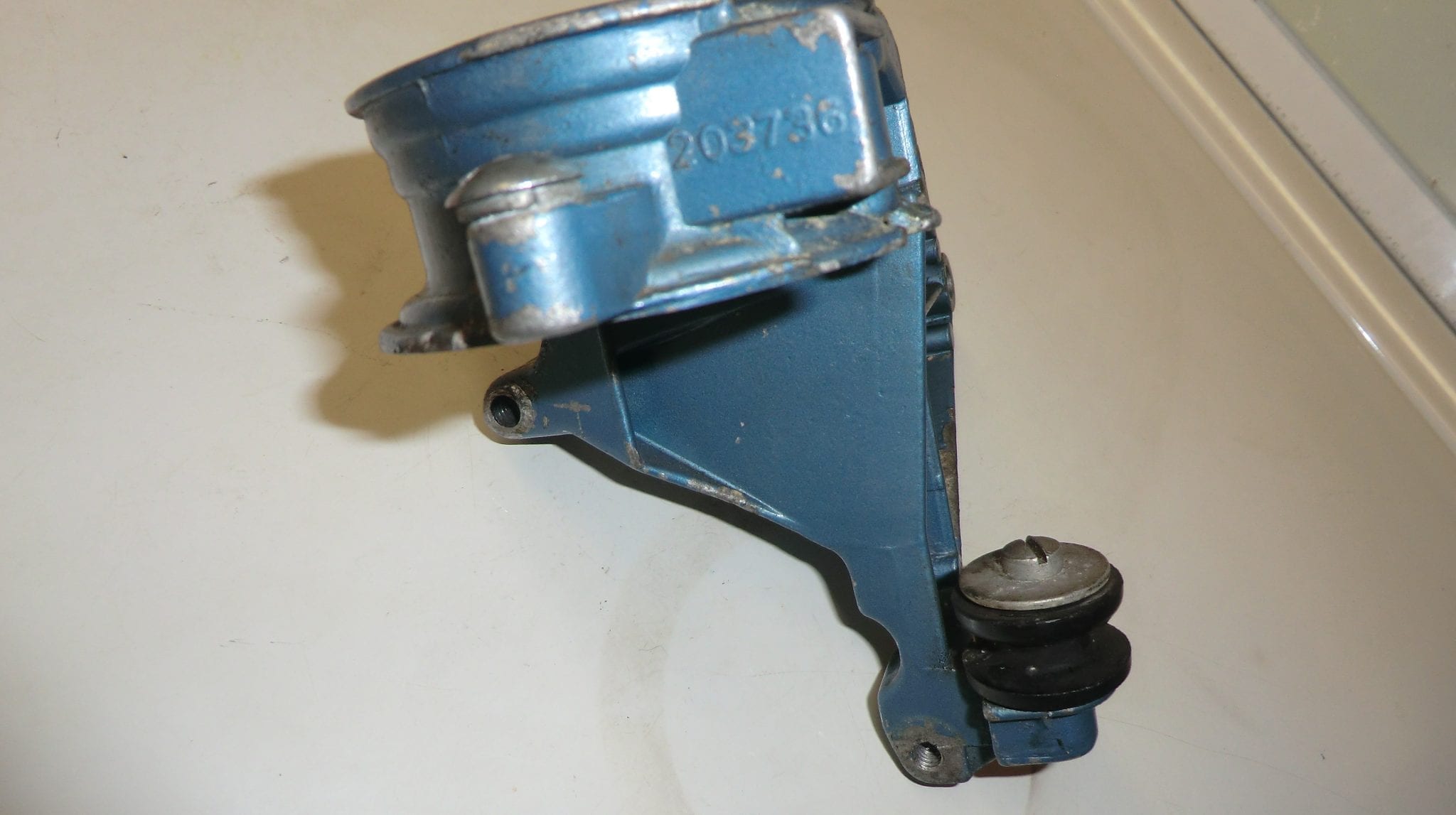

      I found a starter bracket (203736) for this motor and it seems to fit fine. I don’t see this bracket number in any listings. I ordered an after market starter for this bracket and the bolt spacing was off about a quarter inch. This brackets bolt spacing measures 2 1/4 inch center to center. The starter I ordered measures 2 1/2 inches. Would anyone out there know of a starter that would fit this bracket. Thanks for the help.
      Glen

      CIMG1028

      October 29, 2020 at 4:30 pm #219631
      bobw
      Participant

        US Member

        The 2-1/4″ bolt spacing on the bracket suggests the bracket was used on a motor originally equipped with a 6 volt starter. The 2-1/2″ bolt spacing on your new starter is the common spacing used on current 12 volt starters. Don’t know where you could find a 6 volt starter but you could probably find a good used correct starter bracket with the 2-1/2″ bolt spacing. I believe the bracket number you need is 317328 superseded to 126256. Here’s one link to a bracket and starter combination:

        https://www.speedpromarine.com/products/copy-of-motor-long-block-crankcase-head-engine

        Bob

        1937 Champion D2C Deluxe Lite Twin
        1954 Johnson CD-11
        1955 Johnson QD-16
        1957 Evinrude Fastwin 18
        1958 Johnson QD-19
        1958 Johnson FD-12
        1959 Johnson QD-20

        “Every 20 minute job is only a broken bolt away from a 3-day project.”
        "Every time you remove a broken or seized bolt an angel gets his wings."

        • This reply was modified 4 years, 2 months ago by bobw.
        • This reply was modified 4 years, 2 months ago by bobw.
        October 29, 2020 at 5:00 pm #219635
        fleetwin
        Participant

          US Member - 2 Years

          Not quite sure what you are working on, but that bracket is not for a 1970 Johnson 20hp, it is for a 50s model Evinrude 15/18hp…

          October 29, 2020 at 5:52 pm #219647
          Goman
          Participant

            It was advertised with these numbers which should have worked. 317328 308482 320012 304767 0304767
            All the mounting hardware fit pretty well. Just hoping to find a starter to fit it. Seems half the stuff I buy anymore needs sent back arghh!
            I should have checked the numbers when I received it.

            • This reply was modified 4 years, 2 months ago by Goman.
            October 29, 2020 at 8:57 pm #219669
            fleetwin
            Participant

              US Member - 2 Years

              Unfortunately, you can’t count on numbers provided by sellers, not that they are being dishonest, just not well enough educated. You shouldn’t have much trouble finding a starter and bracket for that engine, not that uncommon…
              I don’t have a 1969 accessory book though…Please be sure your engine is a 1969 model though, did you post the model number?

              October 29, 2020 at 9:58 pm #219690
              cajuncook1
              Participant

                Those starter brackets go for a pretty penny!!!

                Marineengine.com has the accessories listing for 1972 and later years for the 18, 20, 25hp.

                http://www.marineengine.com/parts/johnson-evinrude-accessories/index.php?year=1972&model=Electrical+1972&section=Electric+Starting+Kit+18%2F20+%26amp%3B+25+Hp+Starter+Motor+%26amp%3B+Bracket&yid=34239&mid=34240&sid=35513

                October 29, 2020 at 10:00 pm #219691
                cajuncook1
                Participant

                  http://www.marineengine.com/newparts/part_details.php?pnum=OMC0175019

                  http://www.marineengine.com/newparts/part_details.php?pnum=ARC5376

                  They are expensive.

                  October 30, 2020 at 8:15 am #219701
                  Goman
                  Participant

                    The seller said it came off a 18hp. I don’t think the seller was dishonest just a mistake. The starter that came with it is a Auto-Lite MDH 4001M 12K. When I look that up I can’t make much of the information. The starter guy said it’s not worth fixin. The motor a Johnson 20R-70C is one I like to bang around in. Nothing I am trying to restore just trying to get the pull factor out of it Ha! If I could find a starter for it I believe it would work. If not I’ll just ship everything back and start all over. Season is about over anyway.
                    No Hurry.

                    October 30, 2020 at 9:18 am #219707
                    fleetwin
                    Participant

                      US Member - 2 Years

                      Ship it back, you have all winter to find a decent used starter and bracket at a reasonable price… We have to find a 1970 accessory catalog to get the proper part numbers for the starter and bracket….

                      October 30, 2020 at 10:20 am #219712
                      amuller
                      Participant

                        I can relate. My right shoulder is starting to be bothered by starter rope pulling. No immediate discomfort but later on…. Seems it’s time for a starter on the snowblower too. I’d like to find a starter and bracket for my ’69 (?) 25 hp.

                        Do Prestolite and Auto-Lite starters have the same dimensions?

                        am
