1971 Chrysler 8 Horse

Home › Forum › Ask A Member › 1971 Chrysler 8 Horse

Viewing 7 posts - 1 through 7 (of 7 total)
  • Author
    Posts
  • January 5, 2020 at 12:53 pm #191027
    Mumbles
    Participant

      Hey guys. I’ve started working on my ’71 Chrysler 8 horse but I’m having an issue with the points. It’s a Wico mag and I noticed that there is very little spring pressure holding the points closed. Bending the spring tends to make it worse. Does anyone know where and which way to bend the spring to increase the contact pressure?

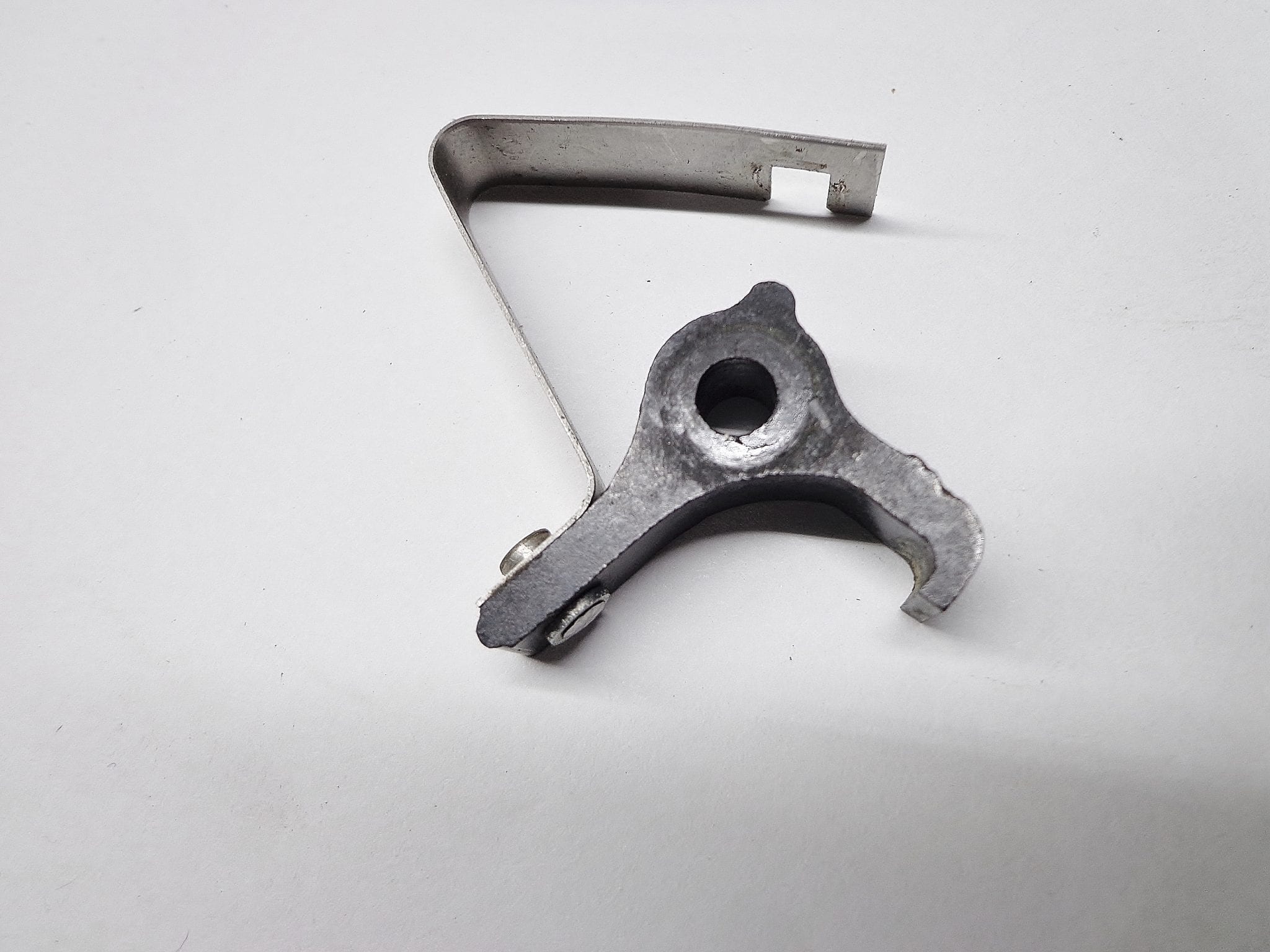

      DSC00004

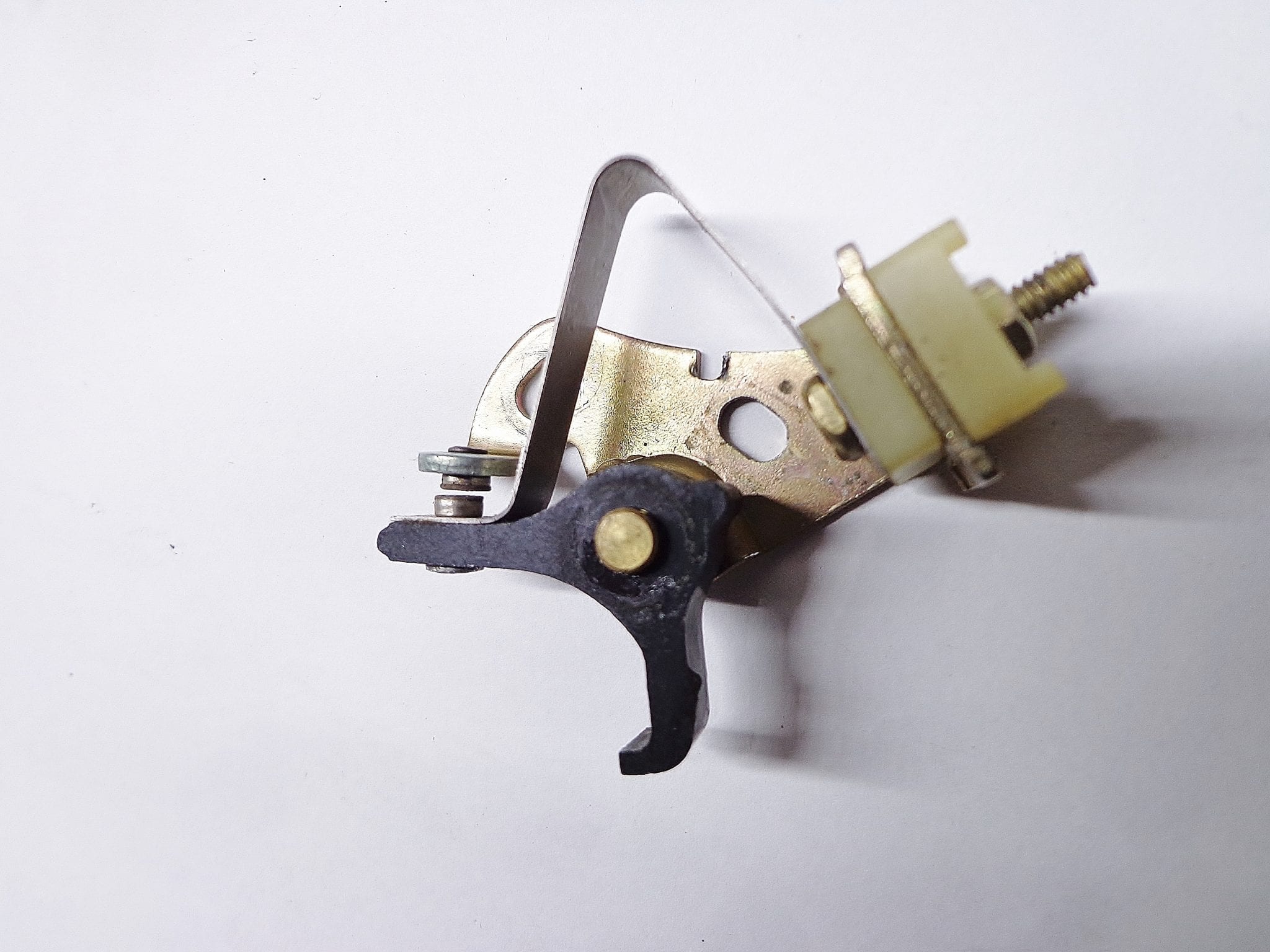

      DSC00005

      • This topic was modified 4 years, 3 months ago by Mumbles.
      • This topic was modified 4 years, 3 months ago by Mumbles.
      January 5, 2020 at 2:12 pm #191047
      Buccaneer
      Participant

        US Member - 1 Year (includes $3 online payment fee)

        Looks like one would need to bend the half attached to the nylon block,
        “back”, toward the end of the bolt where the wires attach.

        Prepare to be boarded!

        January 5, 2020 at 2:40 pm #191051
        garry-in-michigan
        Participant

          Lifetime Member

          Pinching the spring so it is tight against the moving arm should increase the tension. That spring can be damaged by prying the points open too far to check there condition.

          January 5, 2020 at 5:56 pm #191074
          Mumbles
          Participant

            Ben D. showed me on FB one way to do it but by that time I’d experimented a bit more and tweaked the spring a bit next to the plastic insulating block. That seemed to work as the motor has great spark now.

            https://youtu.be/sGuFGDT_cWk

            January 5, 2020 at 9:21 pm #191089
            wedgie
            Participant

              You could stick a couple sets of ATOM modules in and ditch the points and caps.

              January 5, 2020 at 10:24 pm #191100
              fifty20ne
              Participant

                US Member - 1 Year (includes $3 online payment fee)

                Ben D rocks “excellent videos!” On youtube
                How’s Pepper doing!
                My favorite video is
                The 1hp Sea King Midget.

                “Hang on Pepper” LOL

                January 6, 2020 at 1:12 pm #191120
                Mumbles
                Participant
                  wedgie wrote:

                  You could stick a couple sets of ATOM modules in and ditch the points and caps.

                  I could do that but this motor has all good parts under the flywheel now so I’ll save the ATOMS for something special!
