1973 Evinrude 25 HP water pump

Home › Forum › Ask A Member › 1973 Evinrude 25 HP water pump

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • February 20, 2017 at 5:20 pm #6383
    fishingnuts
    Participant

      Working on replacing the water pump impeller on a 1973 evinrude 25 HP. Took all the bolts out of the gear case and separated it. There is no connector on the shifting rod. Do I remove the power head? Or take the gear box apart? Can’t find any other way to get to the water pump.
      HELP
      Ed at fishingnuts42@gmail.com
      Brownsburg, IN

      February 20, 2017 at 6:01 pm #53338
      fisherman6
      Participant

        US Member - 2 Years

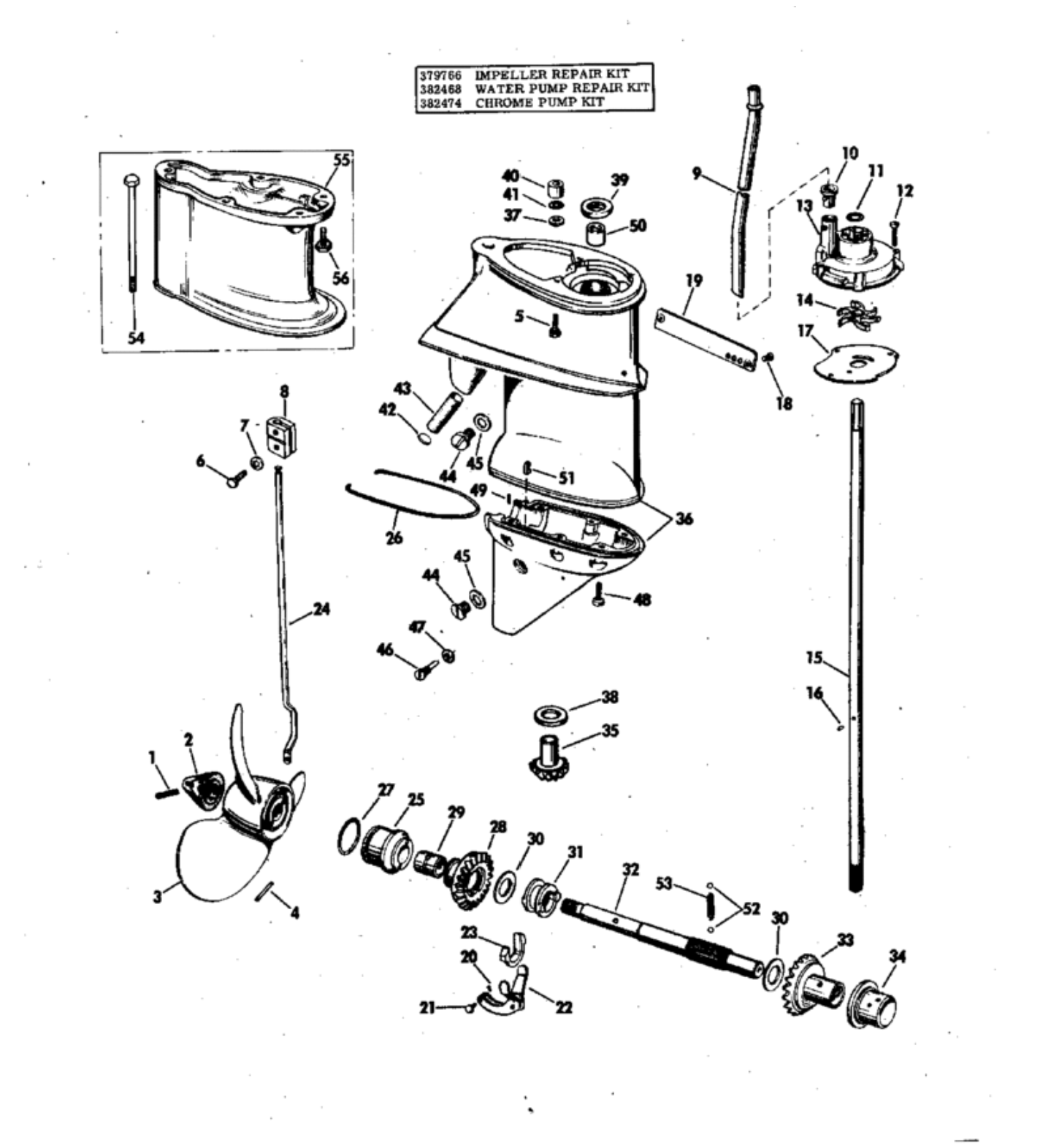

        According to the parts diagram, the shift rod coupler is part #8 as shown below. Remove the bottom screw COMPLETELY before dropping the lower unit and it should come down.
        -Ben

        OldJohnnyRude on YouTube

        February 20, 2017 at 6:55 pm #53339
        Mumbles
        Participant

          Your motor will have a little access panel on the starboard side of the exhaust housing about a third of the way up. Undo the two screws holding the cover on and the shift rod connector inside will be exposed.

          February 20, 2017 at 7:02 pm #53340
          wiscoboater
          Participant

            Like Ben said, you have to take the bolt all the way out. Not just loosen it.
