March 18, 2020 at 2:03 pm #197655
I’m going to look at a couple motors, and I’m not really good on identifying – Can anyone give a positive ID on these 2?
This should be easy for you guys – I’ll be surprised if it takes 5 min :~)The first I think, maybe pre war Johnson or Evinrude? But maybe not …….
The 2nd one also looks familiar, but again, I’m not sure –
March 18, 2020 at 2:16 pm #1976602nd one is a 1940-something Kiekhaefer Mercury.
March 18, 2020 at 2:16 pm #197661the bottom is a mercury or made by mercury.
tag on the side says it all.- This reply was modified 4 years, 1 month ago by dave-bernard.
March 18, 2020 at 2:17 pm #197662Update – Is the second one an early Mercury Comet – Minus lower cowl and spark plug cover ?

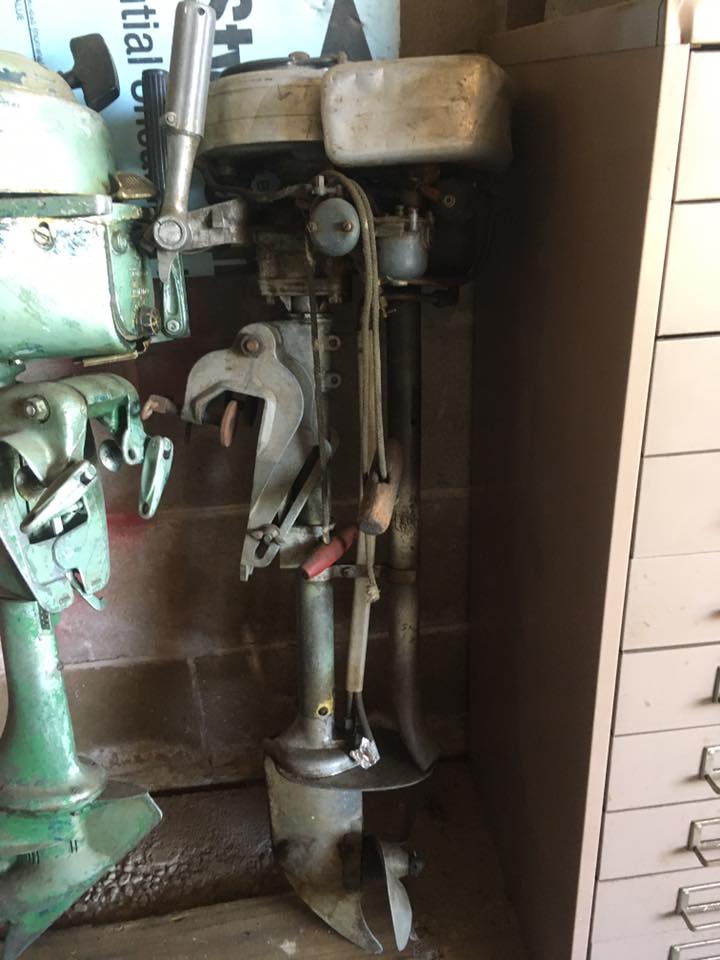

March 18, 2020 at 2:58 pm #1976651st one looks to be a Muncie/Neptune.
- This reply was modified 4 years, 1 month ago by BROOK E. NEWCOMB.

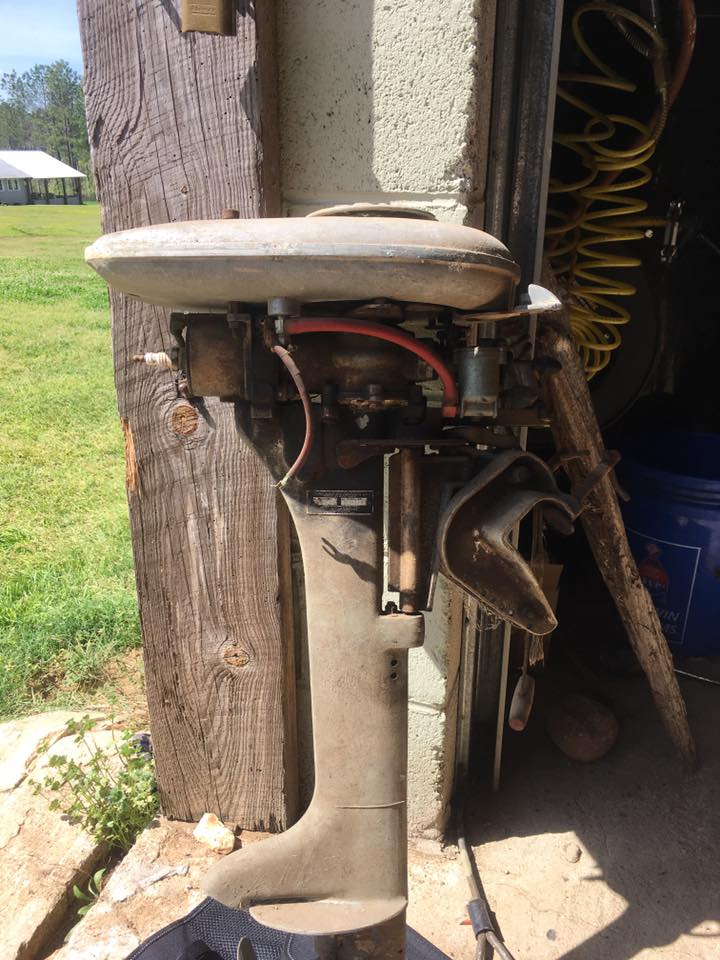

March 18, 2020 at 3:13 pm #197667March 18, 2020 at 6:18 pm #197683The second is a Kiekhaefer single, the tank does not appear to have a
“chin” and it has a Tillotson AJ series carburetor, SO my guess
would be a 1941 Mercury KB1A early production or Wizard equivalent.
model. I believe I have seen the photo elsewhere.

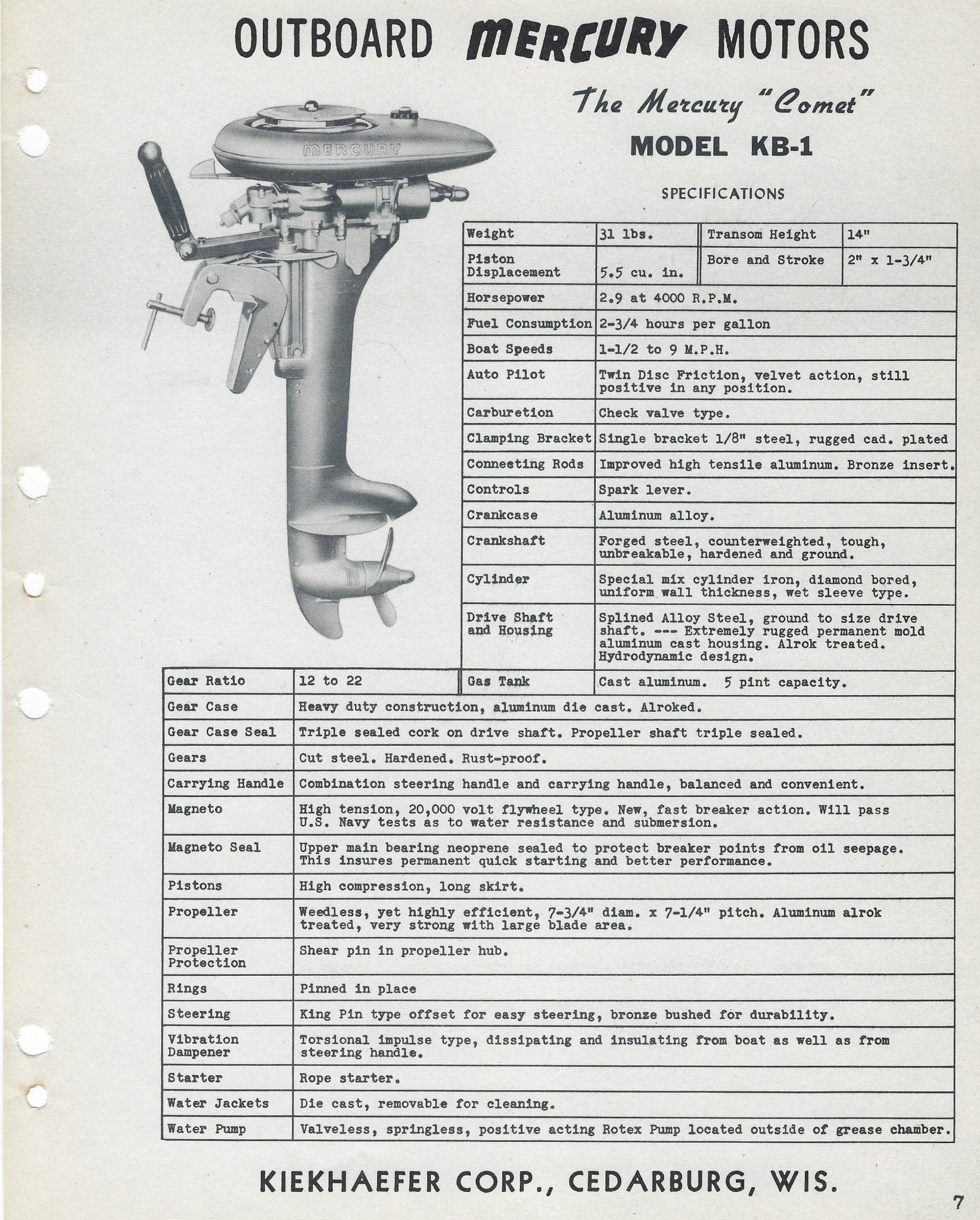

LouisMarch 18, 2020 at 7:50 pm #197691March 18, 2020 at 10:02 pm #197702KB1 Special and KB1 A Standard were same except upgrade from
poppet valve fuel mixer to carburetor. KB1 was dropped from
line and KB1 A changed to a steel gas tank to conserve aluminum
restrictions imposed by government. The KB3 Deluxe model
had a distinctive “chin” tank, cowl, rewind starter and spark plug covers.
Due to possible parts swaps identification is tentative, however, the
tank is almost certainly the non rewind tank used on KB1 and
early KB1 A
Edit
ID tag on prewar singles is on Port side of leg, while ID tag on postwar
singles is on Starboard side. The motor in second photo has ID tad
on Starboard (post war) side. It would appear that leg and clamp
assembly are from a postwar single. If so,clever native craftsmen have
been at work.

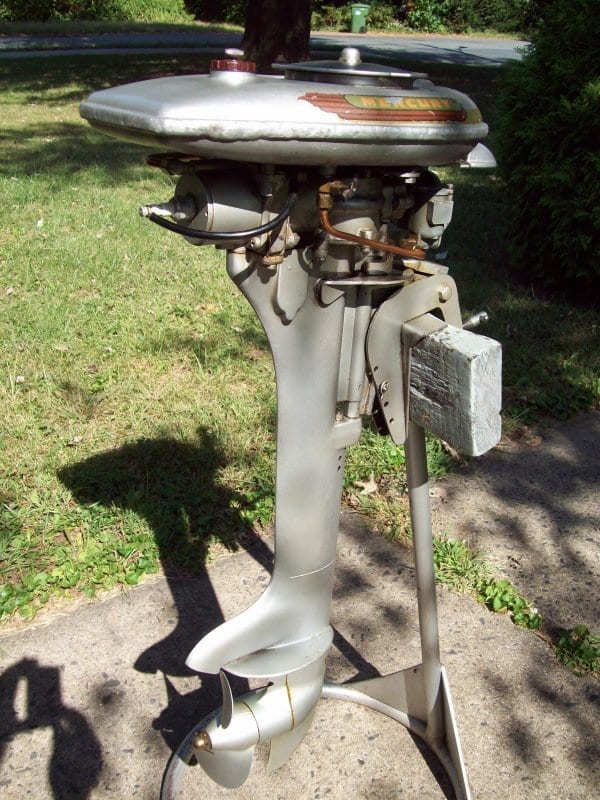

In your photo of a restored KB1 A the AJ3 carburetor has a rectangular
lump of excess metal. Apparently, initial production of AJ series had this lump.
Motor in second photo may be a parts motor with parts from here and there. The ID tag may not give the whole story as power head assembly and leg may not have left the factory together. A little
detective work is in order.
Edit
If as I suspect, motor #2 proves to be a collection of parts, what then?
Tough call unless price is right. Those with experience and parts can get things mostly correct with a reasonable investment in time, money and frustration. I would jump on it at $10 and pass at $100
…somewhere between I would flip a coin If you go for it post
better photos here. I would like to know how far off my guesses are.
Louis- This reply was modified 4 years, 1 month ago by green-thumbs.
- This reply was modified 4 years, 1 month ago by green-thumbs.
- This reply was modified 4 years, 1 month ago by green-thumbs.

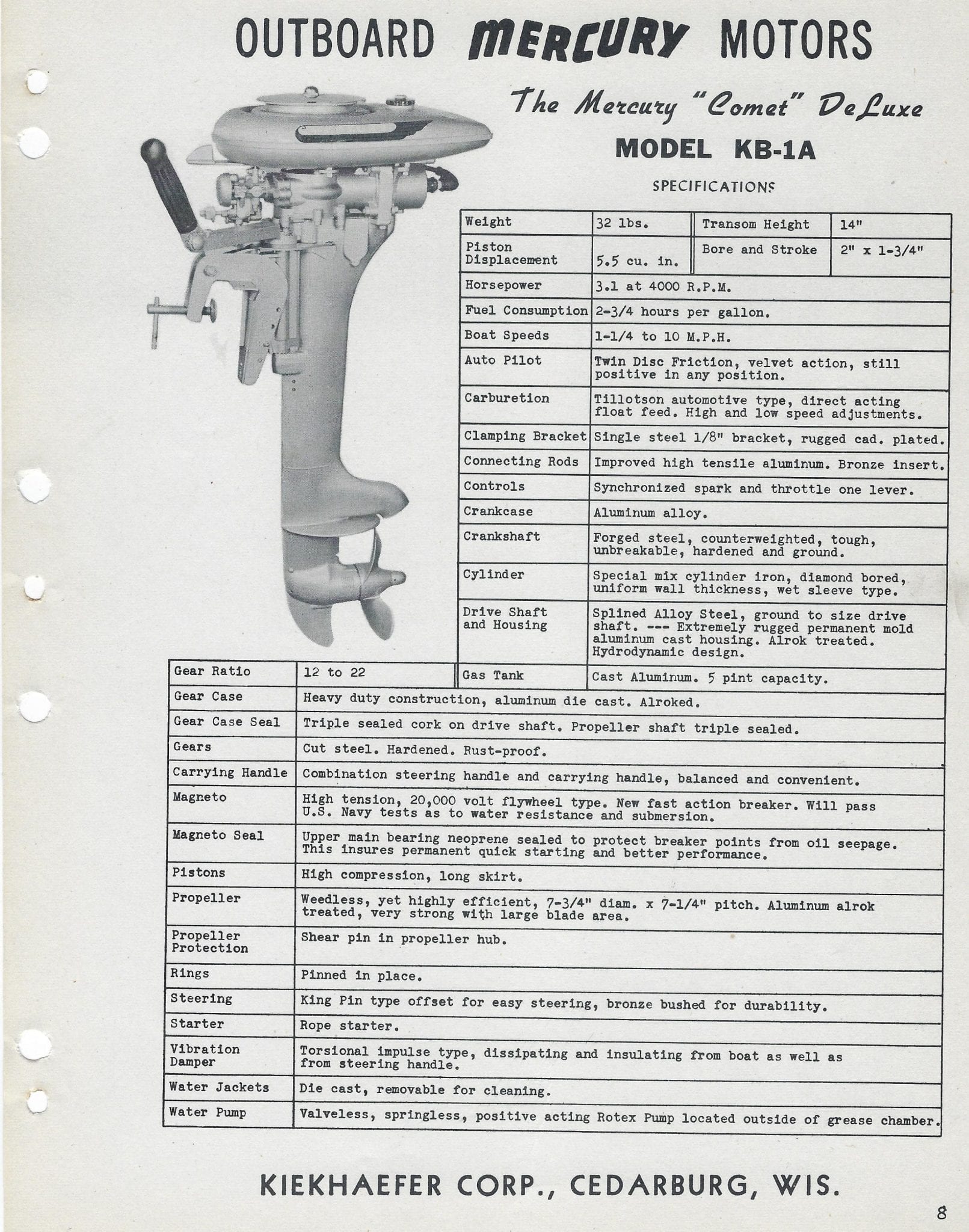

March 18, 2020 at 10:58 pm #1977031941-42 Mercury COMET Factory Instructions.
Can be found under “Technical” on site
We don’t have a dedicated “mercury” section yet?https://aomci.org/forums/topic/mercury-comet-instructions-1941-42/

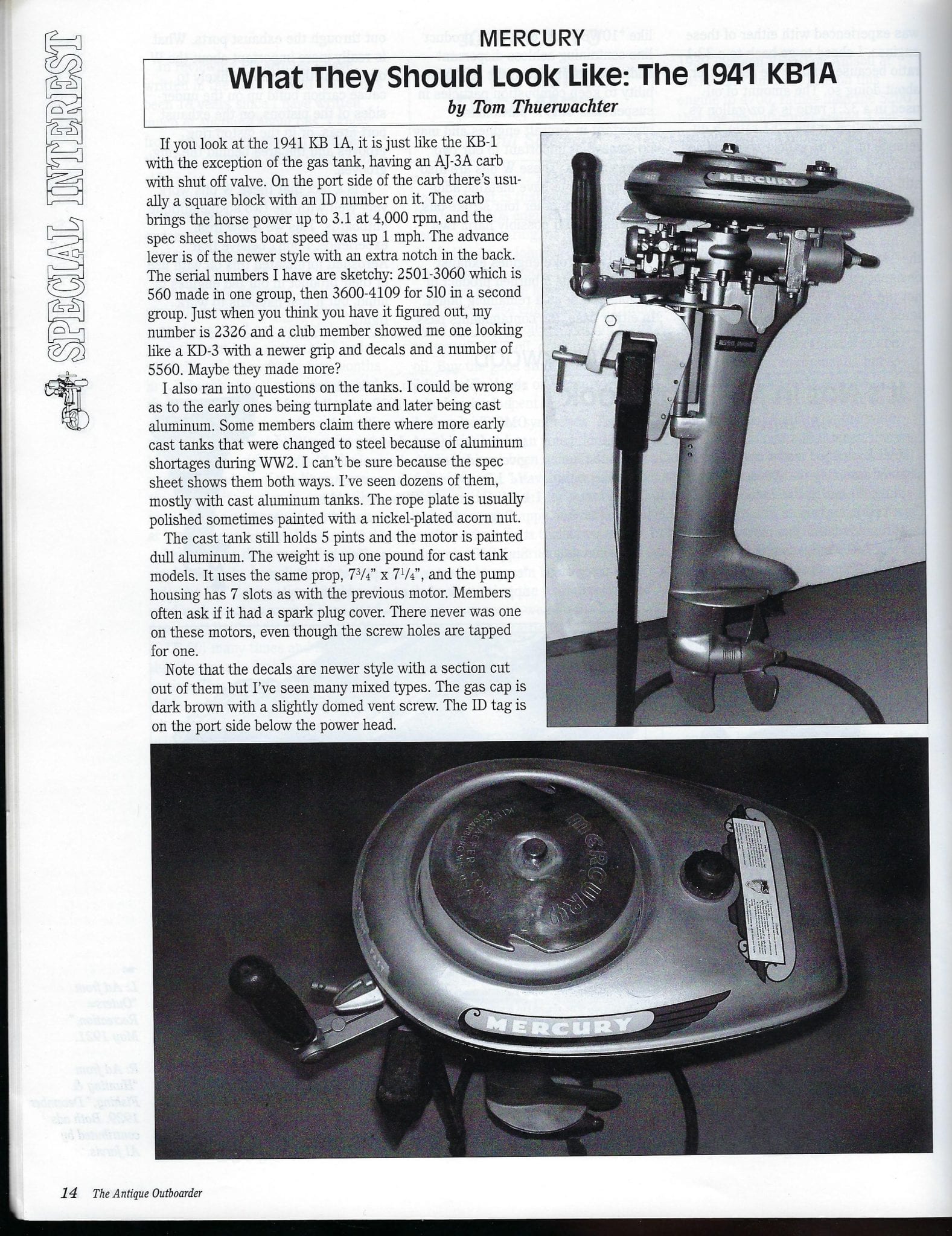

A Many Thanks to “Tom Thuerwachter” for his many great articles in AO!
-
