40HP Scott Atwater 1957

[joesnuffy]

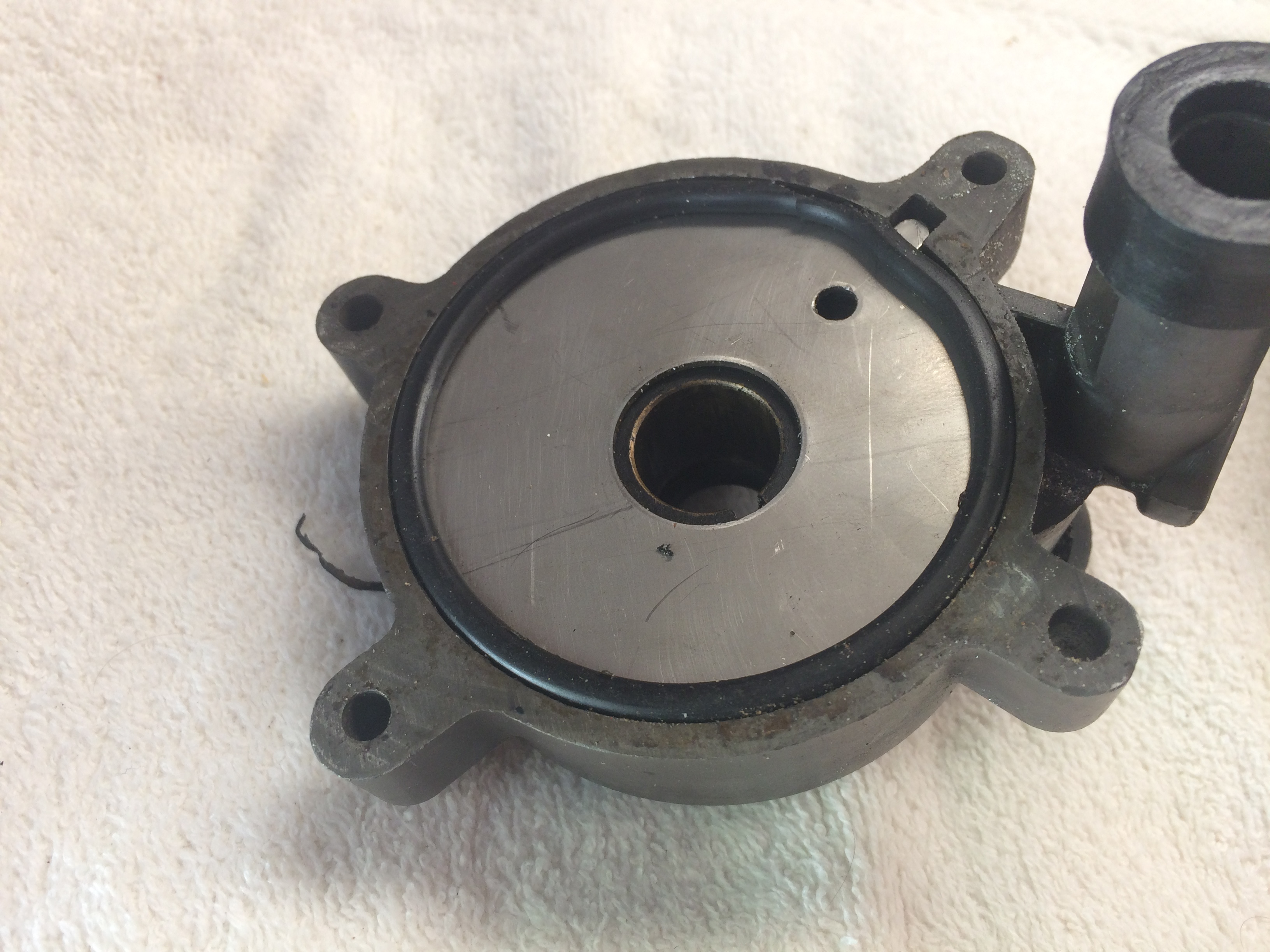

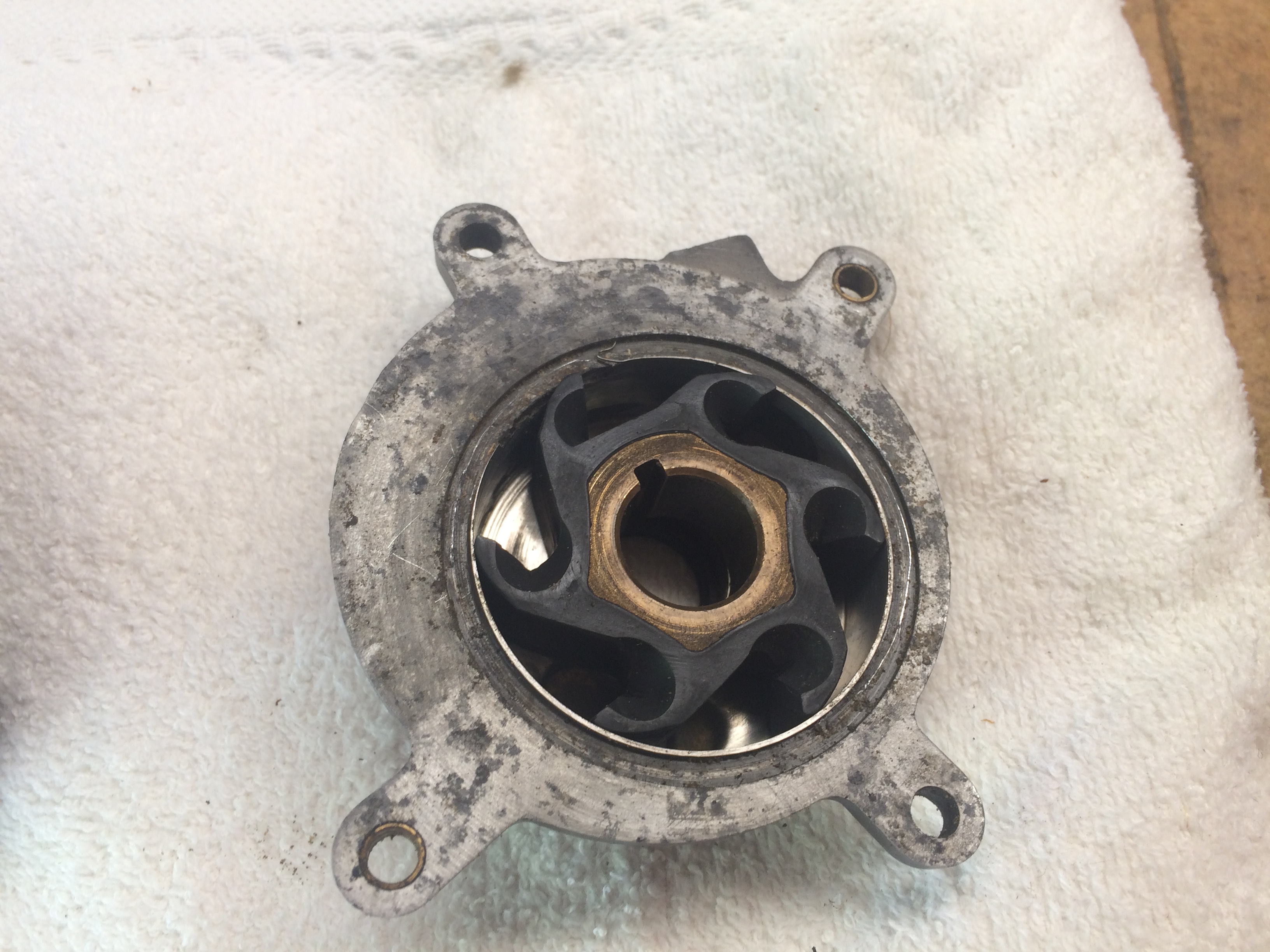

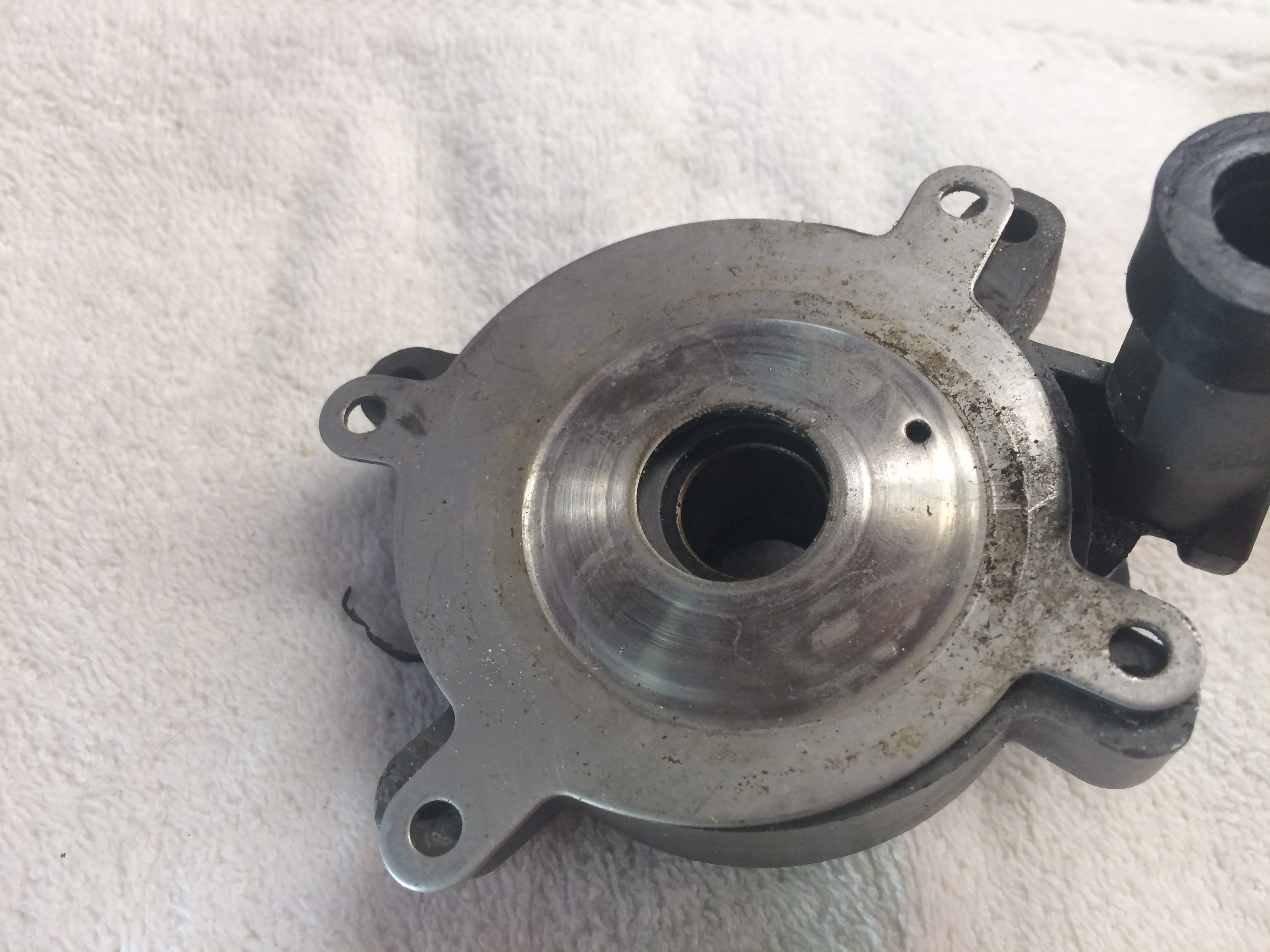

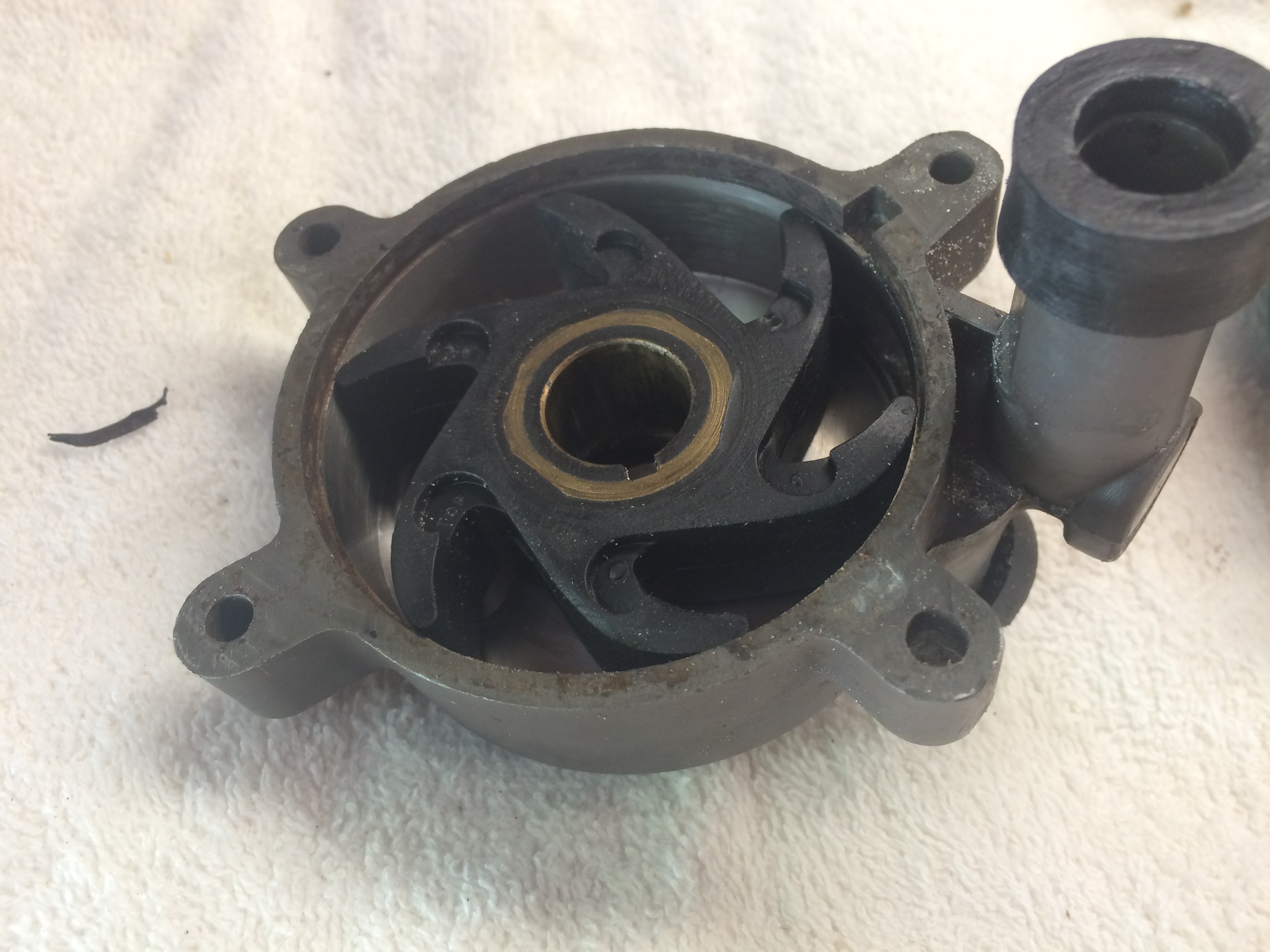

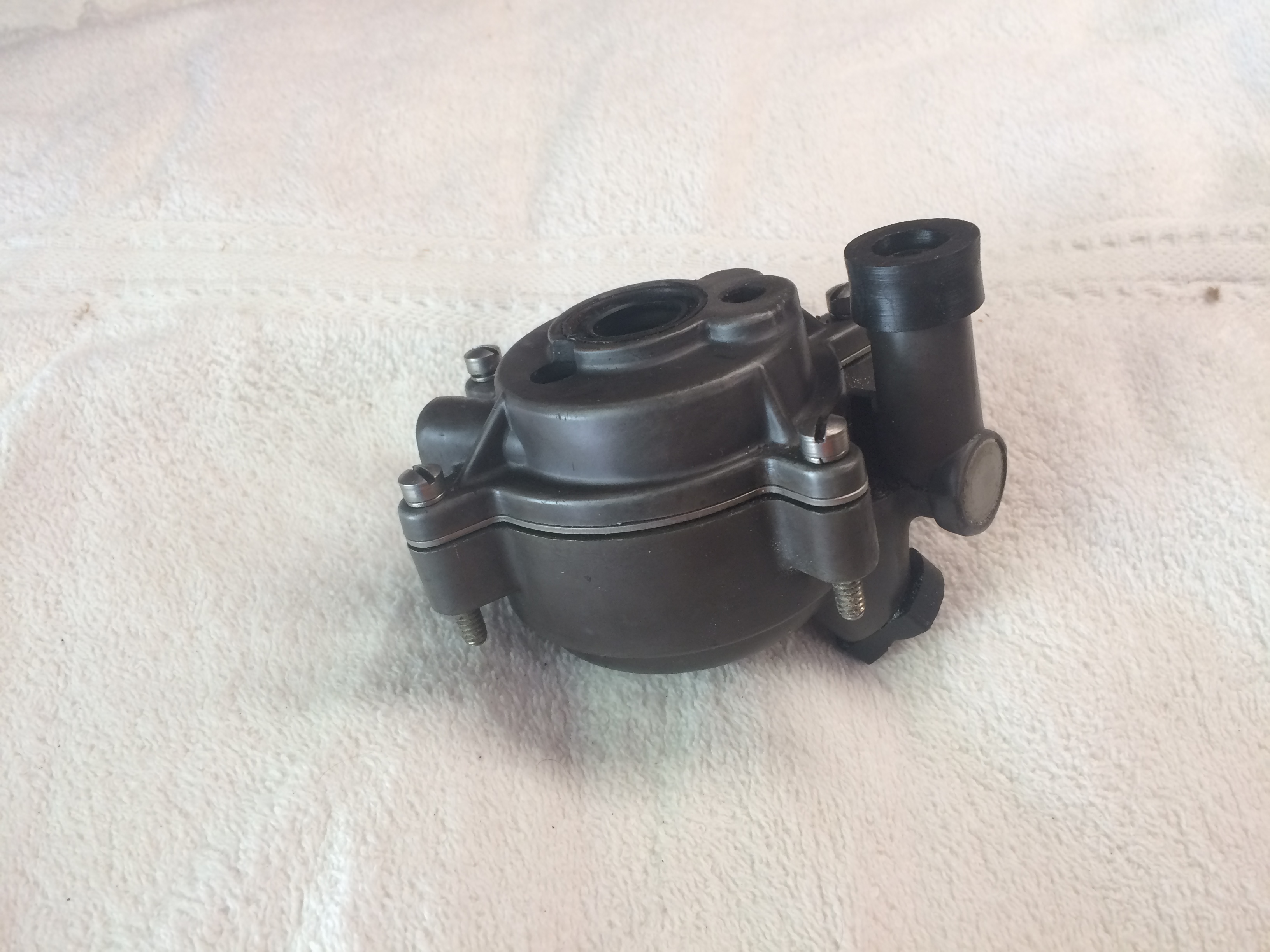

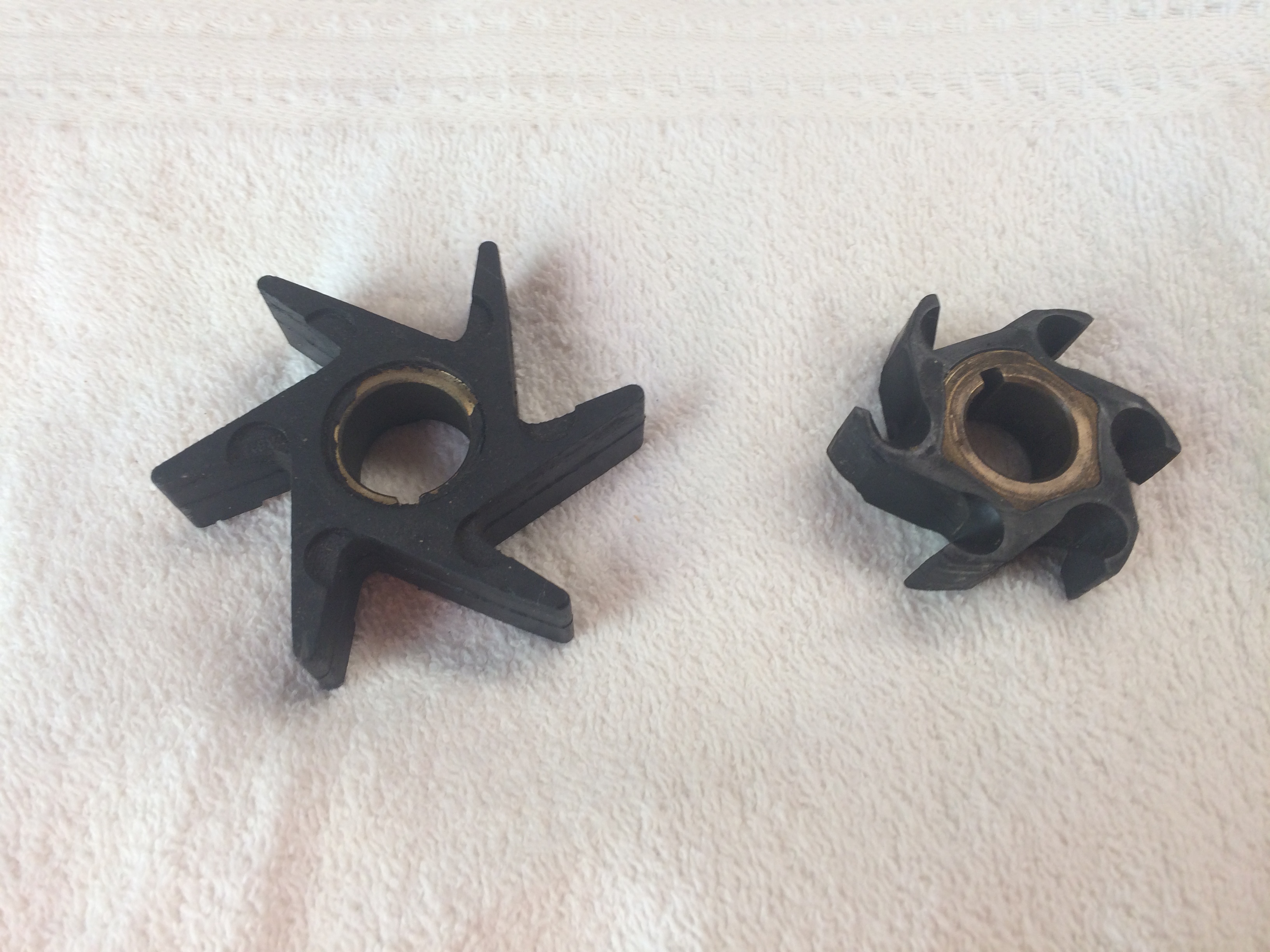

I didn’t get a chance to pull the seal yet to get measurements helping with the spring cleaning today but I did manage to take a few pics of the water pump its a strange set-up. I wouldn’t have thought it had a bailamatic in this motor but it did. 2 different sized impellers one larger one for the engine and one smaller one for the bailamatic. They are consolidated in the pump assembly with the smaller above the larger. I thought some folks would find this set-up interesting. I have worked on the bailamatic 7.5hps but both impellers were the same size and right under power head. The impellers on this engine are in the lower foot.

Joe

---

Attachments:

[retiredoz]

That’s the McCulloch influence. Bet they got tired of hearing about the earlier PITA setup. I have a ’59 7.5 set up the same way.
