  • September 16, 2018 at 1:16 am #11222
    Crowsbeak
    Participant

      US Member

      I’m working on restoring a 1953-54 15012 15 hp super fastwin serial number 14495 (not sure if that serial number range falls in 53 or 54). I am planning to replace the lower seal. I found a parts manual for a 1955 super fastwin models 15014 and 15015 (thank you Gary!) and that mmanual shows the gasket for those model numbers as a 203694. Is that the correct part number for the 15012 as well? Additionally I am looking for a bypass cover to mount a fuel pump on if someone has one they could part with see link below.

      viewtopic.php?f=69&t=18125

      Thank you,

      Crowsbeak

      1954 Evinrude 7.5 HP
      1954 Evinrude 15 HP
      1954 Gale 12 HP
      1955 Johnson 10 HP
      1956 Johnson 10 HP
      1956 Gale 12 HP
      1956 Evinrude 5.5 HP
      1958 Johnson 7.5
      1960 Evinrude 18 HP
      1973 Johnson 6 HP

      September 16, 2018 at 1:37 am #82933
      david-bartlett
      Participant

        Crowsbeak,

        Your serial # says it is a 1953.

        The 1953-54 motors use two gaskets instead of 1 like late motors. One is thicker than the other. Part #’s 302232, and 303138.

        September 16, 2018 at 1:50 am #82937
        Crowsbeak
        Participant

          US Member

          Thank you David for the quick reply and great info! My 1953-1954 Gale 12 HP GG9016A motor had the two gaskets you mention and did not have a lower powerhead seal. Before I needlessly remove the powerhead does this motor have the seal as shown in the 1955 manual?

          Thank you,

          Crowsbeak

          1954 Evinrude 7.5 HP
          1954 Evinrude 15 HP
          1954 Gale 12 HP
          1955 Johnson 10 HP
          1956 Johnson 10 HP
          1956 Gale 12 HP
          1956 Evinrude 5.5 HP
          1958 Johnson 7.5
          1960 Evinrude 18 HP
          1973 Johnson 6 HP

          September 16, 2018 at 2:07 am #82942
          david-bartlett
          Participant

            Crowsbeak,

            My 53 parts book does not show a seal.

            September 16, 2018 at 2:20 am #82943
            Crowsbeak
            Participant

              US Member

              Thank you so much David! I can’t wait to tear into this motor. Are there any other gotchas on this motor besides the usual carb, ignition, lower unit seals and impeller?

              The Gale has been great but is very loud. I love my 54 Fleetwin and hope this motor is as quiet as the Fleetwin and as reliable and powerful as the Gale Sea King.

              I have some pictures but I don’t think I have enough posts to be able to post them yet.

              1954 Evinrude 7.5 HP
              1954 Evinrude 15 HP
              1954 Gale 12 HP
              1955 Johnson 10 HP
              1956 Johnson 10 HP
              1956 Gale 12 HP
              1956 Evinrude 5.5 HP
              1958 Johnson 7.5
              1960 Evinrude 18 HP
              1973 Johnson 6 HP

              September 16, 2018 at 2:25 am #82944
              david-bartlett
              Participant

                You are welcome. I love mine. Here is a link to a thread regarding my Fastwin refurb.

                viewtopic.php?f=22&t=11687&hilit=super+fastwin

                September 16, 2018 at 6:47 am #82948
                frankr
                Participant

                  US MEMBER PAY BY CHECK
                  quote crowsbeak:

                  Additionally I am looking for a bypass cover to mount a fuel pump on if someone has one they could part with see link below.

                  viewtopic.php?f=69&t=18125

                  Thank you,

                  Crowsbeak

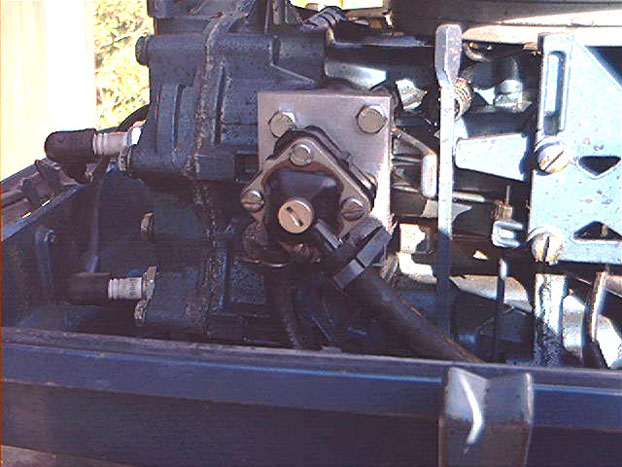

                  If push comes to shove, there is a way of mounting the pump to the existing bypass cover. Fabricate an adapter plate. I used to make these, but gave it up because of lack of interest. Picture shows one on an 18hp. Seems everybody just uses a pulse hose instead.

                  September 16, 2018 at 12:15 pm #82957
                  Crowsbeak
                  Participant

                    US Member

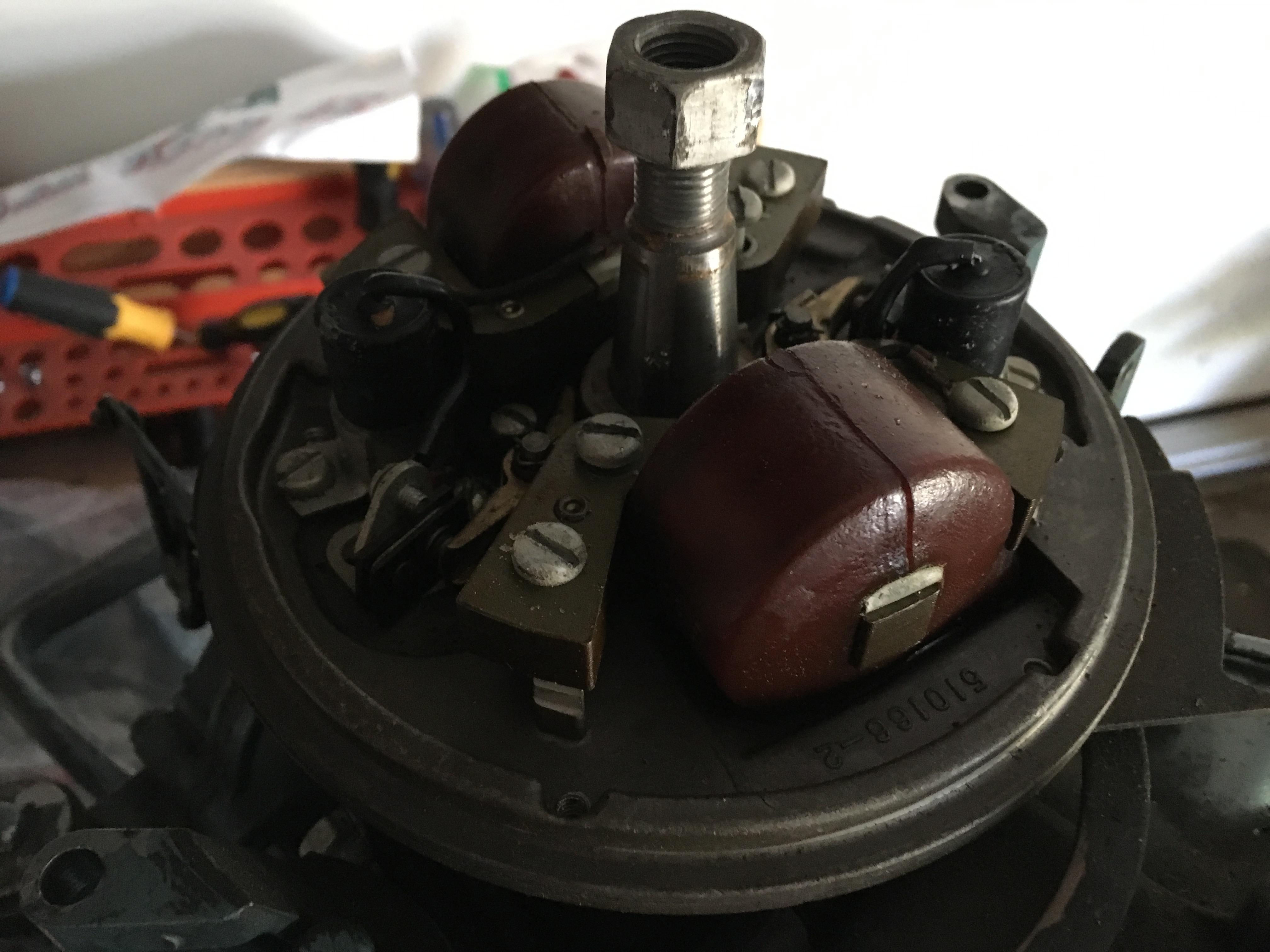

                    David, excellent work on your refurb!! Frank thank you for the tip on the adapter plate. I would like it to look stock if possible but could do the plate or the Briggs pump if push comes to shove. I figured out how to add files. Below is a picture of the Motor and the Mag plate. The original coils were replaced. I found a coil chart Dan had posted and these coils are listed as 1962 possible aftermarket coils. They tested fine but are they reliable or should I replace them? The coating seems pretty soft and almost spongy. The points and condensers are getting changed.
                    Thanks,

                    Crowsbeak

                    1954 Evinrude 7.5 HP
                    1954 Evinrude 15 HP
                    1954 Gale 12 HP
                    1955 Johnson 10 HP
                    1956 Johnson 10 HP
                    1956 Gale 12 HP
                    1956 Evinrude 5.5 HP
                    1958 Johnson 7.5
                    1960 Evinrude 18 HP
                    1973 Johnson 6 HP

                    September 16, 2018 at 5:03 pm #82976
                    frankr
                    Participant

                      US MEMBER PAY BY CHECK

                      You realize, of course, that no Evinrude had a fuel pump before 1955. So, any pump that you put on it will not look "Stock" to anybody that knows. Not saying not to do it though.

                      September 17, 2018 at 2:05 pm #83034
                      Crowsbeak
                      Participant

                        US Member

                        Frank you are correct it will not be stock. I add fuel pumps just to make it easier to move a tank from motor to motor since I run all my old outboards at 16:1. If I can find a cover it requires a little less fabrication on my end. If not there are many ways to add the pump. 😀

                        1954 Evinrude 7.5 HP
                        1954 Evinrude 15 HP
                        1954 Gale 12 HP
                        1955 Johnson 10 HP
                        1956 Johnson 10 HP
                        1956 Gale 12 HP
                        1956 Evinrude 5.5 HP
                        1958 Johnson 7.5
                        1960 Evinrude 18 HP
                        1973 Johnson 6 HP
