54 Evinrude Fleetwin 7.5 tiller handle control rod gear

Home › Forum › Ask A Member › 54 Evinrude Fleetwin 7.5 tiller handle control rod gear

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • January 31, 2017 at 12:11 am #6233
    Buccaneer
    Participant

      US Member

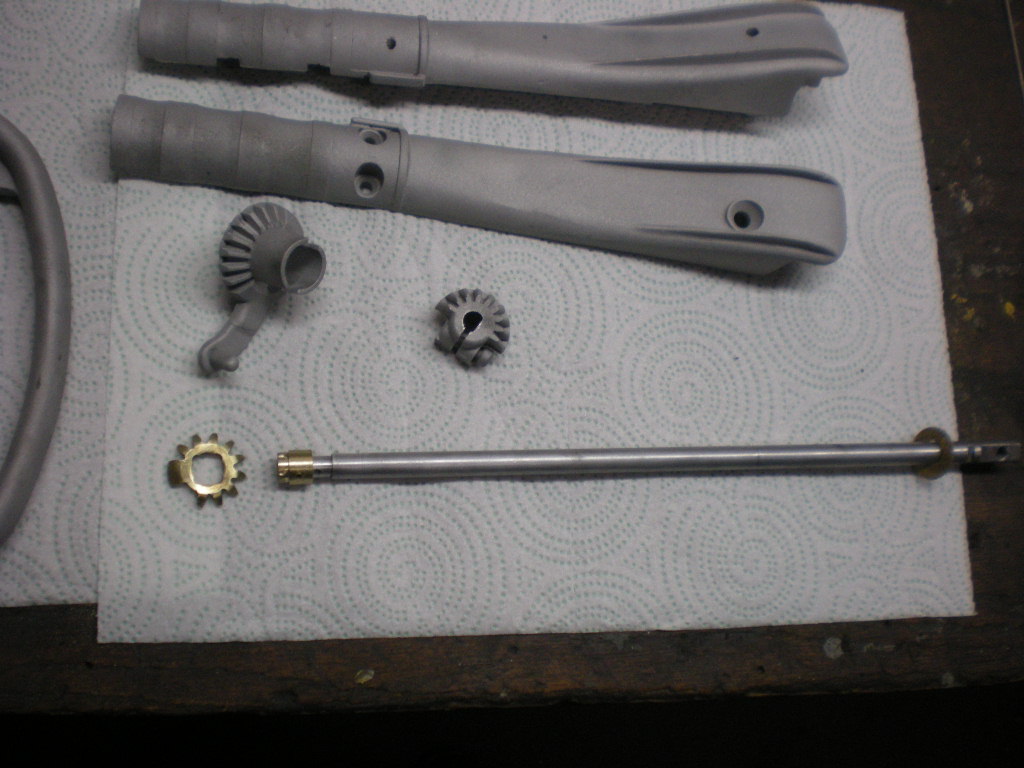

      When I was taking the tiller handle apart, the gear on the control rod
      shaft fell off. The gear was originally peened on a "square" hub, and
      the hub is pinned on the control rod / shaft.
      I have four choices of which way the gear could be peened back in place,
      but guessing I won’t be happy if I guess wrong.

      Does anyone know the correlation with the tab, or wide spot on the
      gear teeth, in regards to the flat on the shaft on the other end?
      Thanks for any enlightenment!

      Attachments:

      Prepare to be boarded!

      January 31, 2017 at 12:26 am #52169
      garry-in-michigan
      Participant

        Lifetime Member

        You see how the handle screws to the shaft. The screw head corresponds to the speed pointer on the handle. With the pointer on start and the motor on start the double space should be down on the handle and the double tooth be down on the motor. Check it out. That handle is also used on the ’56 Sportwin and Fisherman. . . 😉


        January 31, 2017 at 1:54 am #52175
        Buccaneer
        Participant

          US Member

          Gary, the power head is sitting on the bench with no mag on it, but
          going by what you said, I’ll try to simulate the proper position.
          Thanks!!

          Prepare to be boarded!

          January 31, 2017 at 3:02 am #52179
          david-bartlett
          Participant

            Buc,

            I just looked at my OMC motors and Garry is on target as usual. His advice is just what you need to make it right.
