54 Johnson RD15A Pinion

Home › Forum › Ask A Member › 54 Johnson RD15A Pinion

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • January 1, 2020 at 3:36 pm #190419
    olcah
    Participant

      US Member - 1 Year (includes $3 online payment fee)

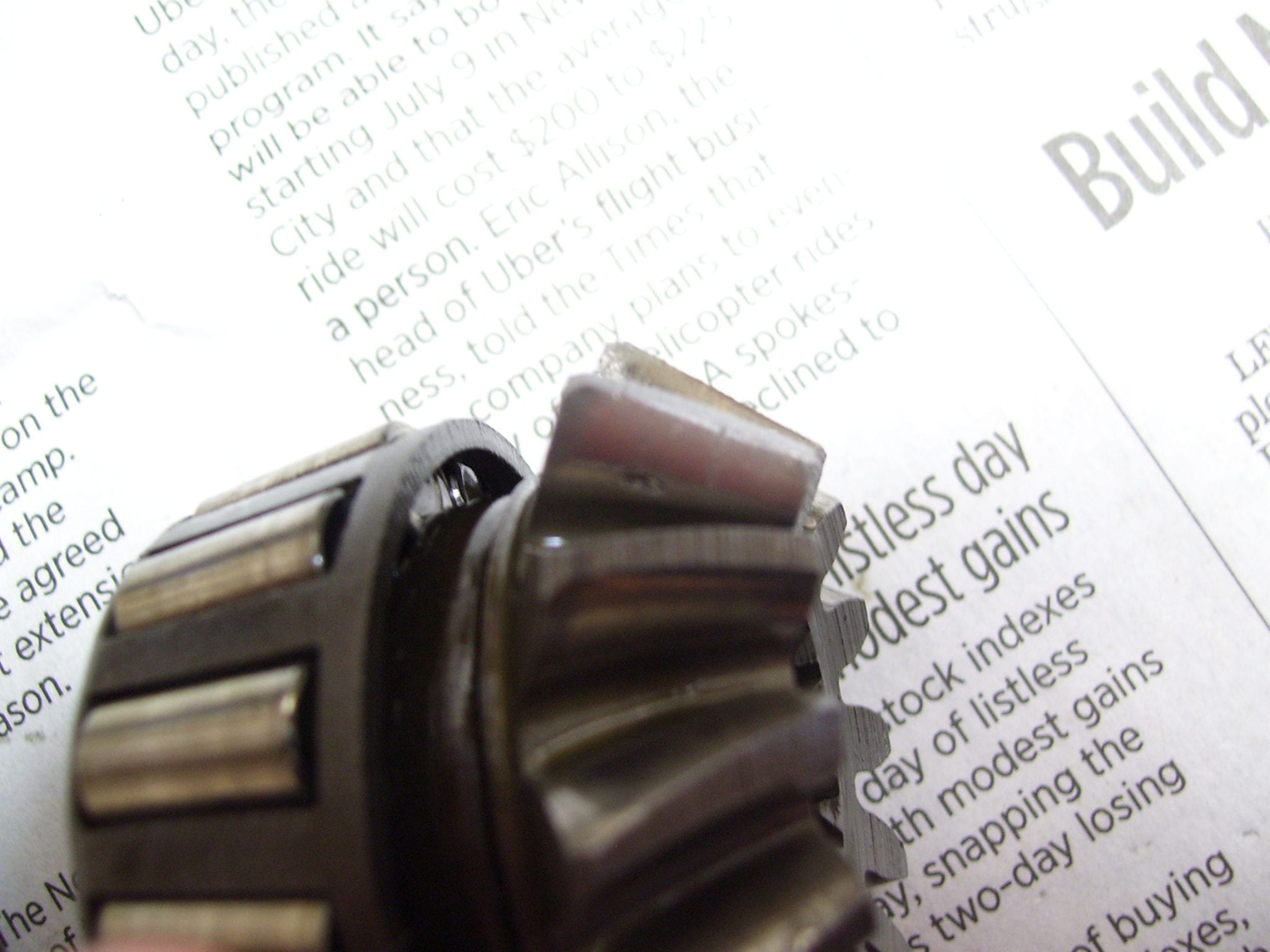

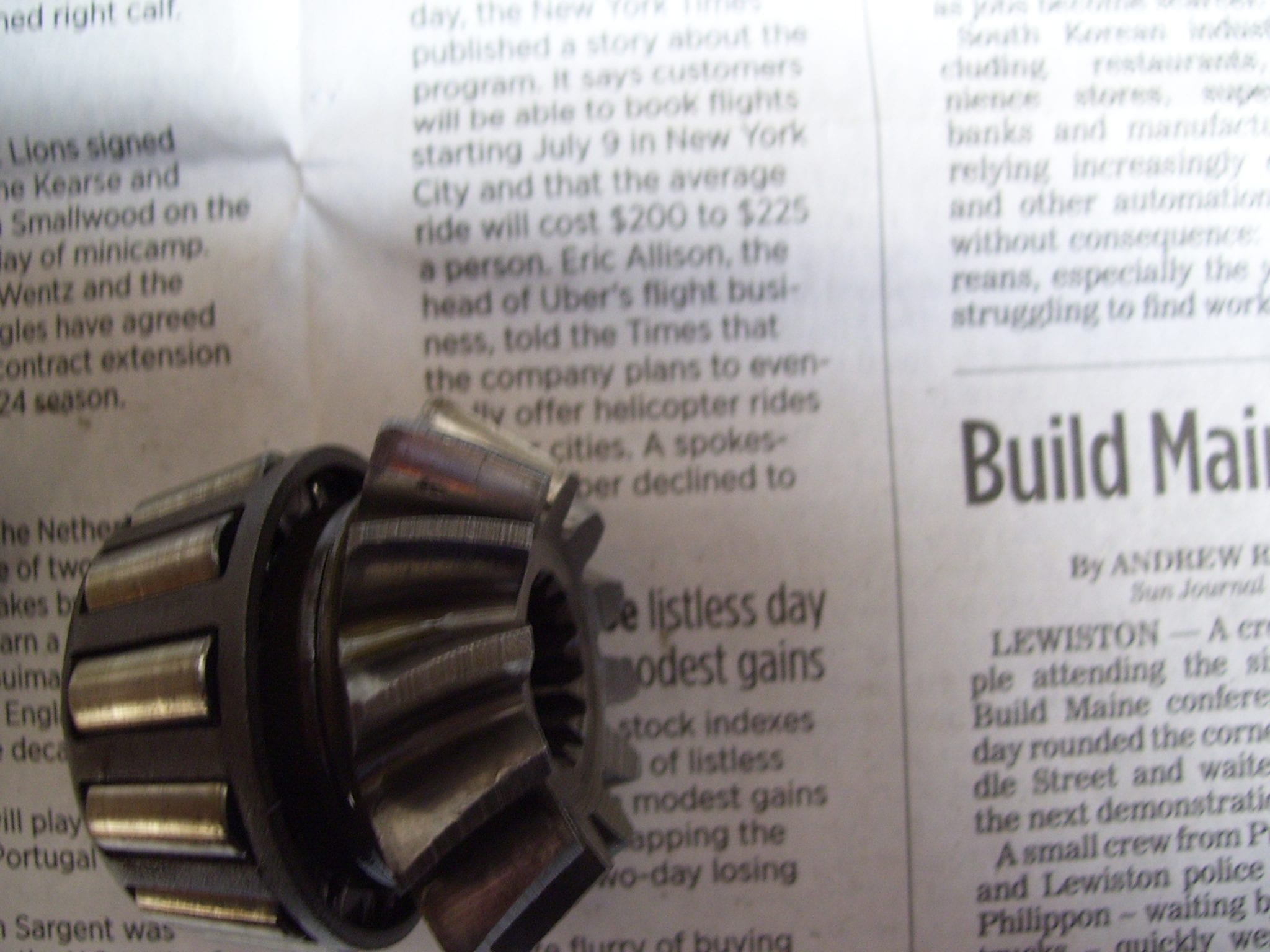

      The face of one tooth of the pinion in this 25 HP Johnson gearbox has damage (photos below). I think it might lead to gearbox failure. I would replace the pinion but can’t find an OMC number for just the pinion alone. Does anyone know a number/availability?
      Thank you.

      100_6318

      100_6319

      January 1, 2020 at 4:19 pm #190432
      frankr
      Participant

        US Member - 1 Year (includes $3 online payment fee)

        Not guaranteeing this, but it MIGHT be 375835 pinion and bearing assy.. Got the number from 1960 Gale 25hp parts book.

        EDIT: Just checked, several of them on e-bay at very reasonable price. Search for the part number 375835.

        • This reply was modified 4 years, 3 months ago by frankr.
        January 2, 2020 at 9:59 am #190512
        olcah
        Participant

          US Member - 1 Year (includes $3 online payment fee)

          Frank, Thank you.

          January 2, 2020 at 7:07 pm #190577
          adam1961
          Participant

            Canada Member - 2 Years

            I’ve run worse than that without any issues. If you find one cheap and want to change it, why not….

            • This reply was modified 4 years, 3 months ago by adam1961.
