  • February 18, 2020 at 7:22 am #195260
    Tom Stack
    Participant

      I am trying to install replacement universal mag plate kit #580871 on Johnson QD-19. When installed per instructions and screws tightened down, the mag plate is locked down and will no longer turn, as it should. Does anyone have experience with these kits and know the solution? I have been told by several others that this kit will work with QD-19. All ignition components installed correctly, just cannot get mag plate to turn when installed per the instructions. Thanks!

      February 18, 2020 at 8:14 am #195262
      olcah
      Participant

        US Member - 1 Year (includes $3 online payment fee)

        I ran into similar problems putting a replacement kit onto a 54 Evinrude 25 HP. In the end I wound up machining the new magplate to make it fit. Since then I have just bought NOS original magplates.

        February 18, 2020 at 8:14 am #195263
        frankr
        Participant

          US Member - 1 Year (includes $3 online payment fee)

          I have installed a number of them without any problem, so I do not know what went wrong with yours.

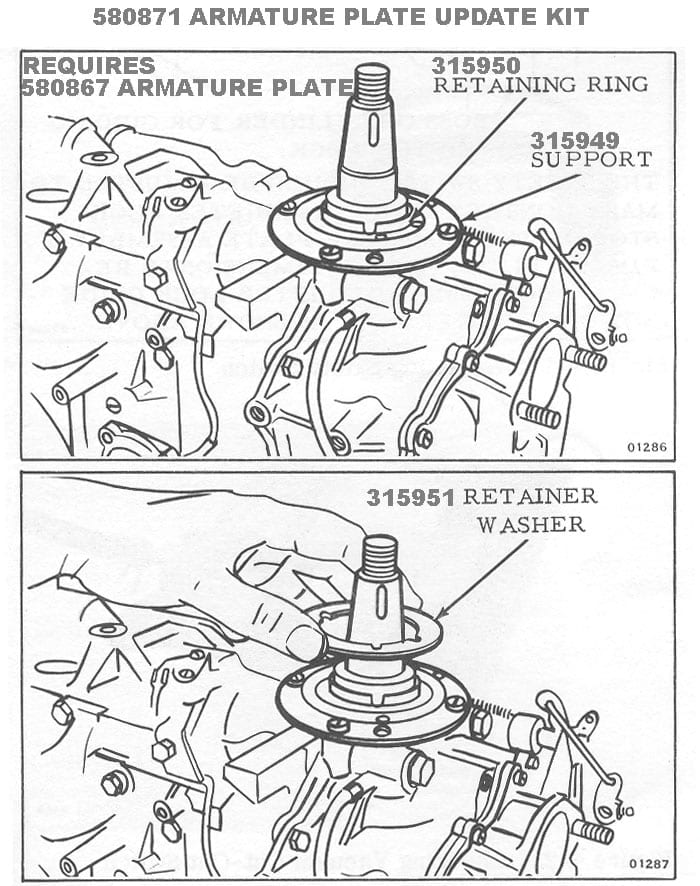

          Armature-Plate-Update-Kit

          February 18, 2020 at 10:57 am #195277
          fleetwin
          Participant

            US Member - 2 Years

            I have little or no experience with these kits….But, are you sure it is the kit that is causing the binding? I have found that some new OEM coils have screws that are slightly too long and cause the mag plate to bind… You might try loosening coil screws slightly to see if this is the issue…

            February 18, 2020 at 12:38 pm #195284
            crosbyman
            Participant

              Canada Member - 2 Years

              install the mag plate and ensure it rotates freely on its own

              then screw down (install) and increase tension on the screws (bolts) for the retaining ring 315590 and see what happens

              I use a sish kabob pick inserted in the bolt holes of the plate to line up the plate and retaining ring bolt holes then I insert the bolts

              if it begins to bind and stops rotating freely ..find out why

              315950 needs the tappered side DOWN if my memory is ok and pictures of parts on the QD21

              Joining AOMCI has priviledges 🙂

              February 18, 2020 at 1:11 pm #195285
              frankr
              Participant

                US Member - 1 Year (includes $3 online payment fee)

                315950 is not the tapered ring used on original set-up. Tom, you aren’t trying to use any of the original parts —-are you? You must use all of the new parts that come with the kit. Yes, even the ground wire because the new mounting rings are non-conductive.

                • This reply was modified 4 years, 2 months ago by frankr.
                • This reply was modified 4 years, 2 months ago by frankr.
                February 18, 2020 at 2:54 pm #195294
                Tom Stack
                Participant

                  Thanks. Only works with old support ring reinstalled. New support ring is too shallow.

                  February 18, 2020 at 4:45 pm #195299
                  frankr
                  Participant

                    US Member - 1 Year (includes $3 online payment fee)

                    Never experienced that problem. So be it, I suppose.
