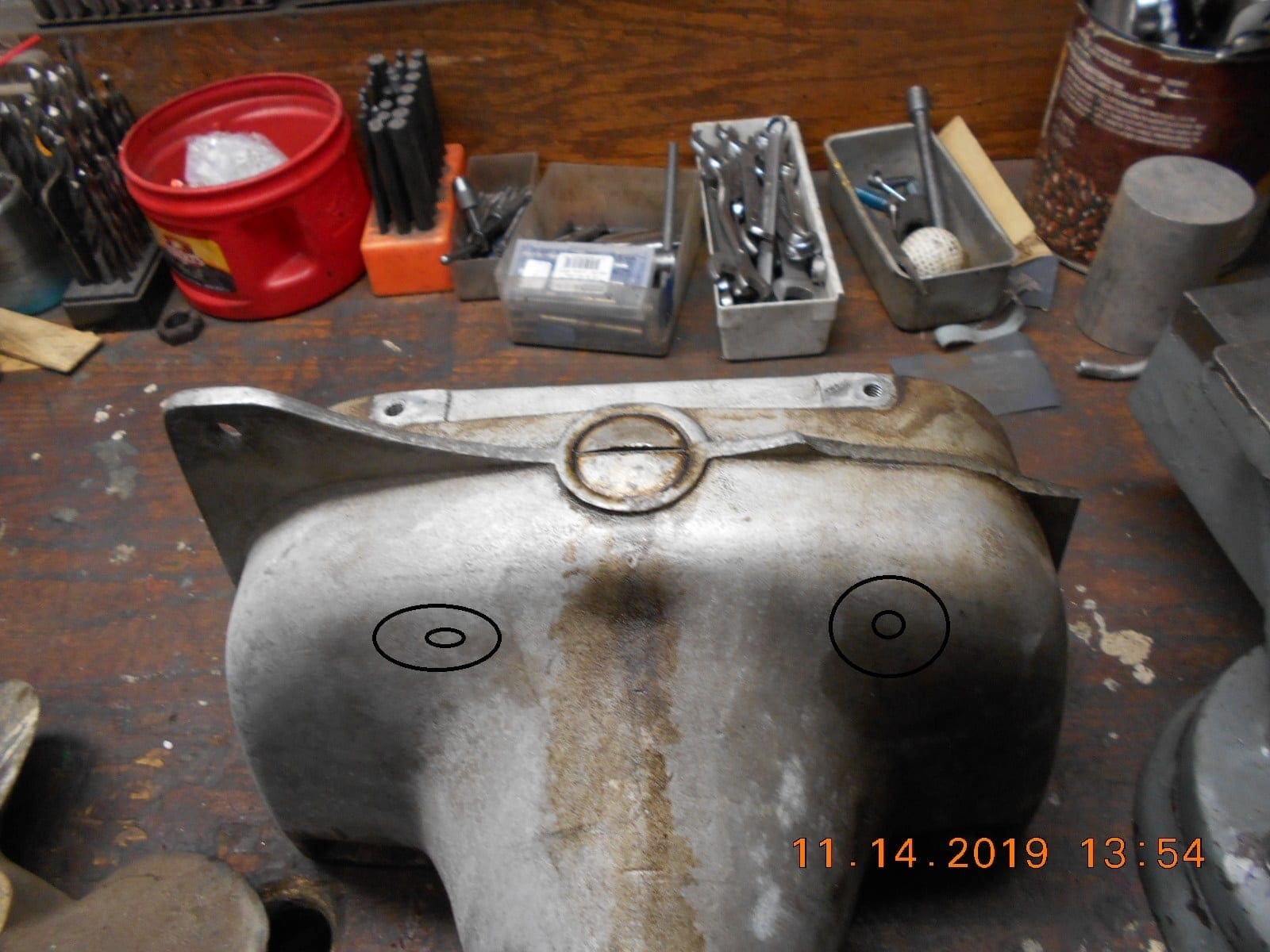

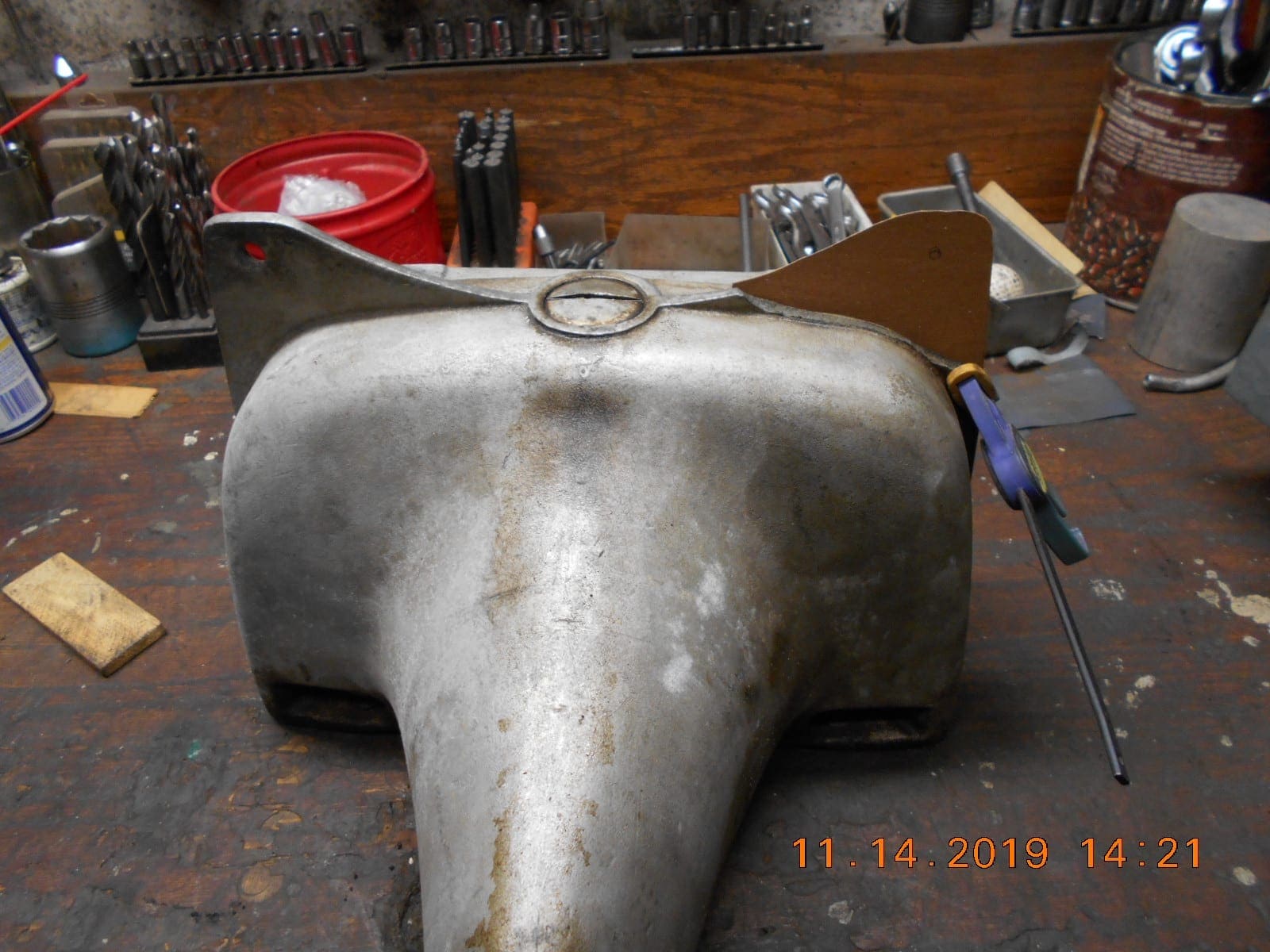

    My poor man’s Speeditwin needs a new ear on the exhaust housing,
    or the other one cut off to match. The best I can do is alumi-braze
    one on, or “try” that is. I’ve only had about a 50% “happy” rating
    alumi-brazing any thing. Anyone do the same “ear” repair with
    alumi-braze, and if so, what were your results? Did you weld the ear
    on from the top side, or bottom side?

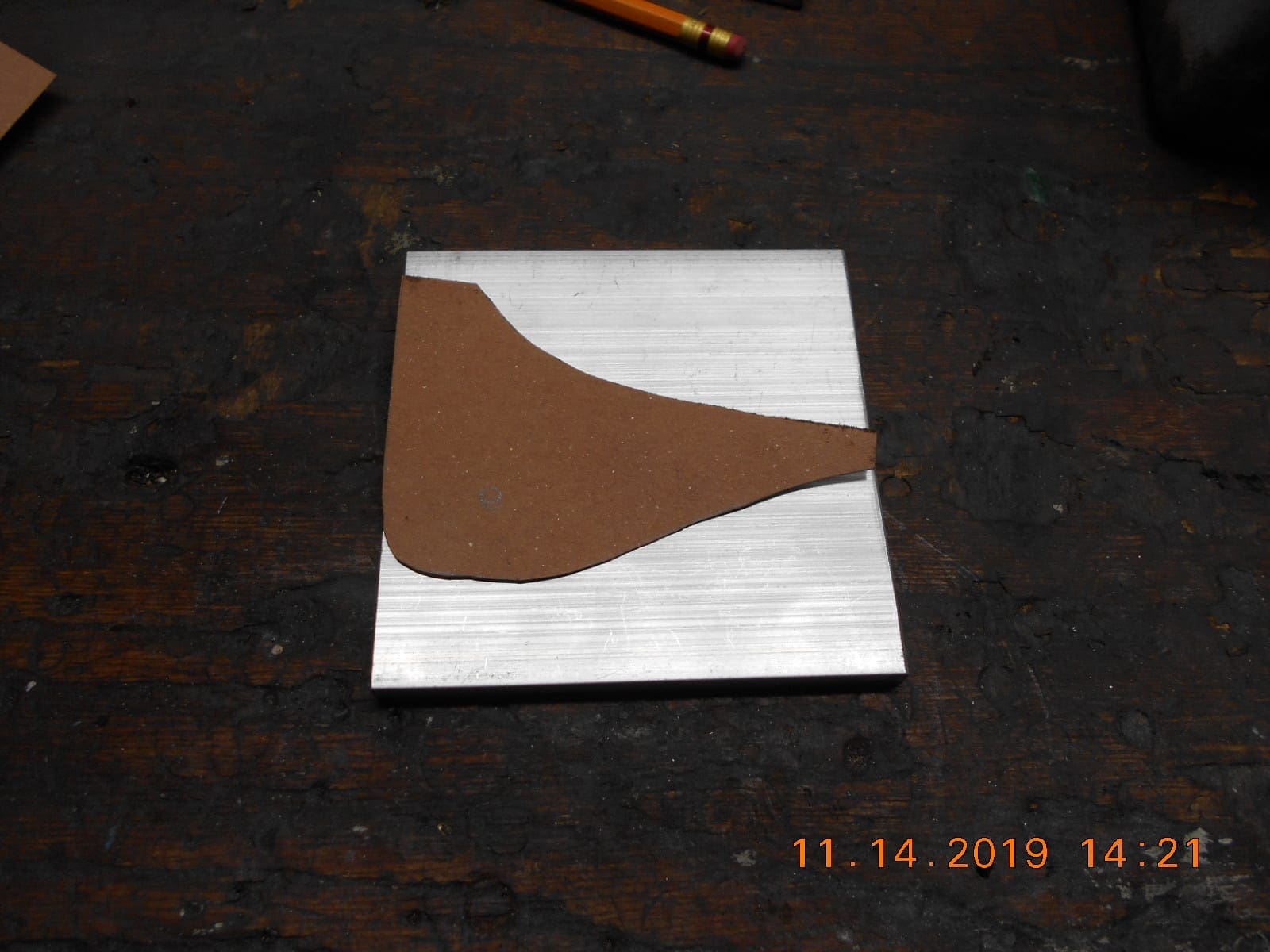

    I just happen to have a scrap of 1/4″ aluminum plate big enough.
    Guess if it don’t work out, it can be an “earless” Speeditwin!

    DSCN8336

    DSCN8340

    DSCN8341

    Prepare to be boarded!

    Attachments:
    Avatar
    garry-in-michigan

    Lifetime Member
    Replies: 3312
    Topics: 30
    #187199

    Ted Marston did all my heavy duty welding. He is a real artist in aluminum. I have a 50% success rate with brazing. I do go through a lot of stainless steel brushes. When the posts break out on the old drum muffler Speeditwins, it causes casting damage that is hard to repare.

    labrador-guy
    labrador-guy

    US Member - 2 Years
    Replies: 227
    Topics: 28
    #187200

    Buc, have you thought about taking it to a weld shop? My propeller fixing guy here in Michigan specializes in fixing skegs. Those guys with heliarc welders do some amazing stuff.

    dale

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3269
    Topics: 910
    #187203

    This summer I broke down and took my Cadillac boat to a “professional” with 40 years experience welding
    to weld up some stress cracks in the hull. It leaked before I ever got it in the water, lol. I had it upside
    down and laying underneath, I could see daylight thru the welds. Not going back to that guy, lol.

    Prepare to be boarded!

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2494
    Topics: 149
    #187214

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3269
    Topics: 910
    #187226

    Nice job Tubs. Only thing I don’t like about using alumi-brazing rod is that you can
    only weld from one side of the piece.

    Prepare to be boarded!

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2494
    Topics: 149
    #187249

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3269
    Topics: 910
    #187259

    Tubs, I’ve done a couple of skegs using alumi-weld and my oxy-propane
    torch set up. Not sure if they’d hold up for every day use, but they
    survived the barrel test!
    The first time I tried putting one on, not thinking, I “vee’d” both sides of the
    metal, brazed up the first side, then of course, flipped it over
    to braze the other side,……. and then melted the first side, lol.
    Now I just make one deep Vee, and dress up the unwelded side with a little JB
    weld before painting.

    Prepare to be boarded!

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2494
    Topics: 149
    #187322

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3269
    Topics: 910
    #187336

    Tubs, I like your ingenious clamping method of holding the new skeg in place for welding!

    Prepare to be boarded!

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2494
    Topics: 149
    #187404
