    Decided to investigate the seal in the prop shaft hub. The face of the hub
    was defaced where I could not see any seam of a seal retainer.
    No amount of prying with a screwdriver was doing any good.
    I chucked the whole gear case cap in the lathe and started
    cutting away the portion over the seal. After a while the aluminum retainer
    popped loose.
    I thought it was a leather seal, but was surprised to see a
    rubber seal with a formed lip.
    I have not looked for possible replacement seals yet.
    Anyone ever find something that works good here?
    The seal OD is 1.625
    Shaft size .984 (or 25 mm)
    Thickness .306

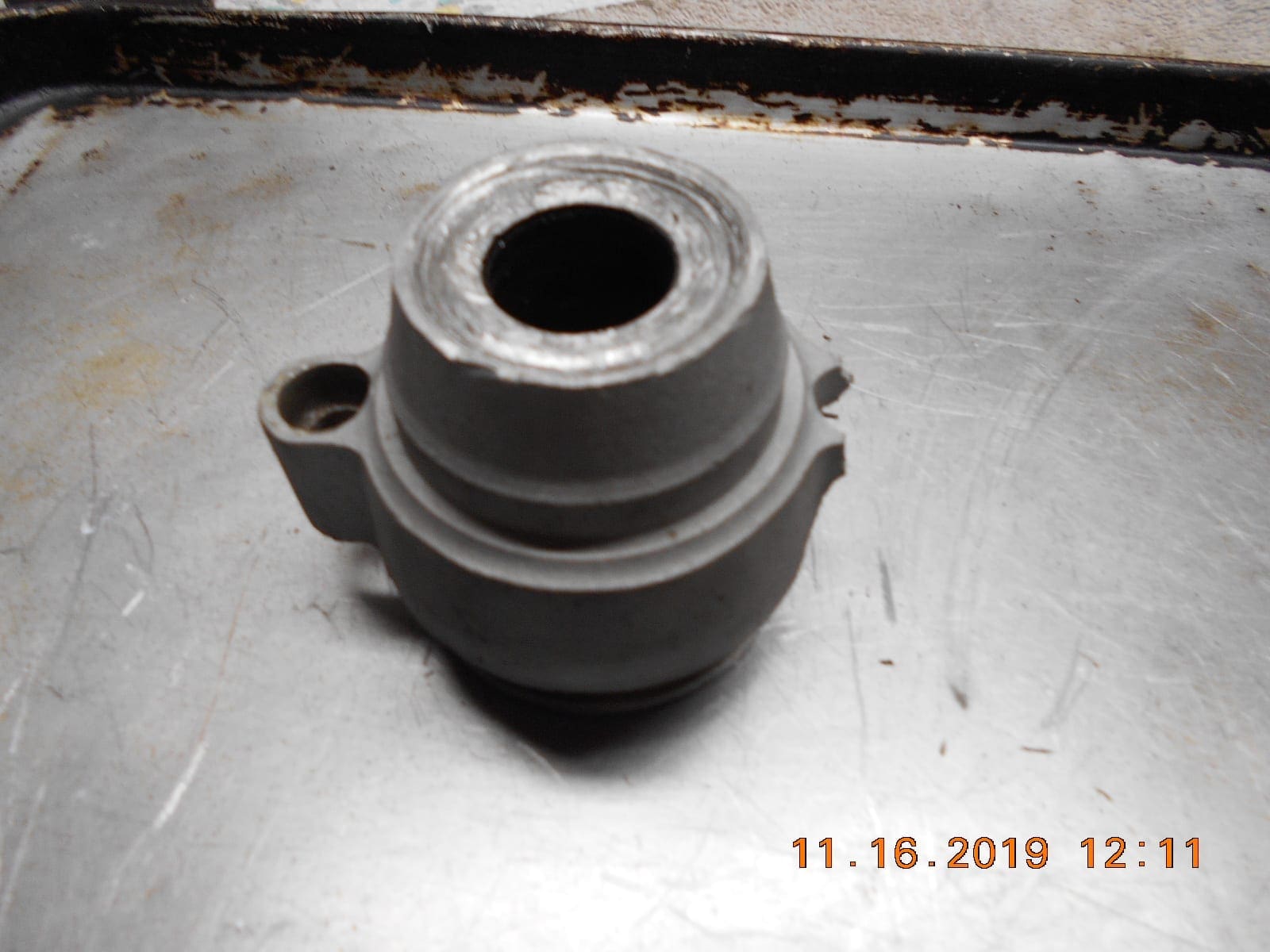

    DSCN8344

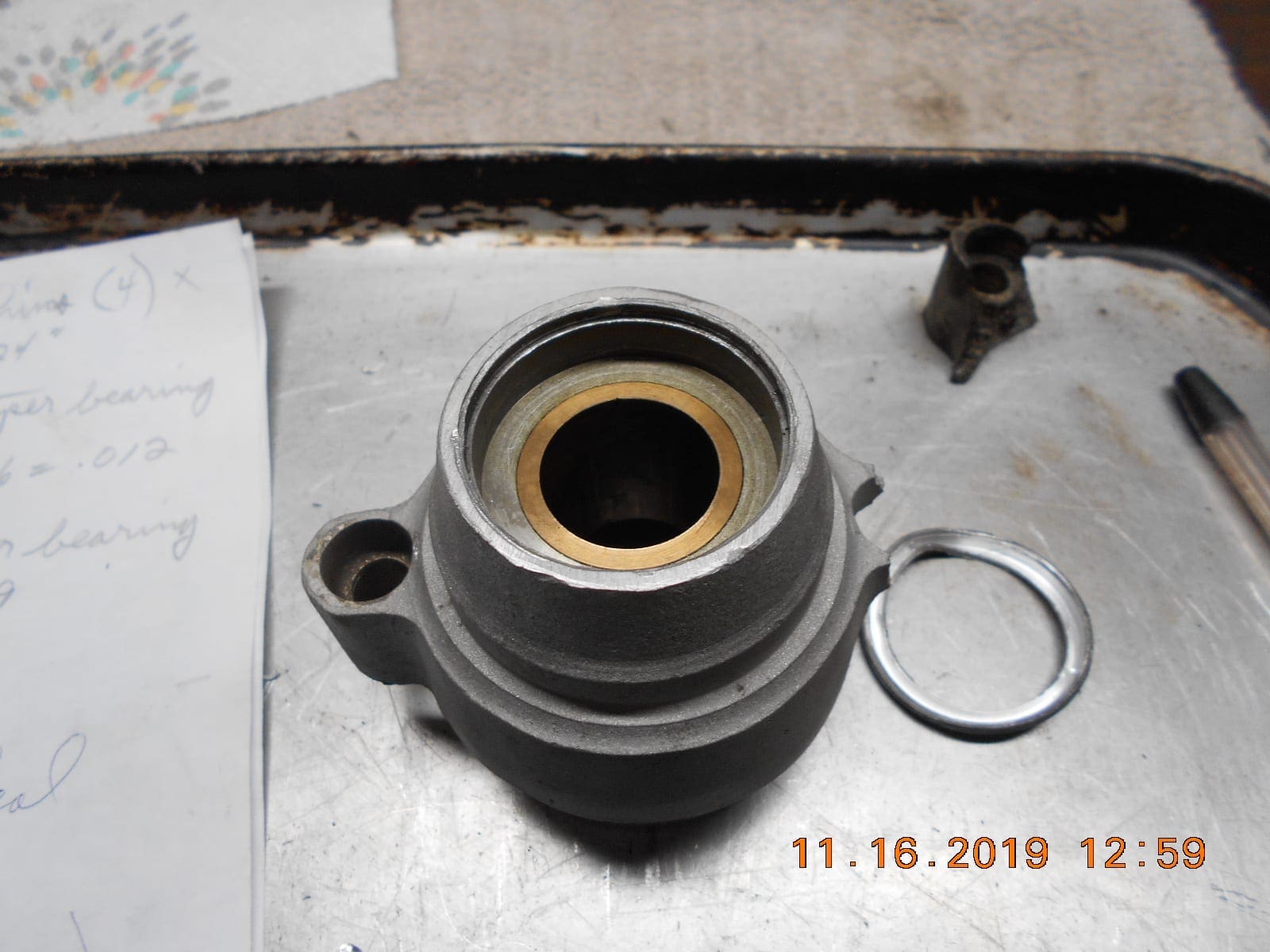

    DSCN8350

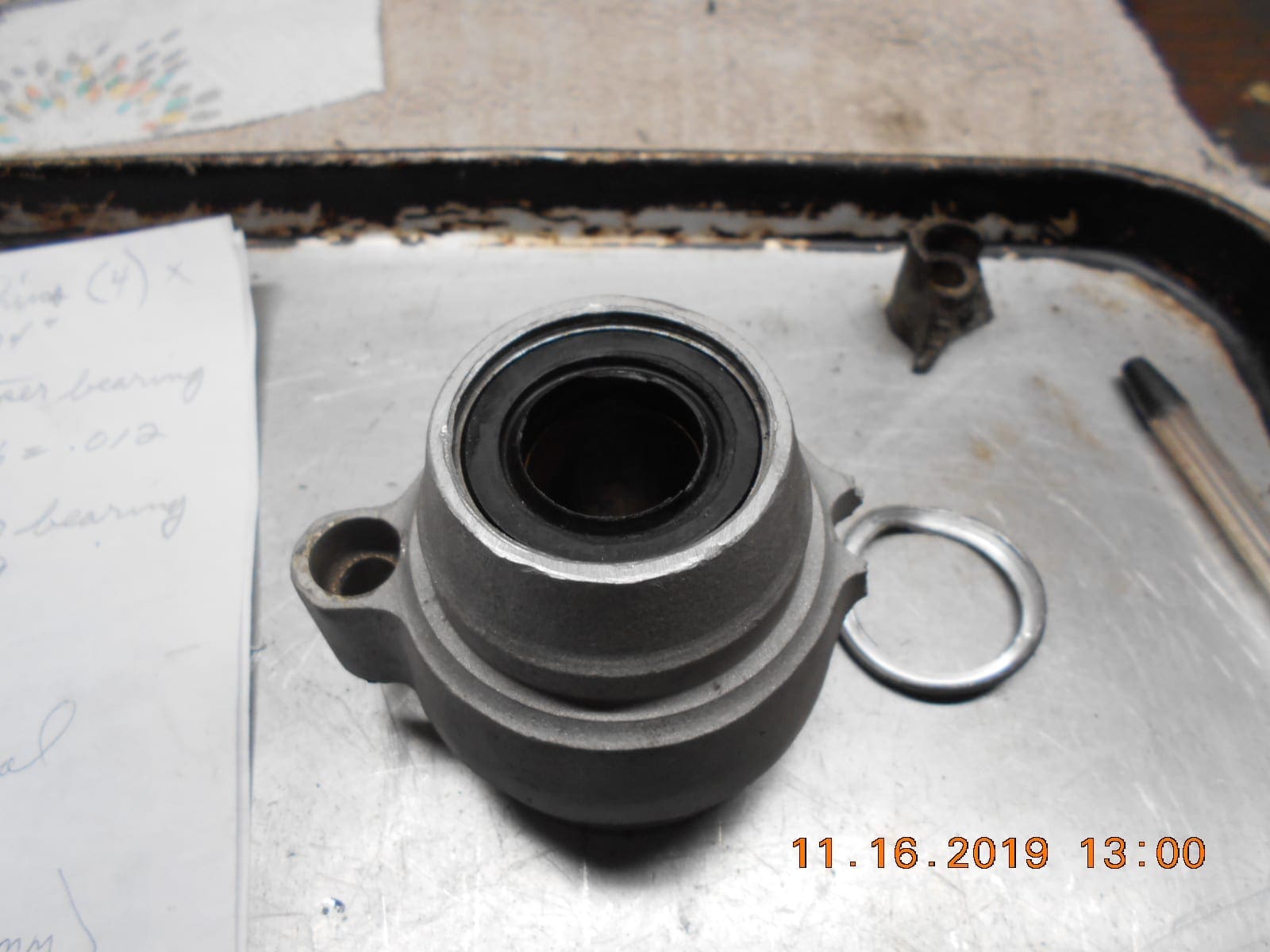

    DSCN8351

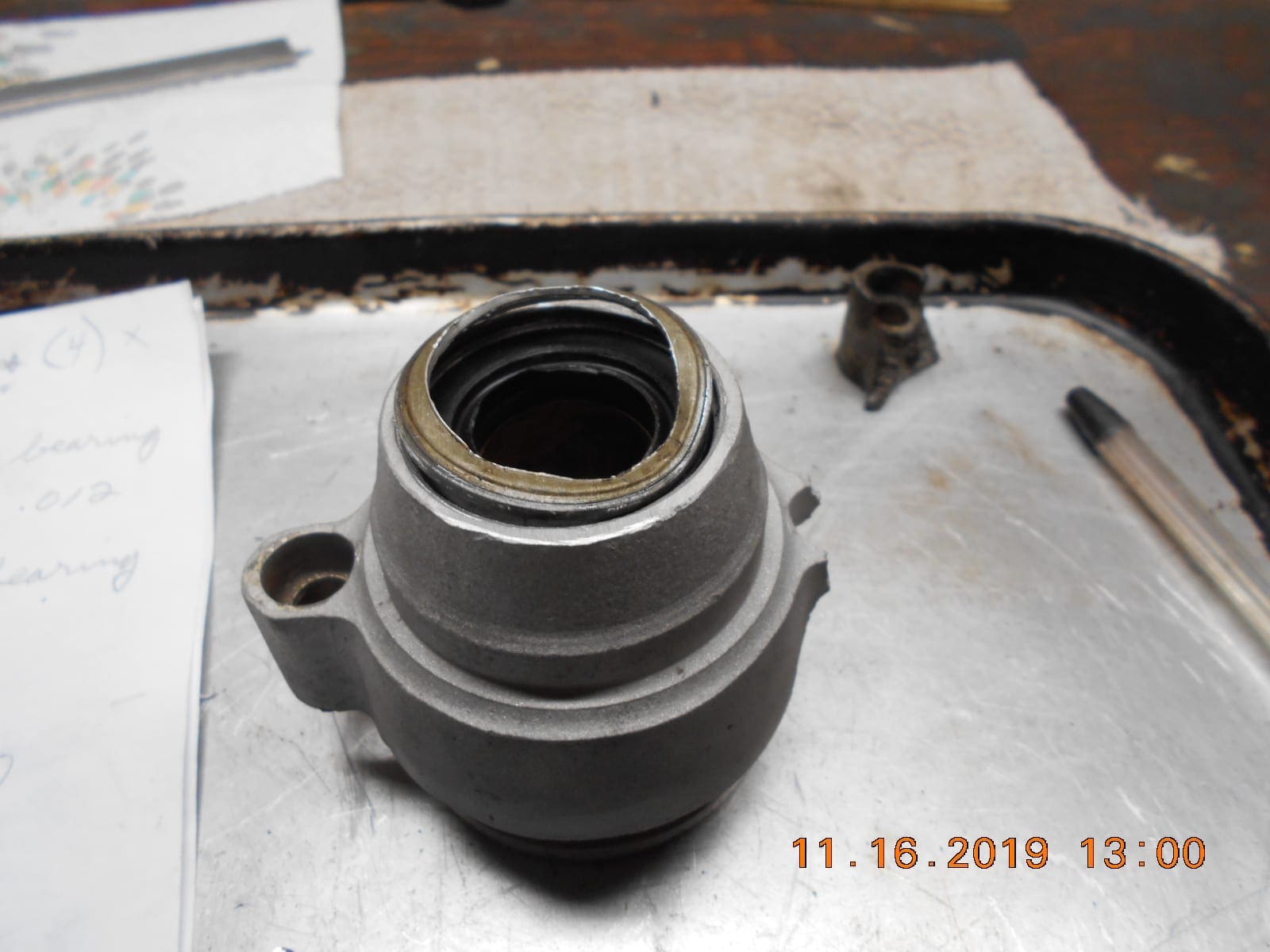

    DSCN8352
