62 Merc Control Cables

Home › Forum › Ask A Member › 62 Merc Control Cables

Viewing 6 posts - 1 through 6 (of 6 total)
  • Author
    Posts
  • September 9, 2016 at 2:12 am #5207
    slim60
    Participant

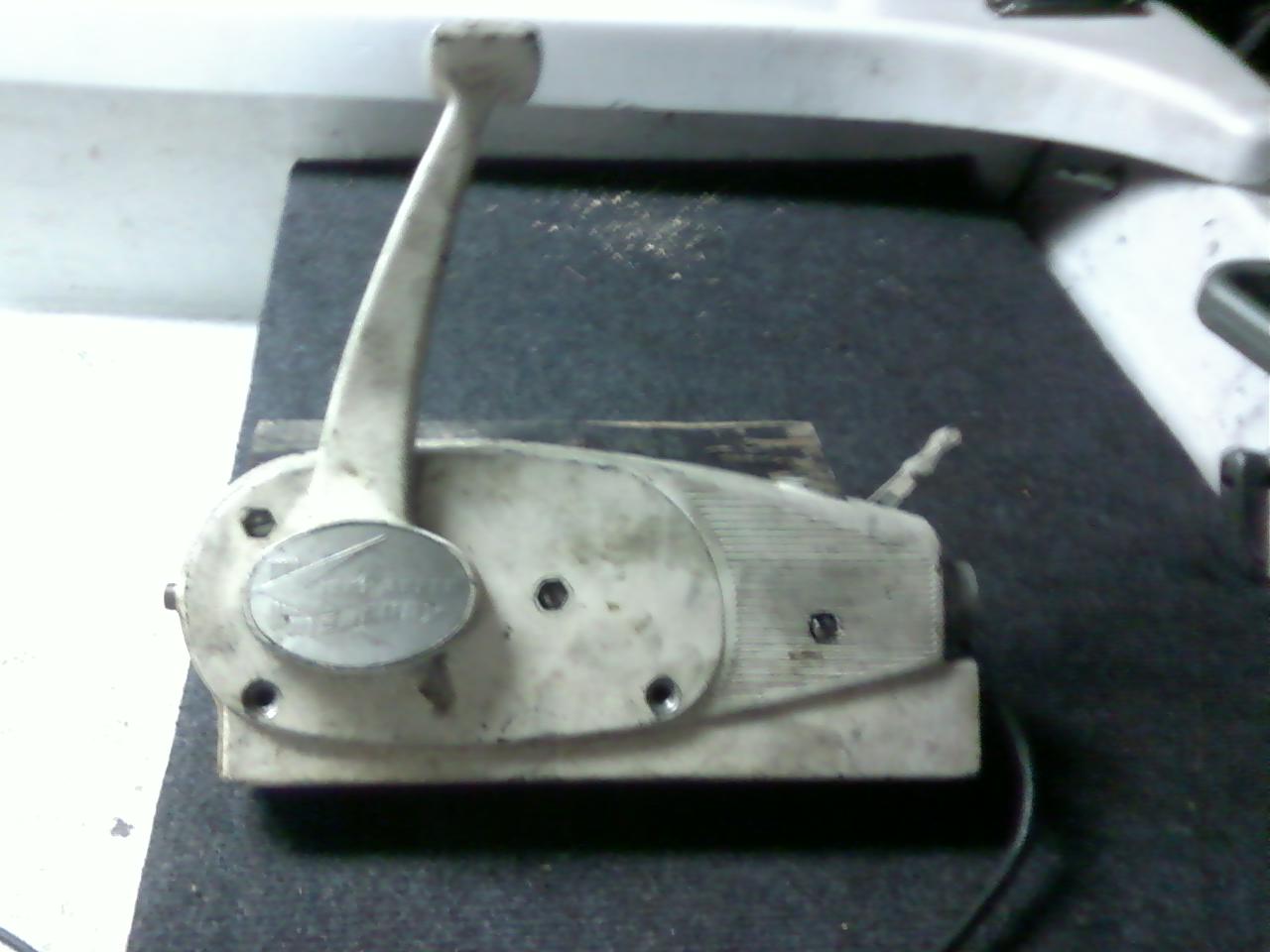

      My boat came with these cables and they work although they are tight because they are too long. 12 feet long. I tried to order from a Merc dealer but they are NLA. He gave me a part number 850716A8 but when I looked it up they were 18 feet long. Any help appreciated finding a pair of 8 foot cables. Thanks Slim

      Attachments:

      September 9, 2016 at 7:00 am #43659
      frankr
      Participant

        US MEMBER PAY BY CHECK

        I’m not a Merc Guy, and I may be wrong, but I think the number after the "A" denotes the length. So A8 should be 8 feet and A18 is 18 feet. Whether or not these are the correct cables for the control, I admit I don’t know.
        http://www.ebay.com/itm/NOS-Quicksilver … rN&vxp=mtr

        September 9, 2016 at 2:51 pm #43677
        outbdnut2
        Participant

          US Member

          Your MErc is a 1962. Teleflex makes a good line of aftermarket replacement cables at reasonable prices. For Mercury, they claim their "CC179XX (600A type)" fits Mercs from 1965 up. For your 1962,, maybe you can still adapt the ends to your motor using some of the hardware you have. Here’s a link and click on the model number for photos. Unfortunately, the shortest are 10 feet. I have used several of their cables for pre-1979 Johnsons with great results:

          http://www.jamestowndistributors.com/us … tion+Guide

          September 10, 2016 at 5:09 am #43720
          slim60
          Participant

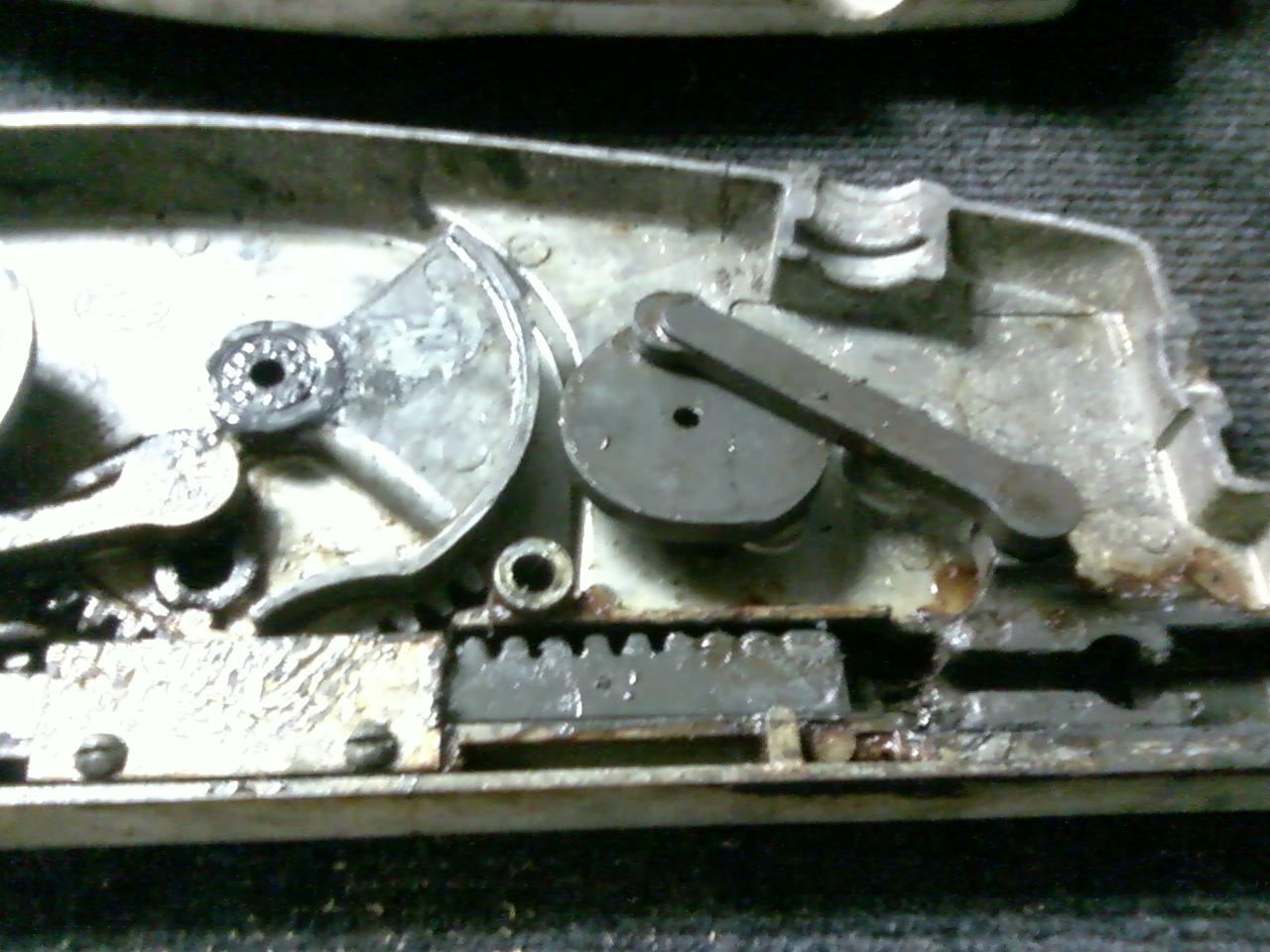

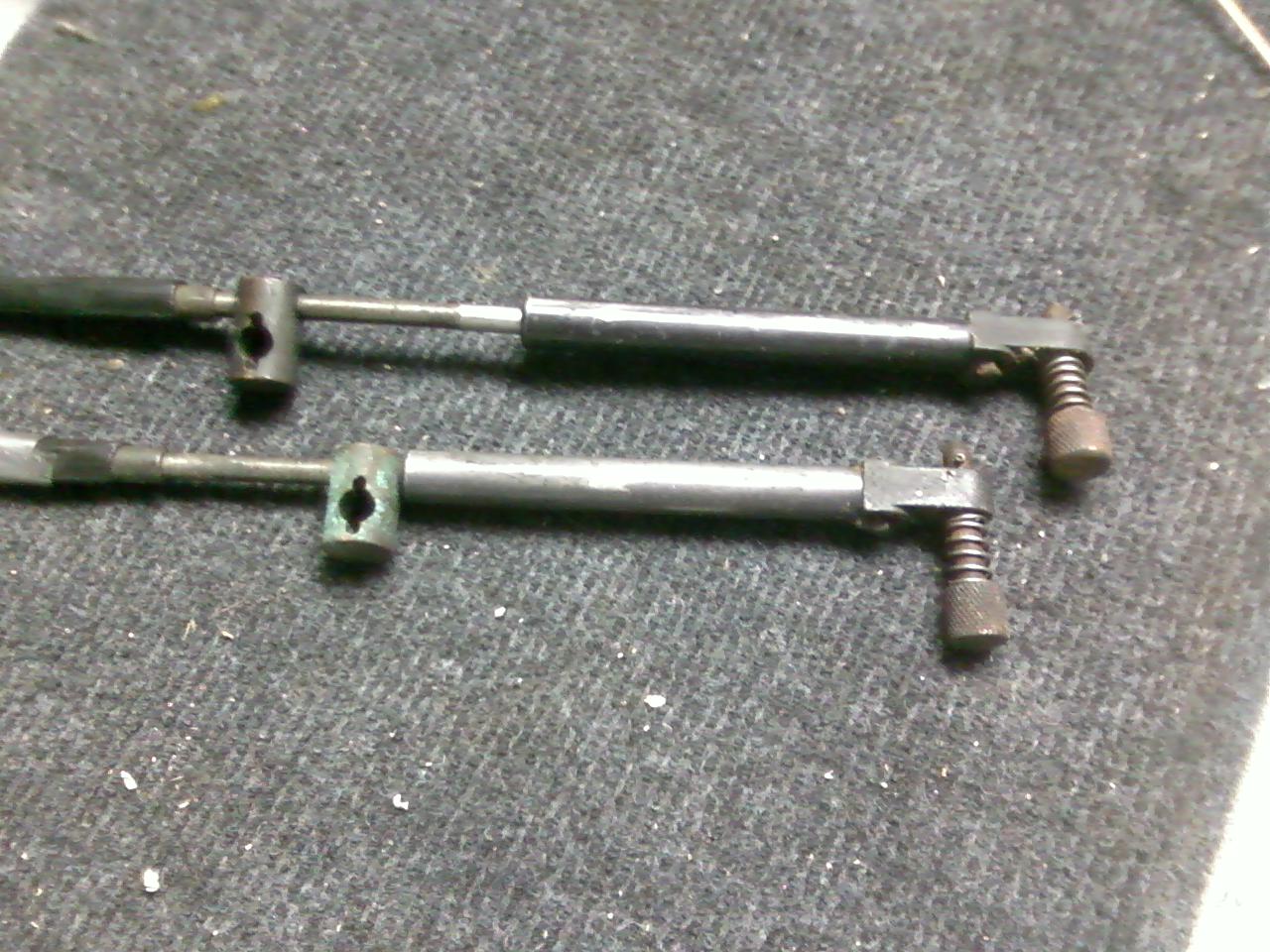

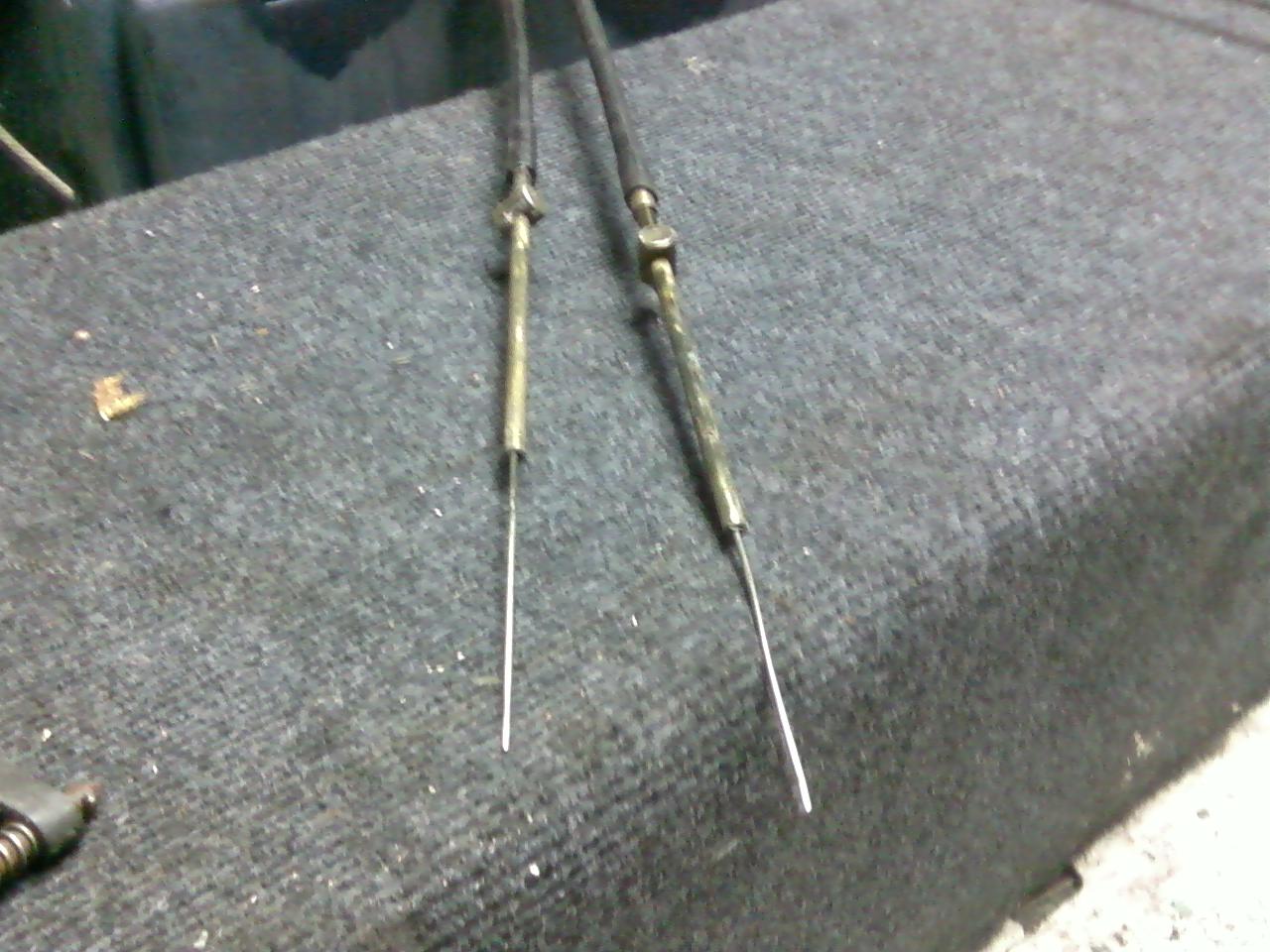

            The control end of the cable is the size of a piano wire and slides through the gear in photo 1. It then slides through a small barrel and is secured with a set screw inside the gear. If the cables shown are thin enough I would have to grind off the edge of it to fit into the gear. I did see a kit for $89 that includes everything. I’ll keep looking. Maybe I should place an ad on our site.

            September 10, 2016 at 10:50 am #43725
            wiscoboater
            Participant

              Slim,
              John Macintosh is a Merc expert and a club member. He sells those cables new. He can fix you up. Open the link below and click on the gold star.
              http://johnsmcintoshvintagemercuryoutboard.com/

              September 11, 2016 at 4:10 am #43784
              slim60
              Participant

                Thanks wannabe; That’s just what I’m looking for.
