  • July 18, 2020 at 11:53 pm #209087
    froggy
    Participant

      US Member

      Do any of you have a wiring diagram that shows what the terminals on the engine end of the red plug control. It is a 1991 with a primer. I am having a heck of a time finding the diagram. From the looks of things I will have an even worse time finding the control box side of the plug. But as the line goes in the poem Casey At The Bat, “hope springs eternal in the human breast”. I haven’t given up yet. Any help would certainly be appreciated. Hope all of you are staying safe.

      July 19, 2020 at 7:10 am #209091
      fleetwin
      Participant

        US Member

        OK, will look for the wiring diagram… Finding a control box with wiring should be easy, it is the standard control box with the big red plug… You can also use a two lever box with separate wiring harness… Perhaps I have misunderstood what you are looking for…D

        1 user thanked author for this post.
        froggy
        July 19, 2020 at 2:24 pm #209149
        froggy
        Participant

          US Member

          The red plug should fit, but the little 9.9 doesnt have all the pins, so I wanted to see if anone had the wiring diagram. However, if the color codes are the same for big and small engines, I can figure it out. Still, if anyone has a box side plug off a 9.9 or 15 1989 – 94 years should work,
          let me know.

          July 19, 2020 at 3:46 pm #209165
          fleetwin
          Participant

            US Member

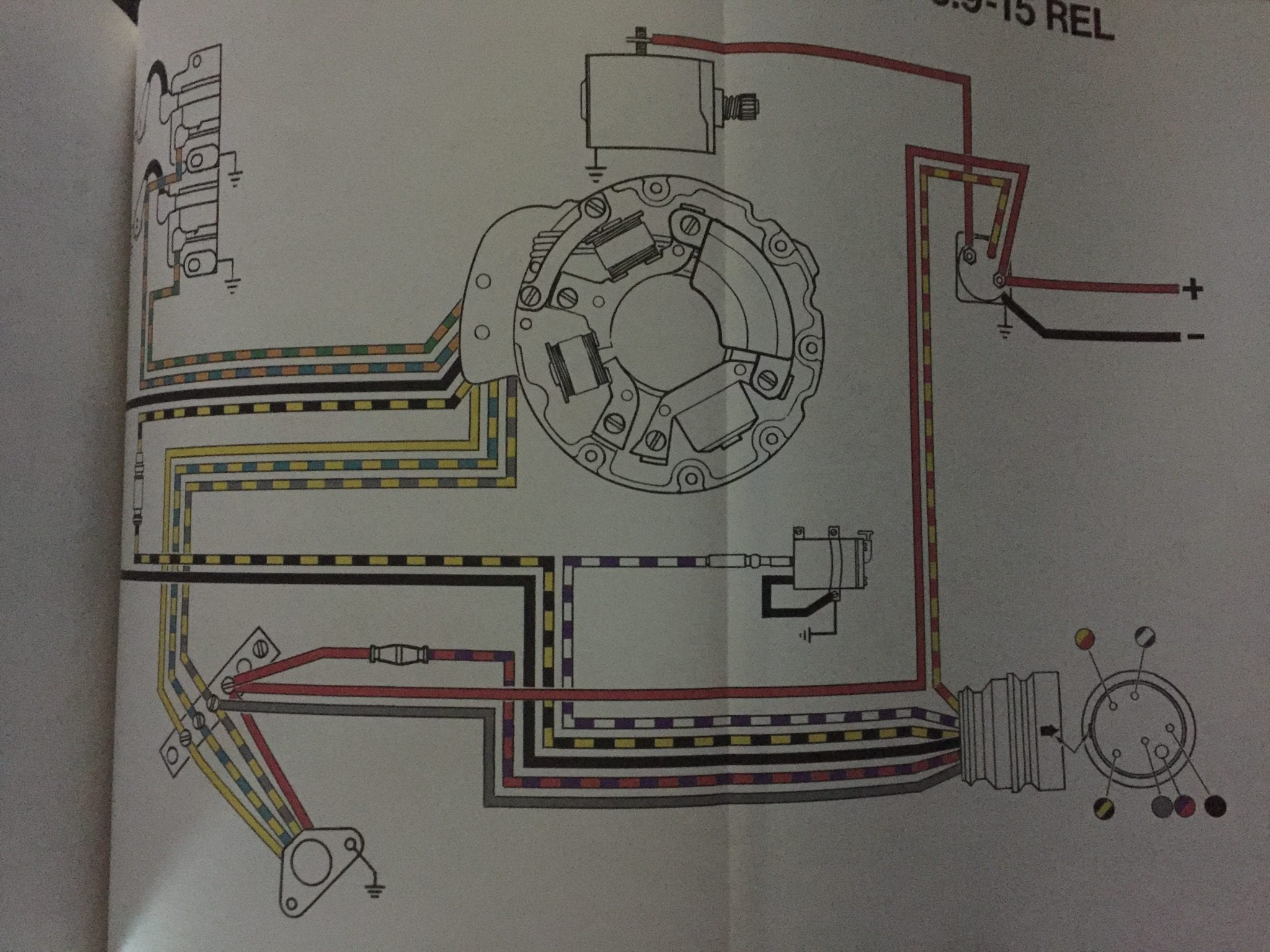

            OK, here is your wiring diagram. The only lead that is missing from the red plug on your engine is the purple lead that is swtiched B+ that would power a regulator, which your engine does not have…

            IMG_0760

            • This reply was modified 4 years, 9 months ago by Mumbles.
            July 20, 2020 at 5:04 pm #209270
            froggy
            Participant

              US Member

              Fleetwin, thank you so much. That is what I needed.
