    I got these in a grouping of special tools recently in an auction. Anybody recognize them and/or their use?

    68F8AF75-6747-404E-B942-5F317B9FD9DB

    B8E09AA7-5987-4AB7-8846-75A14DF2FF77

    FBDC2AF6-44FB-46D7-9FB2-1078D3331D55

    83B37500-9146-4B81-BCDF-7DE05C8D234E

    • This topic was modified 4 years, 5 months ago by Mumbles.

    Mumbles


    Replies: 5764
    Topics: 298
    #184898

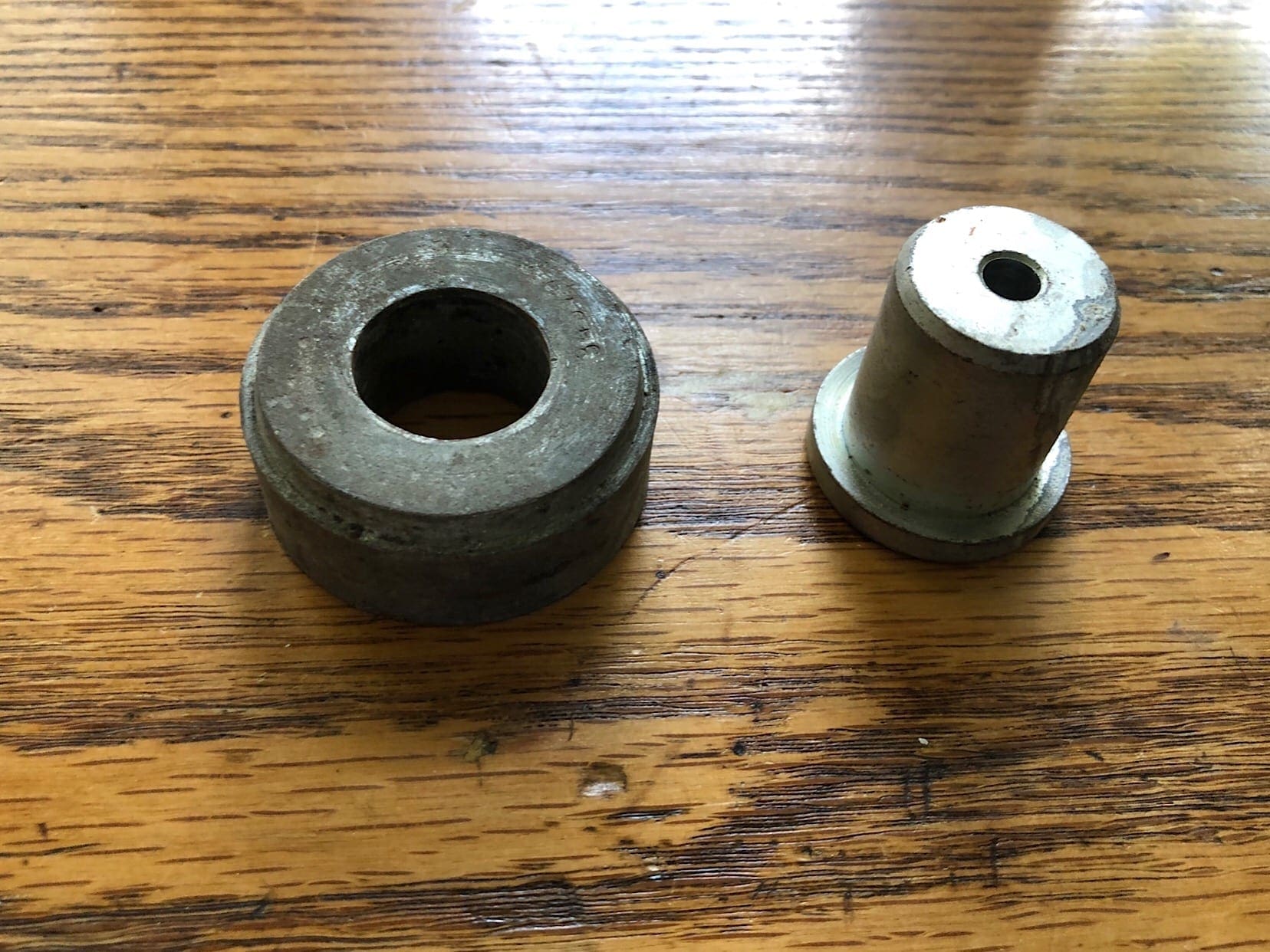

    Looks like part of a bearing or sleeve remover?

    • This reply was modified 4 years, 5 months ago by Mumbles.

    RICK EICHRODT

    US Member - 2 Years
    Replies: 267
    Topics: 79
    #184909

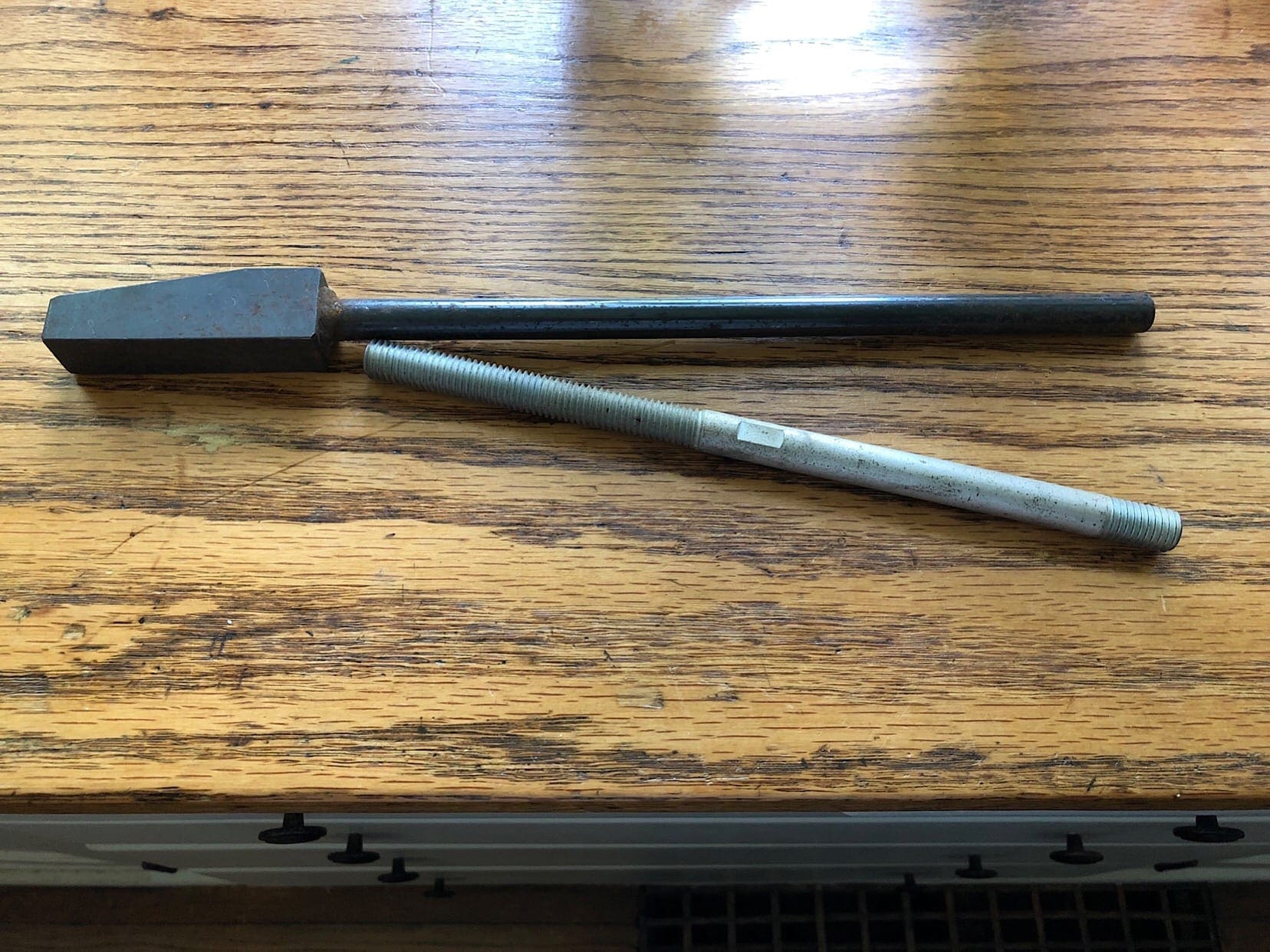

    Picture number 2 has a dark colored rod with a beveled end on it. It is a Chrysler flywheel removing tool. It is for the smaller motors that do not have the three holes tapped in the flywheel for one to use a flywheel puller. To use this tool, you place the square stock piece on the block and wedge it under the flywheel. The flywheel nut must be removed but not entirely from the threads. Leave the nut flush with the upper most thread. Now while pressing down on the rod, whack the flywheel nut with a brass hammer. The force of the tool lifting up against the flywheel should be enough to pop the flywheel loose from the taper on the crankshaft. Originally, there was a nut that was used to thread on the crankshaft and one used it as part of the flywheel removal tool.

    I have one of these tools and they do work. You don’t have to hit the nut very hard. Don’t take a 10 lb sledge and bugger up the nut/threads.

    I hope this helps, normal disclaimer is in effect, I assume no liability!


    dave-bernard

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 2014
    Topics: 30
    #184916

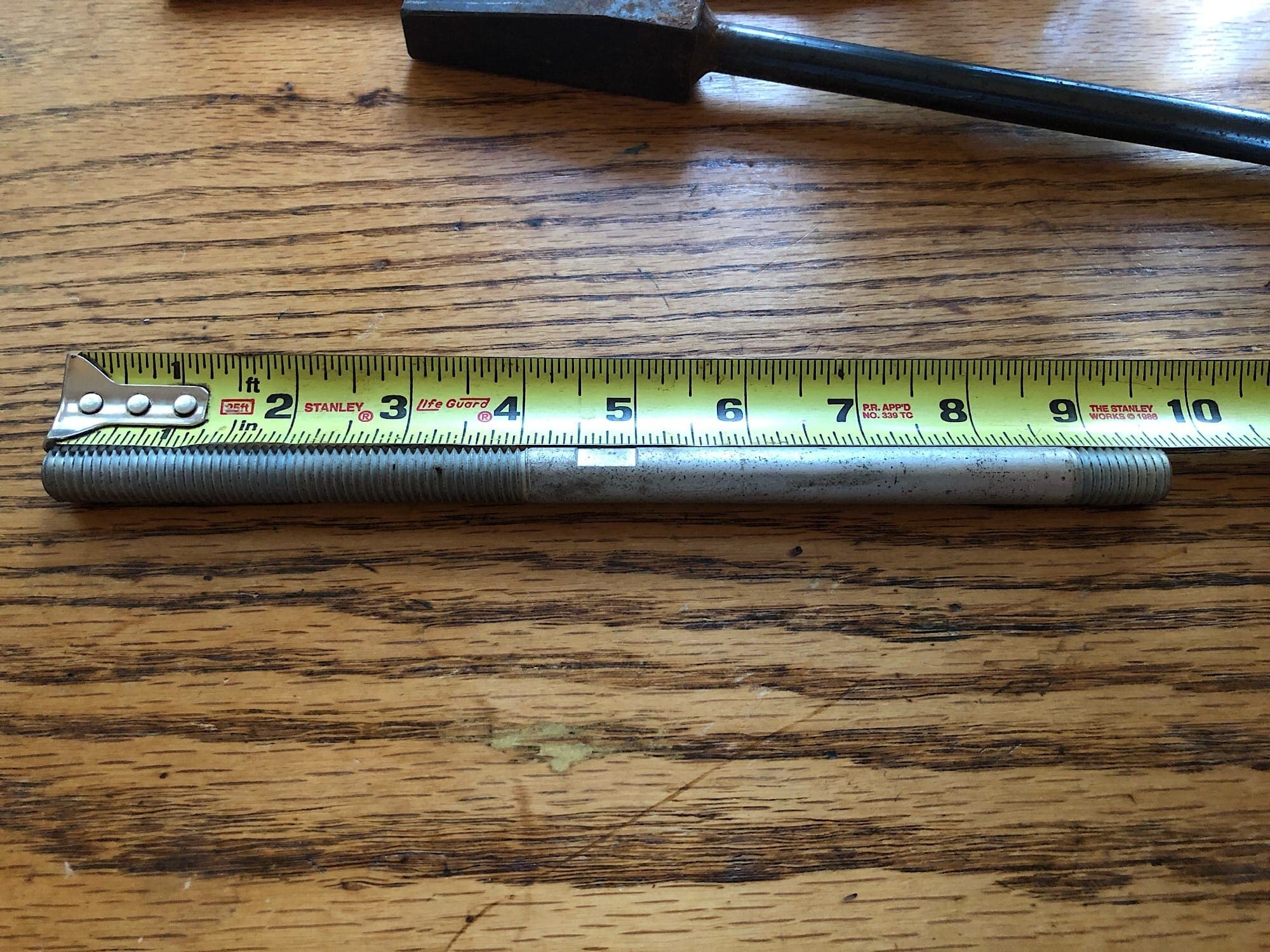

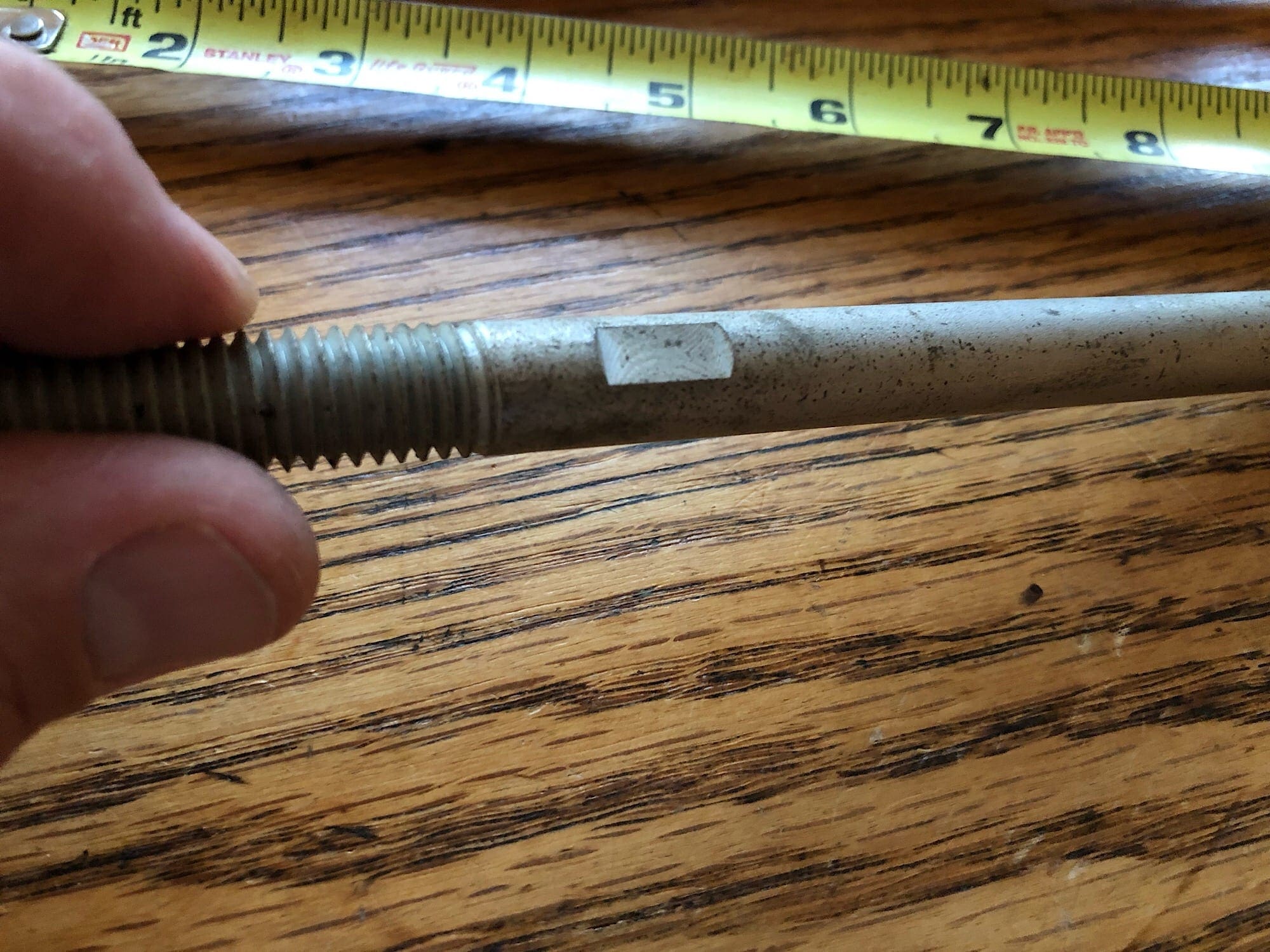

    The last is a front stud from a merc KG9 lower
