Armature plate replace

Home › Forum › Ask A Member › Armature plate replace

Viewing 3 posts - 1 through 3 (of 3 total)
  • Author
    Posts
  • August 23, 2019 at 5:46 pm #181854
    benji41
    Participant

      US Member

      I am trying to install a new armature plate kit (0580871) in a 1958 Evinrude Sportwin 10hp. Problem there is no instruction sheet. Does anyone have a copy of the instruction sheet or can someone explain how this goes together.
      Thank you again as you all have helped me very mush in getting this motor up and running.
      Jim Benjamin

      Jim Benjamin

      August 23, 2019 at 7:01 pm #181857
      garry-in-michigan
      Participant

        Lifetime Member

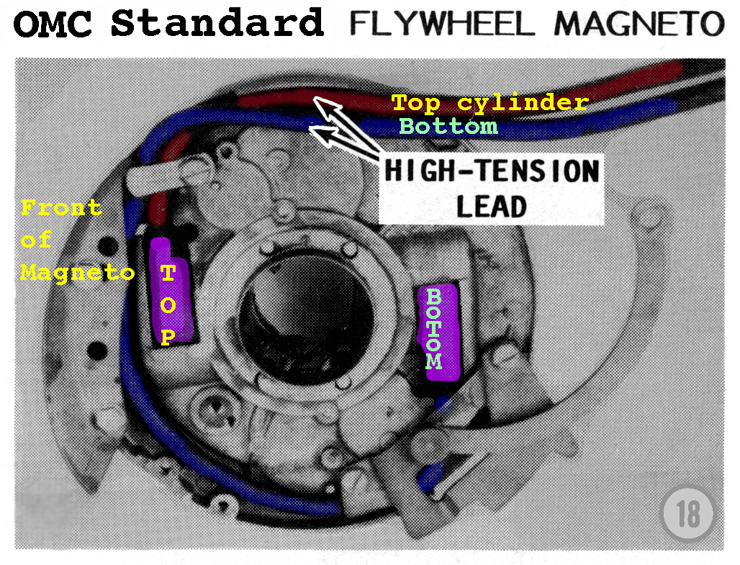

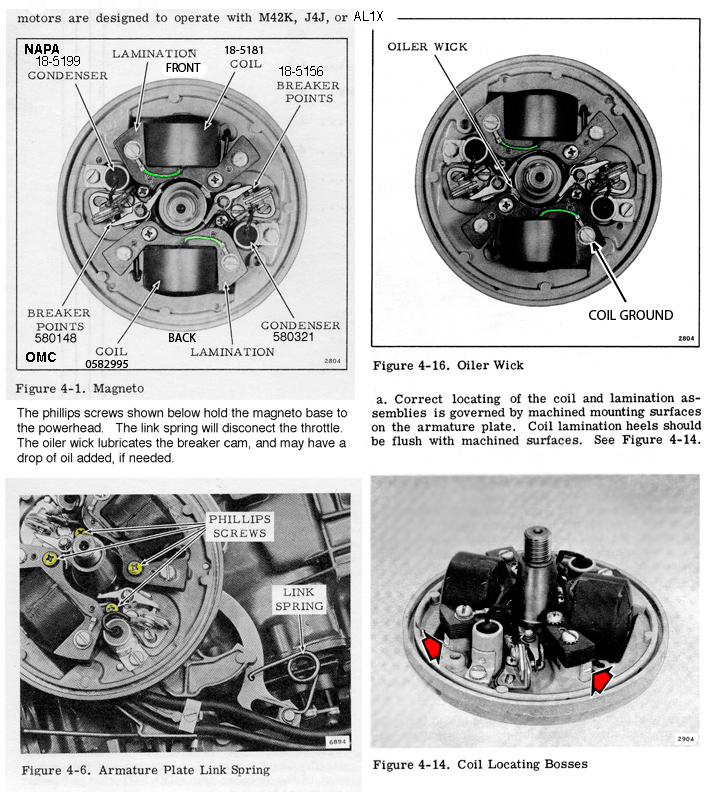

        This is what I have found – hope it helps.

        </Users/garrywspencer/Desktop/Screen Shot 2019-08-23 at 6.47.37 PM.png>

        The brass ring shown in your picture bolts to the motor and holds the ring to which the magneto bolts. Be sure the tapered side is down and the flat stepped side is up.

        Garry in Michigan

        August 26, 2019 at 7:19 am #181988
        Steve D
        Participant

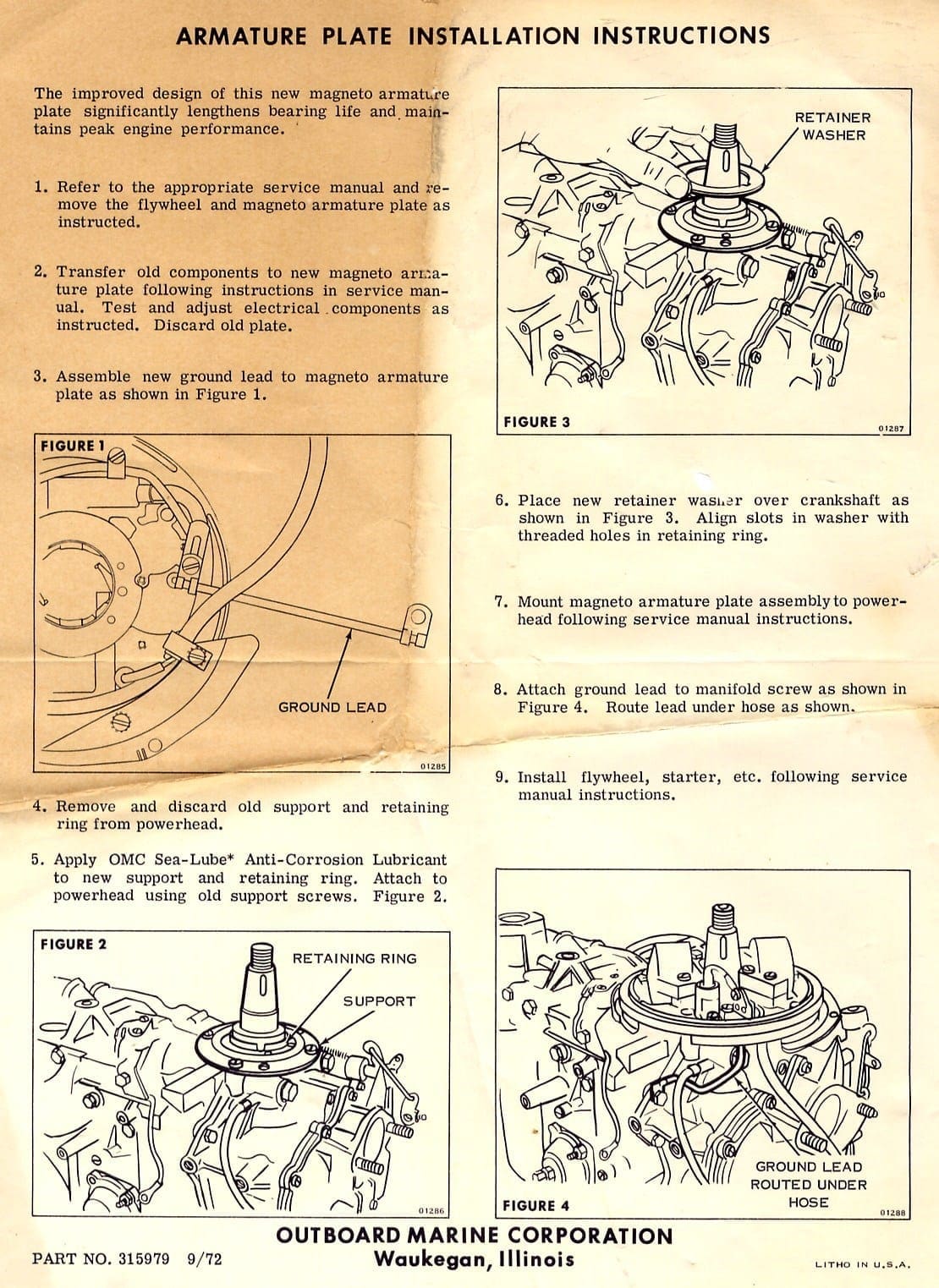

          Maybe you got it done already Jim but this is what I have.
          Loose-armature-plate-kit-instructions
