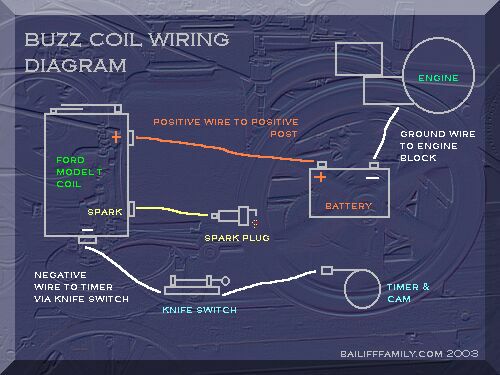

I am building a buzz box to run my ’22 Evinrude rbm that has a dead coil. These are the coils I bought. Would someone please post a wiring schematic and suggestions on a battery.

---

Attachments:

[RICHARD A. WHITE]

Frequently the condenser is at issue, How did you check the coil?

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[PM T2]

Hope this helps

best,
PM T2

He's livin' in his own private Idaho..... I hope to go out quietly in my sleep, like my grand-dad did..... and not screaming, like the passengers in his car...

[Buccaneer]

An article on using Model T coils for hit and miss engines here……
https://www.smokstak.com/articles/buzz_coil.html

They use to sell wire clips you could solder on the Model T coil
buttons, then attach your wiring to those, instead of soldering
the wire directly. Seems like they were call Farenholz clips or something
similar.

Prepare to be boarded!

[phil-b]

These?

https://en.wikipedia.org/wiki/Fahnestock_clip

[Buccaneer]

Phil, Yes, those are the clips.
At least I got the first letter correct!

Prepare to be boarded!

[The Boat House]

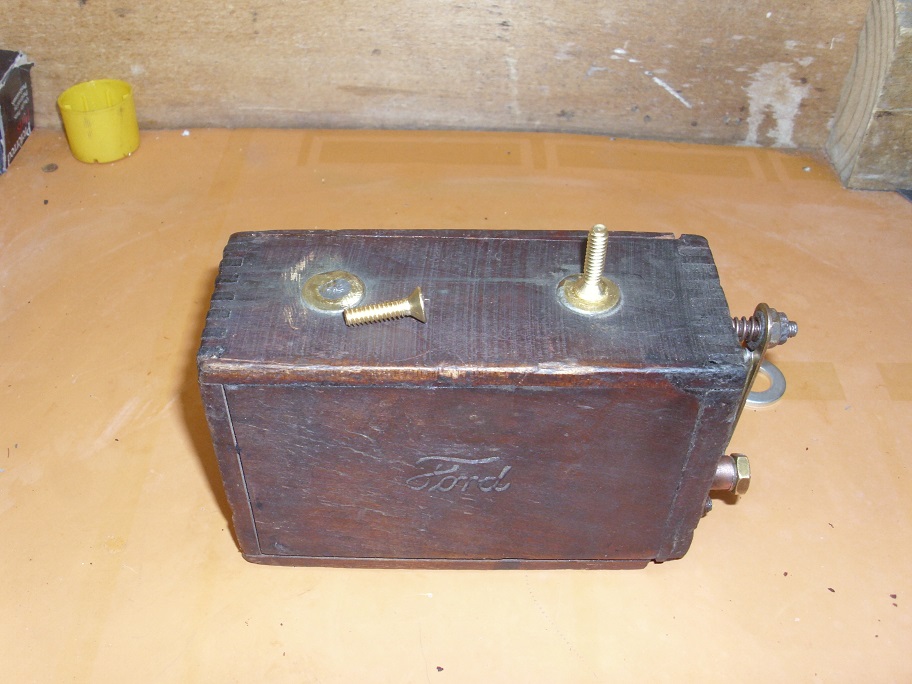

I just soldered some brass screws on mine.
This is the battery I use. They are cheap,
seem to last a long time, and are sealed.
Some searching may find them even
cheaper.

https://www.ebay.com/itm/UPG-6V-4AH-Sea … SwoudW9YxJ

[amuller]

There is tons of info on these coils on Model T sites. How to set up and adjust the vibrating contacts and so on.

[jeff-register]

Bought a MK 25 & it had Honda mtrcycle coils, & a 12volt battery conn. Never checked the cap correctness,just went all stock mag,

[slim60]

Thank You All.
