Cam oiler wick

Home › Forum › Ask A Member › Cam oiler wick

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • January 21, 2017 at 1:58 pm #6156
    wiscoboater
    Participant

      Can someone please post a picture of the proper placement of the cam oiler wick and the clip it goes into for an OMC mag. Motor I’m working on is a 1970 Evinrude 25, but I’m sure it’s the same for many of the 2 cylinder motors. The exploded views in the parts diagrams do not really show this in detail.

      Thank you,
      Jeff

      January 21, 2017 at 4:58 pm #51459
      Mumbles
      Participant

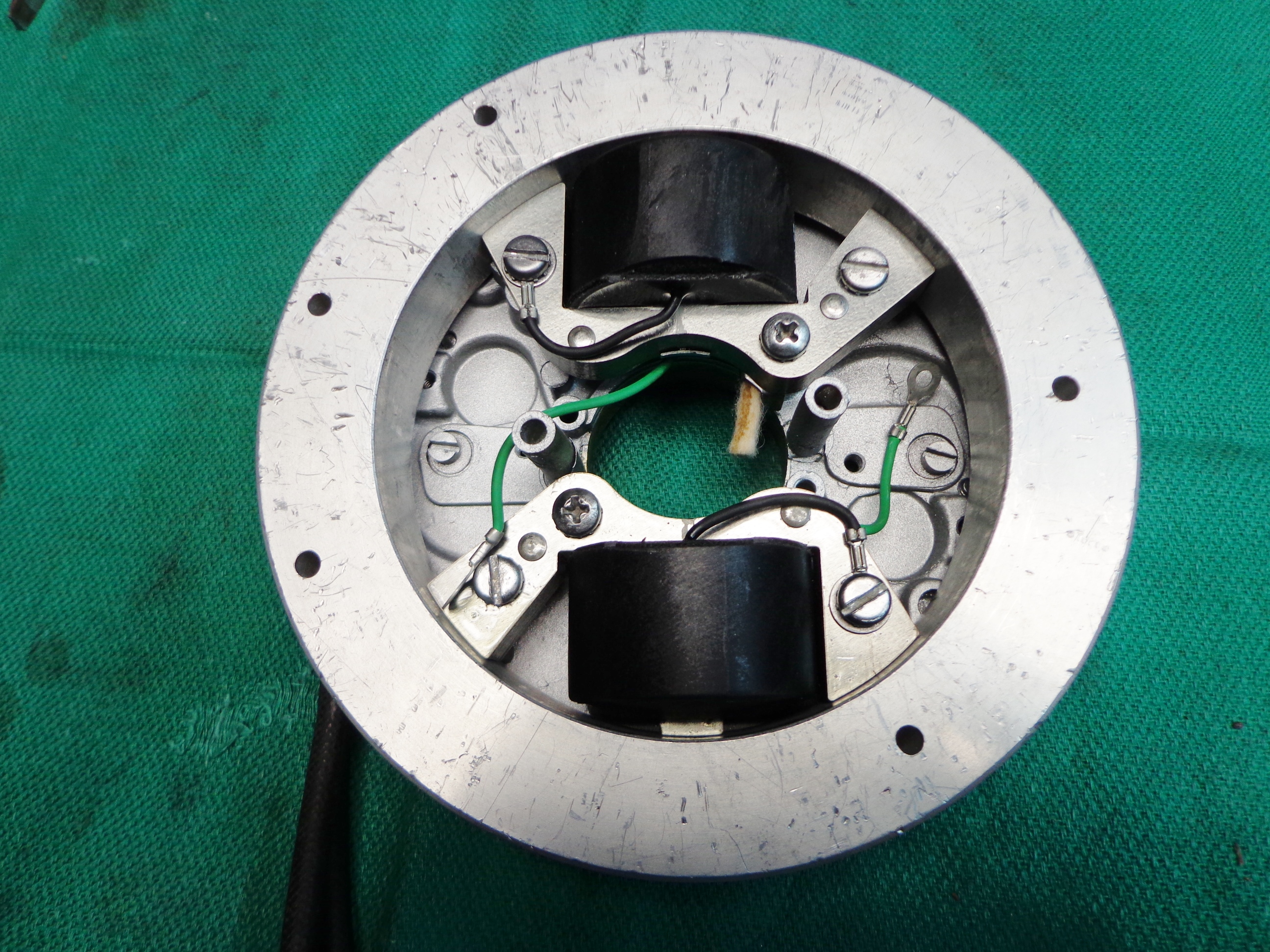

        I couldn’t find any photos of the clip or a bare mag plate but this one might help.

        The wick fits thru a slot in the clip and then it is pressed onto one of the coil mounting towers which is shaped to accept it. It fits under the top cylinders coil at the front of the mag plate on the universal mag plates.

        I’ll get some decent photos the next time I work on a mag.

        Do you need the clip Jeff?

        Attachments:

        January 21, 2017 at 5:07 pm #51461
        wiscoboater
        Participant

          That helps loads Mumbles. At least I have a good idea now. When I stripped the mag down for cleaning and rebuild, I found it laying in the bottom. Out of all the 18, 20, 25’s I’ve worked on this is the first one I found that still had the clip. It must be one of those things alot of guys just toss when changing parts. I’ll pull the coil back out and investigate farther. Thank you!

          January 21, 2017 at 5:13 pm #51462
          Mumbles
          Participant

            I keep forgetting to install it during a coil change. I get all caught up in the moment and then get that duh feeling when I see it laying on the bench after the job is done. 😕 Or almost done.

            January 21, 2017 at 9:33 pm #51469
            david-bartlett
            Participant

              Jeff,

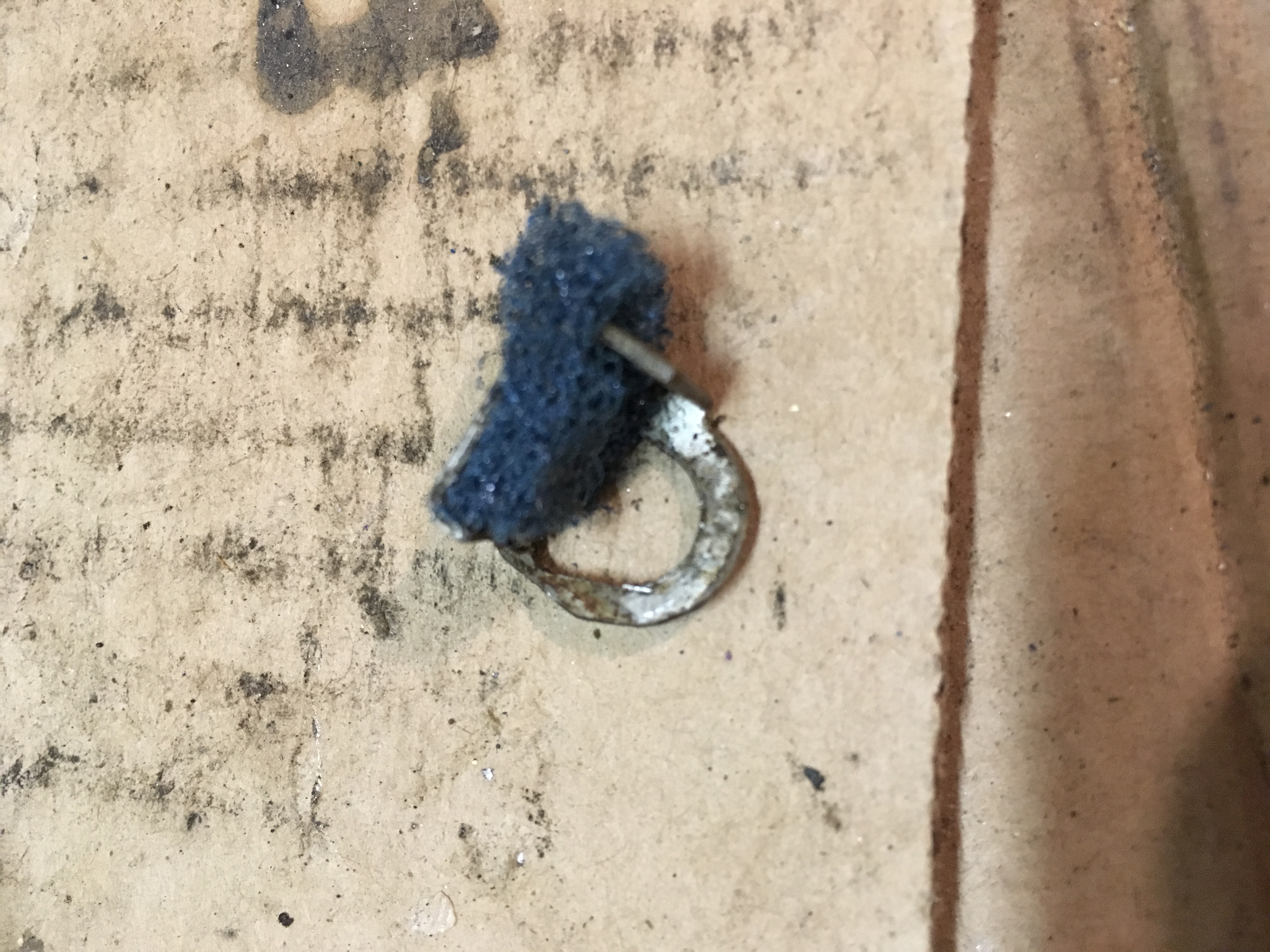

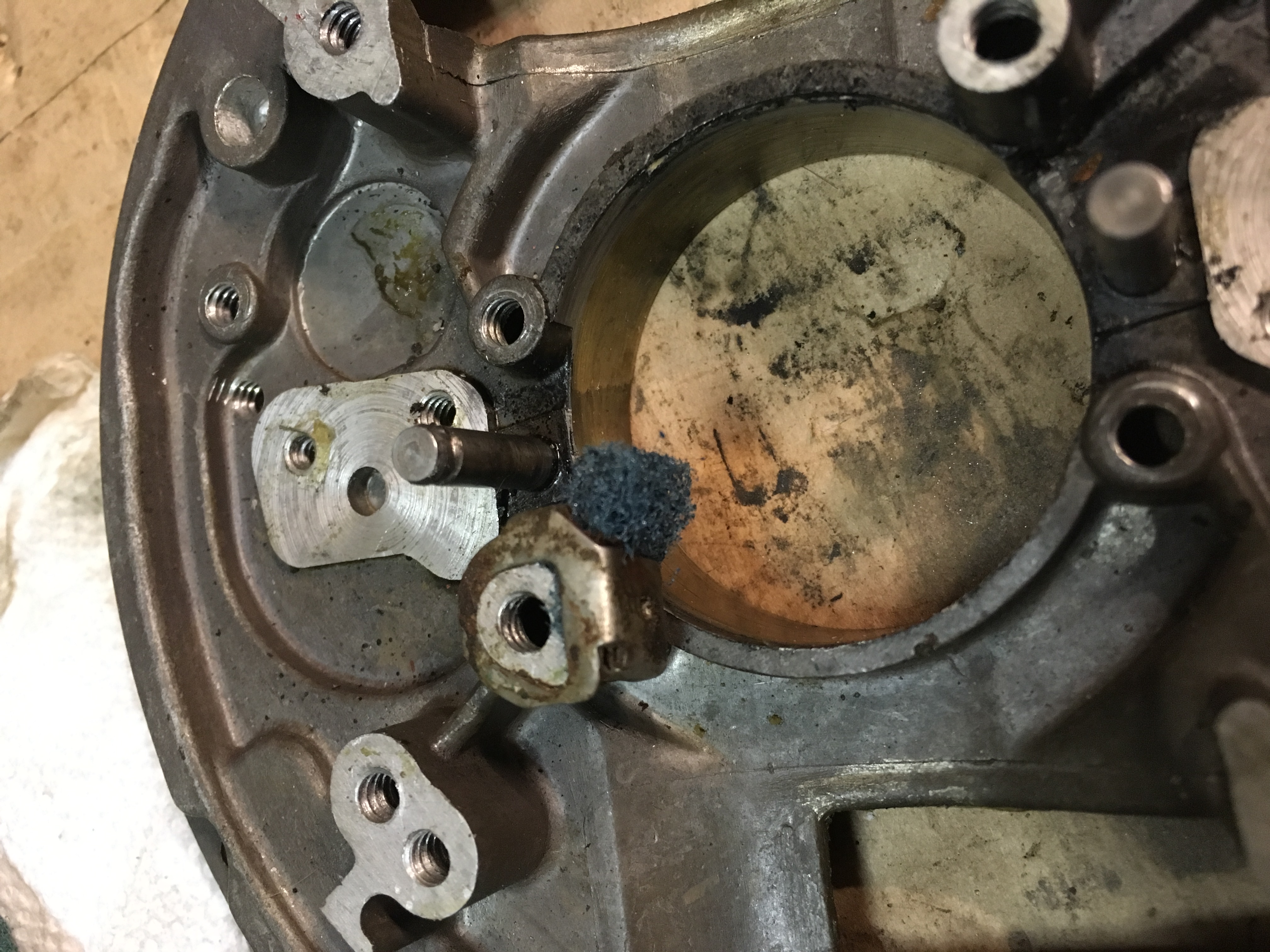

              Here are a couple pics. I used a piece of scotcbrite pad in place of the wick for demo purpose.

              Attachments:

              January 21, 2017 at 10:20 pm #51472
              wiscoboater
              Participant

                Thanks David, Now it makes sense. Such a simple little part, but without seeing it in use it’s a tough one to figure out as far as placement. The bad part is I have to take the whole thing apart to put it in…DOH!!!

                January 21, 2017 at 10:24 pm #51473
                crosbyman
                Participant

                  Canada Member - 2 Years

                  don’t loose it that clip is worth a fortune

                  Joining AOMCI has priviledges 🙂

                  January 21, 2017 at 10:25 pm #51474
                  david-bartlett
                  Participant
                    quote wannabe outboard guy:

                    Thanks David, Now it makes sense. Such a simple little part, but without seeing it in use it’s a tough one to figure out as far as placement. The bad part is I have to take the whole thing apart to put it in…DOH!!!

                    Yep,

                    I have had to do that too. More than once.
