Carbon Seal Question

Home Forum Ask A Member Carbon Seal Question

Viewing 8 posts - 1 through 8 (of 8 total)

  • david-bartlett


    Replies: 1204
    Topics: 97
    #7441

    On the OMC motors that use a carbon seal, does it matter which way the seal goes in? One side of the seal has 2 small "notches" in it, presumably to let oil in or out.

    What is the correct way?

    Thanks, David


    david-bartlett


    Replies: 1204
    Topics: 97
    #60367

    OK, In the Johnson Service Manual in Garry’s dropbox, it says to install with notches "Up". I guess I am all set with my answer.


    chris-p


    Replies: 2456
    Topics: 153
    #60370

    Yes that is correct. Notches towards the powerhead. So UP is correct for the lower crank seal.


    david-bartlett


    Replies: 1204
    Topics: 97
    #60375

    Chris,

    Thanks for confirming that for me.


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #60376

    "UP" means up towards your face. Think about it, the seal does its job by the flat side being in contact with the flat of the bearing shell.It wouldn’t do much good if the notches were against the shell, would it? The new seal design removes all doubt.


    david-bartlett


    Replies: 1204
    Topics: 97
    #60430

    OK, so using the old style seal on the bottom bearing of an 18hp the side with no notches would go against the bearing?


    Attachments:


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #60432

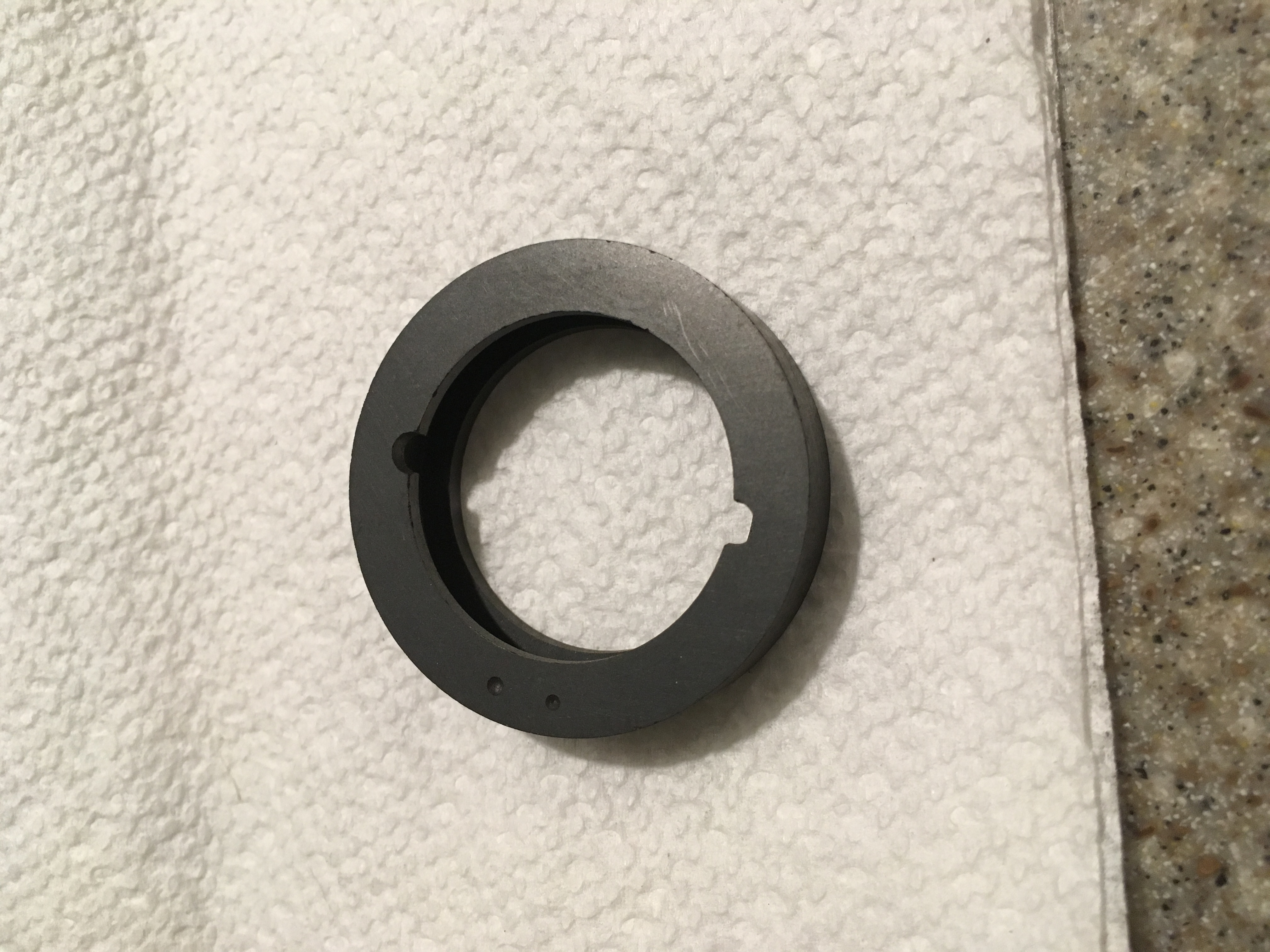

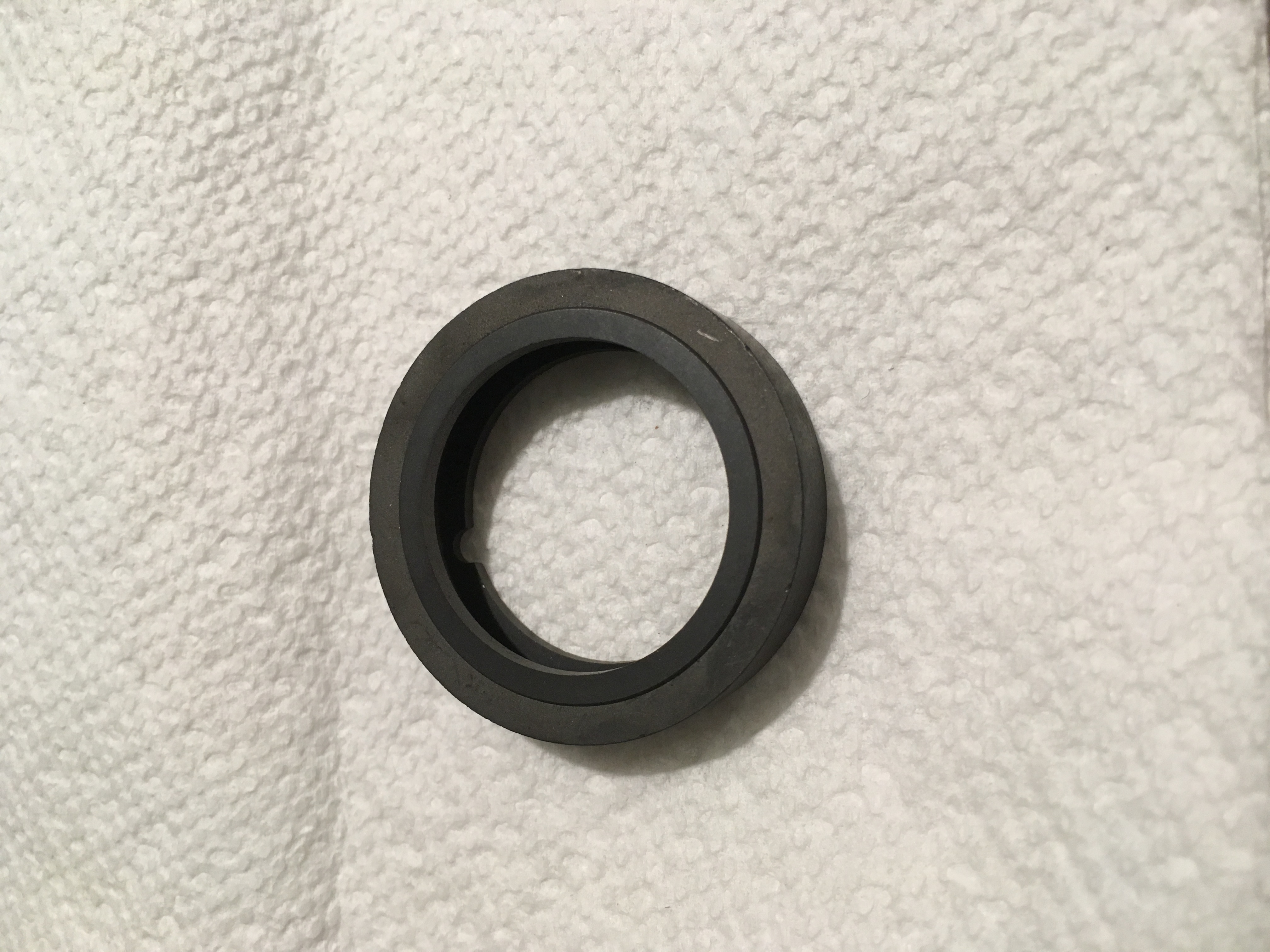

    Yes, side with no notches goes against bearing. BTW, that is the newer style in your pictures


    david-bartlett


    Replies: 1204
    Topics: 97
    #60435

    Frank,

    Thank you for clearing that up. I was expecting the "New" style to have more of a step.
