early Ruddertwin decal?

Home Forum Ask A Member early Ruddertwin decal?

Viewing 9 posts - 1 through 9 (of 9 total)
  • Tom
    Tom

    US Member - 2 Years
    Replies: 410
    Topics: 42
    #6441

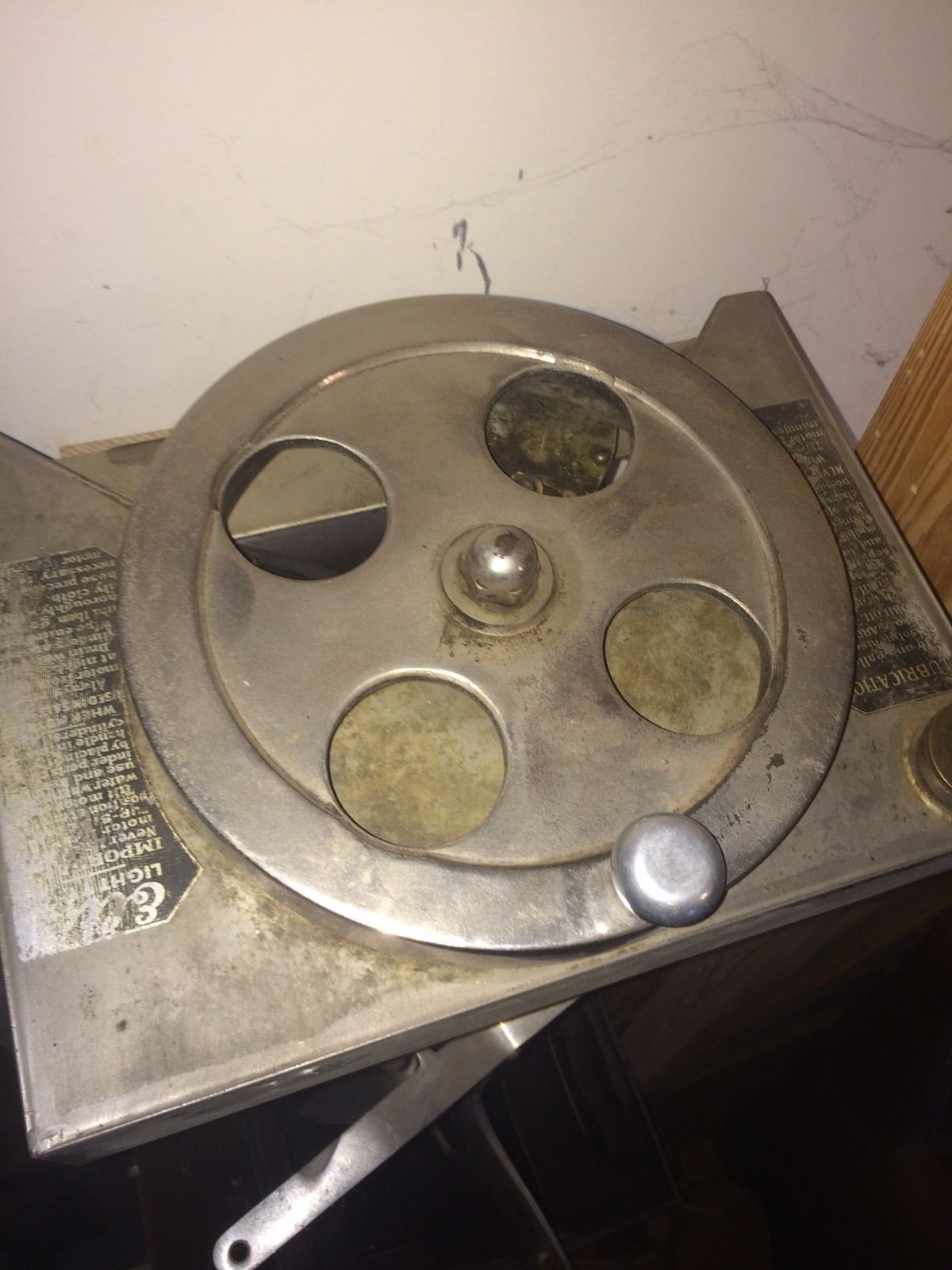

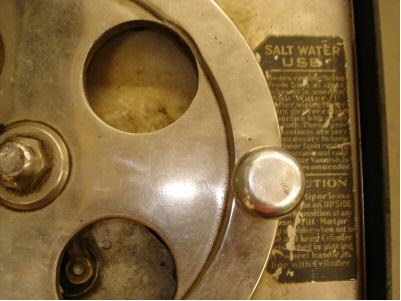

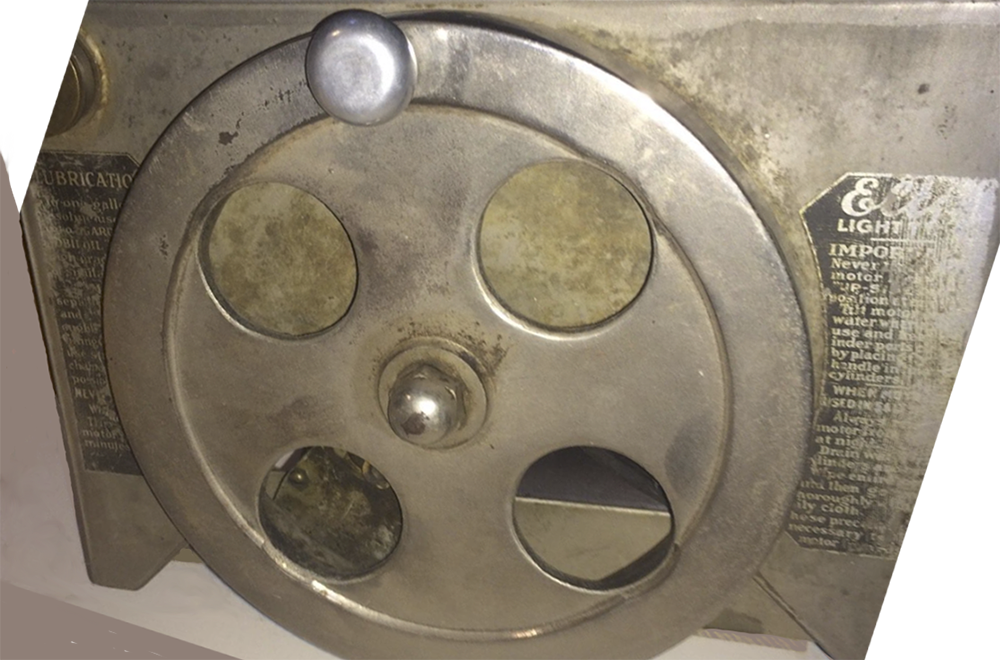

    Does anyone have a clear top down shot of the decals in this photo? I’d like to recreate them for a motor.

    Thanks,

    Tom

    manleyt at verizon dot net
    or PM me if you’re logged in


    Attachments:

    Avatar
    chas56x

    US Member - 2 Years
    Replies: 49
    Topics: 6
    #53694

    You can get them here: http://www.americanoutboard.com/decals/ … uddera.htm

    Tom
    Tom

    US Member - 2 Years
    Replies: 410
    Topics: 42
    #53705

    chas56x, thanks. I was hoping for a clear shot of the original so I could try to make up something for a motor I have. The one from American Outboards is OK, but not the same as the one in the photo.

    T

    Avatar
    garry-in-michigan

    Lifetime Member
    Replies: 3544
    Topics: 31
    #53716

    I wonder what other changes were made in the decals of the early outboards. There were certainly many decal changes in the ads I have seen in the late ’20s and ’30s. . . 😕

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2803
    Topics: 161
    #53717

    Looked through my picture files but don’t have
    anything that would be of any value to you.
    Did come across this one I got off the internet
    somewhere. The image isn’t big enough to
    read much more than the head line but it is
    an example of the variations Gary has described.

    Avatar
    garry-in-michigan

    Lifetime Member
    Replies: 3544
    Topics: 31
    #53721

    This is the only ad I have that is anywhere close to showing a decal. . . 😀

    Tom
    Tom

    US Member - 2 Years
    Replies: 410
    Topics: 42
    #53738

    Well, we’re getting closer. Thanks, all!

    Tom

    Avatar
    slim60

    US Member - 1 Year
    Replies: 231
    Topics: 57
    #53743

    I read those starting instructions and saw REVERSE. What year was this? My Elto breifly ran in reverse on the first start up. I see no latch.

    Avatar
    hotrod


    Replies: 119
    Topics: 7
    #53751

    All ruddertwins can run in reverse. The anti-tilt reverse latch came out in 1927 on the J model. It is a glob of aluminum on the starboard side on the front that can be pivoted over towards the port side, blocking the motor from tilting when running in reverse. One fellow ran his ruddertwin in reverse accidentally and promptly lost his prop nut and prop in the river. Perhaps the nut was loose?
