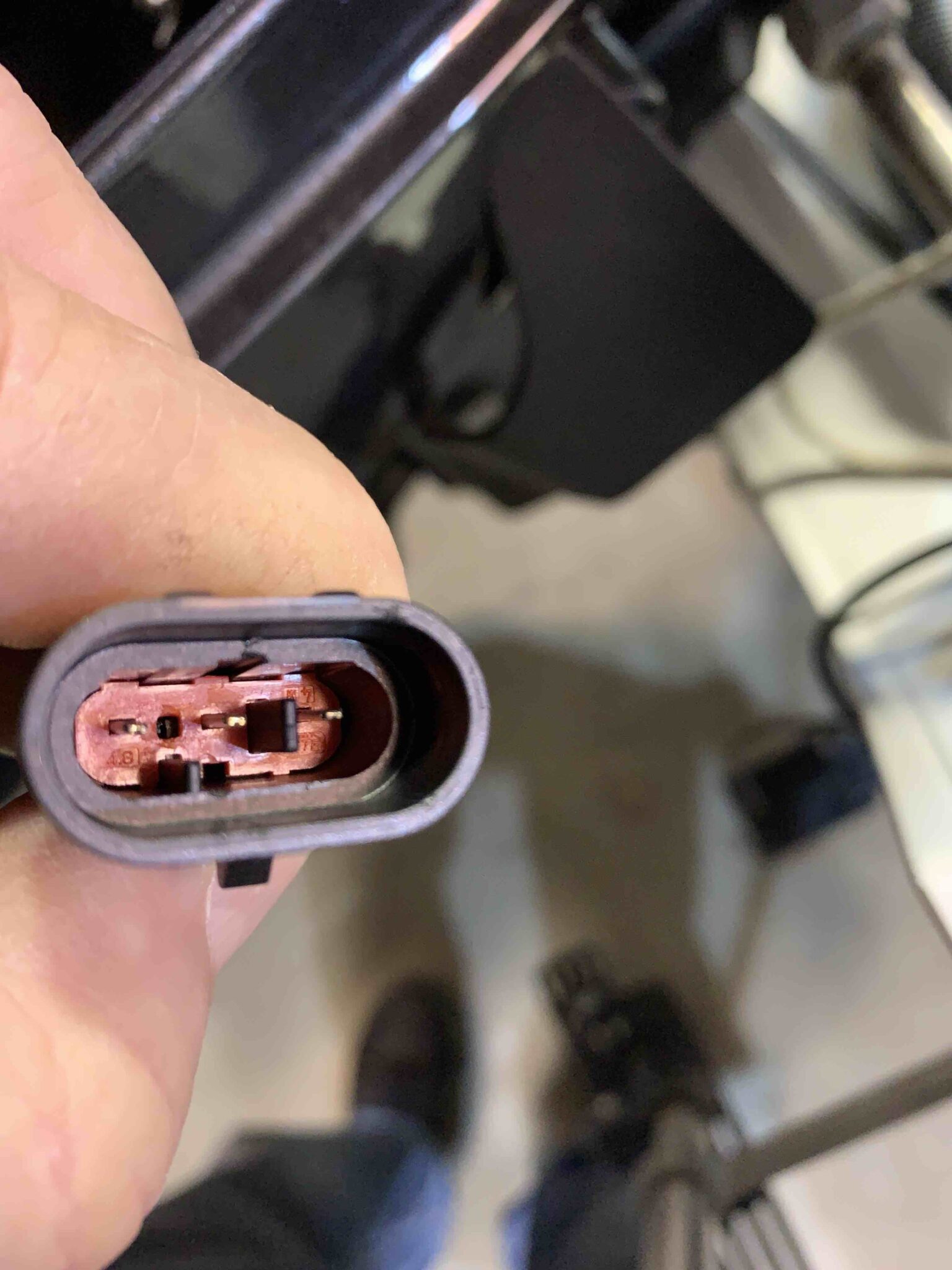

I know this is an old outboard site but I have a question on a relatively new motor 2017 115 Etec A115ghlafi. It will be old in about 40 years. I’m just ahead of the game. Anyhow, I what to move my tilt and trim switch on the outboard to the other side. I have the accessory cable 5006201. To do the job, I have to remove the T&T switch to put it to the other side. This requires that the pins be removed from the connector housing. Then I can slide the nut off the cable that holds the switch in place. I have the proper tools that I bought from CDI. But there is a red piece in the connector preventing me from pushing the pin out of the connector housing.  It moves around in the housing but won’t come out on its own. any suggestions? Thanks , Matt.



[crosbyman]

maybe I don’t have it but  can’t you just cut the wires and extend them the other side   by splicying   rather than  taking  whatever  it is apart ?

use self sealing  shrink  tubing  on the splice

Joining AOMCI has priviledges 🙂

[joecb]

2X what crosbyman said.

But if you are determined…. likely there are one or two plastic “barbs” in the assembly that must be compressed to allow removal of the “red” piece. Look for slots that you can insert a thin metal blade. …. Just a guess, but  !!!

Joe B

[Matthew Pieklik]

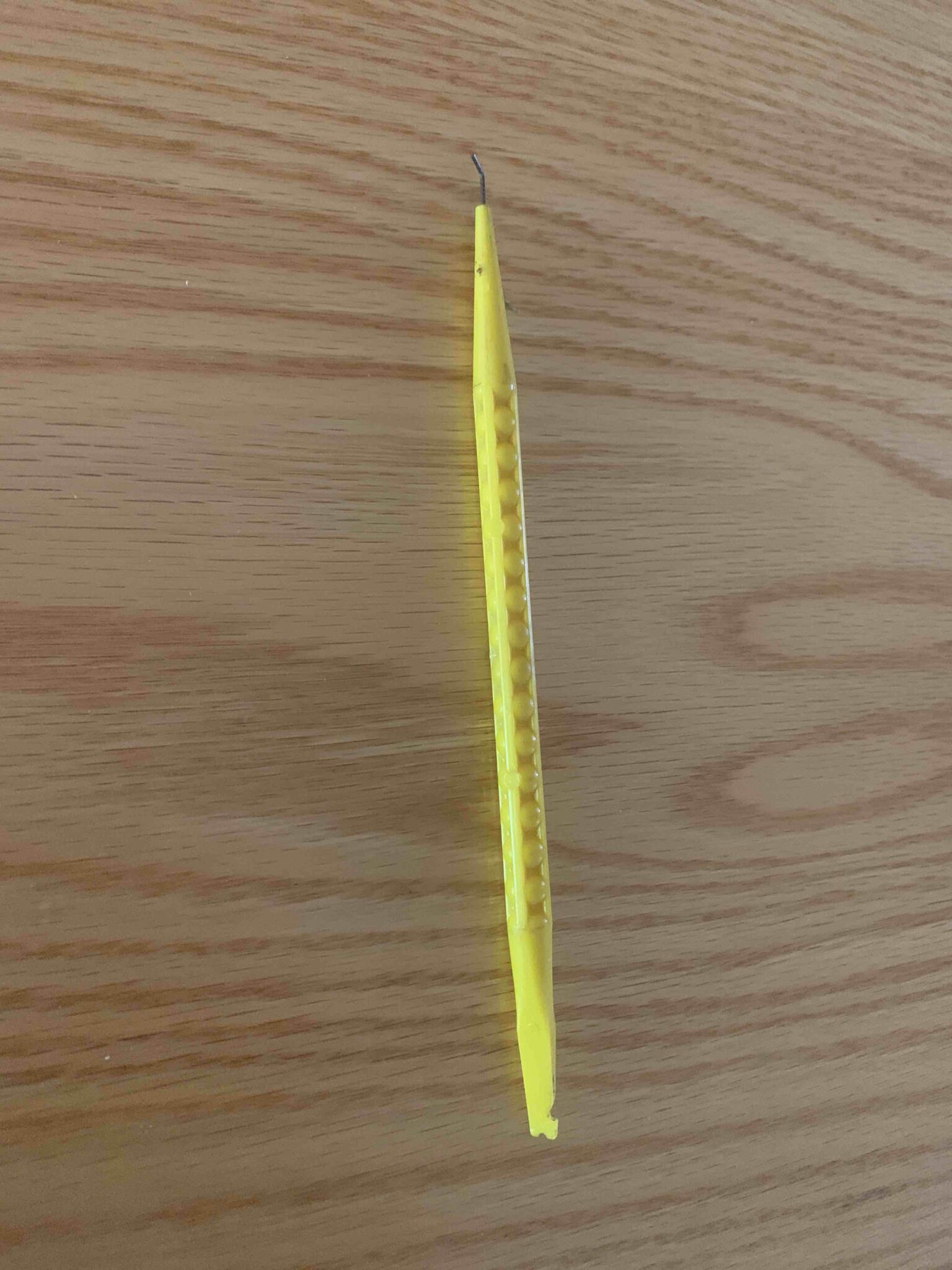

Success! I had to use my Dial Tool or Spudger . You telephone people know what I’m talking about. I was able to insert the hard wire end in the hole of the red thing and extract it. Then I used my smallest Jewelers screw driver to release the tab on the  individual connector and pulled it right of the housing. The Dial Tool was used to remove a rotary dial to insert the phone number in the dial and to pick out a pair of wires in a cable or in a terminal box back in the day. All of which has gone by the way side. I have used that Dial Tool for so many other things other than telephone work. Thanks all!
