ELTO Ruddertwin shock absorber designs

Home Forum Ask A Member ELTO Ruddertwin shock absorber designs

This topic contains 5 replies, has 3 voices, and was last updated by RICHARD A. WHITE RICHARD A. WHITE 2 years, 9 months ago.

Viewing 6 posts - 1 through 6 (of 6 total)
  • Avatar
    chris-p
    Canada Member - 1 Year
    Replies: 2473
    Topics: 157
    #6152

    I have 2 different J model Ruddertwins.

    Each has a different method for driving the prop. The one I’m currently restoring has a coiled spring, with dual tabs. One tab locks in the prop, the opposite tab into gearcase, to drive the prop, and act as a shock absorber I imagine. My spring was broken, so looking for a replacement in the classifieds.

    I have another motor. Thought I would steal the spring and replace it later on. However, the second motor has a completely different setup. It has a clutch dog type engagement with lugs. The prop is held on with a nut, which puts pressure on a spring, which then puts pressure on the prop. I suppose another way of making a shock absorber. If the prop hits a submerged object, the spring could compress, allowing the dogs to disengage, and the prop to free spin until past the obstruction, when it would re engage.

    Both interesting ideas. Was one a superseded idea over another>? If so, which one is the later version? I’m assuming the clutch dog style is the more current design, but thought I would ask to verify. If it is, I may try to install that variation on my current restoration if its an improvement.

    Avatar
    wbeaton
    Canada Member - 1 Year
    Replies: 668
    Topics: 74
    #51431

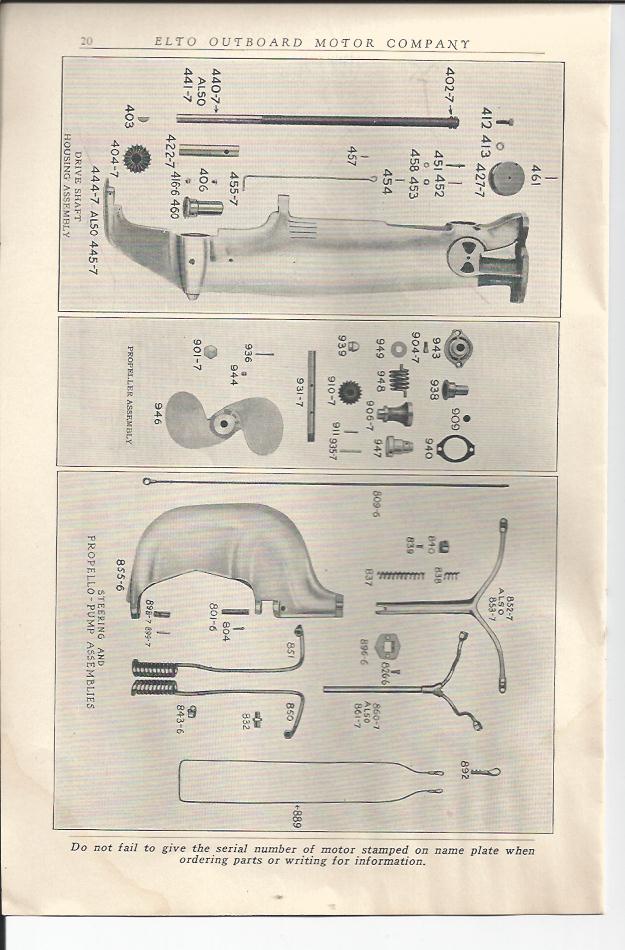

    Interesting. The whole thing is different than my Model C. I can’t tell what is supposed to be there. It looks like it should be a spring. Here is what the manual shows.

    Wayne
    Upper Canada Chapter

    uccaomci.com

    Avatar
    chris-p
    Canada Member - 1 Year
    Replies: 2473
    Topics: 157
    #51432

    Part 948 is what mine looks like, the one im restoring now. Illl post some pictures of the clutch dog style one my second motor has. Anyone else seen that set up before?

    Avatar
    chris-p
    Canada Member - 1 Year
    Replies: 2473
    Topics: 157
    #51433

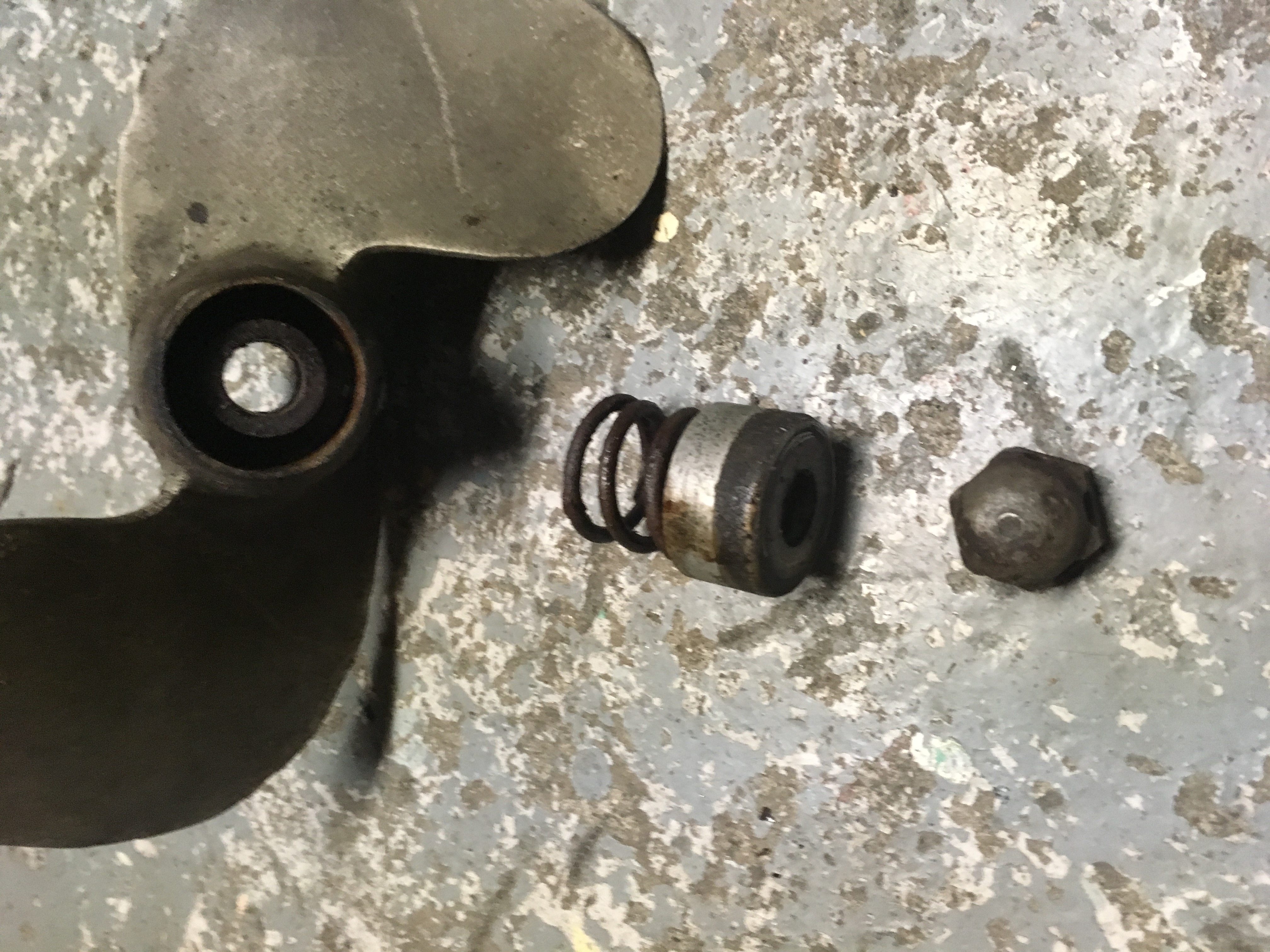

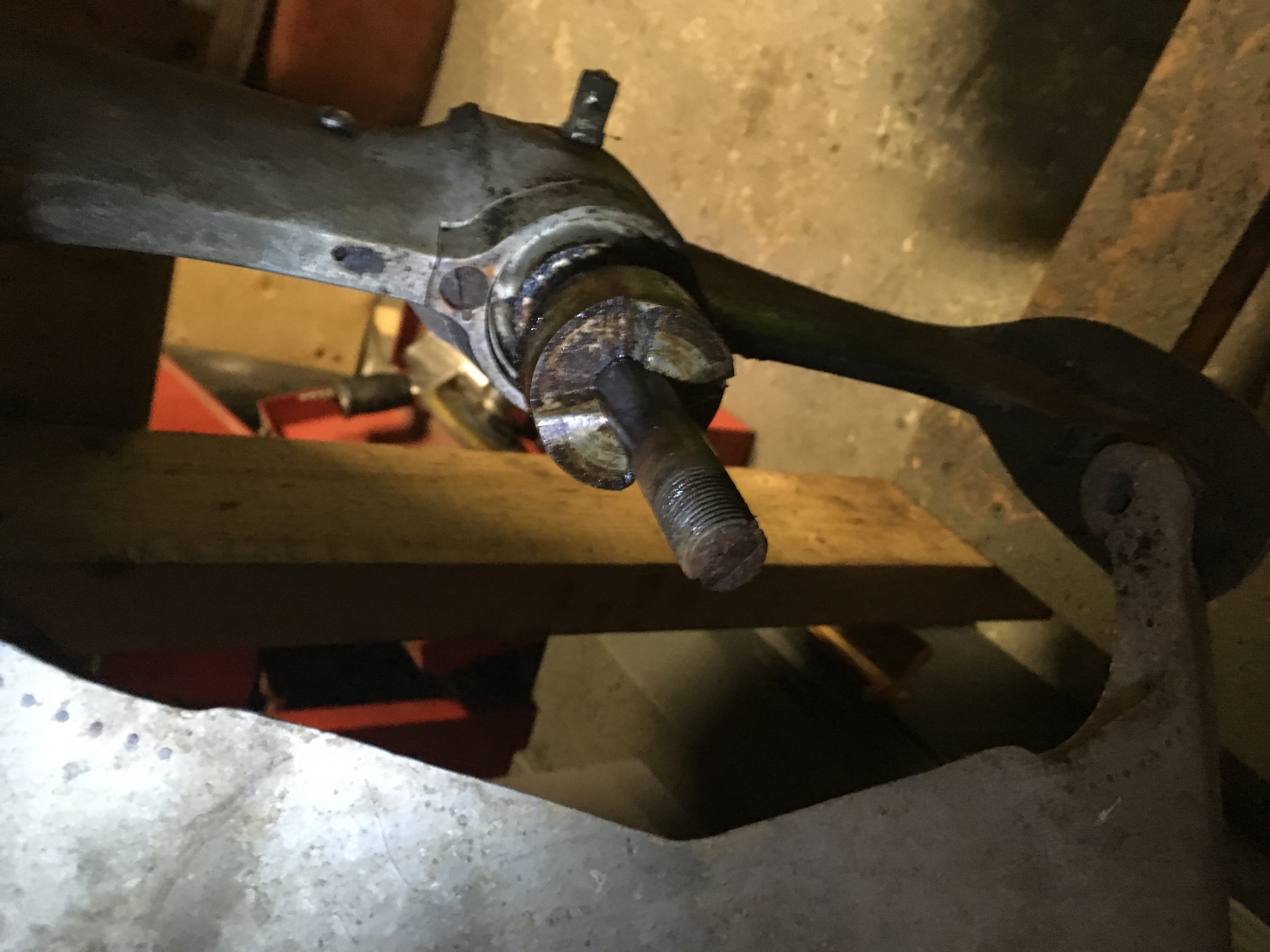

    Here is what Im dealing with.


    Attachments:

    Avatar
    wbeaton
    Canada Member - 1 Year
    Replies: 668
    Topics: 74
    #51435

    I wonder if the second prop is a replacement taken from another motor. Is that rubber piece supposed to slip or is it a hub that’s failed?

    Wayne
    Upper Canada Chapter

    uccaomci.com

    RICHARD A. WHITE
    RICHARD A. WHITE
    US Member - 2 Years
    Replies: 1645
    Topics: 130
    #51441

    My model C does not have that, whew, one less part to replace…lol
