Evinrude Simplex Remote Control issue

[Buccaneer]

I thought I was going to quick hook up a motor on my newly acquired Cadillac boat
to the remote controls. Steering went okay, but the brass trunnions that go into
the motor mounting fingers (for a lack of a better term) are froze up, and the
threads are fatally damaged as well.

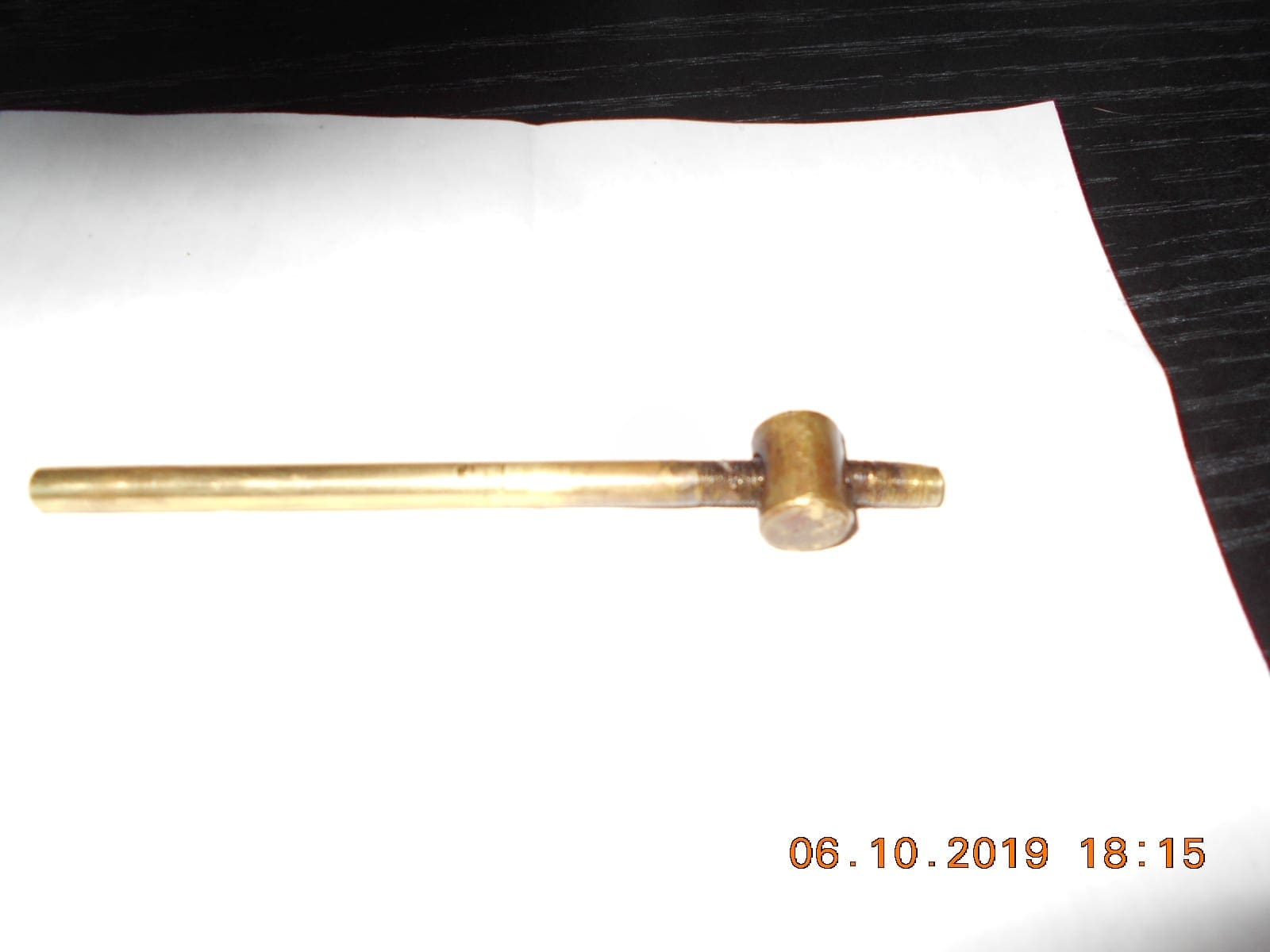

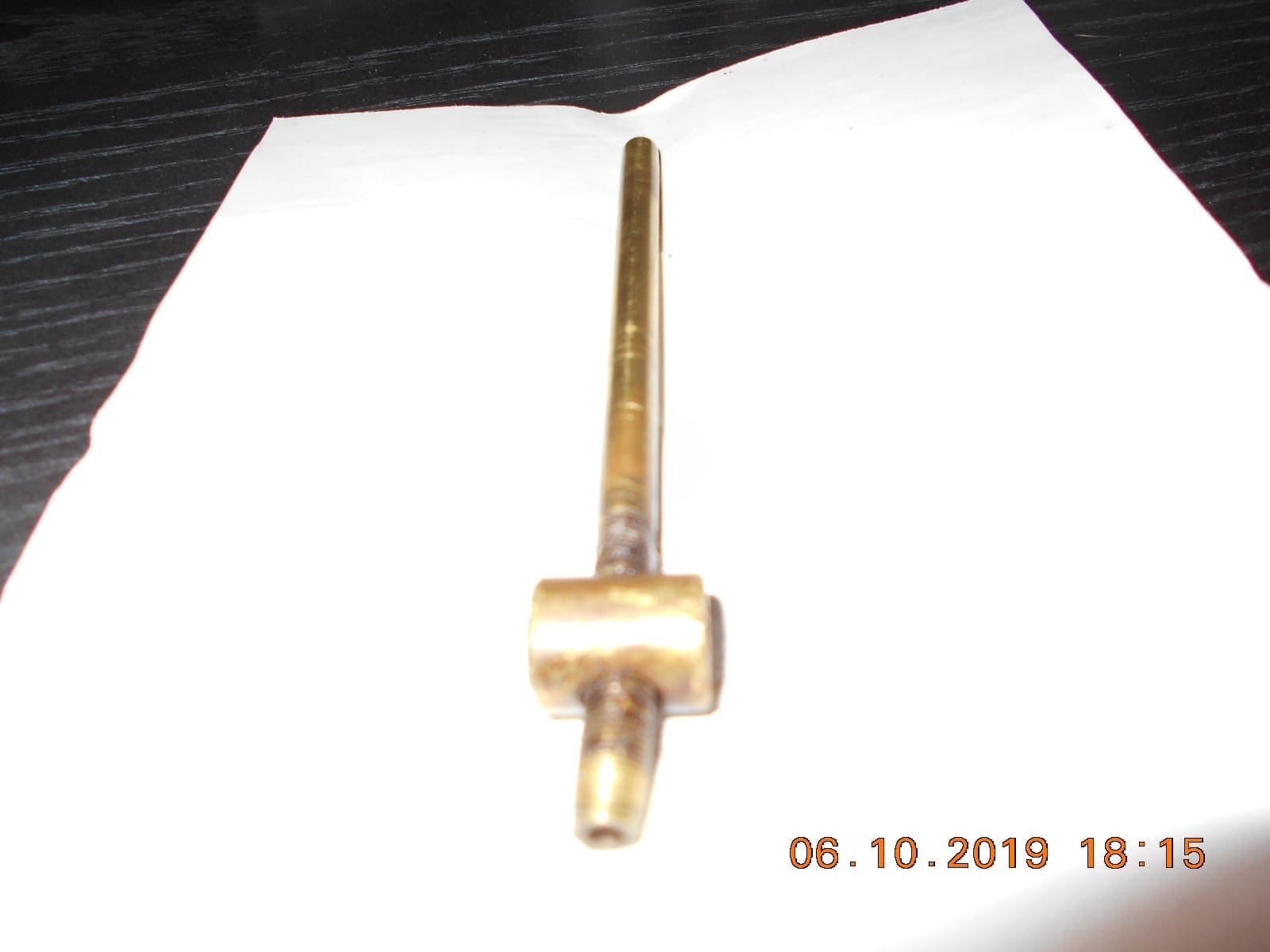

I removed the threaded 1/4 brass tube with trunnion nut from each cable, and
I tried heating up the trunnions with a bottle torch, but could not get either to budge.
Tried to hold the brass tube in the vise, sandwiched between wood, but it doesn’t
hold well.
Even if I could get the trunnions off, it’s a super fine thread, 40 tpi, I believe,
and I doubt if I’ll find a die locally to clean up the threads.
Were the brass threaded tube and trunnion ever a stand alone part that one could
order, or did they only come with the cable assembly?
Not sure I could make new ones or not on the lathe. I’d have to come up with
heavy duty 1/4″ brass tube. I’ve never tried turning treads as fine as 40 tpi before,
although, it looks like one could order such a die.
The tubes are about 5″ long, so don’t think I could make a tube out of round stock
with a 1/16″ hole.
I hoped to come up with something quick so I could test the boat out this week.
Thoughts? Thanks.

Prepare to be boarded!

[frankr]

Those trunnions were staked at the factory and are not intended to move. Unlike the newer cables with adjustable plastic wheels.

[Buccaneer]

Oops, one came out easy, the other required some effort. but the tube is threaded
into the end of the cable’s brass end, and I guess staked! Nothing a little locktite
couldn’t cure if I can make new ends. Presume someone has done so??

Prepare to be boarded!

[Buccaneer]

Just re-read your reply Frank. Oh back up the truck.
Are you saying the actual trunnion (little barrel) is staked
on the threaded brass rod? I thought you meant that the
threaded rod is staked onto the end of the cable.

Prepare to be boarded!

[frankr]

Actually, both

[Buccaneer]

I do see a little hole on one side of the trunnion. I thought it was an oil hole. 🙁

Being the trunnions are non adjustable, I guess there’s no way to
re-center the control levers when switching motors?

I guess I’ll re-try hooking up the cables as is, but am still interested in
coming up with new, adjustable trunnions.
Thanks.

Prepare to be boarded!

• This reply was modified 5 years, 7 months ago by Buccaneer.

[frankr]

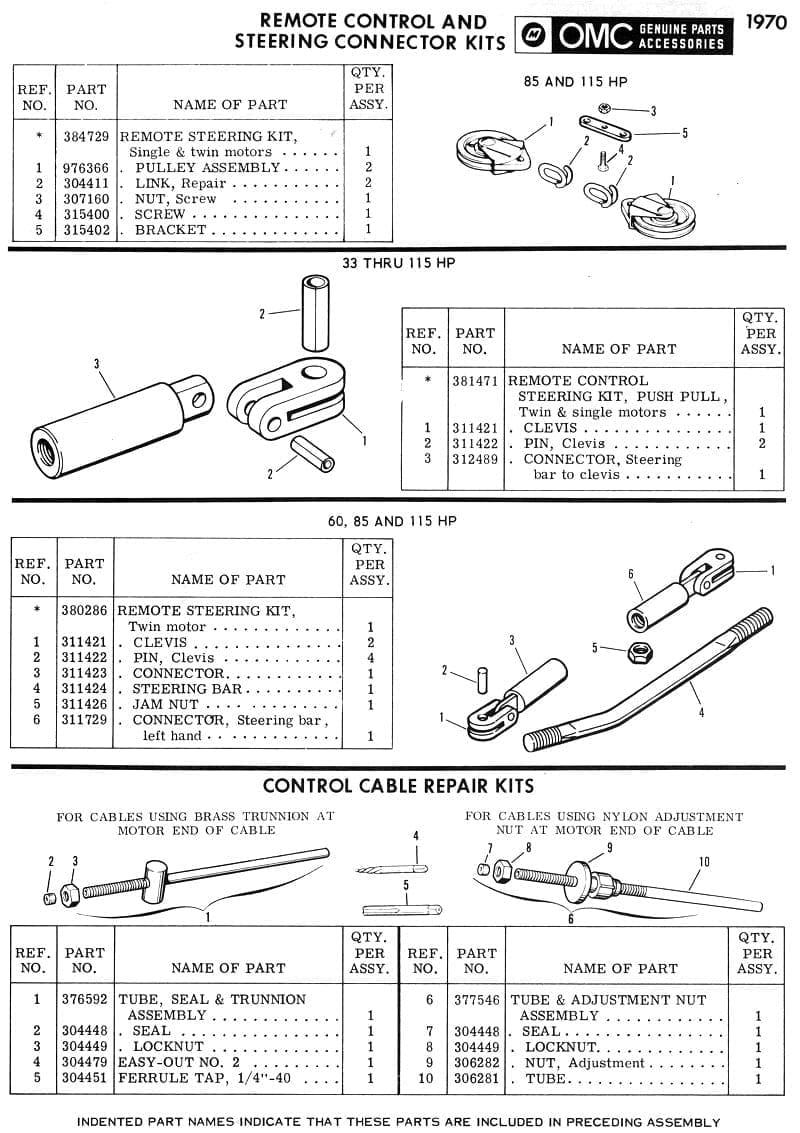

Here ya go….

• This reply was modified 5 years, 7 months ago by frankr.

[Buccaneer]

Thanks Frank! I just ordered one to replace the worst one, for $4.99 with shipping.

Prepare to be boarded!

[Buccaneer]

So I put things back together on the remote controls, and think it’s going to work okay.
I had to remove the spring for the tiller arm friction blocks.
Test fired the ugly Evinrude 15 hp in the barrel, and it seems to shift full
in either gear. Mowing lawn as it’s suppose to rain later today, but
maybe I’ll have time to test the boat in the lake tool
https://youtu.be/-o0dTInBq0Q

Prepare to be boarded!
