Exterior crankshaft seal and Bearing CD10

Home Forum Ask A Member Exterior crankshaft seal and Bearing CD10

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 12 posts - 1 through 12 (of 12 total)
  • Avatar
    Anonymous

    Replies: 21
    Topics: 11
    #211164

    Trying to separate crankcase halves to replace pistons. All screws removed but must remove exterior crankshaft seal to allow splitting two halves.Suggestions please. Tks Jim aka boaters2

    frankr
    frankr


    Replies: 5300
    Topics: 48
    #211168

    ????What exterior crankshaft seal????

    5.-Powerhead-Group

    Attachments:
    bobw
    bobw

    US Member - 1 Year
    Replies: 1096
    Topics: 41
    #211171

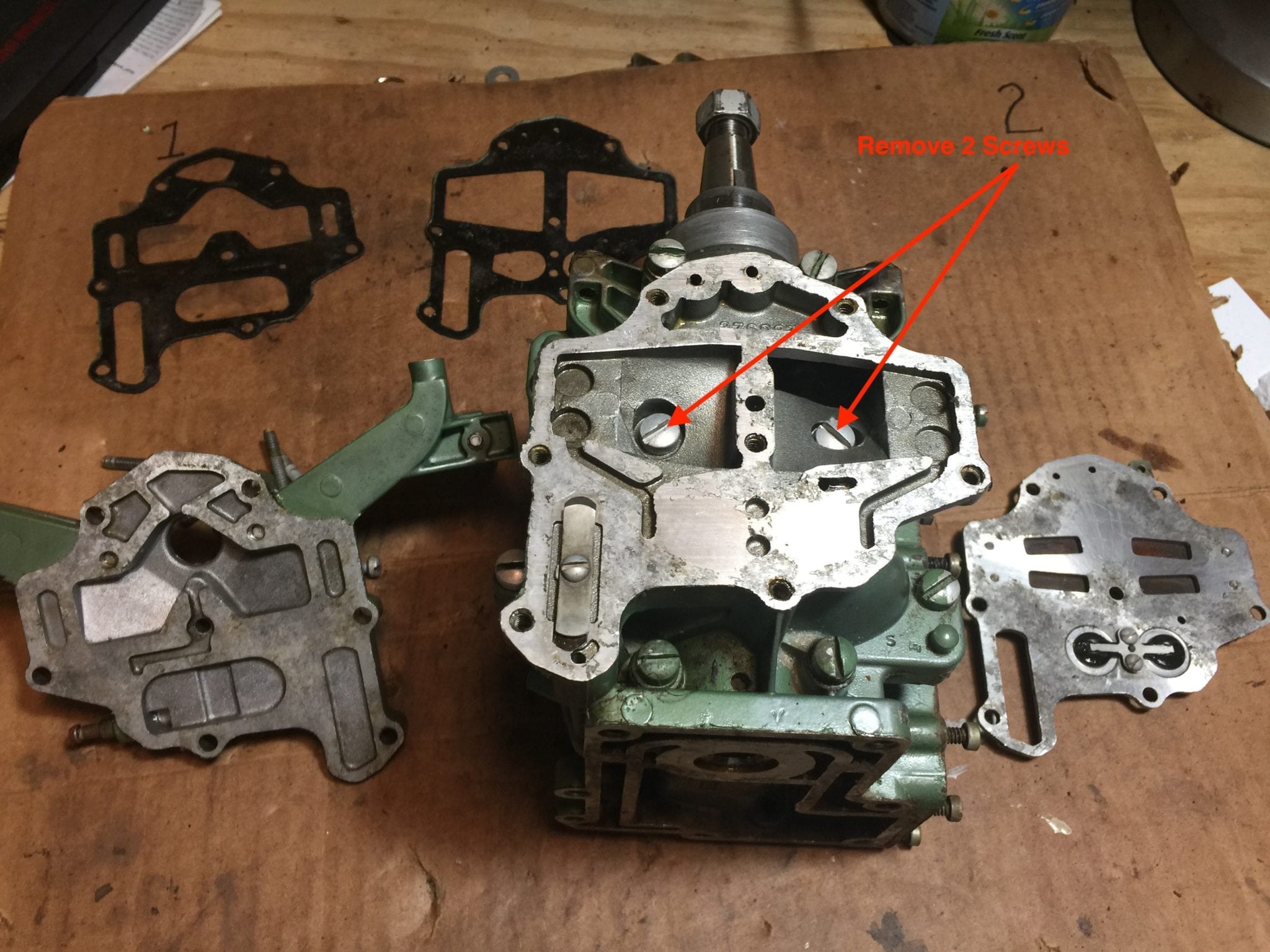

    No crankshaft seal to remove. Did you remove the 2 screws behind the manifold/reed plate? See enclosed pic. These have to come out to split the crankcase.

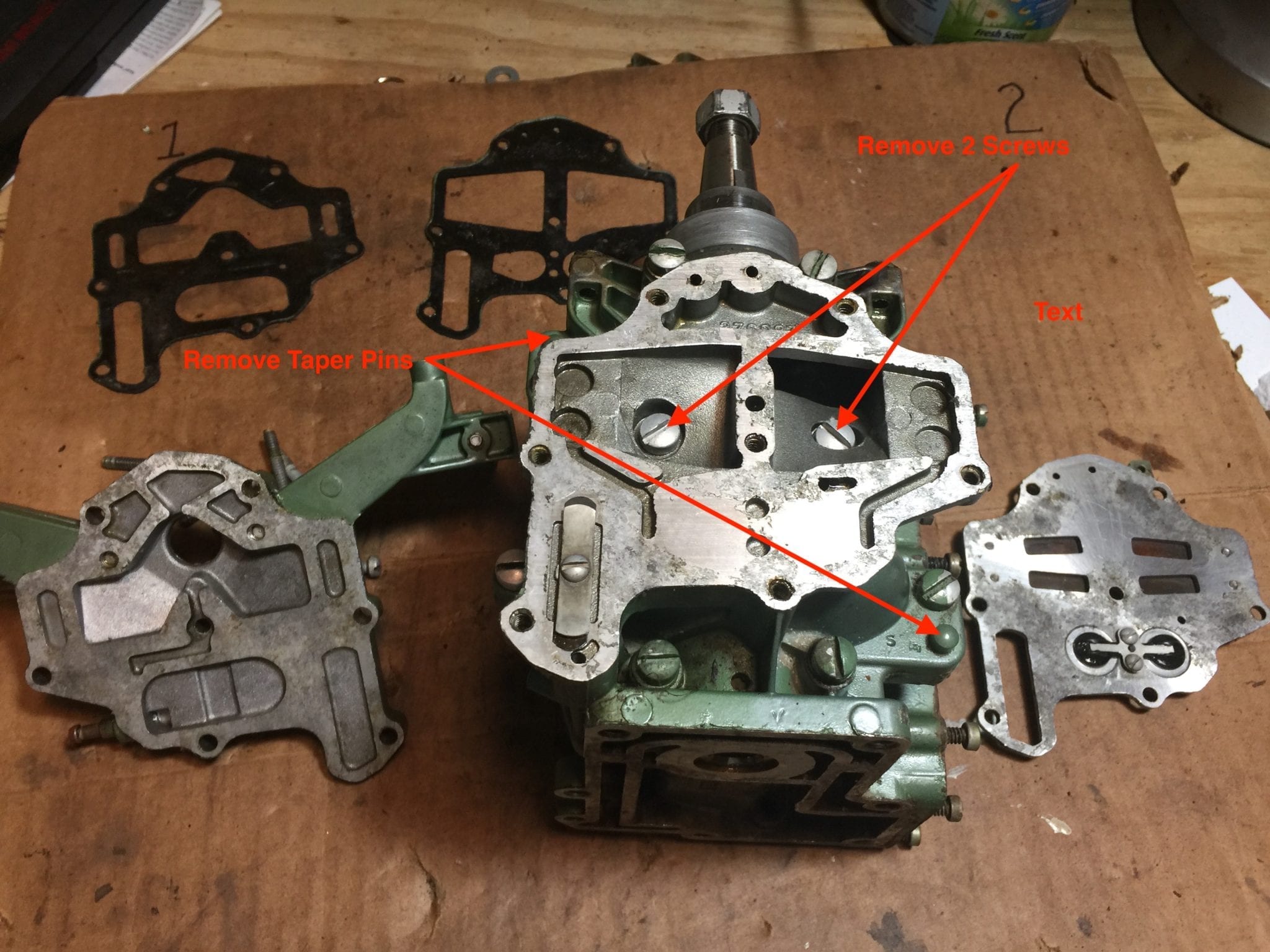

    Edit – you also need to remove the 2 taper pins. See pic. They drive out from the back toward the front of the case.

    Reed-Plate-Removed

    Reed-Plate-Removed-1

    Bob

    1954 Johnson CD-11
    1956 Johnson RD-18
    1958 Johnson QD-19
    1959 Johnson QD-20
    1957 Evinrude Fastwin 18

    "Every 20 minute job is only a broken bolt away from a 3-day project."

    • This reply was modified 1 month, 2 weeks ago by bobwbobw.
    • This reply was modified 1 month, 2 weeks ago by MumblesMumbles.
    Attachments:
    Avatar
    Anonymous

    Replies: 21
    Topics: 11
    #211195

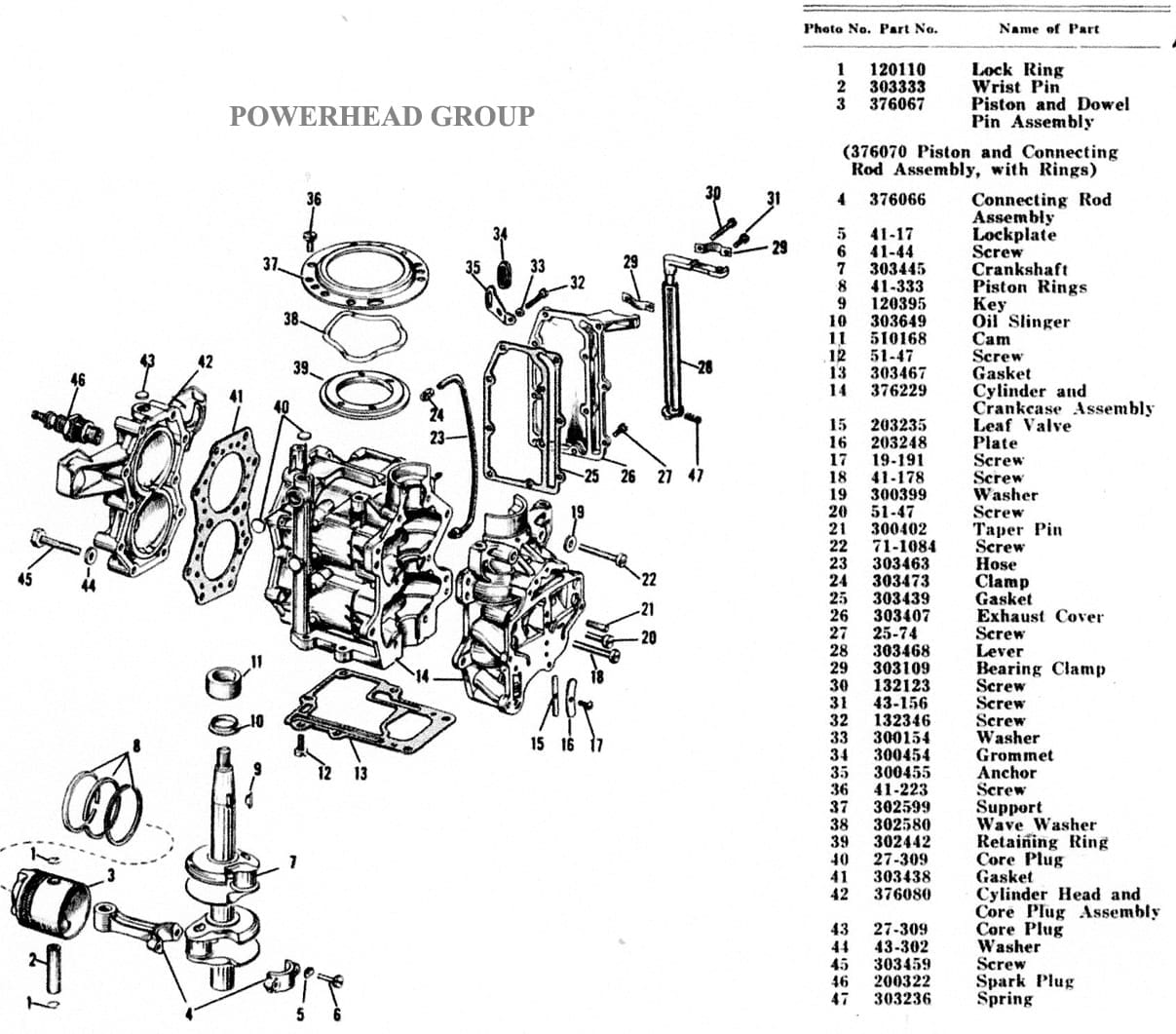

    #10 & 11 on the schematic

    Avatar
    Anonymous

    Replies: 21
    Topics: 11
    #211196

    Thanks will take a look. Likely not removed

    frankr
    frankr


    Replies: 5300
    Topics: 48
    #211200

    #11 is the breaker cam that opens the points. It just slides off. It isn’t preventing opening the case anyhow.

    #10 is a slinger, pressed onto the crankshaft. No need to ever remove it. It isn’t preventing splitting the case either.

    Avatar
    Anonymous

    Replies: 21
    Topics: 11
    #211280

    The 2 taper pins (I Presume) in the previous answer, which direction are they removed? Towards the carburetor or towards the spark plugs? How are they removed? Thanks once again. Feeling dumber every day. My last rebuild was a ’58 Johnson 35 HP 10 years ago, that was a piece of cake compared to this CD10.

    frankr
    frankr


    Replies: 5300
    Topics: 48
    #211285

    Toward the carburetor. Just knock them out with a hammer and punch. Your 35 had them too, if you remember.

    Avatar
    boaters3


    Replies: 4
    Topics: 1
    #211335

    What kind of cam is # 11? It’s stationary

    Avatar
    boaters3


    Replies: 4
    Topics: 1
    #211336

    Very difficult to get to, will keep trying. I’m not anonymous, Boaters2 , got completely deleted because I tried 2 many times to change my temp password to a new password. This process just kept going in a loop asking me over and over for my email addy. Now Boaters3

    bobw
    bobw

    US Member - 1 Year
    Replies: 1096
    Topics: 41
    #211337

    It’s the eccentric cam that rotates with the crankshaft and opens the ignition points. Not sure what you mean by stationary. It should just slide off the crankshaft.

    Bob

    1954 Johnson CD-11
    1956 Johnson RD-18
    1958 Johnson QD-19
    1959 Johnson QD-20
    1957 Evinrude Fastwin 18

    "Every 20 minute job is only a broken bolt away from a 3-day project."

    Avatar
    boaters3


    Replies: 4
    Topics: 1
    #211338

    now boaters3. See last reply below
