Flambeau Rewind Won’t Engage

Home Forum Ask A Member Flambeau Rewind Won’t Engage

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 6 posts - 1 through 6 (of 6 total)
  • Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3825
    Topics: 962
    #198676

    There’s not enough drag on the dog plate to cause it to ride up the ramps
    to engage the flywheel. Can’t find any diagrams on the rewind or magneto.

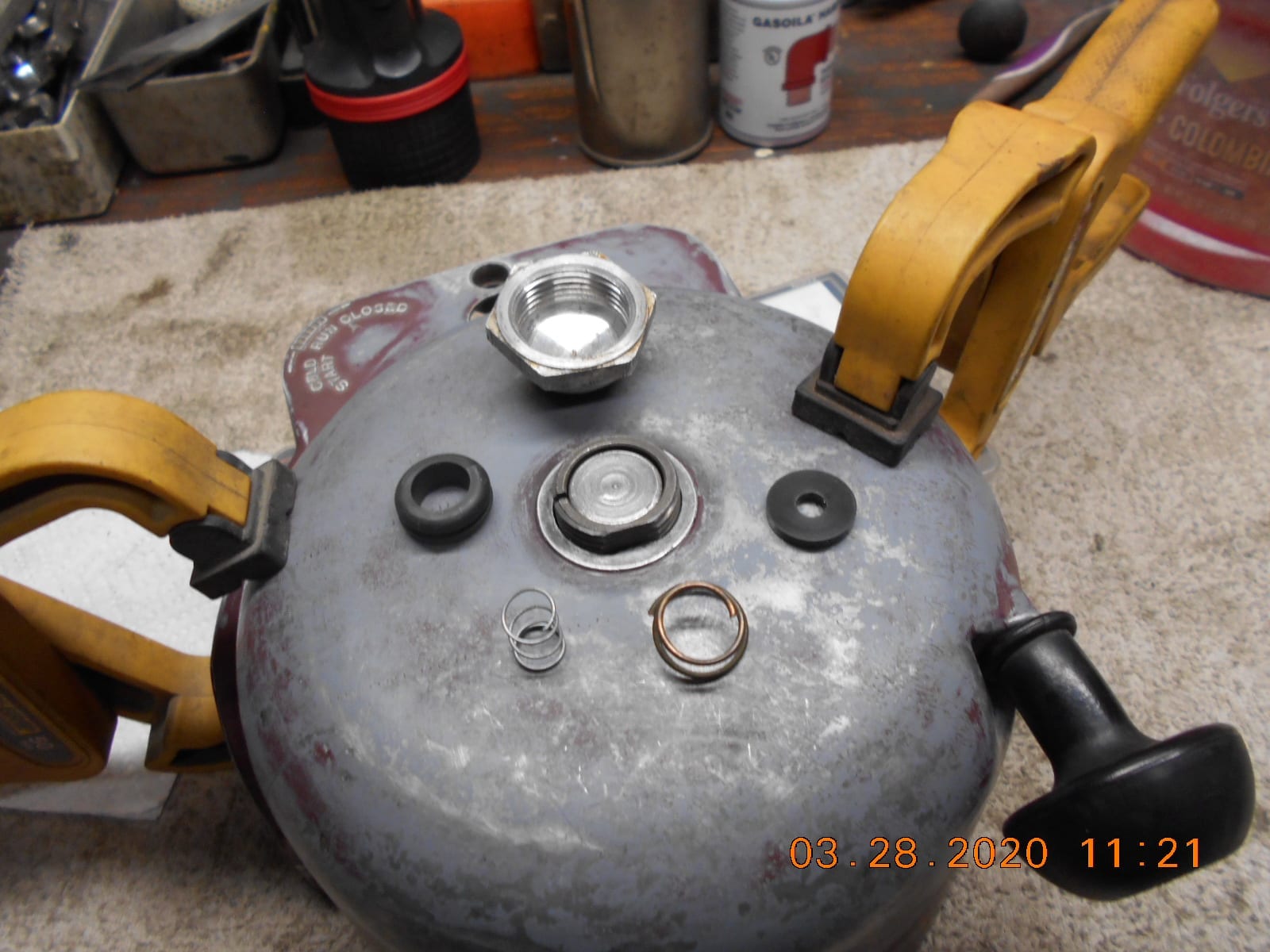

    There was a small spring under the big nut when I took it apart. Didn’t
    look like it belonged. Tried other springs, rubber grommet, etc. to induce drag,
    to no avail. If a too long or spring with too much tension is used, it raise
    the dog plate up the ramps, without pulling on the rewind rope.

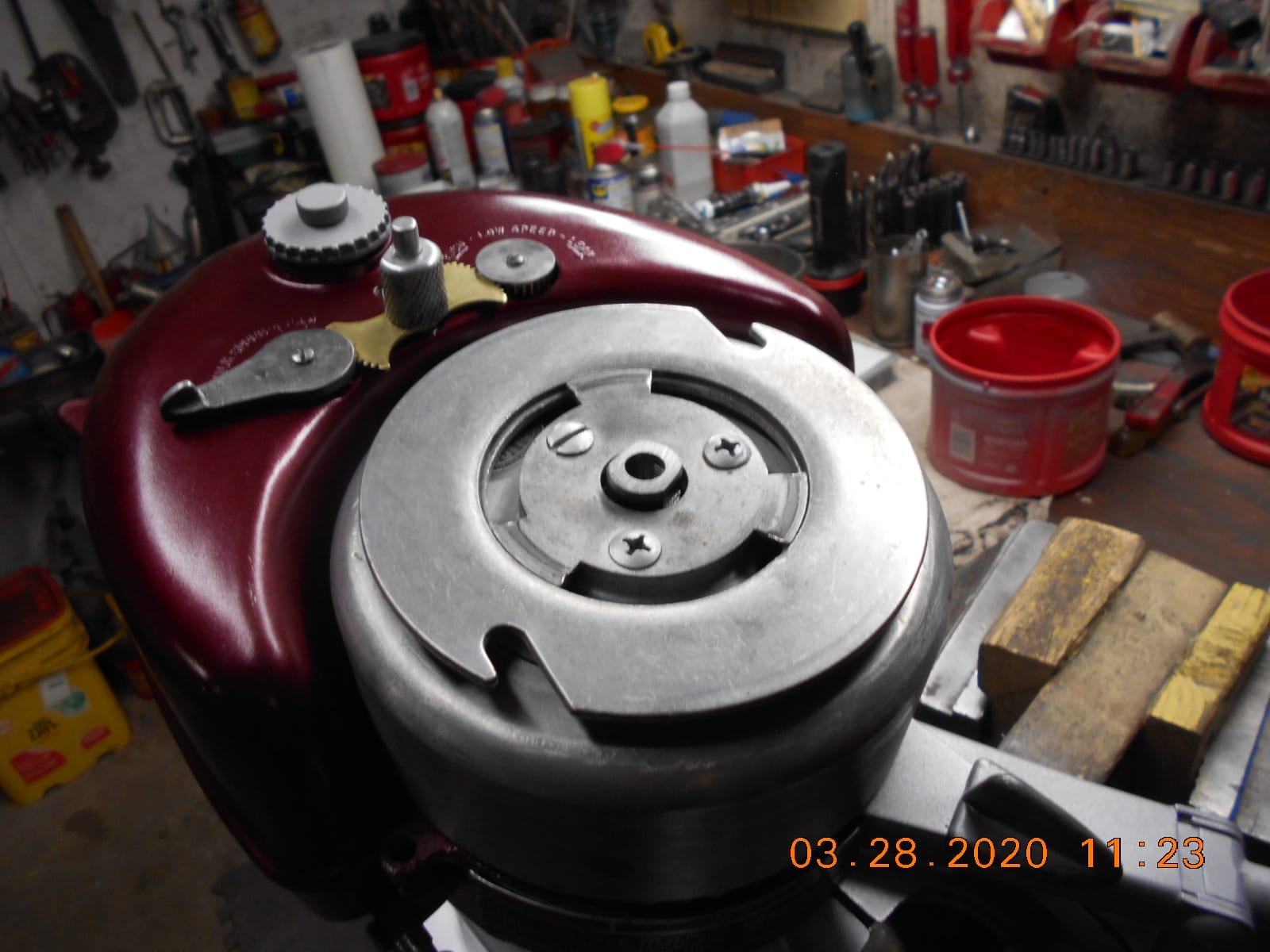

    Photos and a couple of short videos to show how it works.
    Ideas welcomed, and parts diagrams or photos of the guts of an actual
    working rewind would be cherished!
    Thanks.

    DSCN9041

    DSCN9045

    DSCN9047

    DSCN9048


    Prepare to be boarded!

    Attachments:
    Avatar
    dave-bernard

    US Member - 2 Years
    Replies: 1074
    Topics: 14
    #198683

    in the video it looks like the sheave is not pivoting in the center.

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3825
    Topics: 962
    #198717

    I think I have it fixed now.
    I noticed the bolt had been re-peened and had non-factory looking punch marks.
    I wasn’t sure if the plate was loose on the pin, or if someone had it apart before.

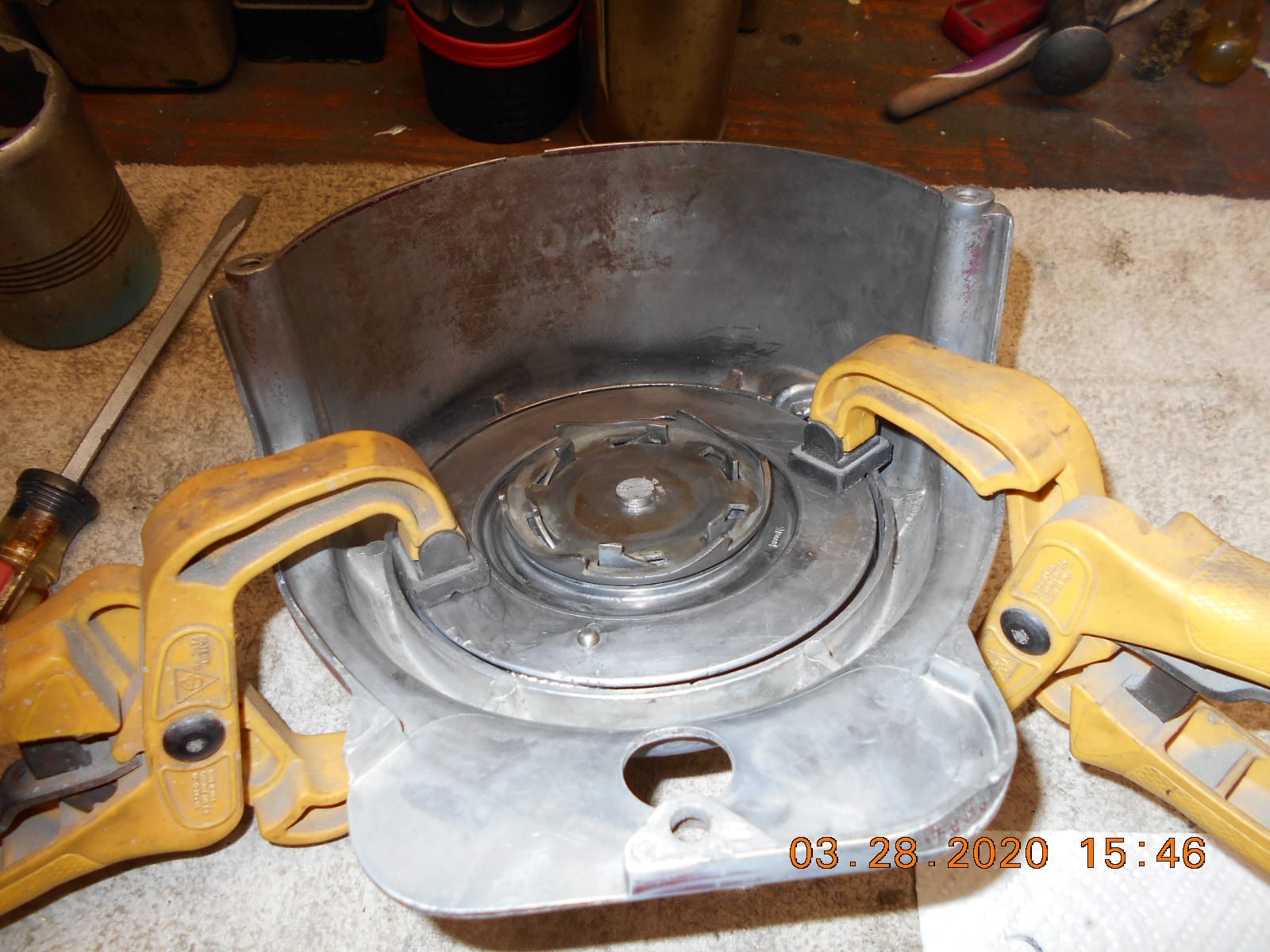

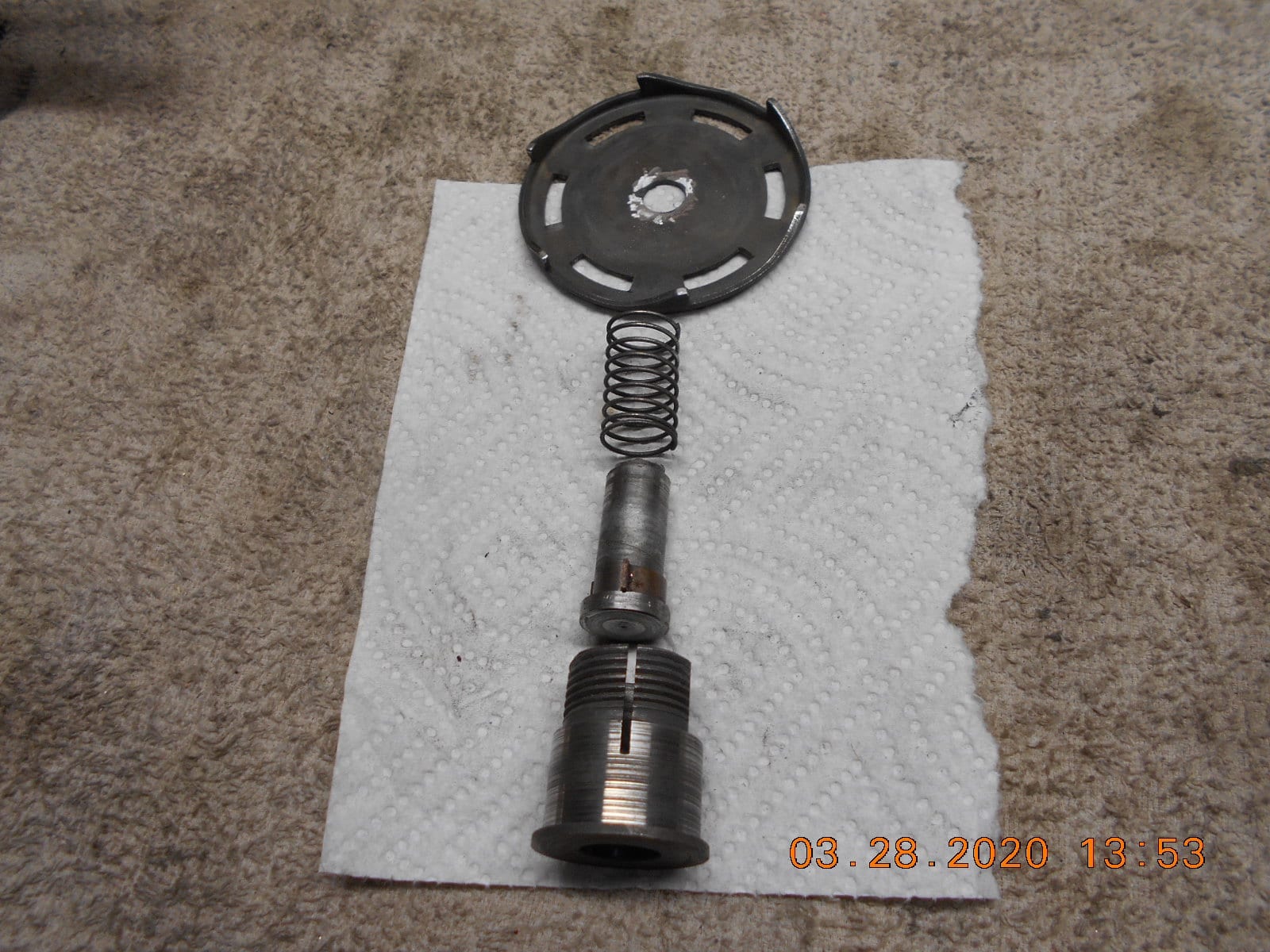

    I had to grind the end of the pin off to get it out of the plate. Once apart, I discovered
    there’s a copper clutch band that provides the needed friction on the dog plate.
    I made a new pin and the old one was too short to re-peen once I got it out.
    Then bent the clutch band tighter and reinstalled everything. I tested it out
    on the motor, and it seems okay so far.
    Took the rewind back off as I need to peed the pin tomorrow, and paint the rewind.
    I’ve never seen this type of rewind before.

    DSCN9049

    DSCN9050

    DSCN9052

    Prepare to be boarded!

    Attachments:
    bobw
    bobw

    US Member - 1 Year
    Replies: 941
    Topics: 39
    #198723

    Nice detective work and fix.

    Bob

    1954 Johnson CD-11
    1956 Johnson RD-18
    1958 Johnson QD-19
    1959 Johnson QD-20
    1957 Evinrude Fastwin 18

    "Every 20 minute job is only a broken bolt away from a 3-day project."

    David Bartlett
    David Bartlett

    US Member - 2 Years
    Replies: 392
    Topics: 19
    #198802

    Great work Tom! My Flambeau recoil works fine, so I didn’t mess with it. Thanks for taking one for the team!

    Makes me wonder what would happen if Flambeau and Bendix had teamed up to make an outboard?

    David Bartlett
    Pine Tree Boating Club Chapter

    "I don't fully understand everything I know!"

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 3825
    Topics: 962
    #198809

    I’m holding off bolting the rewind on until I’ve test ran it in the barrel,
    as if I have to reset the high and low speed needles, it’s got to come
    off anyway. If this nice weather holds out, I may be testing some of
    this winter’s projects out soon! Was 50 degrees yesterday!

    Prepare to be boarded!
