Gale 3D18B parts manual

Home › Forum › Ask A Member › Gale 3D18B parts manual

Viewing 8 posts - 1 through 8 (of 8 total)
  • Author
    Posts
  • March 5, 2024 at 7:08 am #285533
    Steve Martin
    Participant

      US Member

      I’m looking for a parts manual for a 1962 Gale Buccaneer 3D18B.

      March 5, 2024 at 7:43 am #285534
      crosbyman
      Participant

        Canada Member - 2 Years

        try a search on here  via MEMBERS ONLY

        richardlpaquette.ca/GaleProducts1951-1963ServiceManual.pdf

        Joining AOMCI has priviledges 🙂

        March 5, 2024 at 7:57 am #285535
        Steve Martin
        Participant

          US Member

          Thanks, I’ve downloaded that and it’s very helpful but has no part numbers.

          March 5, 2024 at 10:03 am #285537
          frankr
          Participant

            US Member

            Hang in there and I’ll post it later today

            Frank

            March 5, 2024 at 12:47 pm #285538
            frankr
            Participant

              US Member

              Here ya go…

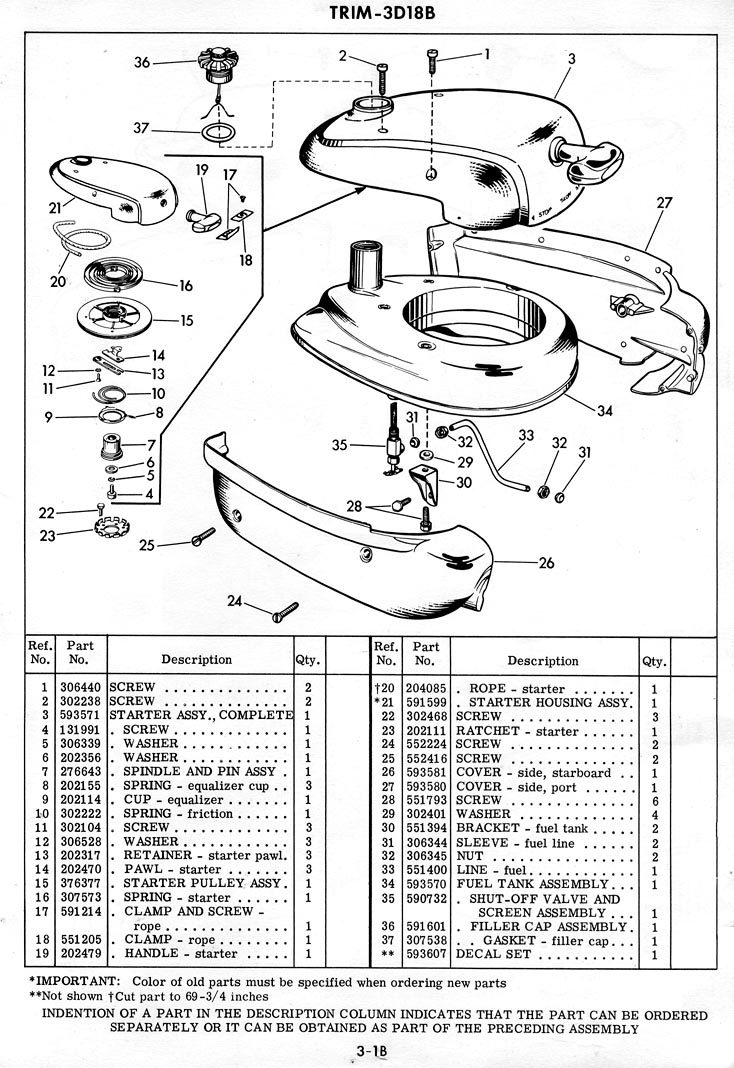

              Gale-Trim-Group-3D18B

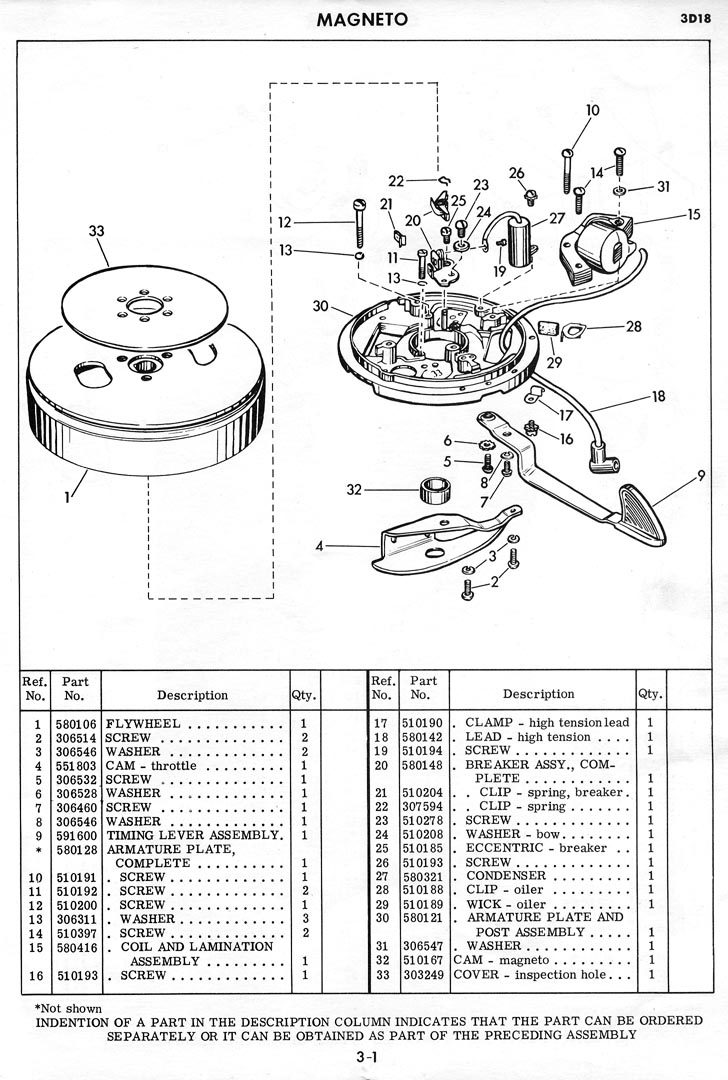

              Pg-3-1-Magneto

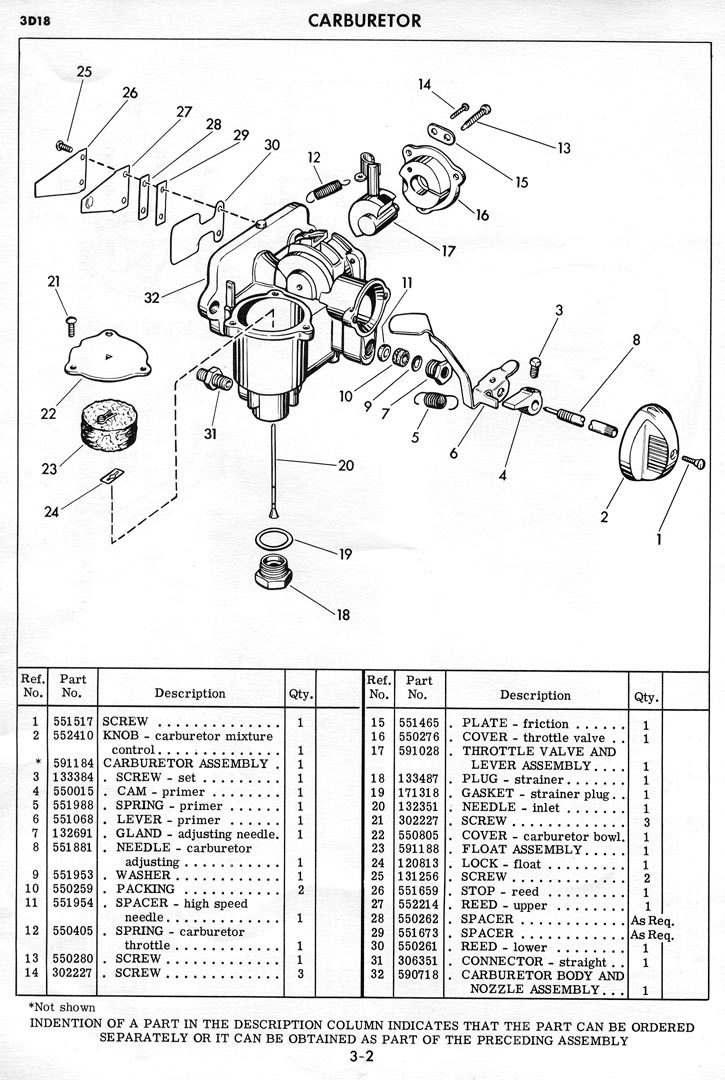

              Pg-3-2-Carburetor

              Pg-3-3-Powerhead

              1 user thanked author for this post.
              John Gragg
              March 5, 2024 at 12:50 pm #285543
              frankr
              Participant

                US Member

                More….

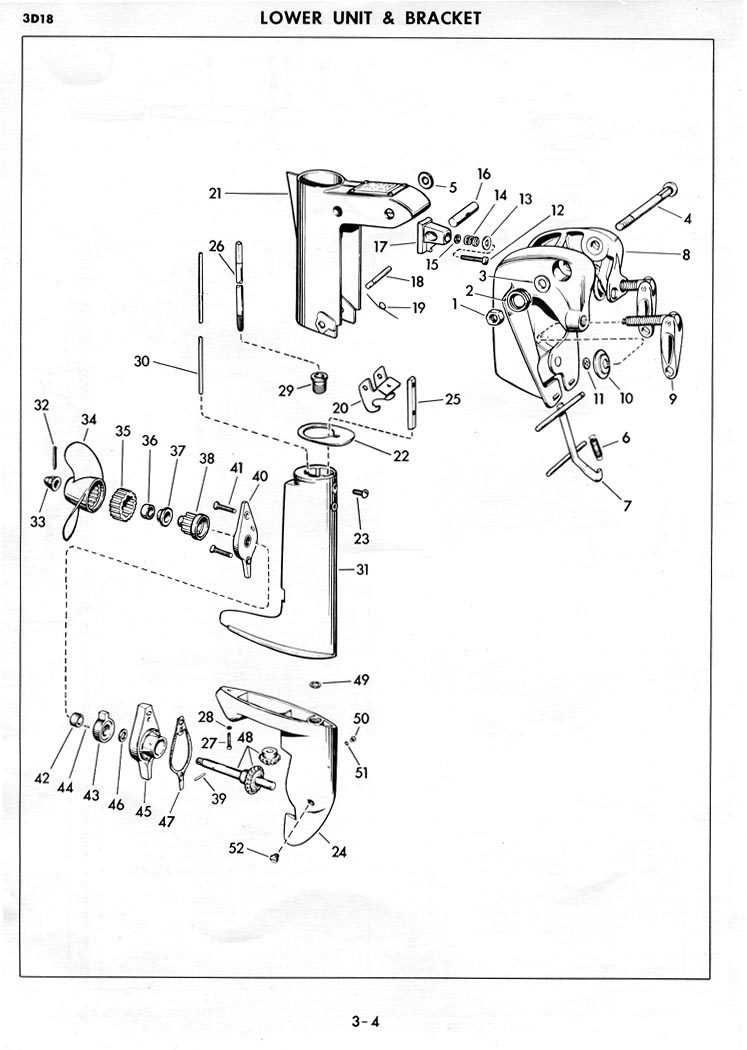

                Pg-3-4-Lower-Unit-and-Bracket

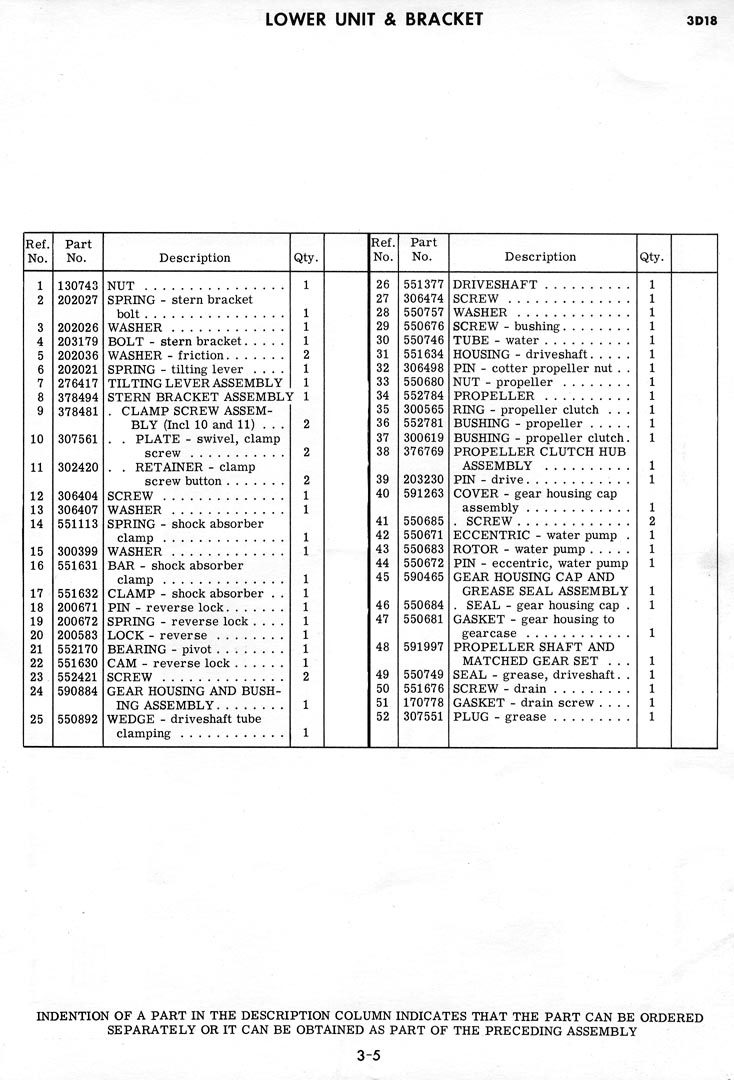

                Pg-3-5-Lower-Unit-and-Bracket-Parts-List



                1 user thanked author for this post.
                John Gragg
                March 5, 2024 at 4:25 pm #285547
                Steve Martin
                Participant

                  US Member

                  That’s great Frank.  Thanks!

                  March 6, 2024 at 10:48 am #285573
                  seakaye12
                  Participant

                    US Member

                    Here’s Franks Pages posted as a PDF for those who might prefer that format.

                    Gale-1962-3D18B
