Gasket Material

Home › Forum › Ask A Member › Gasket Material

Viewing 9 posts - 1 through 9 (of 9 total)
  • Author
    Posts
  • September 17, 2015 at 12:09 pm #2569
    willyboy
    Participant

      I recently purchased a used Johnson HA15 carb from Doug Penn and was happy to find he through in a set of nos carb gaskets for it as well. They seal the carb to the block,intake,cooling passages and are made of .020 stiff black material w/white threads thru them. I would like to make a few extra sets as long as I have them and was wondering what would be the next best thing to that type of material as I haven’t been able to find that type. I have felpro karropak#3045 tan fiber sheet 1/64",1/32",and 1/16" for sealing against oil,coolant,and gasoline but i’m not sure its usable for this application? Maybe with some gasket maker sealer #4 brushed thinly on them they would work if I used the felpro fiber material? Any suggestions for other gasket material that would be passable to make these?

      September 17, 2015 at 8:15 pm #24106
      green-thumbs
      Participant

        US Member - 2 Years

        My OPINION is the gasket material is suitable for except for hot exhaust sealing.
        For exhaust gasket stock you probably want to go to McMaster Carr or similar industrial
        supply houses.Product Data Sheet will give temperature range that each material is suited for.
        Louis

        September 17, 2015 at 8:47 pm #24107
        gjonz
        Participant

          I run to Auto Zone and buy the black/gray quasi-rubberized gasket paper. Used it in powerhead base gaskets…also…wait for it…a 1947 Johnson HD25 exhaust.

          Good luck!

          Greg

          September 17, 2015 at 10:58 pm #24116
          willyboy
          Participant

            I have some of that black rubber/paper gasket material also,just not in the right thickness. I’ve traced out the set of nos gaskets onto the felpro karrapak material just to have them as patterns for if I come across the correct gasket material for this purpose. If anyone needs a set of gasket patterns for the carb/intake to block on a Johnson HA-15 give me a shout and i’ll send you a set.

            September 18, 2015 at 12:23 am #24123
            wedgie
            Participant

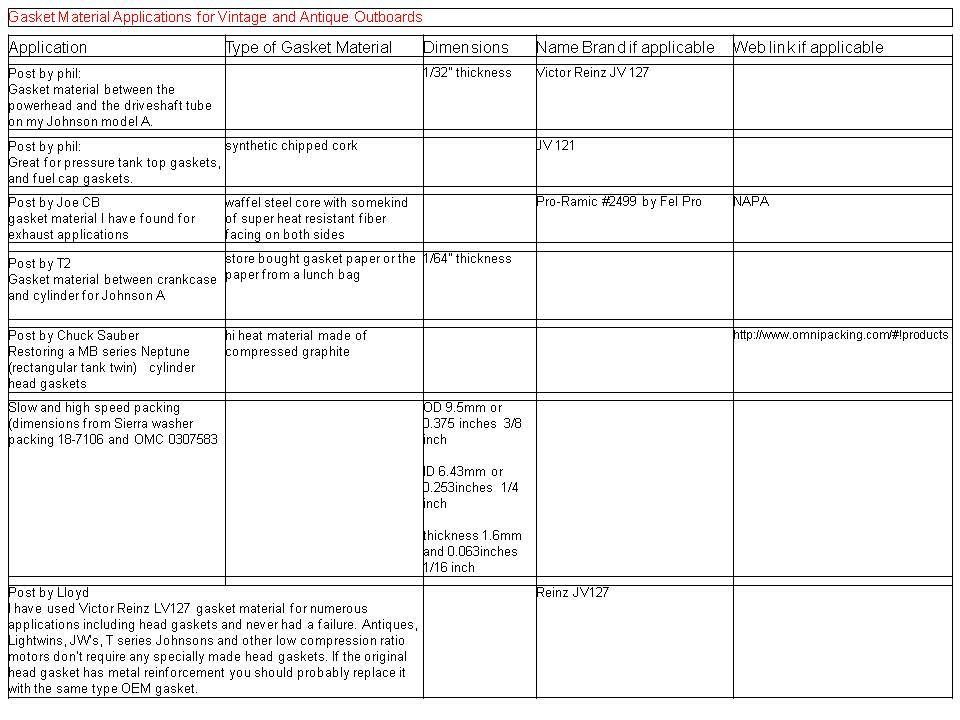

              I’ve taken the liberty of posting this info from Cajuncooks Photobucket. Hope you don’t mind David, and thanks for all you do for the club !

              April 8, 2016 at 3:54 pm #34529
              gelo
              Participant

                Hi could you send me the HA15 gasket patterns thanks 😀

                April 8, 2016 at 9:07 pm #34538
                willyboy
                Participant

                  pm me your address and i’ll copy the ones I made and send them to you.

                  April 9, 2016 at 2:35 pm #34575
                  gelo
                  Participant

                    Thanks just checking is this the place to PM?

                    April 9, 2016 at 5:18 pm #34579
                    Steve A W
                    Participant

                      Gelo
                      Left click on the name in the upper left of post.
                      It will bring up the posters profile page.
                      In the middle left side of page is a spot to "Send private message"
                      Easy peasy!

                      Steve A W

                      Member of the MOB chapter.
                      I live in Northwest Indiana
