      Got the re-worked mag back on the HD-15 today,
      and it has "spark", so I proceeded to the lower unit.
      Pretty sad sight. Prop shaft is "ate up". The bronze-ish
      gears are intact, but with sharper teeth than I’d like.
      The water pump cam on the prop shaft (part of the ps gear)
      is wore down about 3/16".
      There’s a chunk broke out of the gear cover.
      Other than that, looks great 😕

      It’s possible I could machine a new prop shaft.
      The old one is 7/16". If I were to order a piece
      of round stock, what grade am I looking for?
      It would have to be something I could thread on
      the lathe.

      Re: The water pump cam – If I could get the worn cam
      "round" again, I could possibly install a bushing over
      it to bring it back to size. I don’t have a four jaw
      chuck on the lathe though.
      Thoughts?

      Re: gear case cover. It almost looks like some kind
      of "pot metal" to me, so doubtful if it can be
      welded up…. pretty thin anyway.
      If the thing ends up running "okay", I’d keep
      my eye open for a replacement cover, but for now,
      I was thinking of a way to patch it up to keep
      minnows or leeches out of the gears 😮
      I doubt if the gear case was very water proof
      even when new anyway….. so, what might
      work best?
      JB Weld, 2 part epoxy?

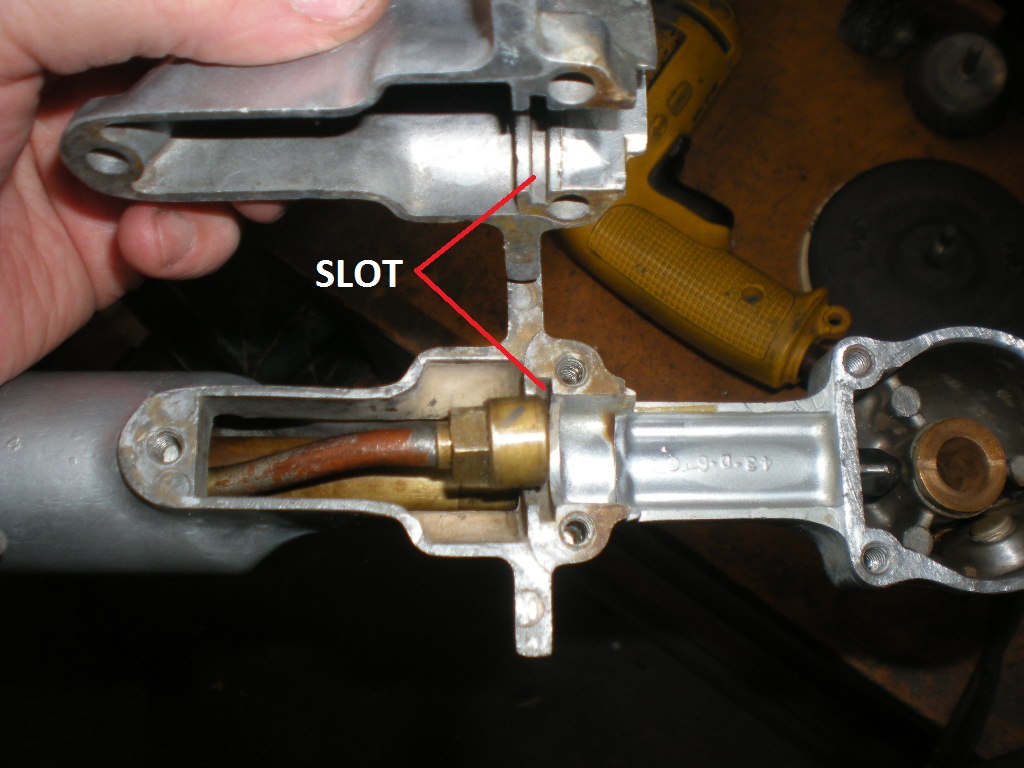

      Regarding the photo with the "Slots" – is there
      suppose to be a washer or something that
      goes in the slot between the two mating halves?

      Thanks for your ideas!


      Attachments:

      Prepare to be boarded!

      #56124
      stanley
      Participant

        US Member - 2 Years

        Looking at my parts list/illustration,I see nothing that would indicate a seal,bearing or washer would fit the groove in your photo.As far as the broken casting goes,I think a really good welder of aluminum could probably put a blob on the broken casting that you could grind to shape.You could also put a blob of JB Weld on there after putting a screw in the hole.That case does need to be pretty water tight(there is a gasket),but it’s grease filled so you have a little slack.

        #56133
        Buccaneer
        Participant

          US Member

          Stanley, thanks for looking at the parts list regarding the slot.
          Regarding the prop shaft, I ordered this hardened bolt,
          with the hopes I can make it into a prop shaft!
          http://www.ebay.com/itm/NEW-ARP-7-16-20 … mv&vxp=mtr

          Prepare to be boarded!

          #56159
          Mumbles
          Participant

            Prop shafts aren’t too hard to make unless there’s a keyway to cut in them. Unfortunately, I don’t have a mill or a lathe vice for doing this, yet! I’m not sure of the grade of stainless I use but it cuts and drills nice with sharp tools. You might have a problem working with a hardened bolt though, because it’s hard. The old shafts I’ve replaced are fairly soft and some of them weren’t even stainless and they had corroded and rusted away.

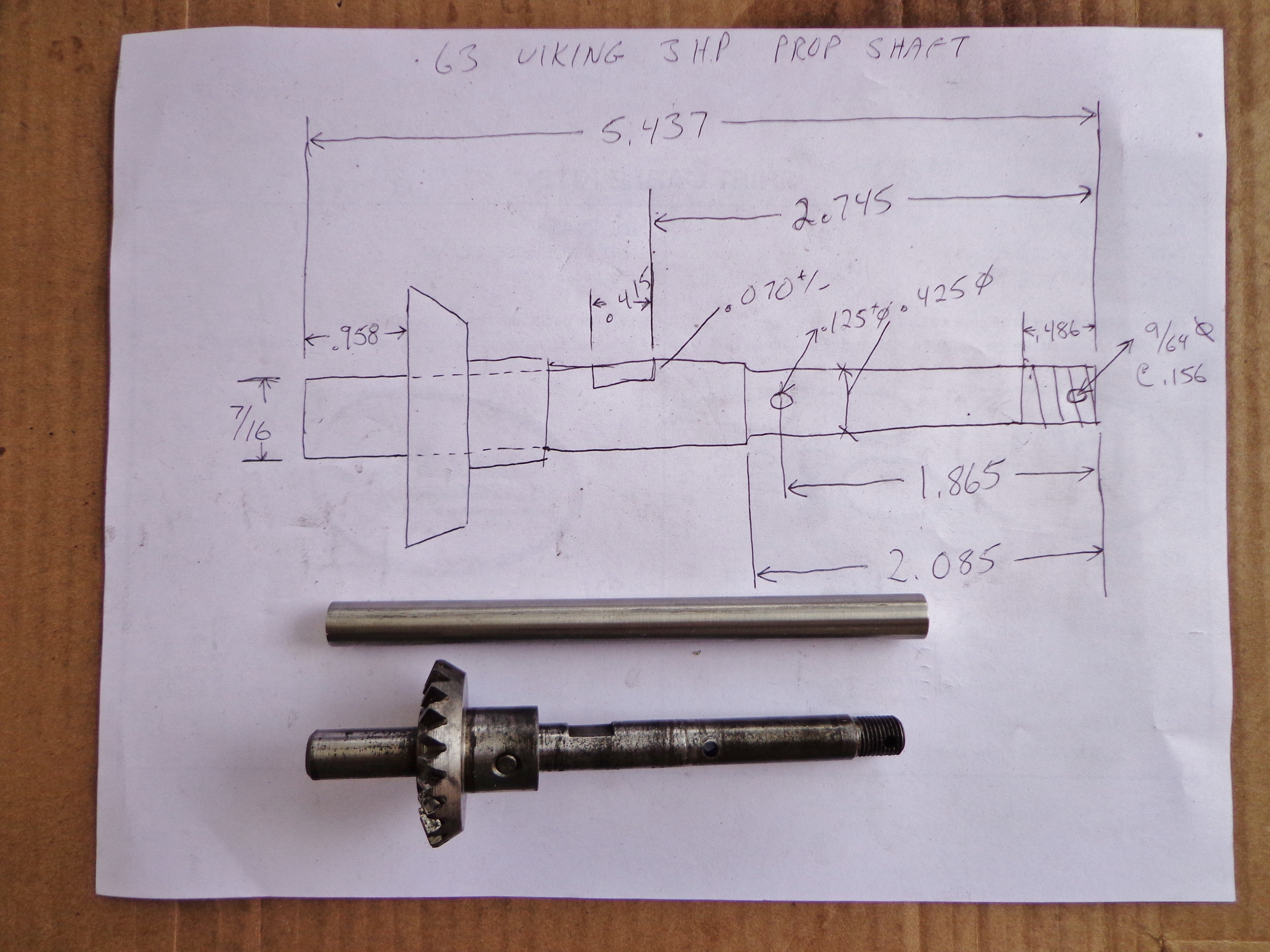

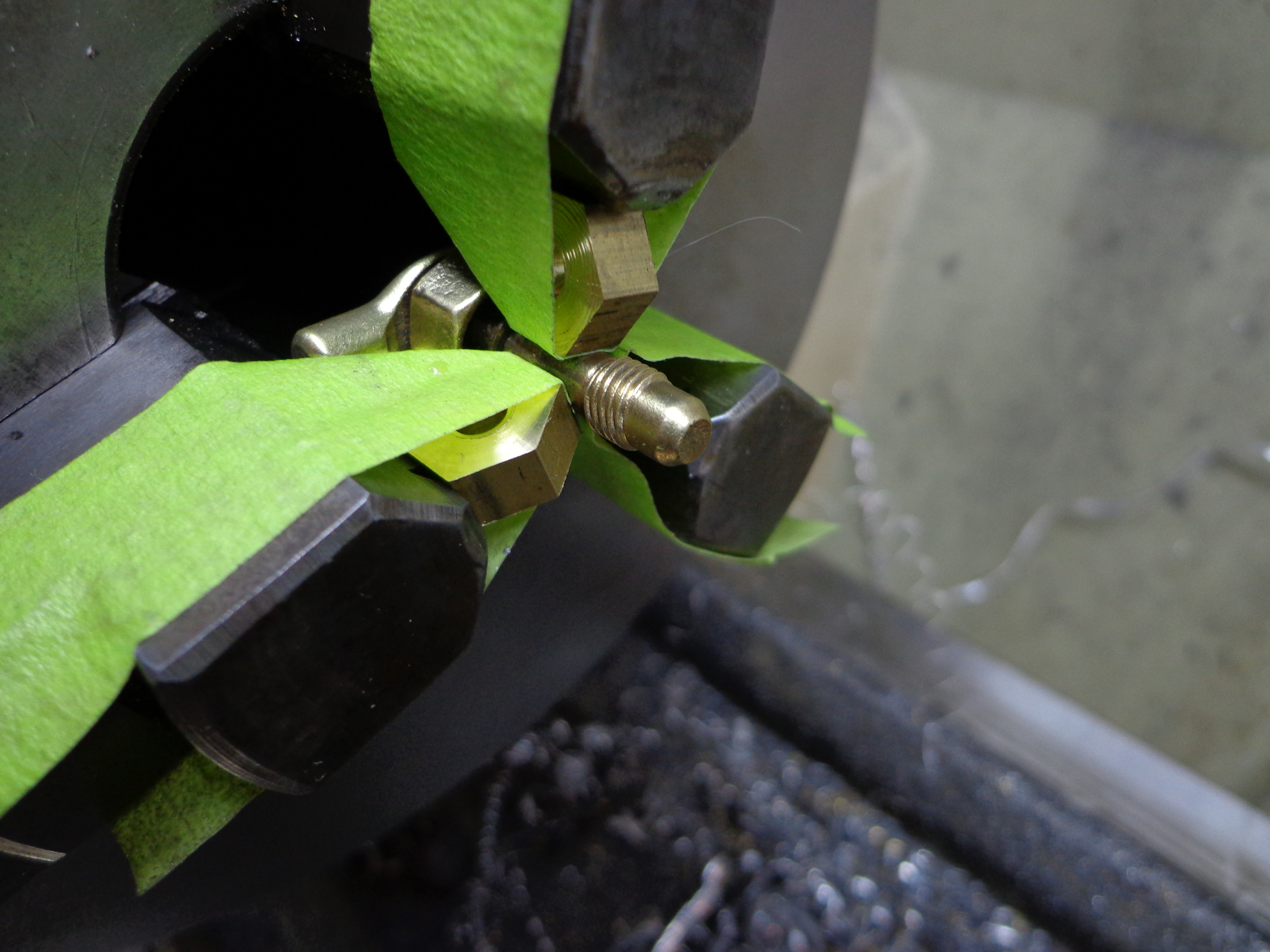

            Can you build the lobe up with weld? Shimming one of your chucks jaws a bit will give you an offset to turn the lobes profile. Thickness of the shim will determine the amount of lift. After cleaning any oil off of the jaws surface, masking tape can be used to hold a shim in place.

            I can’t remember which motor it was but I’ve seen that groove somewhere. It seems to me there was a plasticky type of washer/seal that went in it. I’ll search some photos to see if I can find it.


            Attachments:

            #56169
            Buccaneer
            Participant

              US Member

              Mumbles, thanks for the interesting tip on "off-setting" an object
              in a three jaw vise!
              The water pump lobe and gear are cast in one, so I’m not sure
              if that oil soaked bronze lobe could be built up with braze
              without destroying the gear? To tell the truth, I’ve brazed lots
              of iron pieced over the years, but never brazed any bronze
              pieces, so not sure what to expect.
              I ordered a hardened bolt to try to make a prop shaft, as all
              I have to do is drill three holes in it. No steps or keyways
              need machined.

              Prepare to be boarded!

              #56393
              retiredoz
              Participant

                Sent you a PM

                #56396
                nabmd
                Participant

                  US Member

                  My HA-15, LT-37, and LT-39 all have a fiber type washer that fit in the slot pointed out in picture #1.

                  #56399
                  Buccaneer
                  Participant

                    US Member

                    Nabmd, thanks for that information! Will have to examine
                    mine closer tomorrow, and see just what that fiber washer
                    would do in the slot…… perhaps just keep exhaust
                    out of the pump area? I’m sure I can come up with
                    something to fit it.

                    Prepare to be boarded!
