Impeller seal

Home Forum Ask A Member Impeller seal

Viewing 8 posts - 1 through 8 (of 8 total)

  • Samuel Phelps

    US Member - 2 Years
    Replies: 229
    Topics: 40
    #181861

    Anyone know a source for an impeller water seal ? Part # 200834 for the 49 Speeditwin


    garry-in-michigan

    Lifetime Member
    Replies: 3583
    Topics: 31
    #181867

    I thought they used a Chicago Rawhide seal. Where there any numbers on it? That is supposed to be a 0.988″ shaft. Look for a seal at a wholesale house with an inside diameter of 25mm. Good Luck

    Garry in Michigan


    Samuel Phelps

    US Member - 2 Years
    Replies: 229
    Topics: 40
    #181896

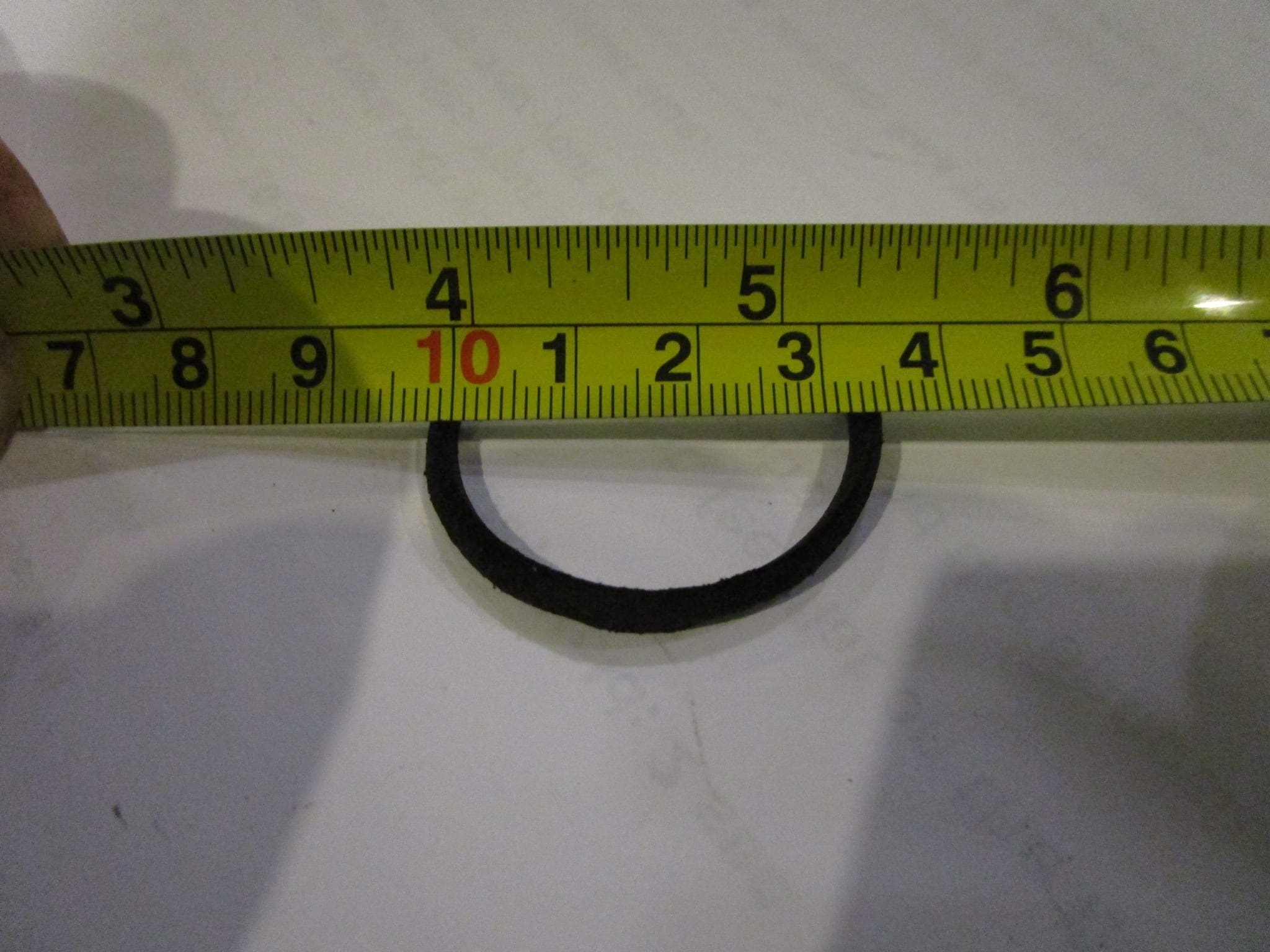

    No numbers that I could see . It looks more like 32 mm ID …
    I think it may still be usable but definitely getting crumbly around the edges .
    It’s flat on the bottom with sort of an upside down V shape on top .
    May have been round originally idk …

    41D556C2-DDE9-40F9-981C-D96024FA25C5


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #181899

    They did some strange things back then, but I doubt it is a metric part.


    frankr

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 6715
    Topics: 51
    #181900

    Any chance you could substitute a quad ring? Hard to tell the size with a tape measure, but I’m thinking a 90025K381 from McMaster.
    https://www.mcmaster.com/x-rings


    Samuel Phelps

    US Member - 2 Years
    Replies: 229
    Topics: 40
    #181916

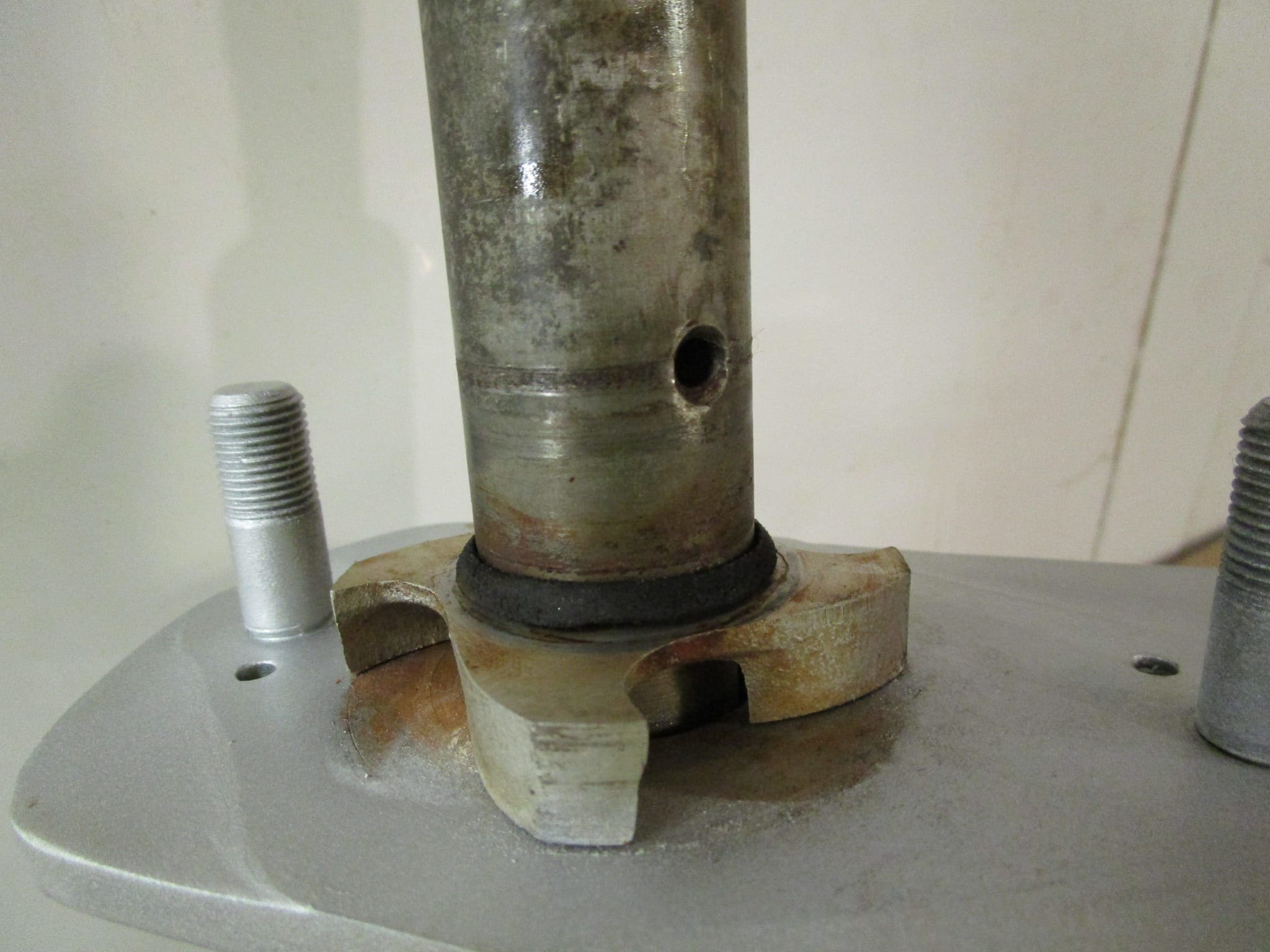

    The ring fits on the shaft coupler resting on the impeller and seals in the beveled upper housing . So it’s either spinning with the shaft or it’s sticking to upper housing and shaft spinning inside the ring .. So thinking an o ring more this style idk ..https://www.mcmaster.com/o-rings
    Basically just needs to be beveled on the outside I guess . Shaft mounted rotary seal 9562K47

    9162CC79-A6F3-4CB1-9DE7-CA71BF06345F

    970D4958-07DF-4BAB-B74B-5FE65F1A2B87


    garry-in-michigan

    Lifetime Member
    Replies: 3583
    Topics: 31
    #181960

    Sorry – I was looking at the wrong part. The water intake on those models was larger than the water tube. At speed more water was forced in than the output could handle. The water would fill the driveshaft housing and rust the crank shaft.That seal was the first attempt to stop that. some were cork. some were leather. Later holes were drilled to let the water out of the housing, which solved the problem. It was common for racers to remove that seal, shave down the water pump and drill extra holes in the driveshaft housing to gain a little more horse power. A small “O” ring will do – it’s not that important.

    Garry in Michigan


    Samuel Phelps

    US Member - 2 Years
    Replies: 229
    Topics: 40
    #181975

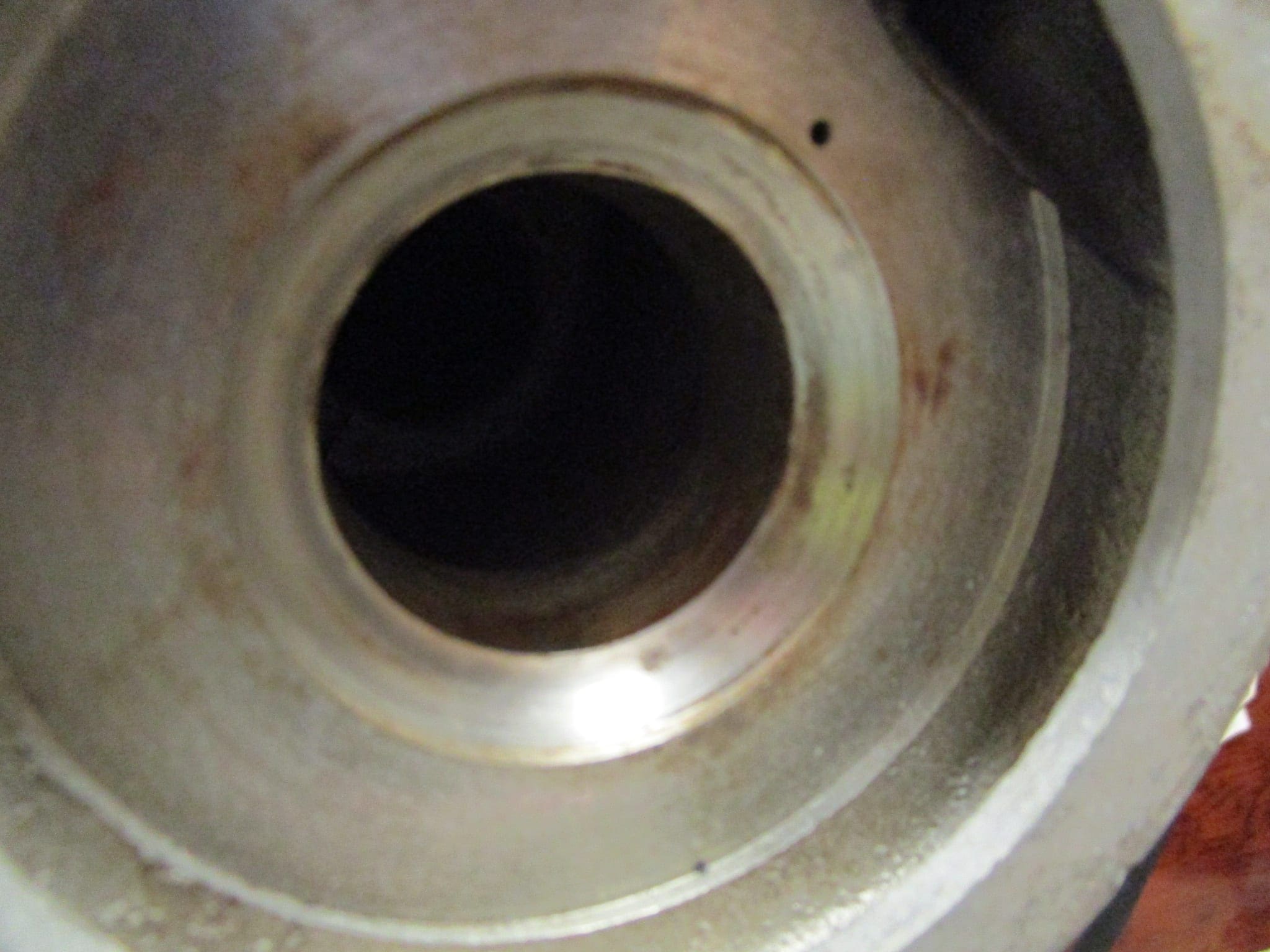

    That’s interesting thanks for the info . Is that what that small hole in the housing on the second picture is for ?
