Johnson JW-13 3 hp Seahorse

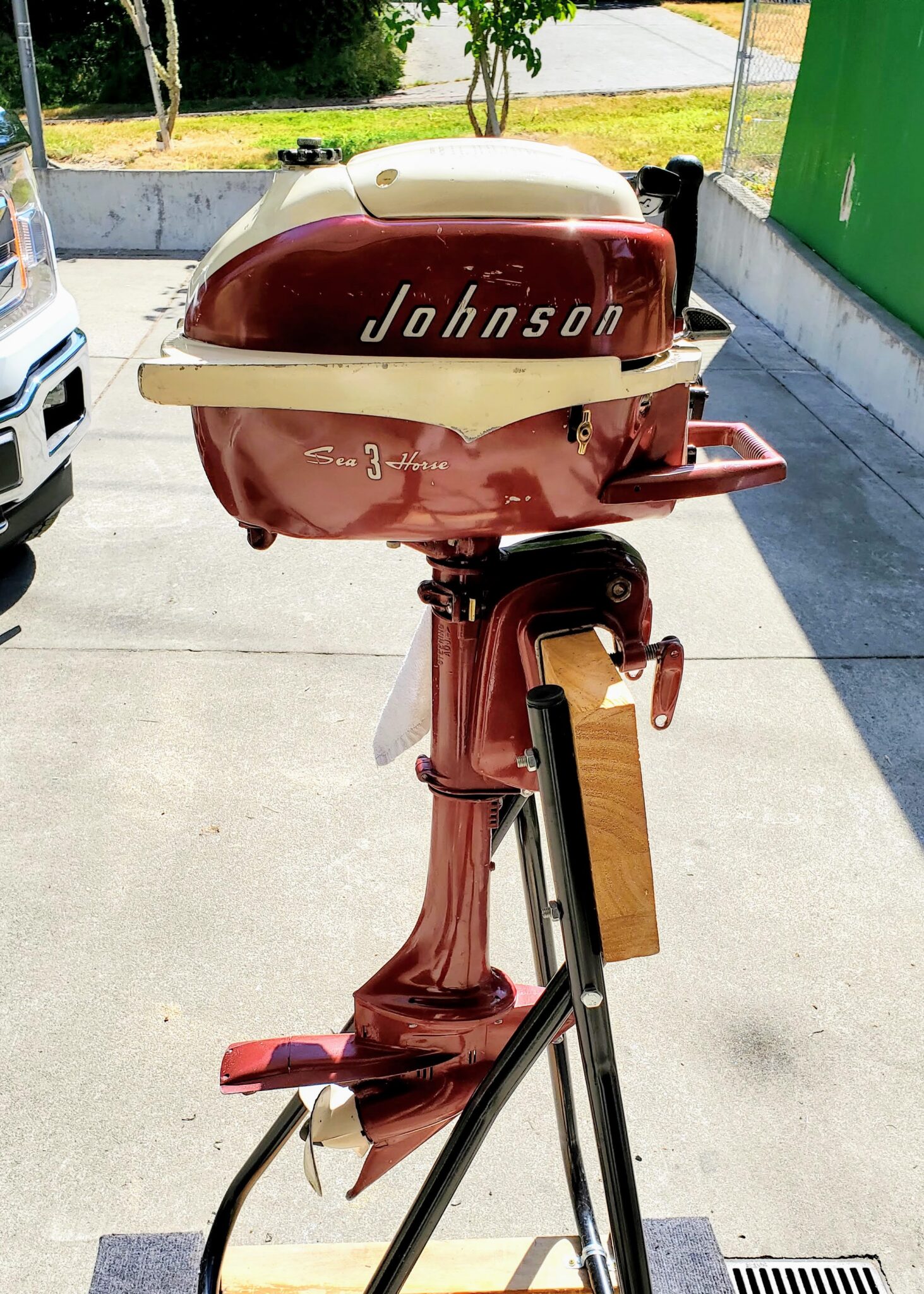

[JdgMbi1]

I have just recently acquired Johnson JW-13 3 hp outboard and hopefully, this one will have more readily available service and owners manuals. Can anyone give me some places to look. I have already done usuals, Amazon, eBay, without much luck.

Thanks in advance for your help

• This topic was modified 3 years, 6 months ago by Mumbles. Reason: insert photo

[Mumbles]

Nice ’57 JW!

[crosbyman]

nice motor!!

http://www.outboard-boat-motor-repair.com/Evinrude%203%20HP%20Lightwin%20Outboard%20Boat%20Motor/Evinrude%20Johnson%203%20HP%201952-1967%20Ignition%20System%20Tune-up.htm

http://www.outboard-boat-motor-repair.com/Evinrude%203%20HP%20Lightwin%20Outboard%20Boat%20Motor/Evinrude%20Johnson%203%20HP%201952-1967%20Carburetor%20Tune-UP.htm

no big complexities… clean the carb check ignition and cracked coils clean the points, condensers may be shot…. change gc oil and impeller
tank inside filter may be clogged….remove inspect and clean it go fishing .. done !

Joining AOMCI has priviledges 🙂

• This reply was modified 3 years, 6 months ago by crosbyman.
• This reply was modified 3 years, 6 months ago by crosbyman.

[crosbyman]

see link
http://www.marineengine.com/parts/johnson-evinrude-parts.php?year=1957&hp=3&model=JW-13

Joining AOMCI has priviledges 🙂

[outbdnut2]

Editing – looks like three of us were typing/posting at the same time – sorry for the duplication!

You will find exploded views and parts lists for your 1957 3 HP at the link below. These are simple motors so you may not need manuals. There is no telltale cooling water stream – just some spray about half way between the powerhead and the cavitation plate. Use gear oil (not grease) in the gearcase. Use 16 to 1 gas/oil mix. If it still has original coils, they will be bad – insulation cracked, etc., but if it’s been used in the last 20 or 30 years, the coils have likely been replaced.
Dave

Here are the views and parts lists:
http://www.marineengine.com/parts/johnson-evinrude-parts.php?year=1957&hp=3&model=JW-13

• This reply was modified 3 years, 6 months ago by outbdnut2.
• This reply was modified 3 years, 6 months ago by outbdnut2.

[Mumbles]

Is that link to Garrys dropbox as he has requested numerous times it is not to be made public.

Maybe something has changed and I missed it. Don’t know.

[outbdnut2]

Opps – I guess I didn’t know it wasn’t to be made public – it was on a post here awhile back. I removed it from my post above!
Dave

[JdgMbi1]

Thanks to everyone for the prompt and numerous responses. All the information looks very helpful.

Side note: The http://www.marineengine.com link appears to just go to their website, not a private Dropbox?

If there are any good places to find old advertising and such, I would be interested in that as well.

[crosbyman]

as a member….. you have access to…… MEMBERS ONLY….. INNER SANCTUM ….scroll down to .. LIBRARY……then GARRY SPENCER DROP BOX and you will find lots of info incl the need to have JOHNSON RED BOX you can download to service your JW and other oldies

find the book in this picture.. .1954 JW… much like yours 🙂 and the RED book you need

Joining AOMCI has priviledges 🙂

• This reply was modified 3 years, 6 months ago by crosbyman.
• This reply was modified 3 years, 6 months ago by crosbyman.

[outbdnut2]

JdgMbi1 wrote:

Thanks to everyone for the prompt and numerous responses. All the information looks very helpful.

Side note: The http://www.marineengine.com link appears to just go to their website, not a private Dropbox?

If there are any good places to find old advertising and such, I would be interested in that as well.

I just tried that same Marine Engine link from both posts above and and it went directly to your 1957 JW-13 at Marine engine – it should take you to a list of the various sections of your motor and then you click on the list item you need a parts diagram for.

When the exploded view comes up, scroll down and the parts list by number on the diagram is below it. Try again and read carefully what comes up.

For the red manual in the dropbox, see Crosbyman’s post above for instructions to get to to get to the member’s only dropbox from aomci home page.
Dave
