    Can someone tell me how many splines there are on a Johnson TN 27 driveshaft where it slides into the bottom of the crankshaft?


    Mumbles


    Replies: 5764
    Topics: 298
    #166795

    I can’t say off the top of my hat but they are multi splined. If I look around tomorrow, I should have a shaft out in the shop somewhere and could do a count.

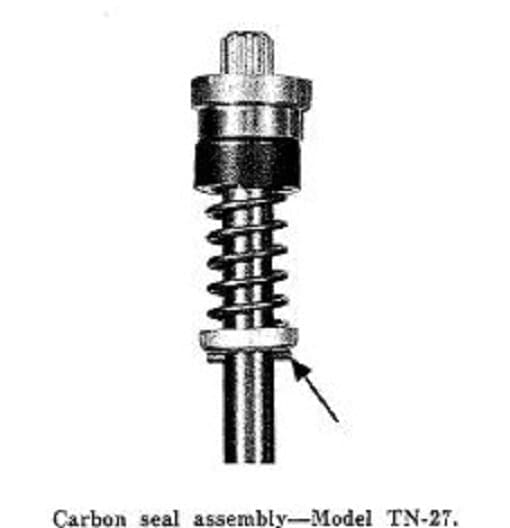

    TN-27-28-DS-Seal


    crosbyman

    Canada Member - 2 Years
    Replies: 3588
    Topics: 326
    #166797

    maybe… 8

    Joining AOMCI has priviledges 🙂


    johnny

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 83
    Topics: 18
    #166941

    I have two TN-27s that the splines in the crankshaft are rusty and are striped. I guess the only way to fix them is with replacement crankshafts that have good splines. That’s why I am asking how many splines they have. I know the TN-26 model only have 4 or 5 splines.


    Buccaneer

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 7495
    Topics: 1072
    #166974

    Perhaps there’s a good “farmers fix”, or “crafty machinist” fix
    for the crankshaft?
    If so, I wouldn’t mind hearing them.
    Then again, probably lots of TN-27 parts “out there”.

    Prepare to be boarded!


    Mumbles


    Replies: 5764
    Topics: 298
    #167117

    The parts motor I have in the shop was a coarse splined TN-26. Sorry to keep you waiting.

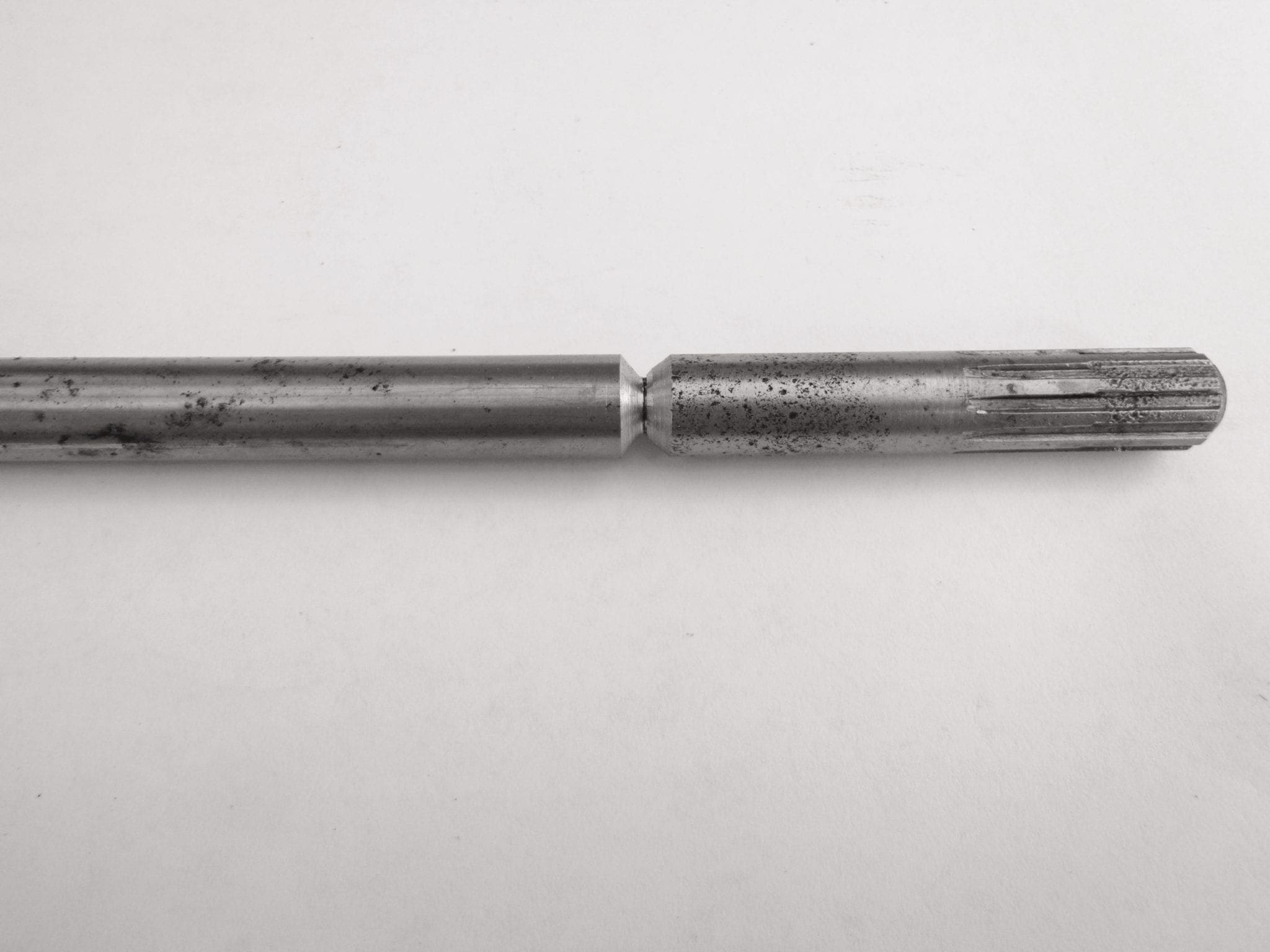

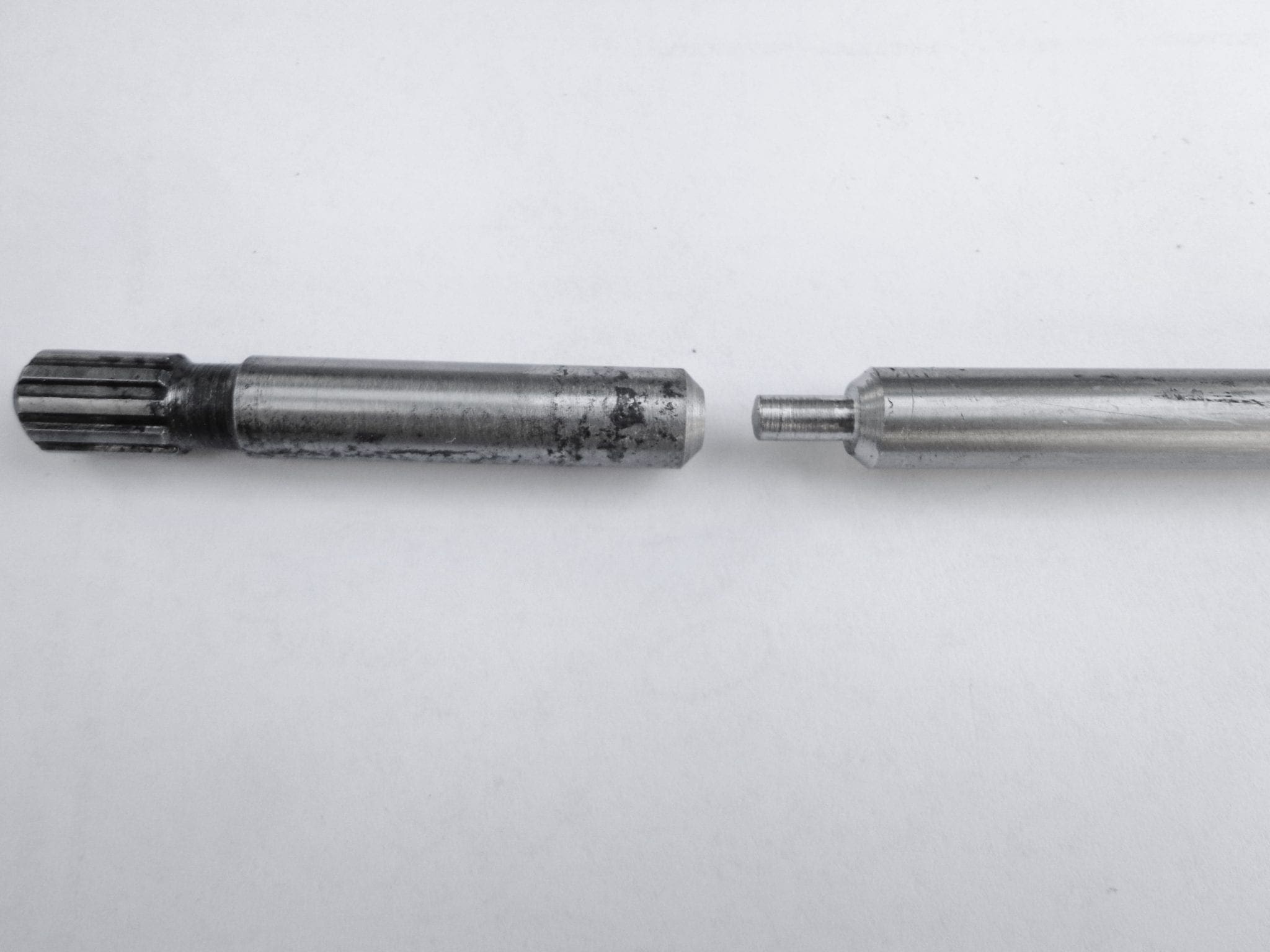

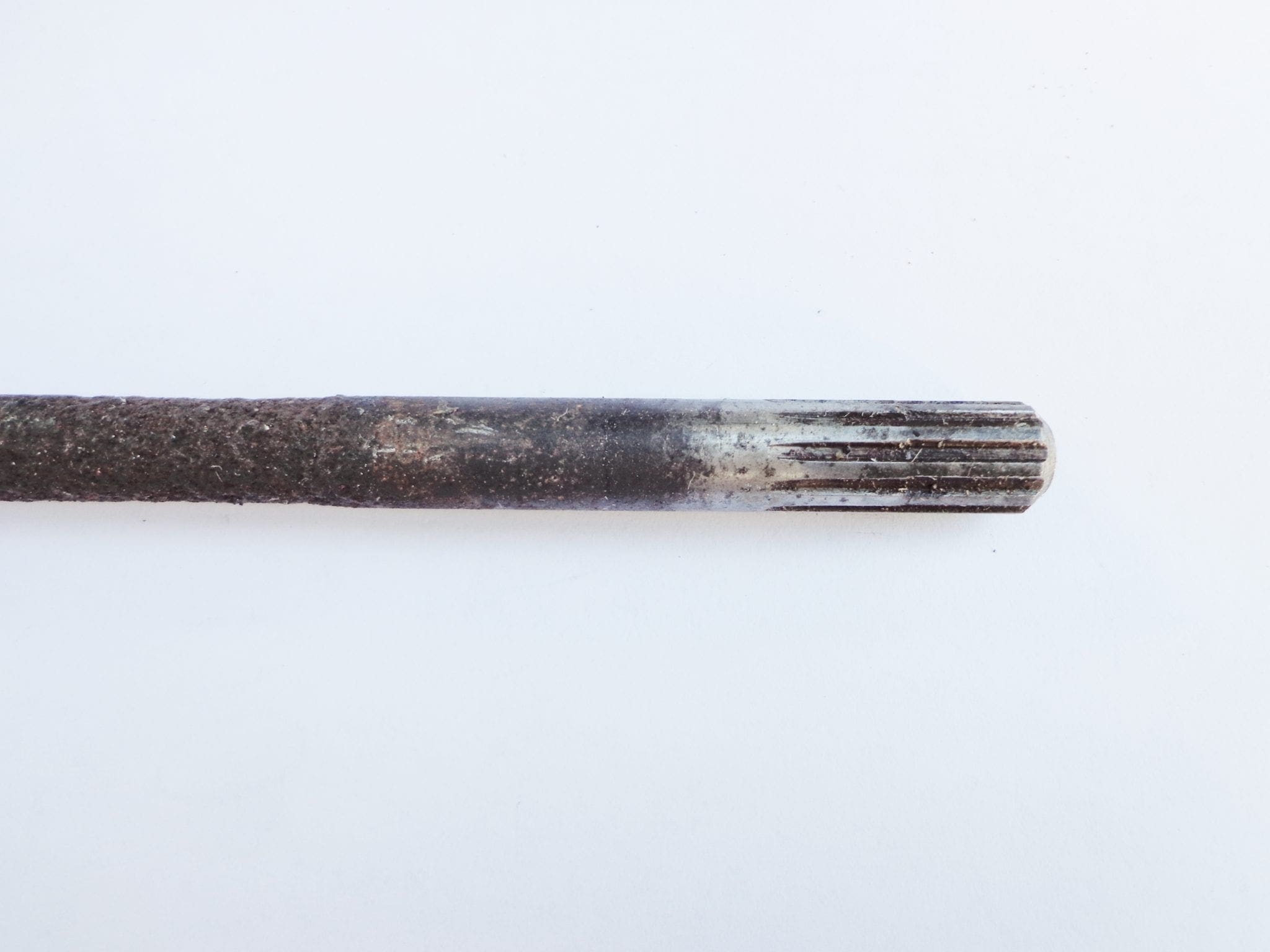

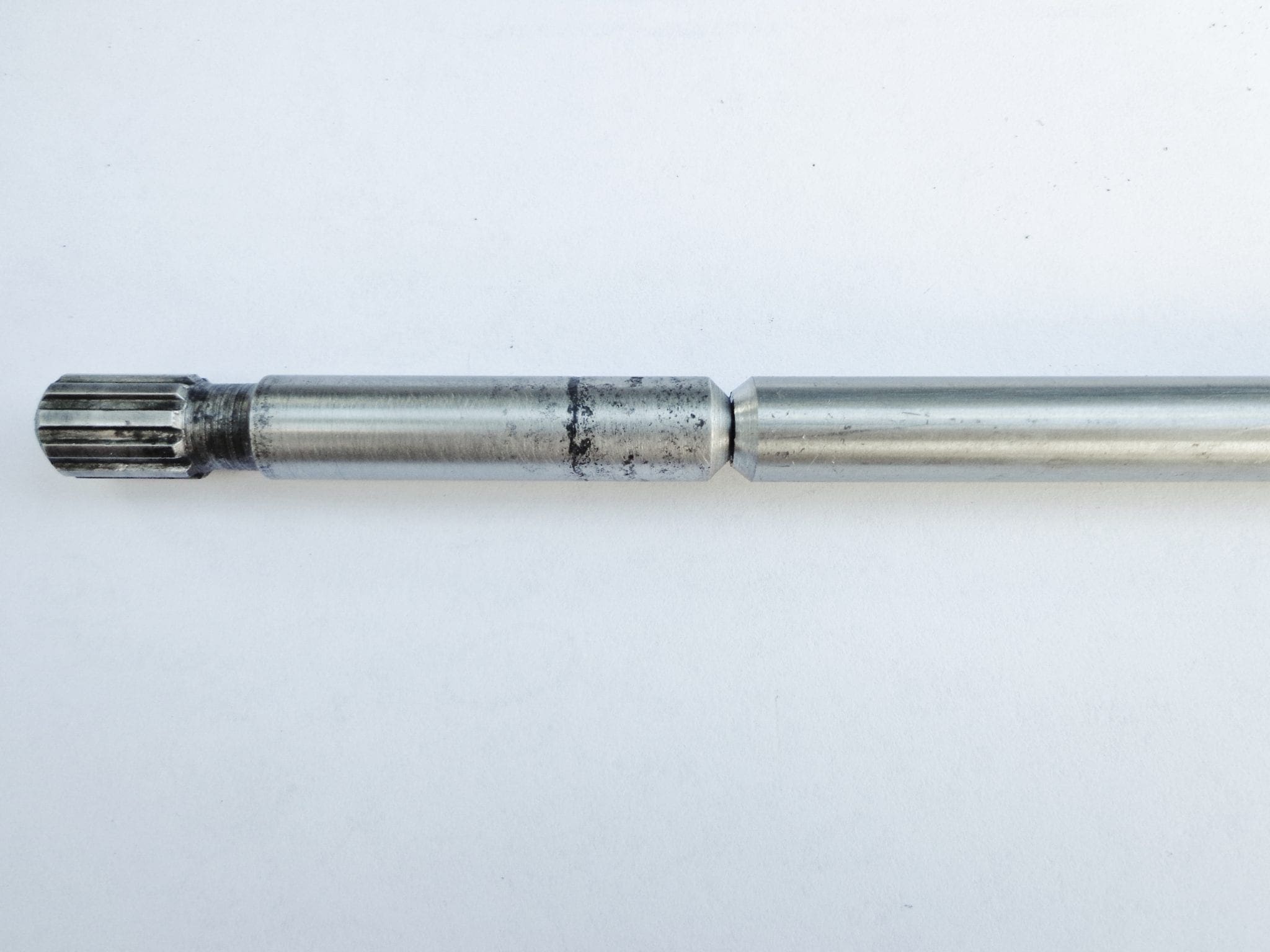

    If you have a bad shaft with good splines, the end can be cut off and grafted to a good shaft with bad splines. I’ve done this fix on quite a few motors with good results. When it warms up a bit, the ’69 Merc 200 will be the next one getting this treatment done to it. Watch for it!

    DSC01036

    DSC01042

    And another one.

    DSC01040

    DSC01045


    bobw

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 2448
    Topics: 56
    #167130

    Mumbles – very nice machine work. Great fix.

    Bob

    1937 Champion D2C Deluxe Lite Twin
    1954 Johnson CD-11
    1957 Evinrude Fastwin 18
    1958 Johnson QD-19
    1958 Johnson FD-12
    1959 Johnson QD-20

    “Every 20 minute job is only a broken bolt away from a 3-day project.”
    "Every time you remove a broken or seized bolt an angel gets his wings."


    Mumbles


    Replies: 5764
    Topics: 298
    #167138

    I have two TN-27s that the splines in the crankshaft are rusty and are striped.

    Ahhh, it’s the crankshaft which is boogered. OK.

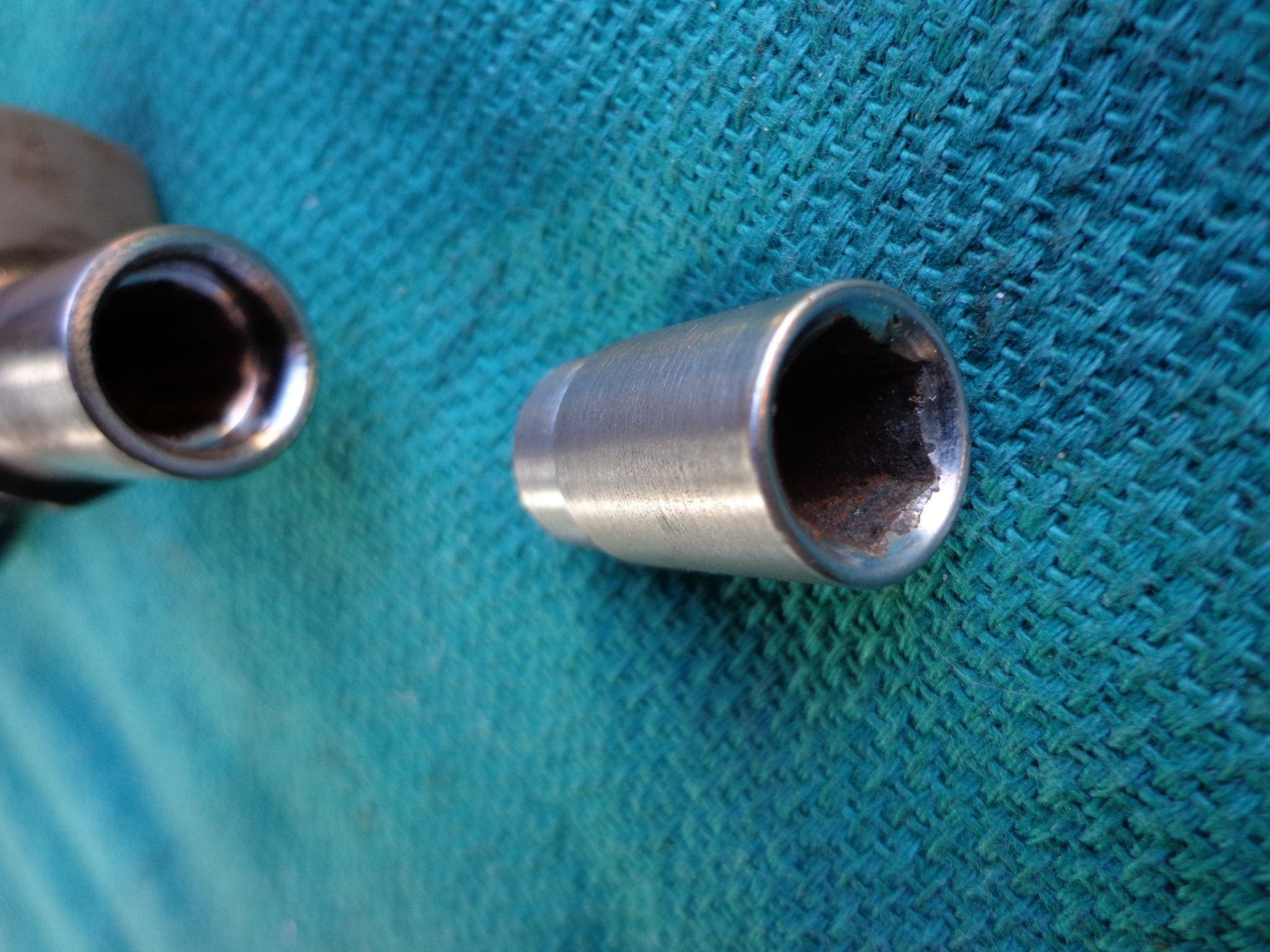

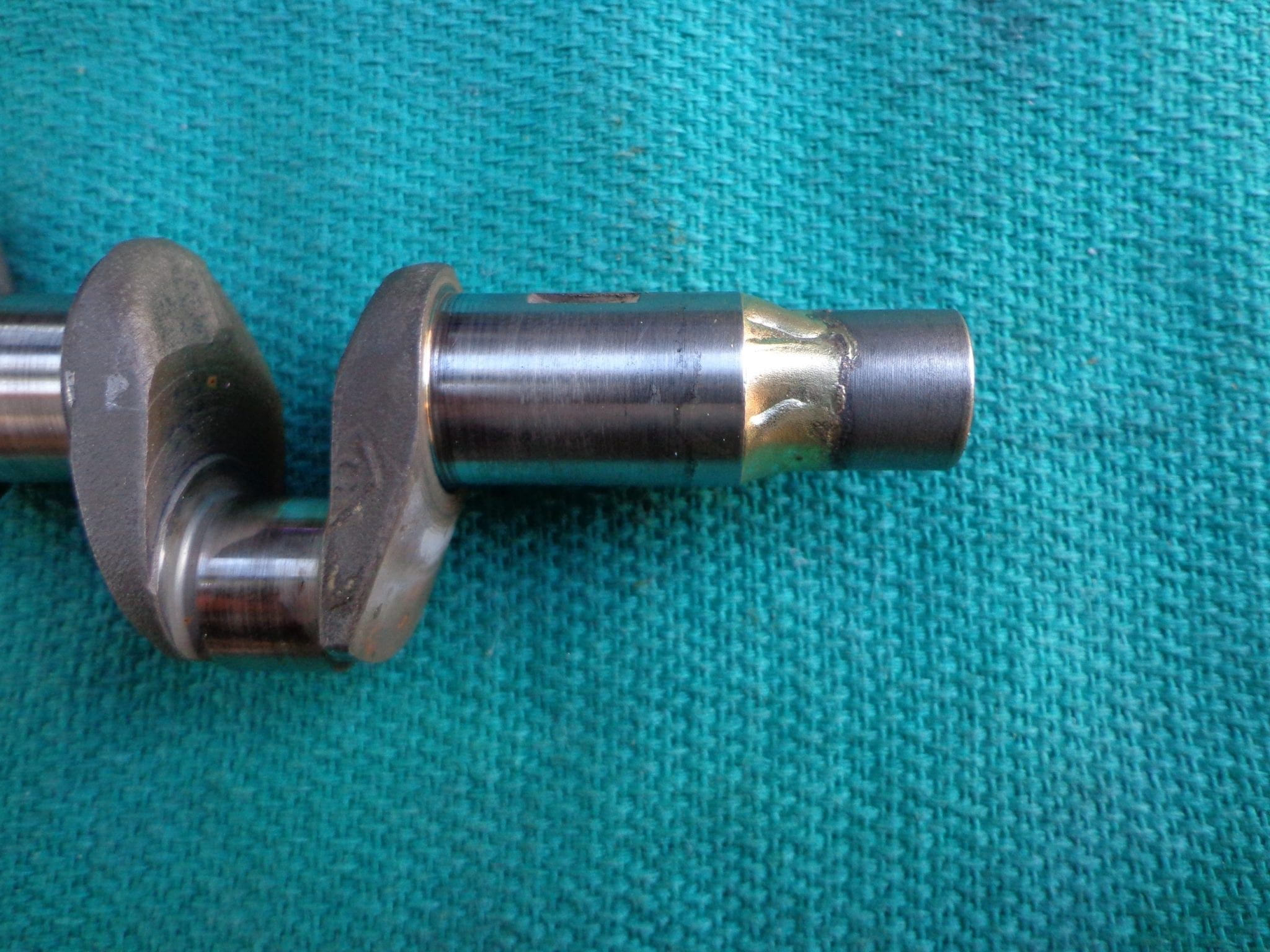

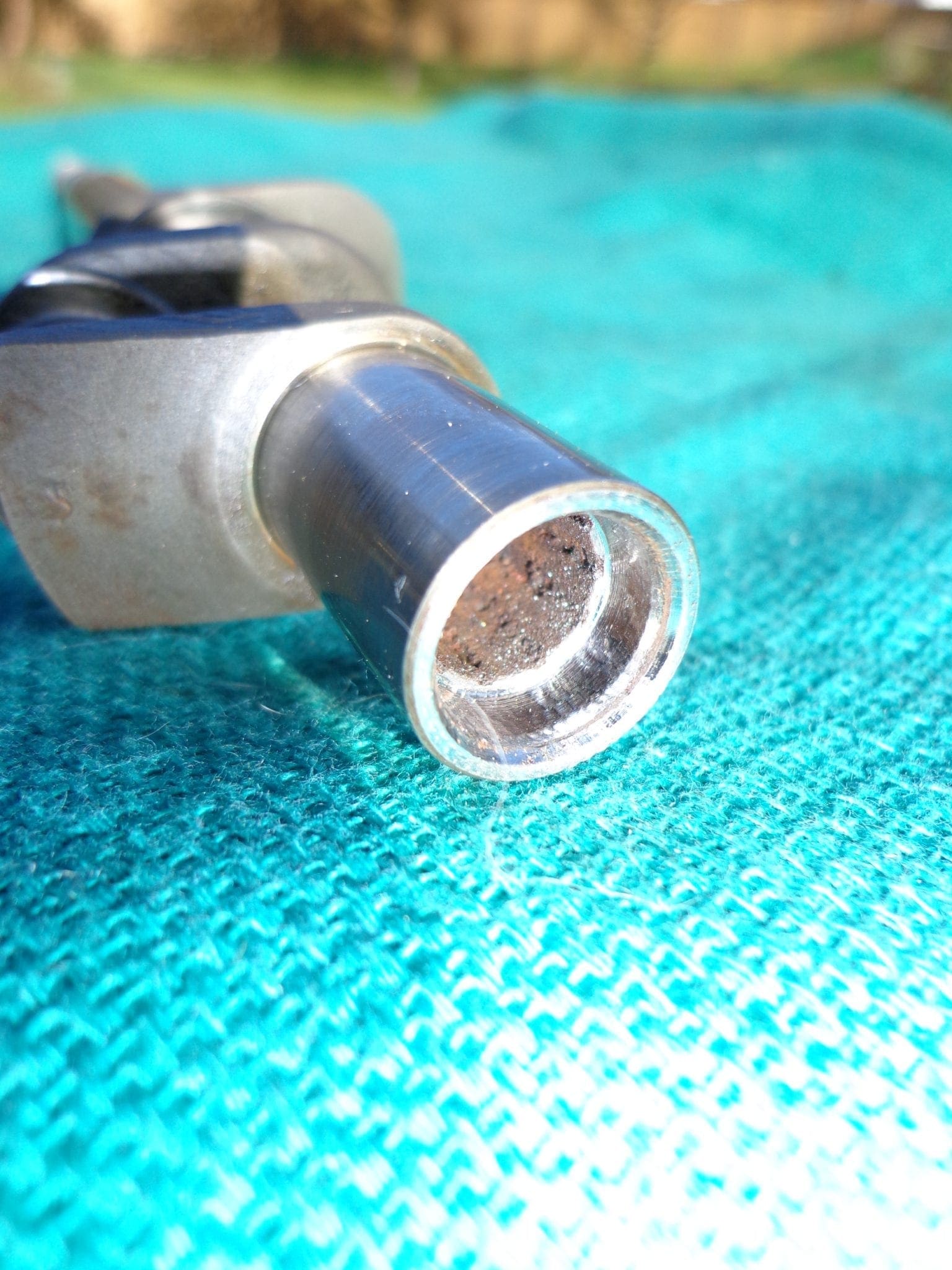

    Here’s a JW which had the splines stripped in both the crank and on the shaft. To ‘fix’ it, I silver brazed a socket to the crank and cut and shaped the top of the driveshaft to fit. The three horse JW doesn’t develop a whole lot of torque so it should last for a while.

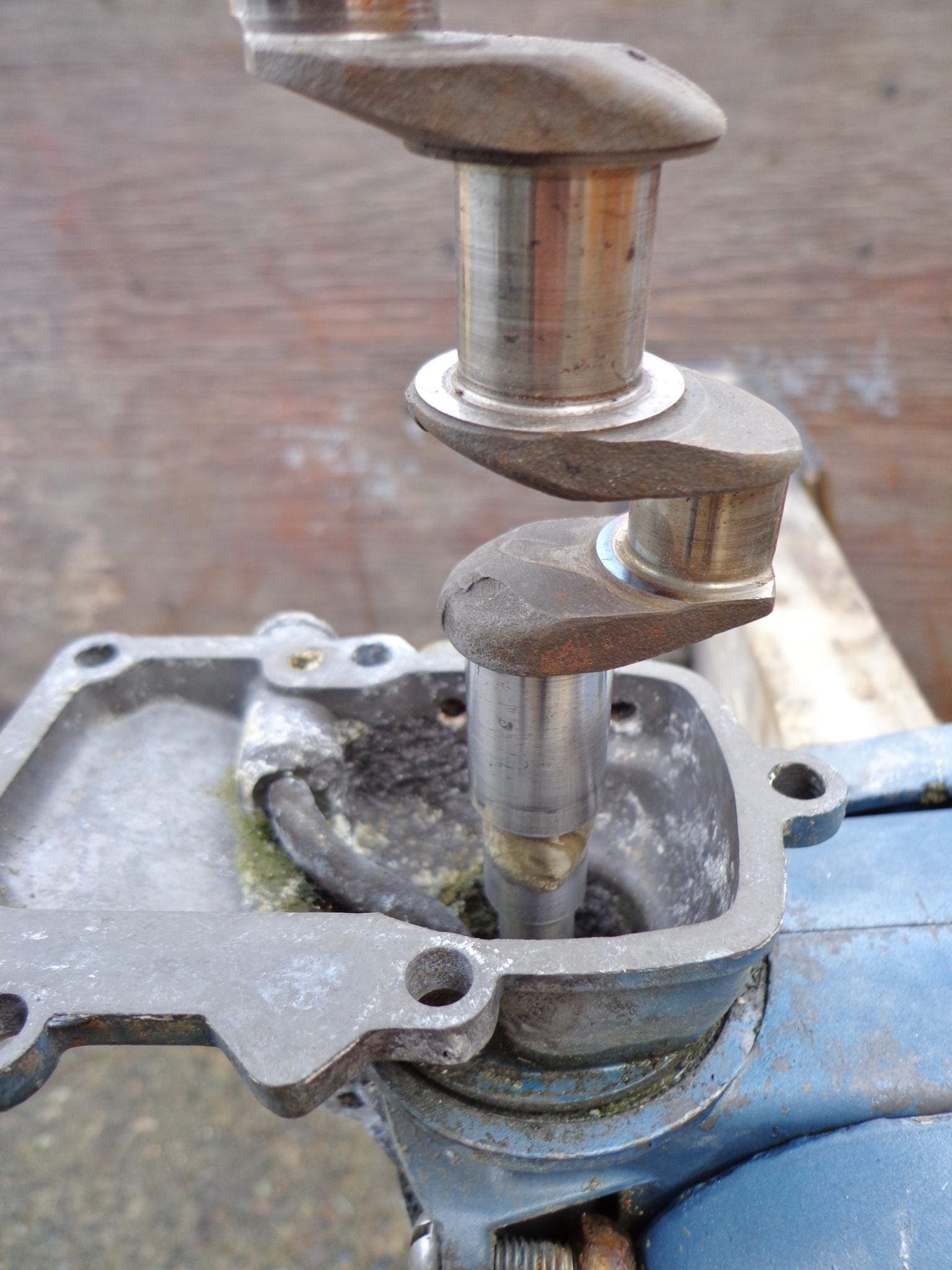

    I picked up a four horse last year with a Macgyver fix for stripped splines in the crank so I’ll see if I can’t find some photos of it. The way it was done might be the easiest way for your TN.

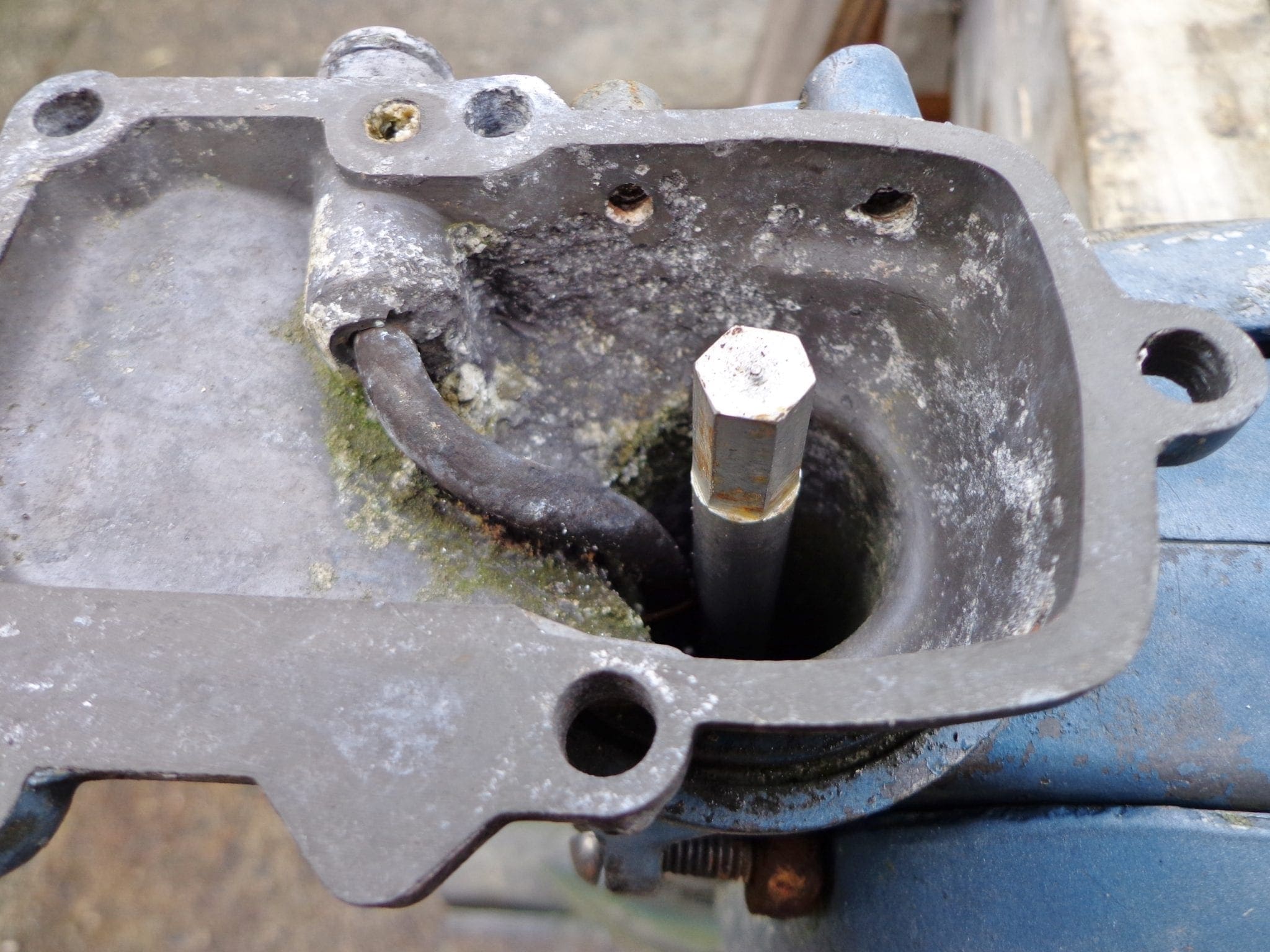

    Here’s the JW three horse.

    DSC00054

    DSC00061

    DSC00066

    DSC00001

    DSC00002


    lloyd

    US Member - 1 Year (includes $3 online payment fee)
    Replies: 453
    Topics: 4
    #167438

    I can’t get to my shop to count the TN 27 splines, but I think it is 8 splines.
    If you need new primer seals and instructions for your TN, as you probably will, just contact me directly at lautharr@sbcglobal.net or 231-929-7479. I tried to post an ad in the classified section, but it wouldn’t let me.
    Good luck!


    crosbyman

    Canada Member - 2 Years
    Replies: 3588
    Topics: 326
    #167444

    my picture above shows in plain view 3 splines + one on each side edge of the picture for a total of 5 PLUS

    3 on the back side which we don’t see so ……

    grand total must be 8
