KE-4 Carburator HELP

Home › Forum › Ask A Member › KE-4 Carburator HELP

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • December 28, 2018 at 12:13 pm #161373
    goldmember
    Participant

      I have a KE-4 with a Tillotson AJ23A carb and I took it apart a year ago and lost my pictures. I have a couple questions.

      1. Which way does the throttle butterfly plate go? Open part up, down, which side, does it matter?

      2. Is it supposed to go in the slot of the throttle shaft?

      3. Do I have the top linkage right?

      4. How does the spring go on?

      Thank You

      December 28, 2018 at 12:29 pm #161379
      Buccaneer
      Participant

        US Member - 1 Year (includes $3 online payment fee)

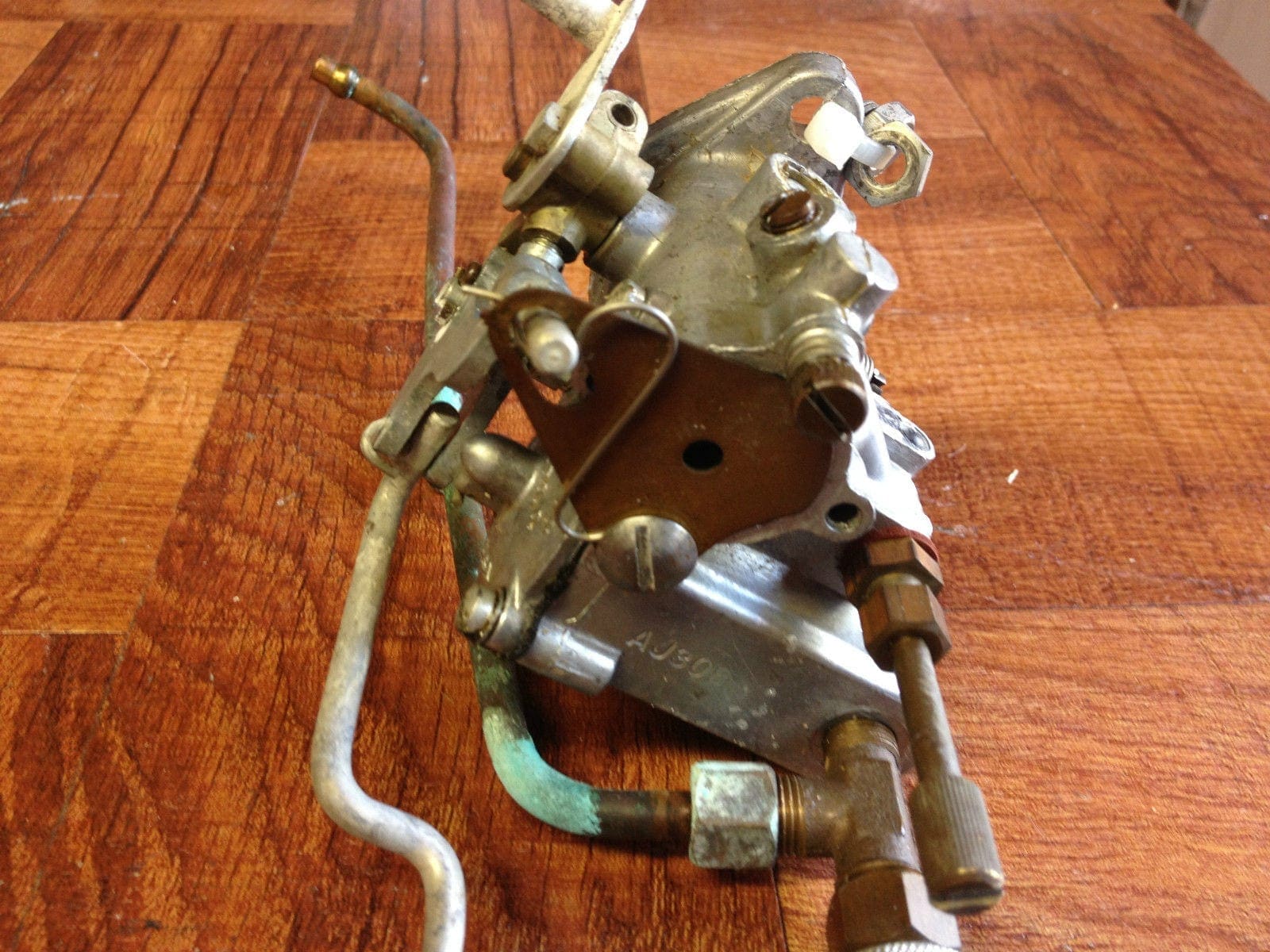

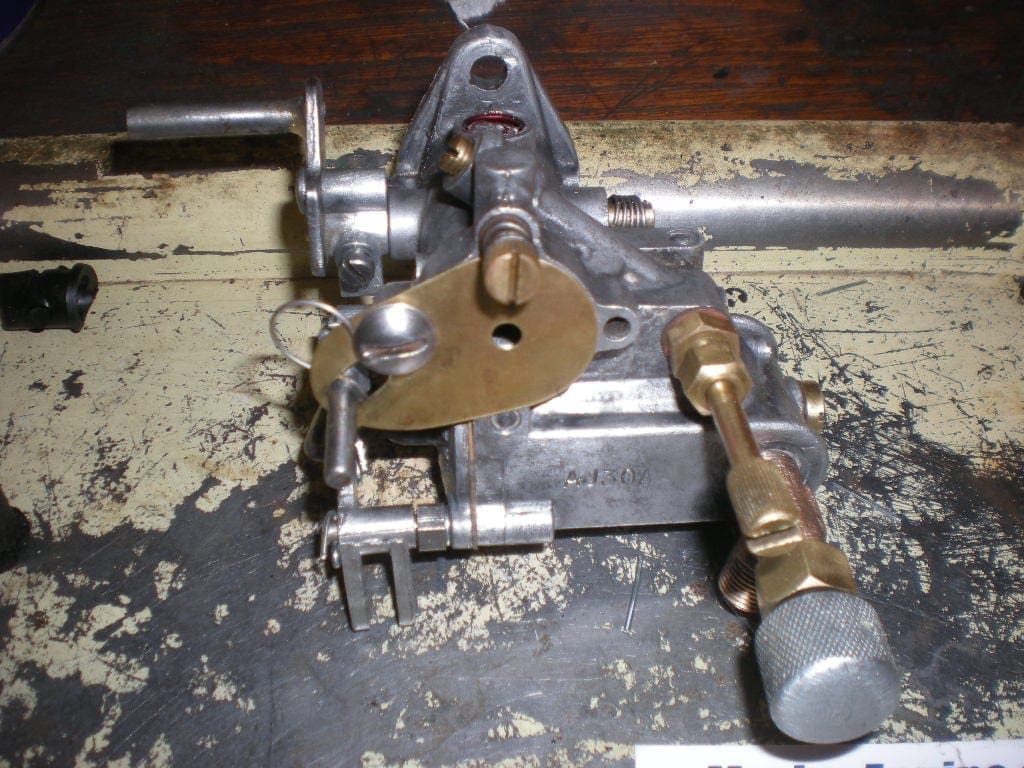

        Here’s a couple of pics, Top one of a Mark 5 carb. Not sure what Merc
        the other is from, or if they are
        similar enough to yours, or show what you need to know.

        DSCN5037

        Mark-5-carb

        Prepare to be boarded!

        • This reply was modified 5 years, 3 months ago by Buccaneer.
        • This reply was modified 5 years, 3 months ago by Buccaneer.
        December 28, 2018 at 12:31 pm #161384
        dave-bernard
        Participant

          US Member - 1 Year (includes $3 online payment fee)

          open down.
          in the slot
          looks correct.
          spring call me after 4:00 pm today.
          Dave.

          December 28, 2018 at 2:27 pm #161392
          goldmember
          Participant

            Thank you

            December 28, 2018 at 5:15 pm #161395
            Randy in Tampa
            Participant

              I have a KE4 and not being a mercury guy I had the same problem A while back, I about beat my brain to death figuring it out 😉

              Rotary valve Johnson’s Rule!
