Topic: Magnito recharge – Antique Outboard Motor Club,Inc

This topic has 21 replies, 7 voices, and was last updated 7 years, 9 months ago by Mumbles.

Viewing 10 posts - 1 through 10 (of 22 total)

1 2 3 →

Author

Posts
March 19, 2017 at 8:47 pm #6567
mdn5
Participant
I need some one with the skills/ equipment to re charge 1931 evinrude 402 magnito.
I am in New York metro area but will travel
Thanks,
Mike
914 769 6689
March 20, 2017 at 1:38 am #54568
garry-in-michigan
Participant
Lifetime Member
Steve Woods has a Stevens Magacharger here in Florida. He always takes it to Tomahawk when they have there National meet. . . 😉
March 20, 2017 at 2:14 am #54569
sydinnj
Participant
US Member - 2 Years
They are great chargers
March 20, 2017 at 2:32 am #54572
Mumbles
Participant

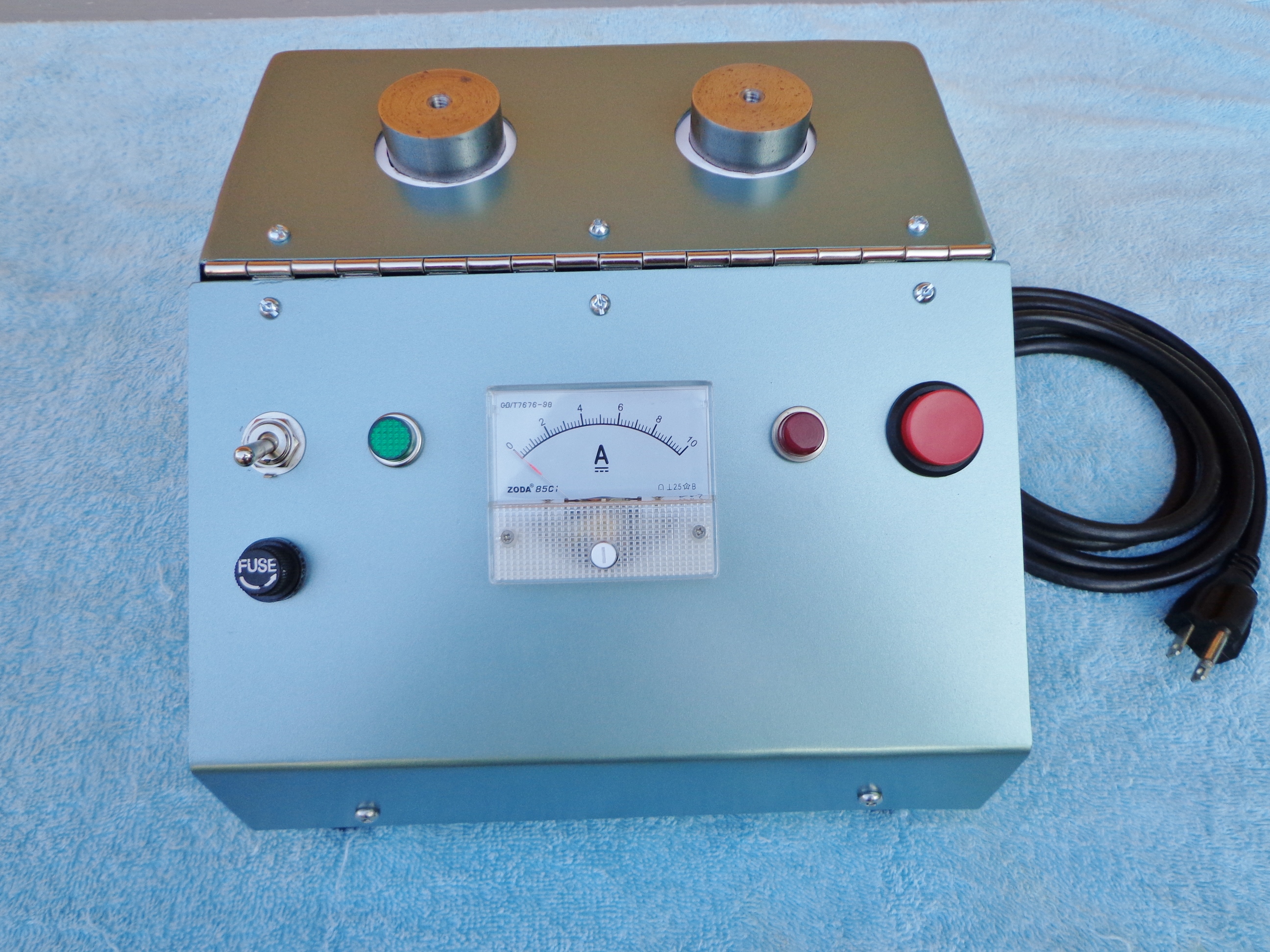

After a few years of searching for a Stevens Charger and coming up empty, I ended up building one.

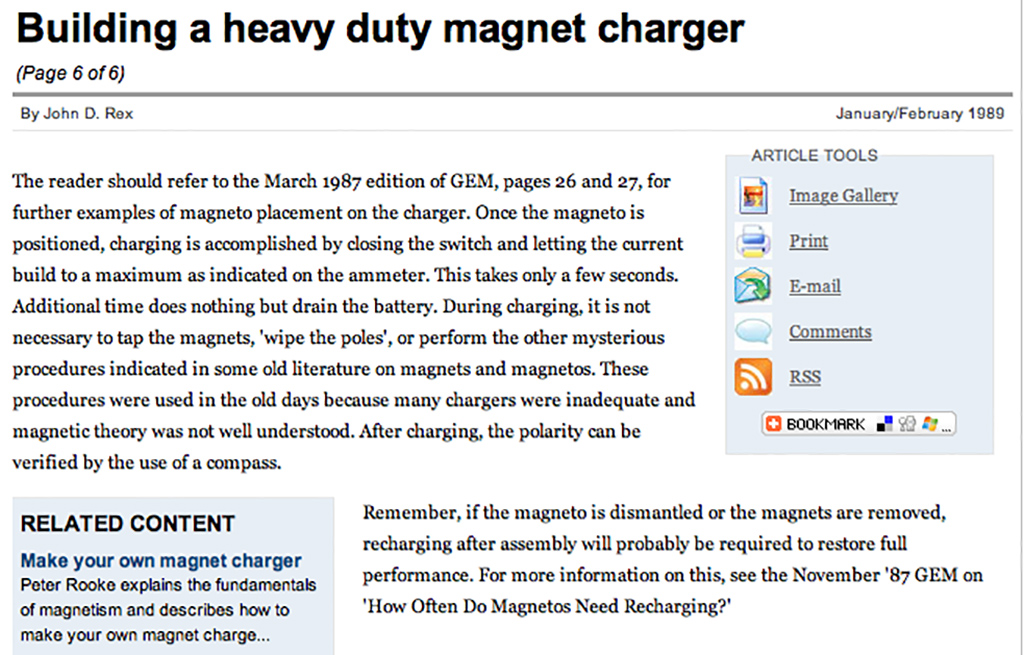

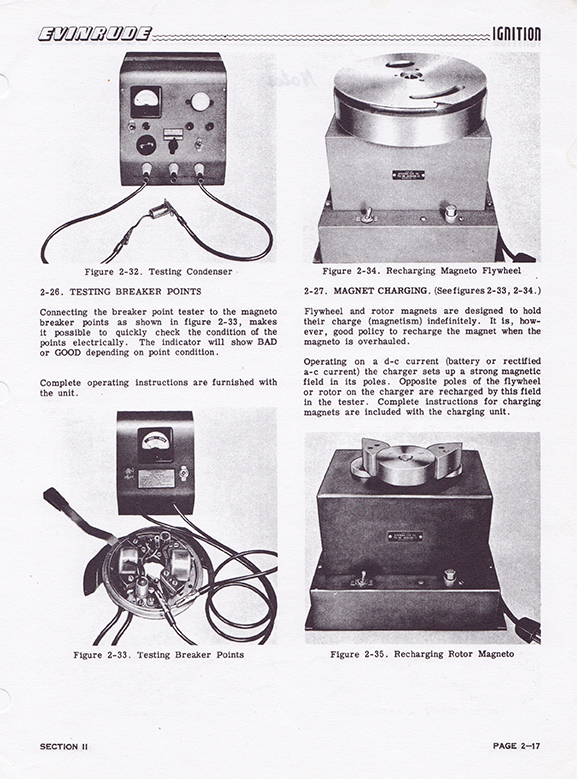

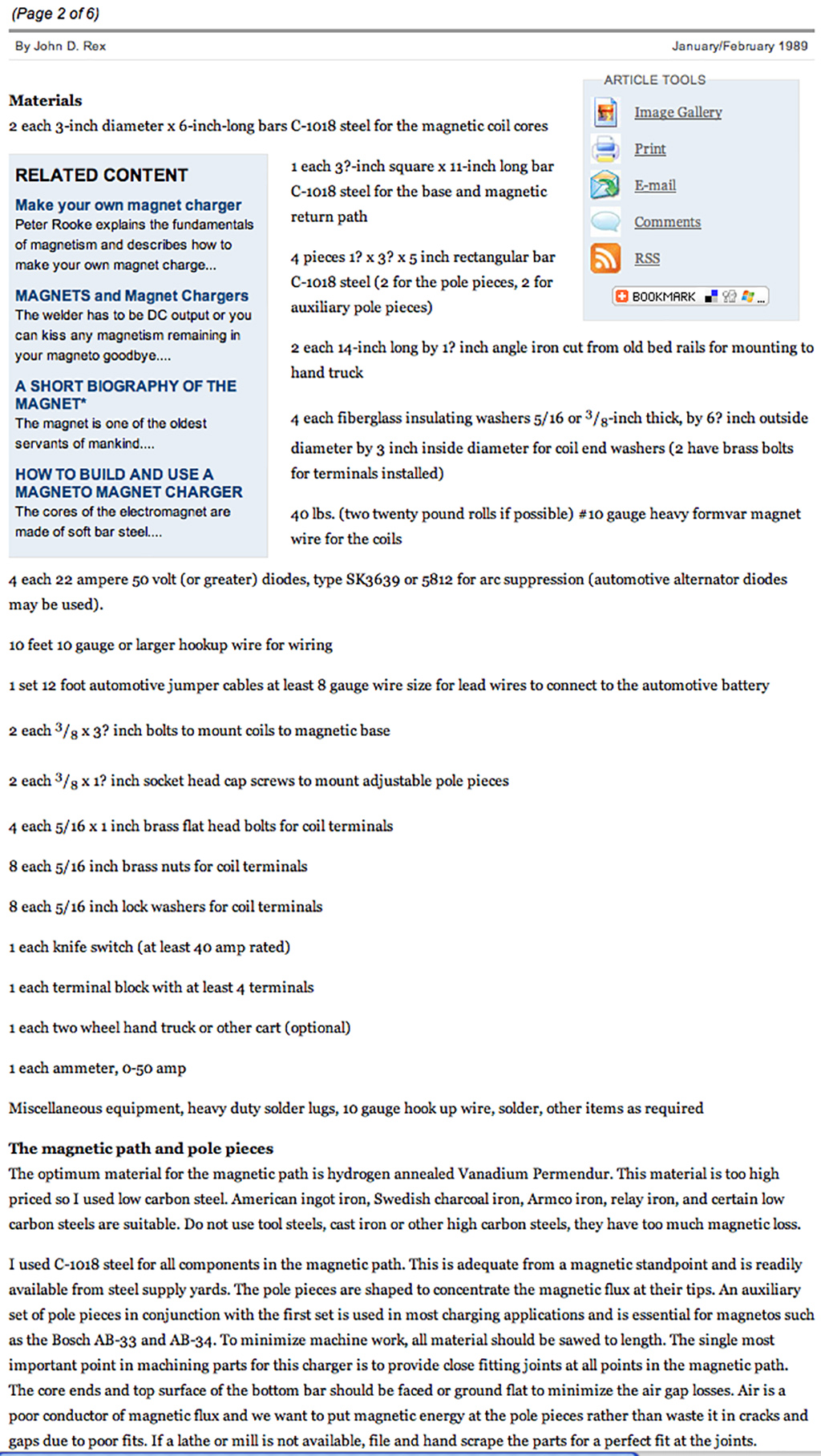

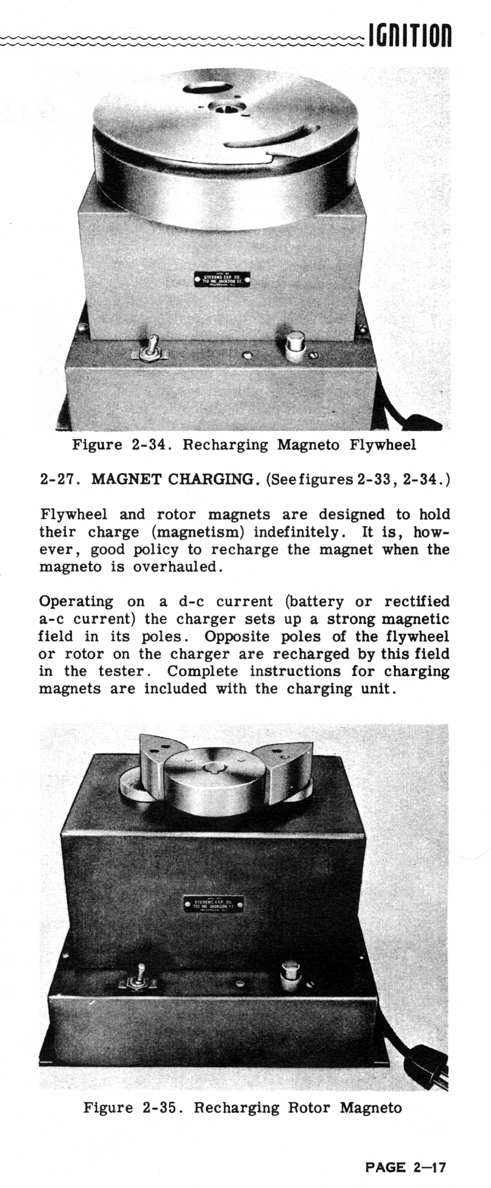

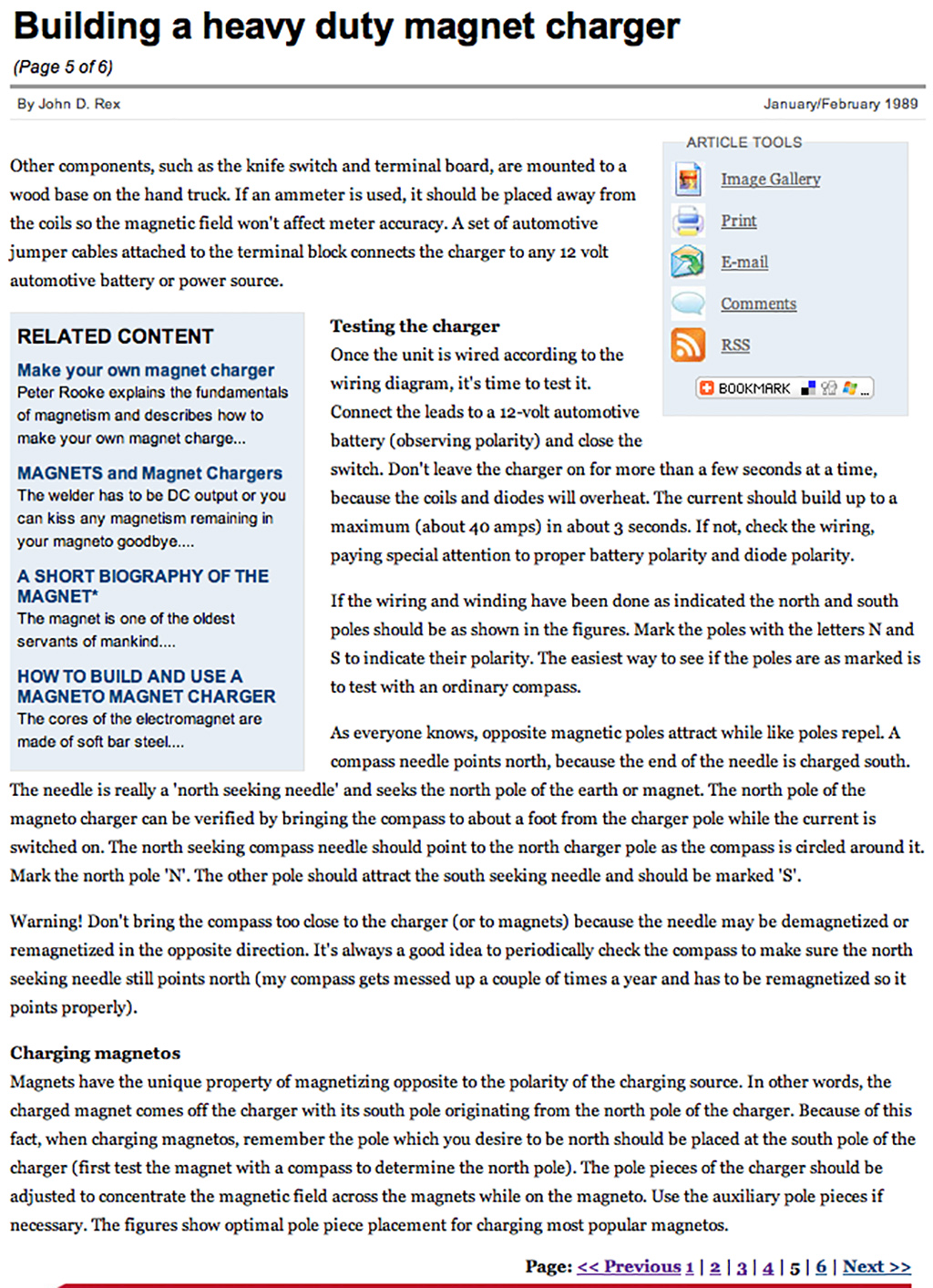

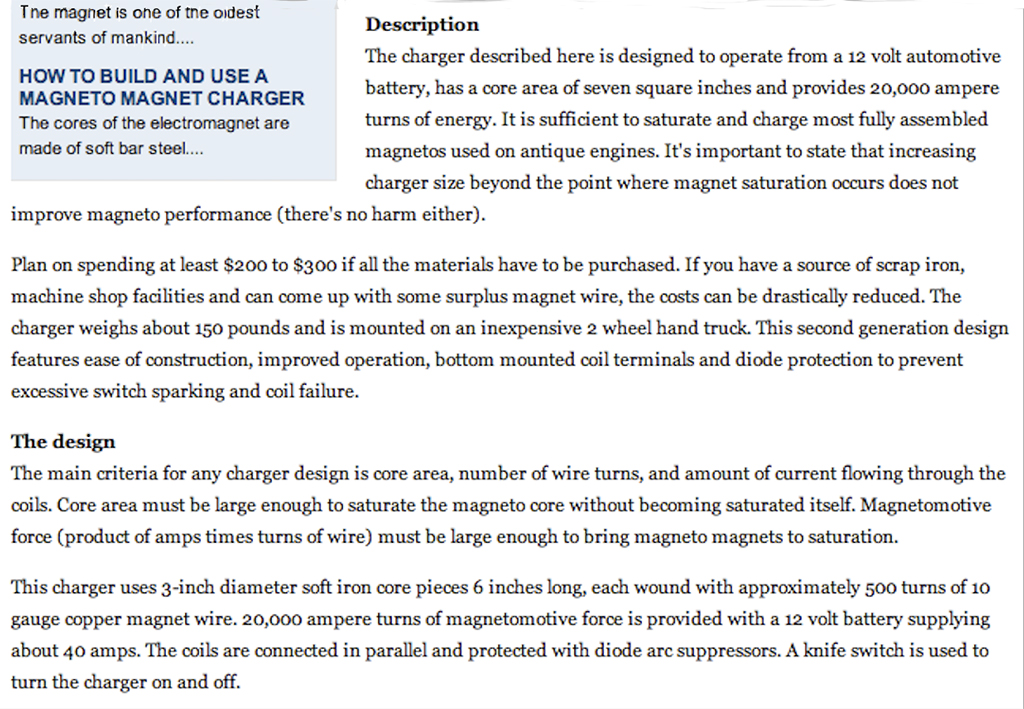

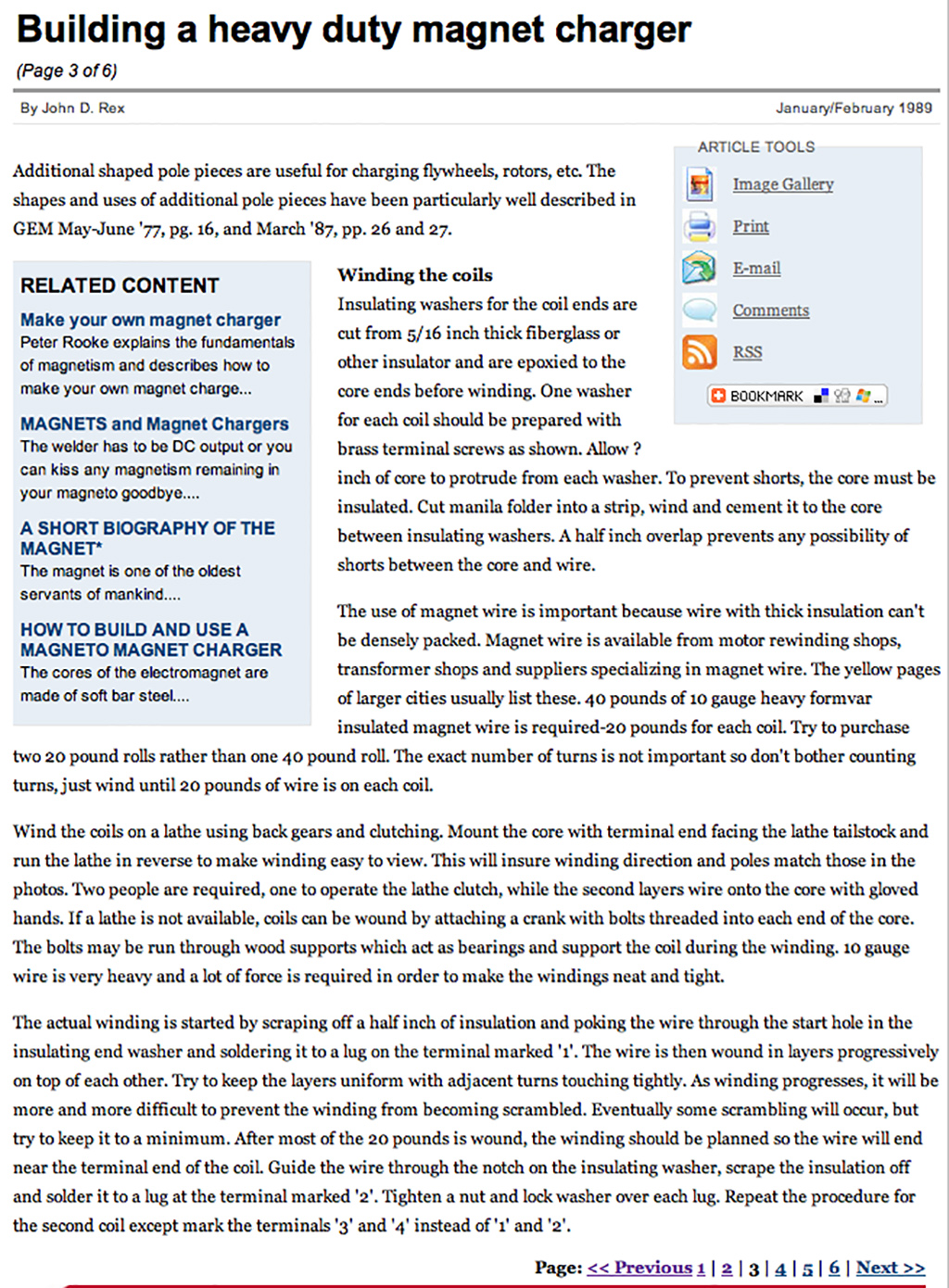

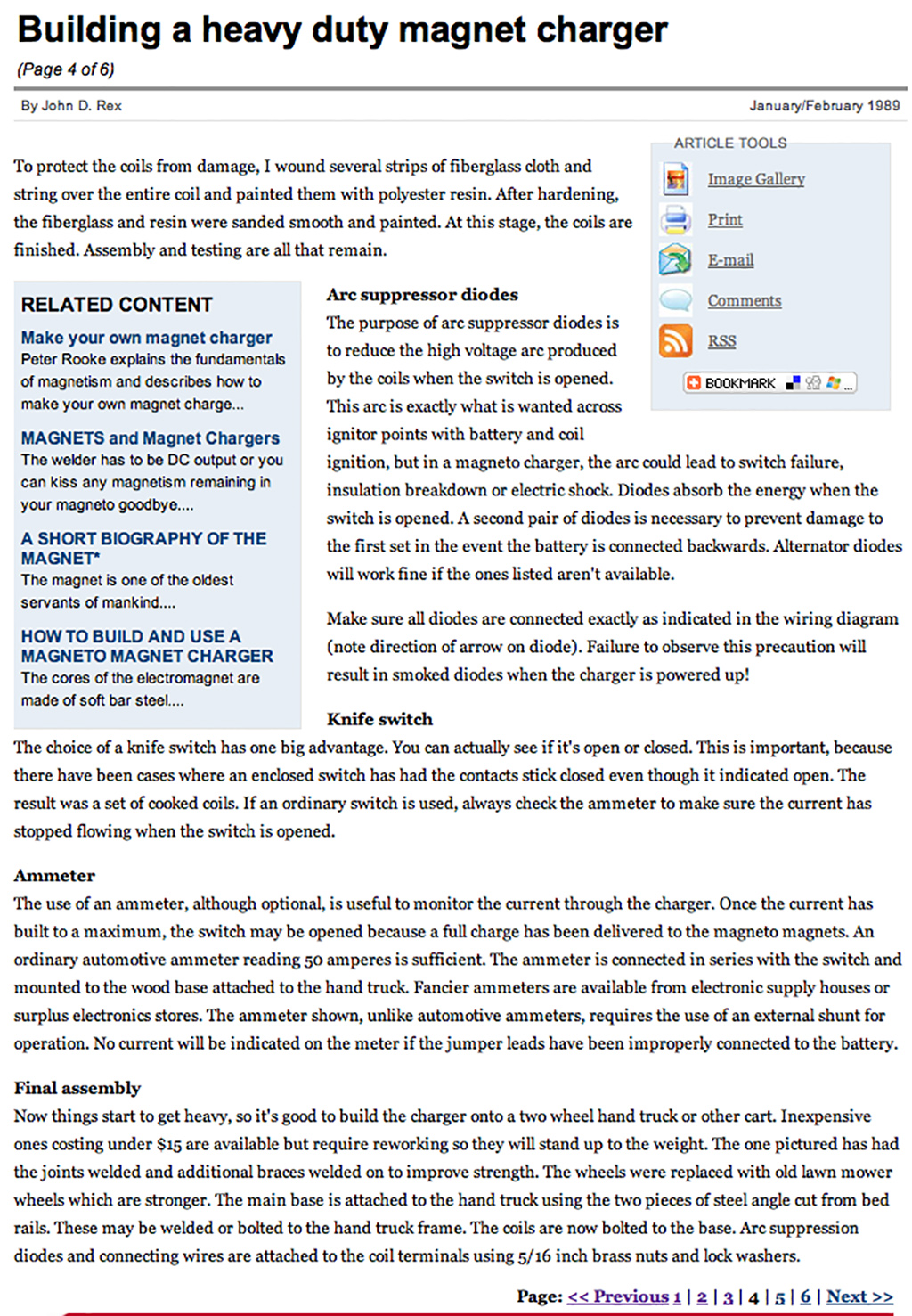

Attachments:
March 20, 2017 at 4:40 pm #54601
mdn5
Participant
Do you sell a schematic for your charger?
March 20, 2017 at 11:49 pm #54629
Buccaneer
Participant
US Member
Mumbles, What kind of blocks (to fit the contour of the flywheel, etc.)
did you make for your charger?

Prepare to be boarded!
March 21, 2017 at 12:38 am #54633
rudderless
Participant
Damm…look at the size of those charge coils. Thats whats important..the rest is in the pic!
March 21, 2017 at 12:46 am #54636
rudderless
Participant

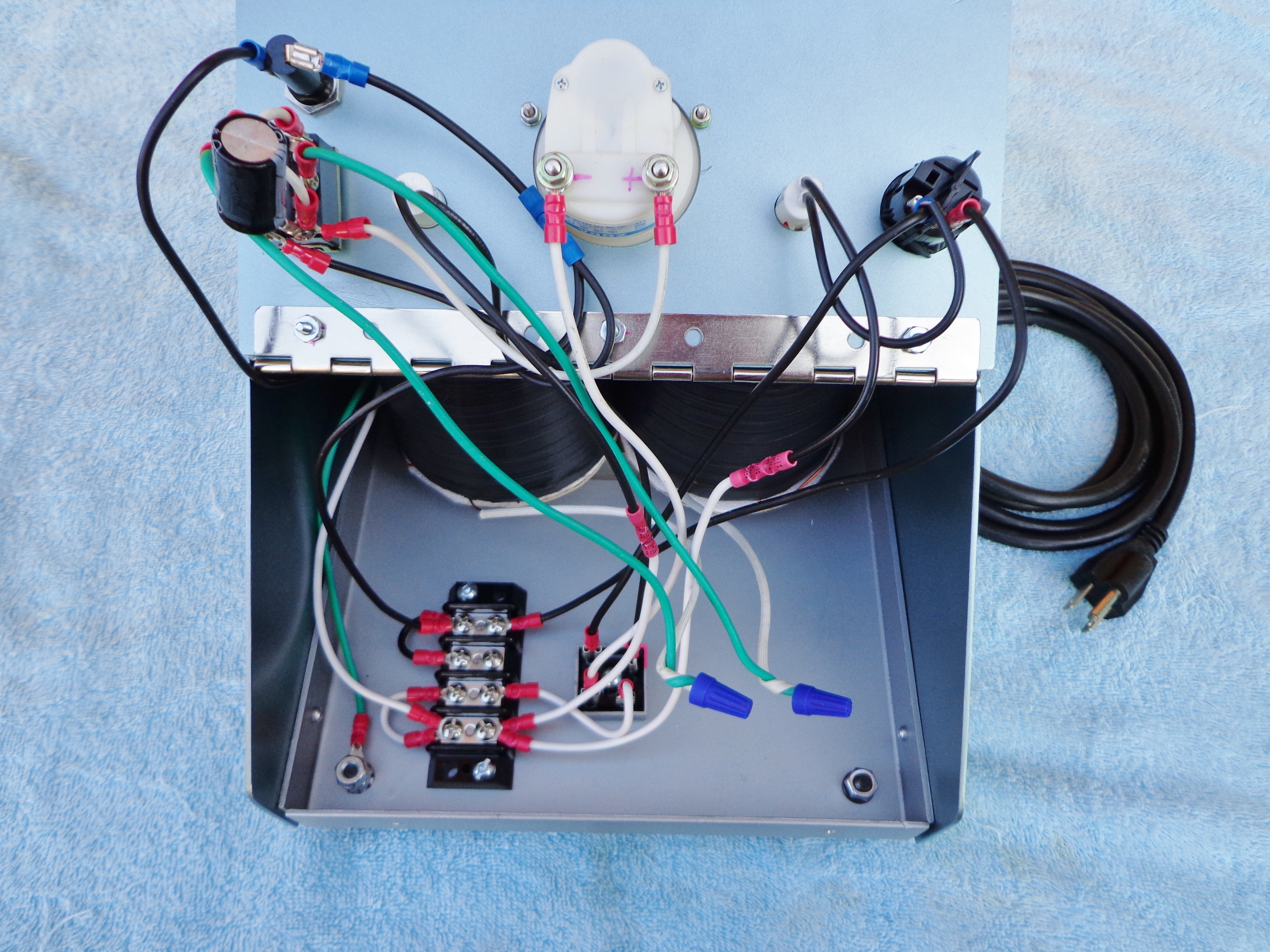

Rectifier is square at bottom. Momentary switch on far right. Red lite shows power to the system. Green lite shows DC to the coils. Toggle is for polarity. Degauzing cap to protect switch from arcing. And a DC meter with 10 amp max. I am interested in the reason for the cap as one wouldn’t switch when charging..

All a guess…just trying to bait Mumbles..
March 21, 2017 at 1:16 am #54640
garry-in-michigan
Participant
Lifetime Member
The semi-tryangular blocks that come with the Stevens MagnaCharger have three radii corresponding the the three most popular flywheel magnetos. There are several on line plans for magnet rechargers. . . 🙂
March 21, 2017 at 1:58 am #54643
Buccaneer
Participant
US Member
Garry, thanks for the information. I’ll file it for the future.
I made a charger a dozen years or so ago, when I was
working on Hit and Miss engines to recharge some
Wico EK magnetos. They only required flat stock
to set up for charging. If I ever find the need to
recharge an outboard flywheel, I’ll have to come up with
some curved stock, with the correct radii, as you stated.
I have a lathe and a hacksaw to work with! Just wondering
what Mumbles came up with, and how he made them.
Thanks.

Prepare to be boarded!
