    Does anyone have a picture of the proper placement of the KD 3’s decals on the fuel tank?
    I’m not sure if the arrows in the front butt together or are spaced a little bit.
    Thanks for the help.
    Glen

    Avatar
    kees

    International Member - 2 Years
    Replies: 545
    Topics: 19
    #53732

    .
    hi Goman

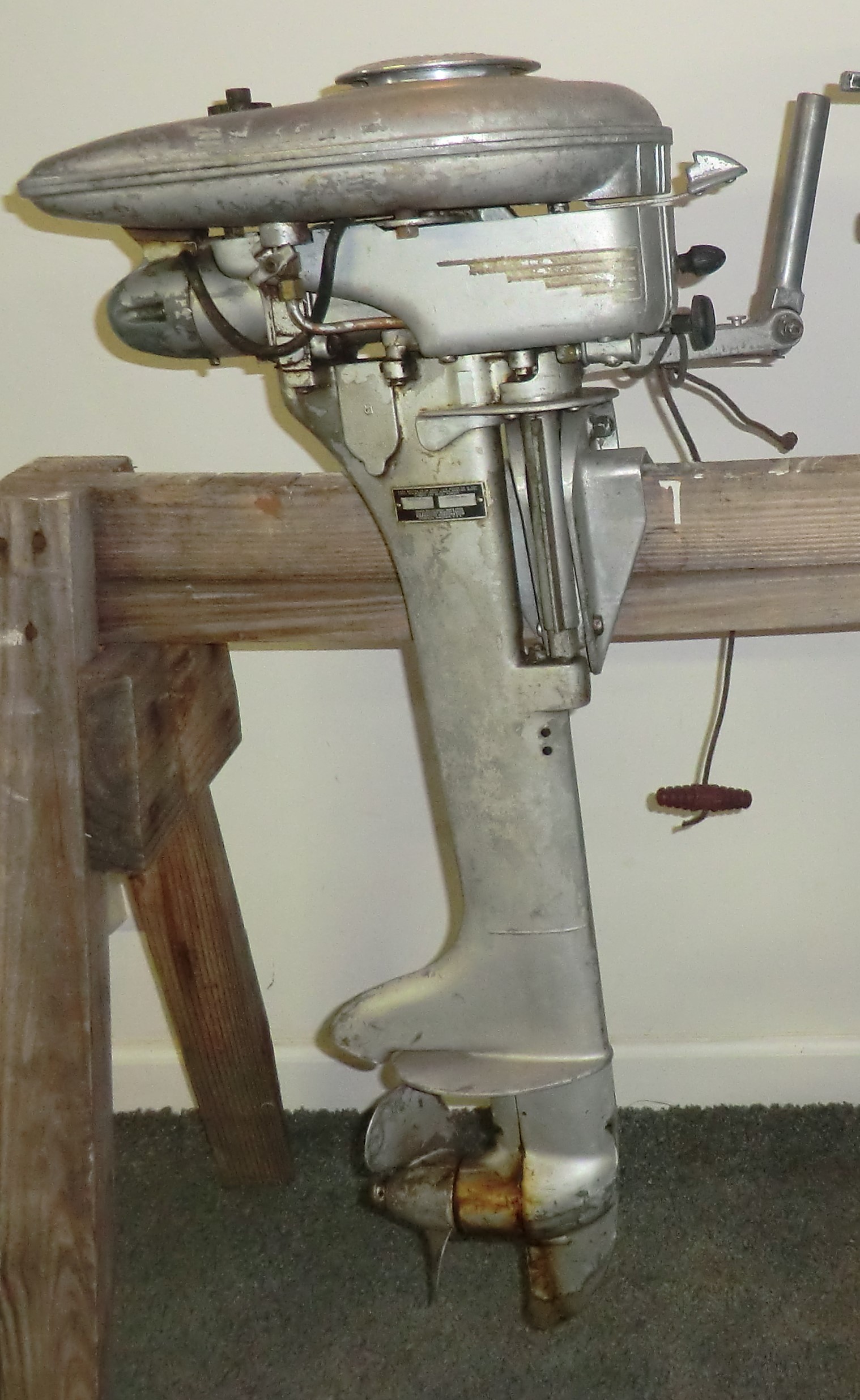

    I did a search on Google for Mercury KD 3 and found this;
    http://www.joeoutboard.com/mercury/1946-kd-3.html
    a restored next to an unrestored example
    hope it helps a bit

    😎

    Avatar
    Goman

    US Member - 1 Year
    Replies: 140
    Topics: 35
    #53734

    Thanks Kees it never did show the front of the motor except on the unrestored one without the decal Ha! It may come down to a good guess is better than a bad measurement.

    Avatar
    alanp

    US Member - 2 Years
    Replies: 73
    Topics: 20
    #53736

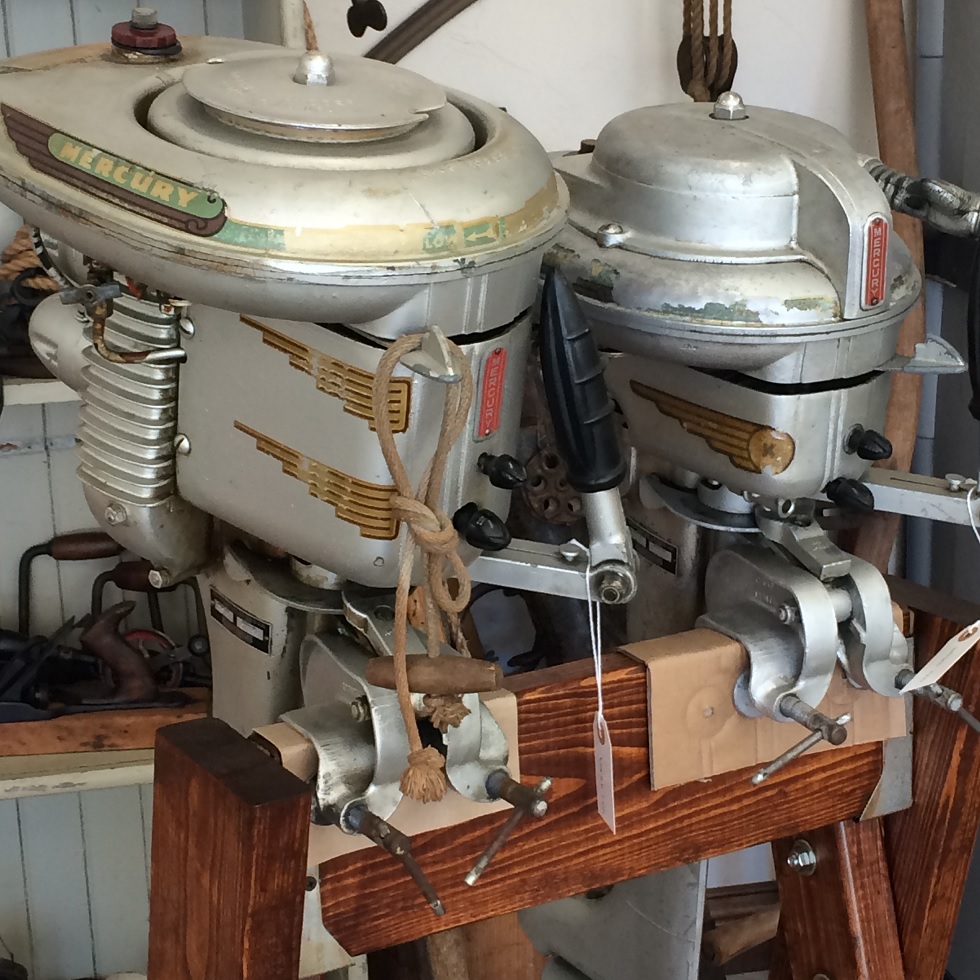

    Photo of my KD3. But it has the recoil.
    Alan


    Attachments:

    Avatar
    Goman

    US Member - 1 Year
    Replies: 140
    Topics: 35
    #53758

    Thanks alanp. I notice when I space it like yours the c in mercury ends up half way on the tank. Makes sense.
    Is your model a 1947? I notice it has the K on the lower decal. My ’46 didn’t have the K on the lower decal.
    I may have ordered the wrong lower decal unless they used both in ’46?

    Avatar
    alanp

    US Member - 2 Years
    Replies: 73
    Topics: 20
    #53760

    I am at work now, I will check what year mine is when I get home and take a better photo. Attached is a photo I have in my phone.
    Alan


    Attachments:

    Tubs
    Tubs

    US Member - 1 Year
    Replies: 2803
    Topics: 161
    #53764

    Nice Originals. I don’t find motors like that.

    fifty20ne
    fifty20ne

    US Member - 1 Year
    Replies: 270
    Topics: 445
    #53774

    Mine are gone also, but here is a pic I found off the Web.

    Good Luck,

    Bob

    <a href="” target=”_blank”>

    Avatar
    alanp

    US Member - 2 Years
    Replies: 73
    Topics: 20
    #53781

    Hi Goman,

    Mine is a 1947, s/n 109614.

    Alan

    Avatar
    Goman

    US Member - 1 Year
    Replies: 140
    Topics: 35
    #53783

    Thanks all. The upper decals do look like they butt together. The lower decals look like the Mercury Horizon gold color.
