Topic: Mystery prop #1 – Antique Outboard Motor Club,Inc

This topic has 6 replies, 5 voices, and was last updated 8 years, 10 months ago by garry-in-michigan.

Viewing 7 posts - 1 through 7 (of 7 total)

Author

Posts
June 24, 2016 at 3:20 am #4577
david-bartlett
Participant

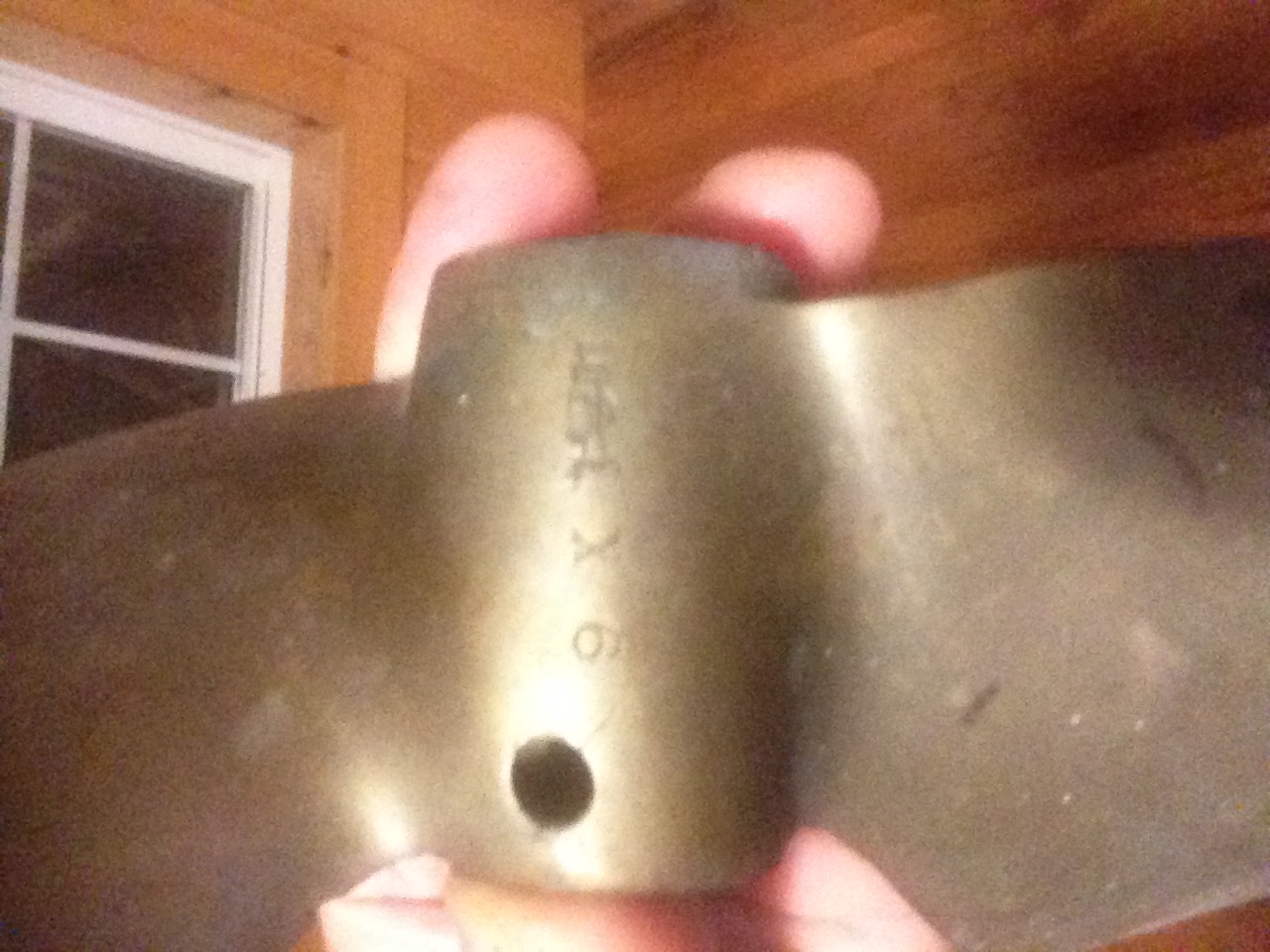

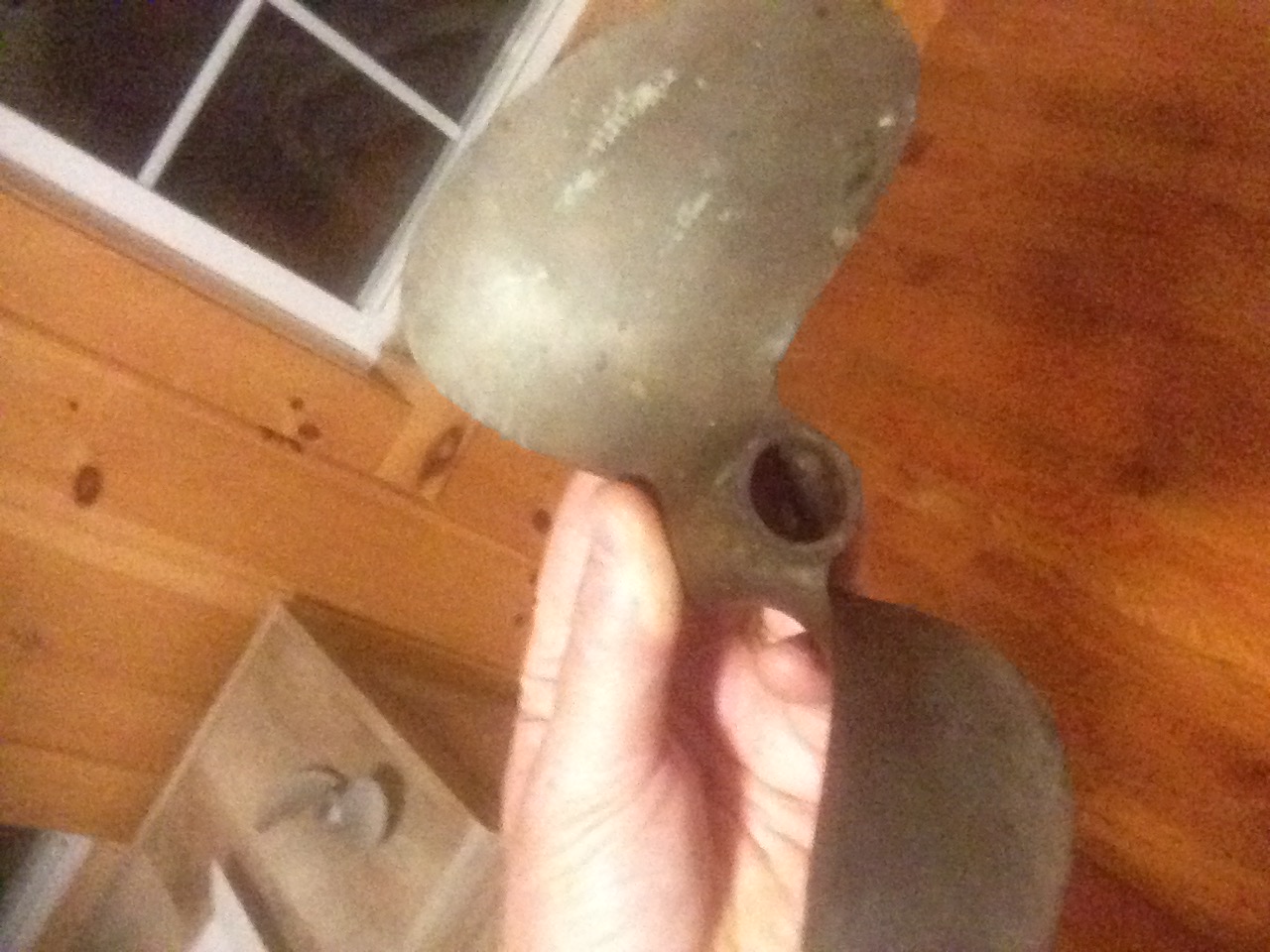

I got this prop today. Stamped 9X10, with the 10 stamped out, then 11. So it was a 9×10 that was tweaked to a 9×11.

Left hand rotation. ID is 0.81, length through is 2". Shear pin diameter is 0.25".

Any ideas?

Attachments:
June 24, 2016 at 1:31 pm #38877
outboard315
Participant
I am going to go with racing prop and I would lean toward early johnson.
June 24, 2016 at 1:49 pm #38879
george-emmanuel
Participant
US Member
Not a Johnson because Johnson is RH rotation.

If I were at my shop I could give an idea of what it would fit and I’m leaning towards Evinrude Speeditwin/Speedifour with pre-war lower unit, but I’m only guessing right now…
June 25, 2016 at 12:17 am #38922
garry-in-michigan
Participant
Lifetime Member
I would say Pre War Speeditwin (0.788" prop shaft) I think I’m running a 10 X 12 on mine.

Garry in Tampa
June 25, 2016 at 1:15 am #38924
r-c
Participant
Lifetime Member
Looks like an OJ that would fit the Speeditwin, Speedifour or Big Four of the pre-war models as the post war had a 1" prop shaft.
June 25, 2016 at 2:33 am #38930
david-bartlett
Participant
I can make out "Michigan AJC" on the hub end nearest the pin hole, but the rest is buggered up. Can’t make out any more.
June 25, 2016 at 3:04 pm #38943
garry-in-michigan
Participant
Lifetime Member
Michigan Wheel’s AJ (Aqua Jet) series were copies of the Johnson Propellers made in Oakland California – the so called "OJs" I have a copy of the OJ catalog on Walagata.com, but am blocked from the site despite having paid for another seven months. This despite daily messages to there customer service department for over two weeks. . . . . . 👿
