    … for sure a rare motor.

    A friend of mine gave me a 1980 Evinrude E12RS, a motor from the “worktwin” line, a sort of “frankie” obtained from a 9.9 powerhead, a Fisherman steering unit and a QD 21 leg/foot.

    It is essentially like this:

    12 rs engine" />

    The motor starts and runs fine, but has the vertical throttle bracket broken and also the bracket support on intake cover is damaged.

    I cannot find any part list or code number for the needed parts of this motor.

    Only a 1988-89 VE 14 RS motor is listed on BRP site, but has a different (cable driven) throttle control

    The following web image shows the parts i need:

    The parts i need...

    Someone has a source for the part list?

    Avatar
    RICK EICHRODT

    US Member - 2 Years
    Replies: 185
    Topics: 44
    #186589

    Since it is a 1980 model year, it is considered a “classic” by AOMCI rules. Anything that is 30 years from the current year(2019) is considered a classic so from 1989 on back to 1950 is a classic. I think this motor is an European Commercial model hence you cannot find this model number listed.

    Rick

    Avatar
    billw

    US Member - 2 Years
    Replies: 1106
    Topics: 38
    #186623

    Very unique, cool motor! I knew they existed but had never seen one. So THAT’S what that weird, extra gasket in a 9.9/15 gasket set is for!

    Long live American manufacturing!

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 2875
    Topics: 37
    #186630

    Have never seen one of these, except in advertising pictures….And you are right Bill, I have always wondered why there was that 10-18hp base gasket pictured in some gasket sets for 9.9-15s! I wonder if there is some sort of adapter between the powerhead and midsection, or if the powerhead casting is different…Cool…
    Enrico, so you need a new intake cover and vertical throttle rod?? Can’t really see the problems from your picture… Are you saying the parts are unavailable or is it that you just can’t find a parts book and part numbers….
    These odd commercial models can be tough to track down… Have you tried marineengine.com? I’m sure they can help you track down the numbers and pieces….
    Check the gearcase, make sure there is no water in it!

    Avatar
    enrico-italy


    Replies: 48
    Topics: 6
    #186992

    Many thanks for replies.

    FYI, this motor ( and his following 14 RS sister) is a really “frankie” collection of older model parts.

    The first 9-12 version used the complete QD leg/foot/steering groups, in the last updated versions of CD and MQ models.

    The PH is essentially the 9.9 /15 one, except for the shift & gas linkage that required a different intake cover with bracket for vertical shaft as pictured. Also the start/throttle safety interlock is missing.

    The lower motor cover acts also as adaptor flange between the leg and the PH, as in the Lightwin/Yachtwin 4 and has no rubber dumpeners.

    There are no silencer in the leg, so the motor is very noisy.

    The 10-14 series used a custom leg, that interfaces the PH to larger 18/25 gearcase (but with different gear ratio). This leg also has the 18/20 upper flange layout, and contains a silencer similar to the 18-20 one.

    However, also the throttle line is modified, and uses now a push pull cable unit, different from the 9.9/15 or also 25 ones.

    If You are interesting in more details, simply ask.

    Bye

    Avatar
    enrico-italy


    Replies: 48
    Topics: 6
    #186993

    Enrico, so you need a new intake cover and vertical throttle rod?? Can’t really see the problems from your picture… Are you saying the parts are unavailable or is it that you just can’t find a parts book and part numbers….

    Hi, the pic is not from my motor, but is a Internet source.

    In my motor the vertical shaft is missing and the support bracket on the intake cover is broken.

    I cannot find any other motor (i.e. 9.9-15 or 14VE) using the same parts, so I don’t know the code to search for on the web.

    I will contact Marine Engine as suggested.

    Many thanks

    Avatar
    johnyrude200

    US Member - 2 Years
    Replies: 774
    Topics: 183
    #187082

    I have come across a few 14hp models and own one myself, only because it is such an oddity. They probably bumped it to a 14hp model because the gearcase and exhaust housing are from an 18/20 hp model with a 28hp gearcase (albeit, haven’t pulled it apart yet to look at the gearset).

    Please post pictures of your motor. I have never seen (or even heard) of a 12hp model and the stock photo you have clearly shows an older fisheman (6hp)/10hp (pre 1964) exhaust housing. Quite the ‘yankee engineering) to marry the throttle/tiller shaft to the 9.9/15hp set up. And that stock photo shows the gearcase from a 10hp with the older 4 bolt (9.5/10hp) gearcase, also using the same housing as the 5.5/6hp motors.

    I may have parts here to help you out if you can post some photos….

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 2875
    Topics: 37
    #187246

    Yes, I seem to remember seeing the two versions of this engine, one with the small gearcase, the other with the 5 bolt gearcase. Still baffled as to how they married the 9.9 powerhead to the old style midsection, even with the pan used as an adapter….Just seems like it would be impossible to line up all the water tubes/exhaust/driveshaft, etc…

    Avatar
    rapier

    International Member - 1 Year
    Replies: 105
    Topics: 27
    #188031

    It’s possible, if this was a Europe only motor, that South Coast Marine based in Christchurch, UK, might have parts. Worthwhile giving them a call – they’re on the net.

    Avatar
    GlennB

    International Member - 1 Year
    Replies: 2
    Topics: 0
    #188103

    Interesting to see and read about this 12hp Evinrude so I thought I’d share some photos of my 12hp Johnson Workhorse.
    Runs nice, bought it in this condition a few years ago.
    This one is in Queensland, Australia.

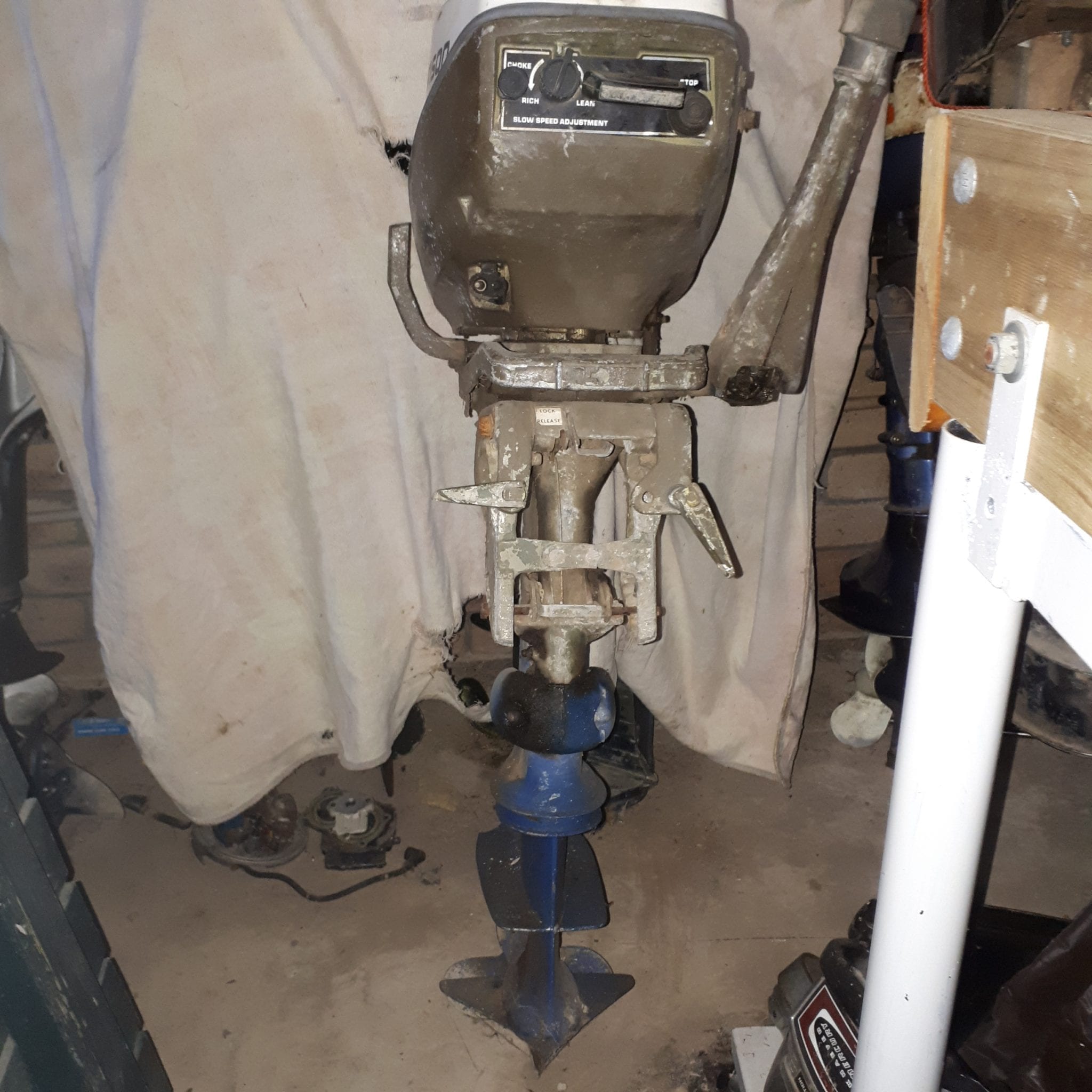

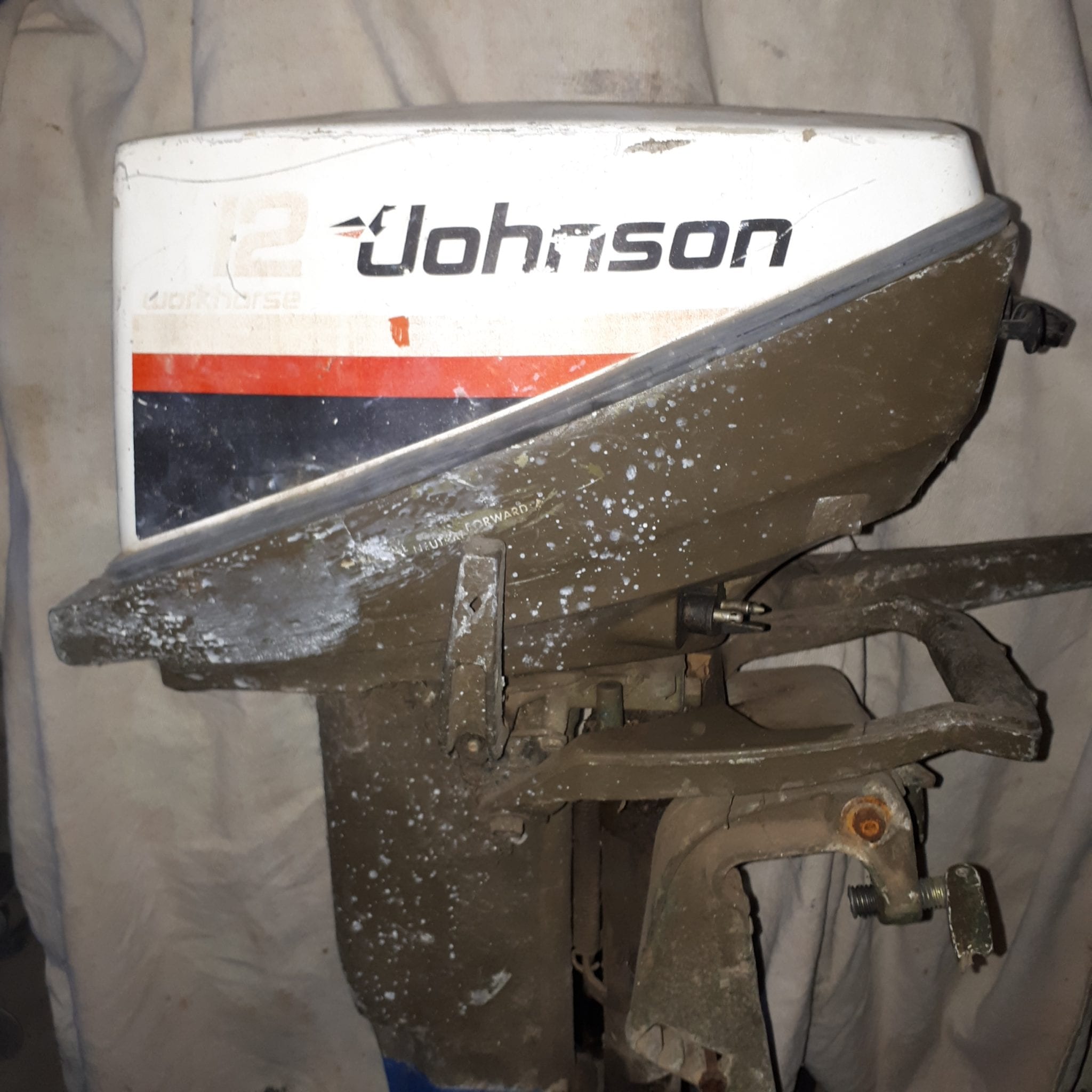

    20191126_111641

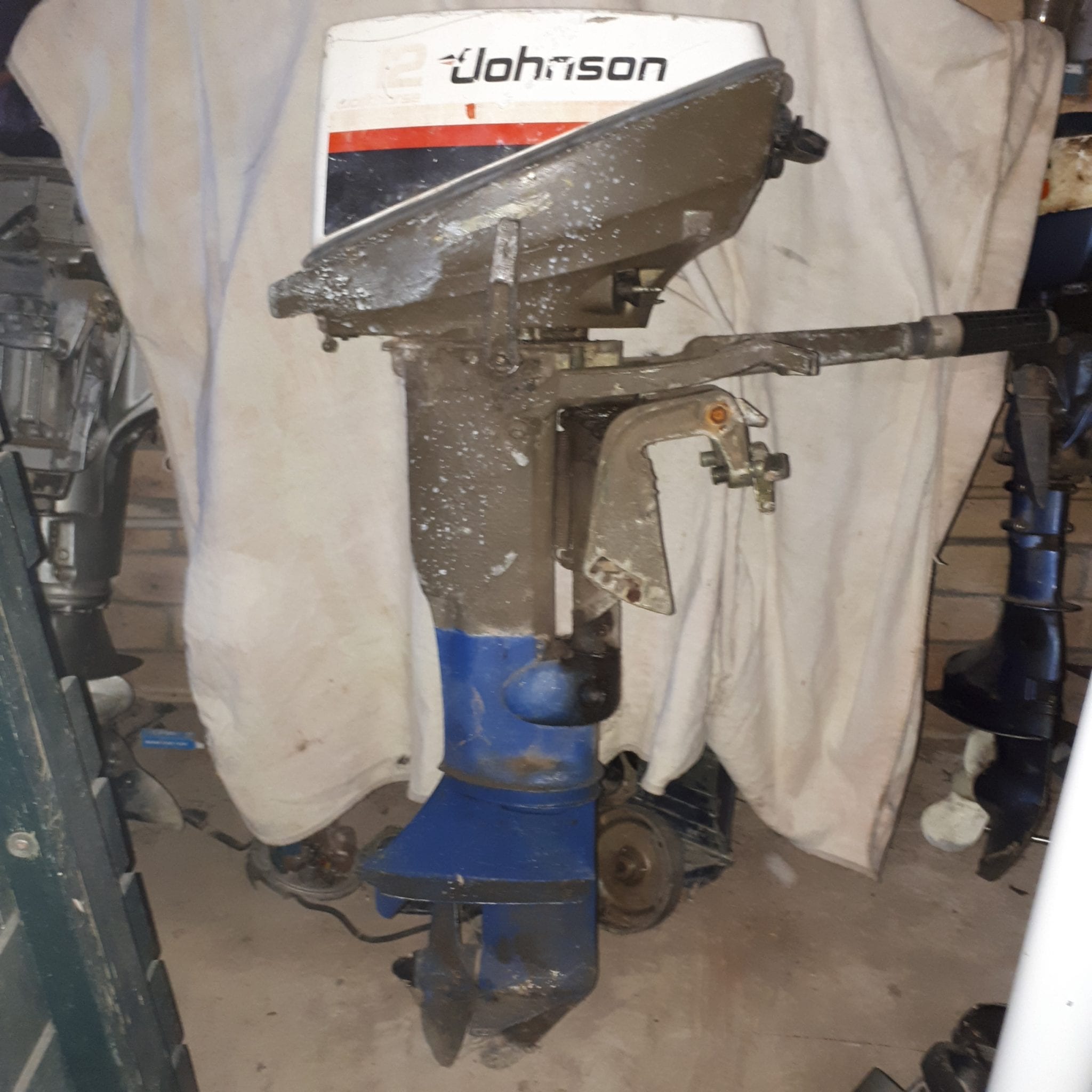

    20191126_111820

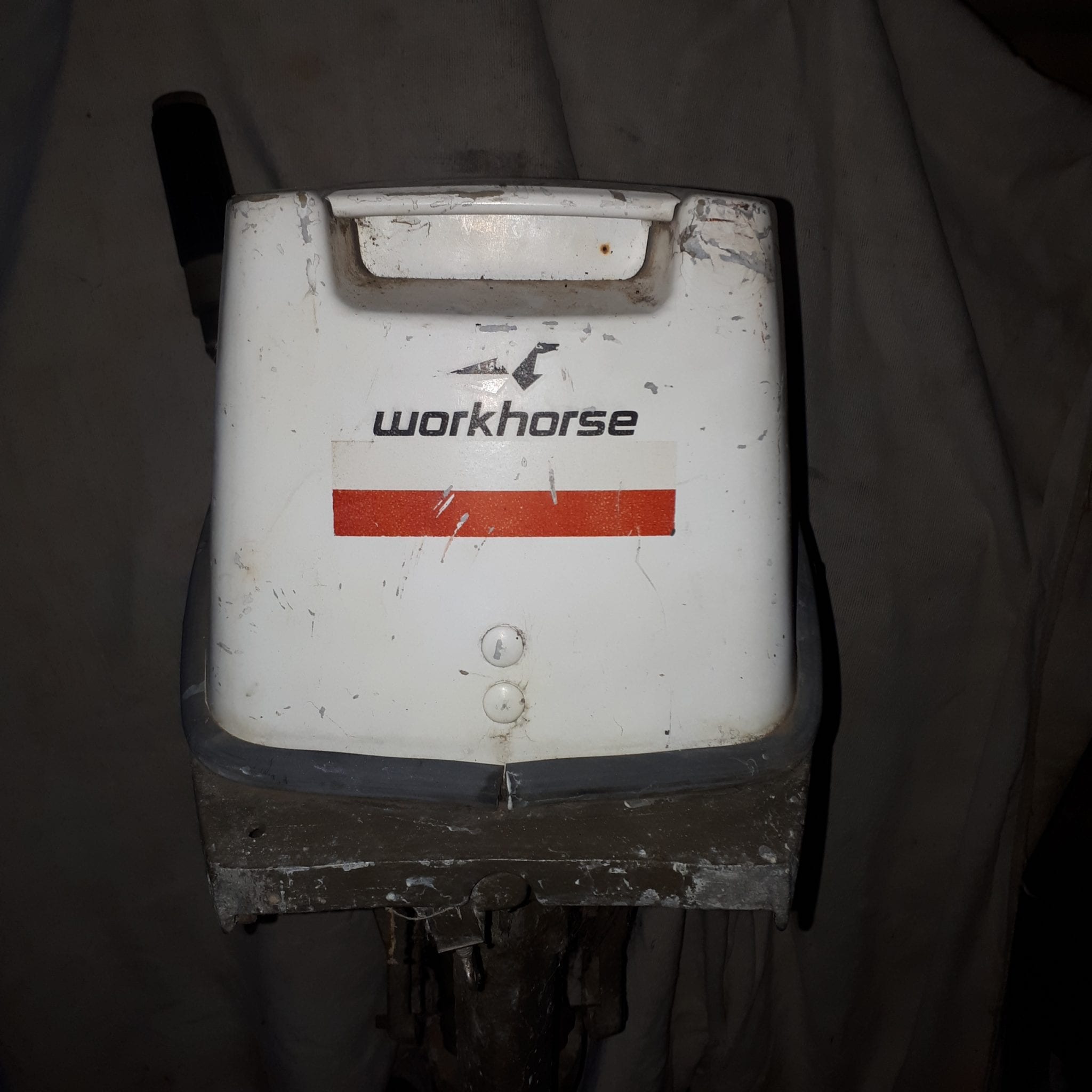

    20191126_112048

    20191126_112122

    GlennB

    • This reply was modified 2 months, 4 weeks ago by MumblesMumbles.
    Attachments:
    Avatar
    johnyrude200

    US Member - 2 Years
    Replies: 774
    Topics: 183
    #188109

    Now THAT is something I havent seem before. 6hp shifter, looks like a 10hp exhaust housing and gearcase, the lower cowel is a unique 6hp/9.9/15hp oddity. I have never seen a lower cowel like that one. The 14hp I have is basically a 9.9/15 from the lower cowel up married to a 28SPL exhaust housing and gearcase. The only unusual part is the exhaust housing adapter plate.

    But these 12hp motors are clearly an abomination of extra parts from yesteryear.

    I can only imagine some poor dealer requesting parts for a customer 6 months after production for these motors…

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 2875
    Topics: 37
    #188119

    yep, that is a real strange marriage of various parts through the years…

    Avatar
    GlennB

    International Member - 1 Year
    Replies: 2
    Topics: 0
    #188150

    Can’t seem to find much info on these motors, but on page 19 of Peter Hunn’s The Old Outboard Book, third edition he mentions a few 1980s heavy-duty commercial Evinrudes had the tri-element skeg. (the two wings on either side of the skeg)
    Anyway here’s some more photos.

    GlennB

    Attachments:
    Avatar
    johnyrude200

    US Member - 2 Years
    Replies: 774
    Topics: 183
    #188156

    The intake bypass cover is unique in that it has a special boss to accommodate the tiller vertical gear to connect to the normal 9.9/15hp timing advance linkage.
