Sears Waterwitch 5-3/4 hp twin

[Buccaneer]

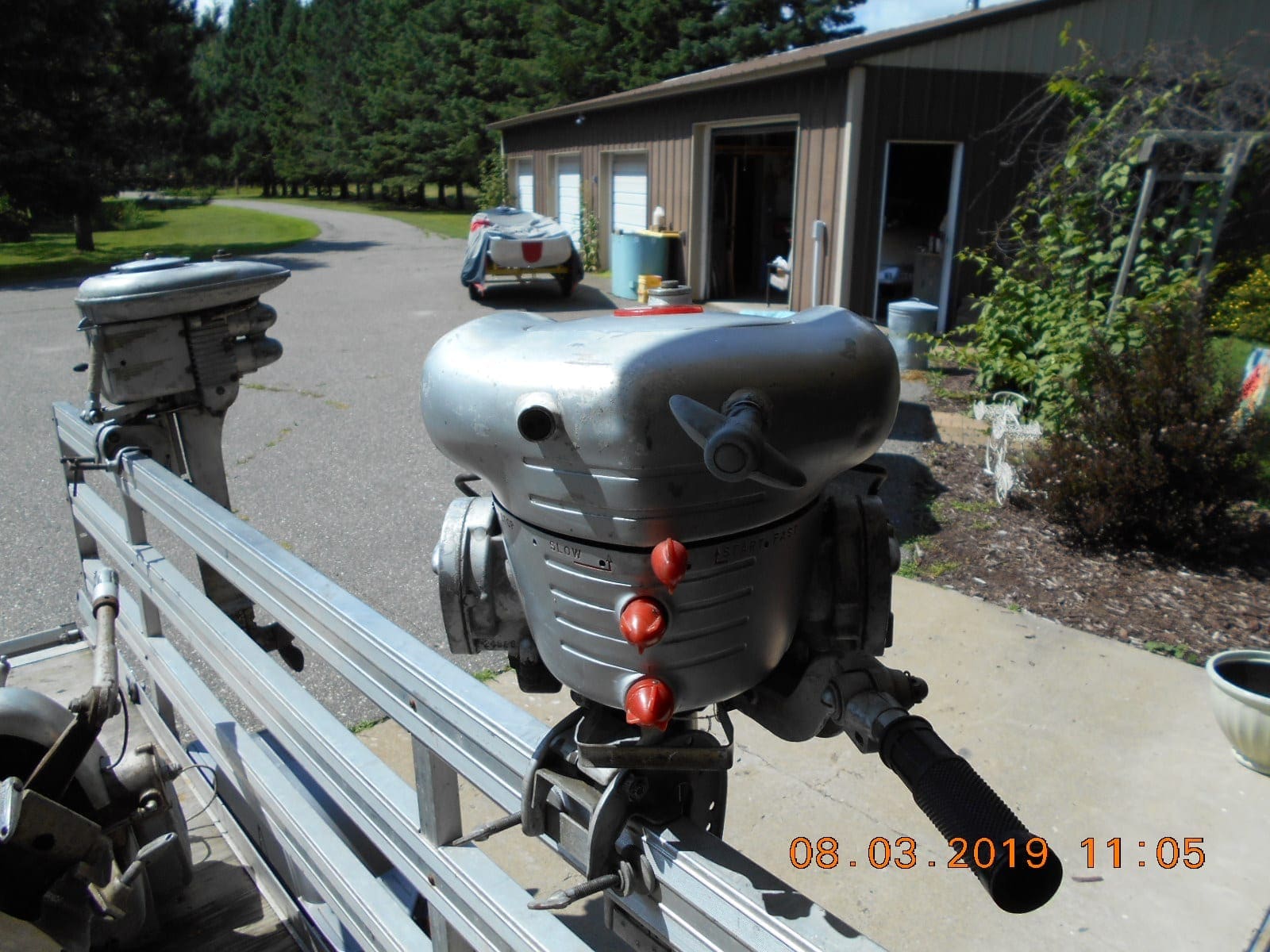

Picked up subject motor at Tomahawk. It’s a 5-3/4 hp
twin opposed. Model 571.24
Wondering if anyone has digital info on this 1941 model?
Manuals, etc.
Curious about the little two prong plug in on the front,
that I’m told was for boat lights. Does the mag have
some kind of separate lighting coil?
Thanks.

Prepare to be boarded!

[Tubs]

A "Boathouse Repair" is one that done without having tools or the skills to do it properly.

• This reply was modified 4 years, 2 months ago by Tubs.

[jessedaugherty87]

I couldn’t figure out how to post I signed in as a guest nm. Anyway i have a bendix smd 2.25 hp the fuel tank has a few dents I , are there any out there I can get to replace it or would I have to take it to an painter and body guy. Can post this for ne .

[jcrigan]

If you want to run any dc powered devices off that, a bridge retifier should be able to convert that ac to dc. Light bulbs it shouldn’t matter. Do you have the recoil cover? There is a disc shaped piece on the center of the cover that i don’t have on mine.

[Buccaneer]

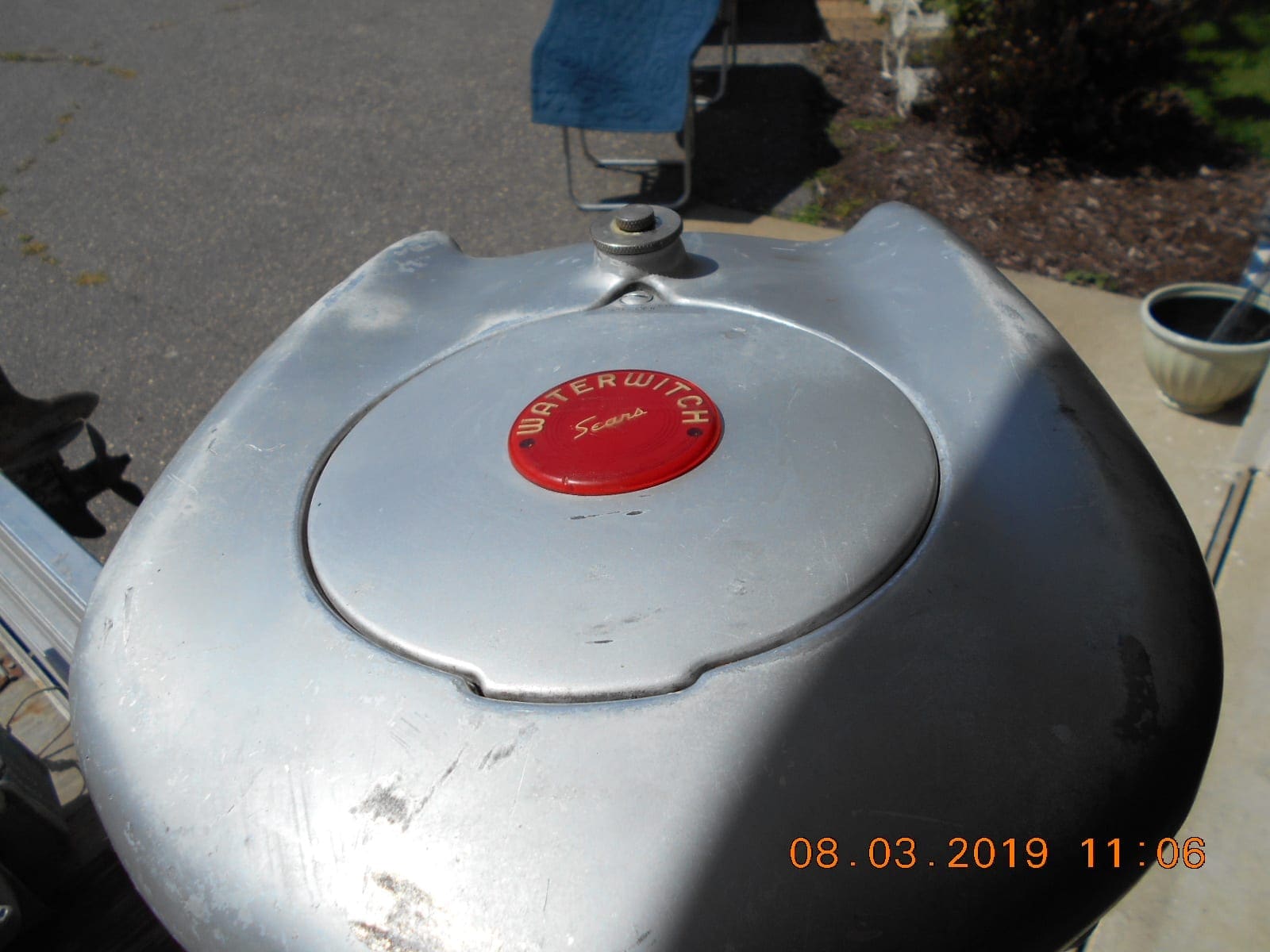

Is this the disc you’re missing?
I’d love to see the owner manual on one of these motors and see just what it said
about the light plug in.

jcrigan wrote:

If you want to run any dc powered devices off that, a bridge retifier should be able to convert that ac to dc. Light bulbs it shouldn’t matter. Do you have the recoil cover? There is a disc shaped piece on the center of the cover that i don’t have on mine.

Prepare to be boarded!

[jcrigan]

That’s the one. Is there a chance you could take a picture of that and measure the diameter? I could probably make a copy or two.

[Buccaneer]

jcrigan wrote:

That’s the one. Is there a chance you could take a picture of that and measure the diameter? I could probably make a copy or two.

Will try to get a good photo from directly above, with dimensions.

I bought the Waterwitch from a fellow at Tomahawk going by “Starvin Marvin”.
He had two other Waterwitch’es the same. I grabbed the nicest
one. Can’t remember if either of the others had the medallion you’re
looking for.

Prepare to be boarded!

[Buccaneer]

jcrigan wrote:

That’s the one. Is there a chance you could take a picture of that and measure the diameter? I could probably make a copy or two.

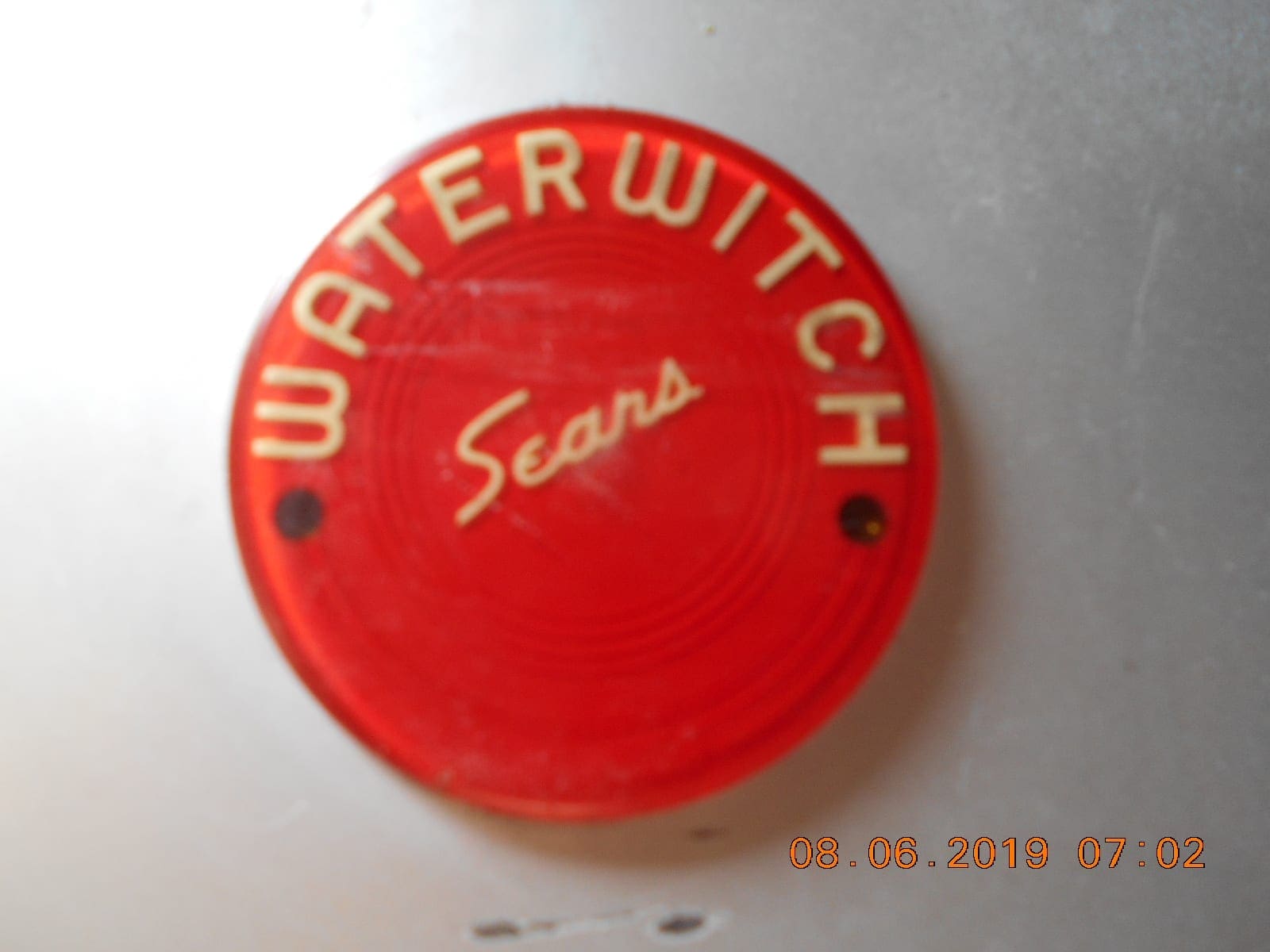

Diameter is 2.575 ”

Prepare to be boarded!

[jcrigan]

Thank you very much. It shouldn’t be difficult to make a couple of these. Are these plastic or metal?

• This reply was modified 5 years, 8 months ago by jcrigan.

[Buccaneer]

Plastic

Prepare to be boarded!
