Senior moment –which is reverse gear- which is forward gear

Home Forum Ask A Member Senior moment –which is reverse gear- which is forward gear

Currently, there are 1 user and 1 guest visiting this topic.
Viewing 11 posts - 1 through 11 (of 11 total)
  • outboardnut
    outboardnut

    US Member - 2 Years
    Replies: 694
    Topics: 461
    #210654

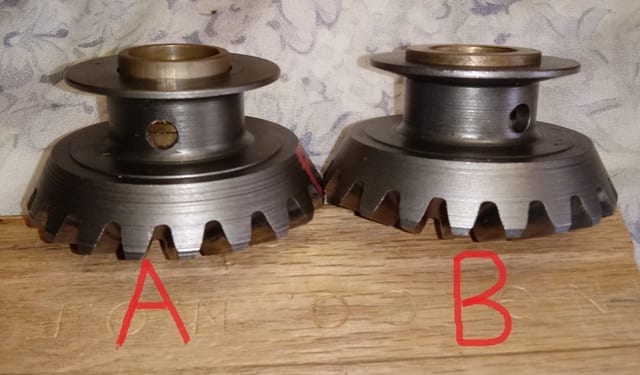

    Is “A” my forward gear or is “B” my forward gear?
    Johnson 25 hp RDE-17 1955

    two-gears

    • This topic was modified 1 day, 22 hours ago by outboardnutoutboardnut. Reason: want to enlarge
    Attachments:
    Avatar
    RICK EICHRODT

    US Member - 2 Years
    Replies: 204
    Topics: 46
    #210658

    I am not positive but I think it does not matter. On that motor, it had a cup and bearing and not a bushing as a thrust bearing. I think you can swap gears around and swap ends on the clutch dog. Later models had distinct foeward and reverse gears. Frankr would know more than I.

    Buccaneer
    Buccaneer

    US Member - 1 Year
    Replies: 4004
    Topics: 974
    #210659

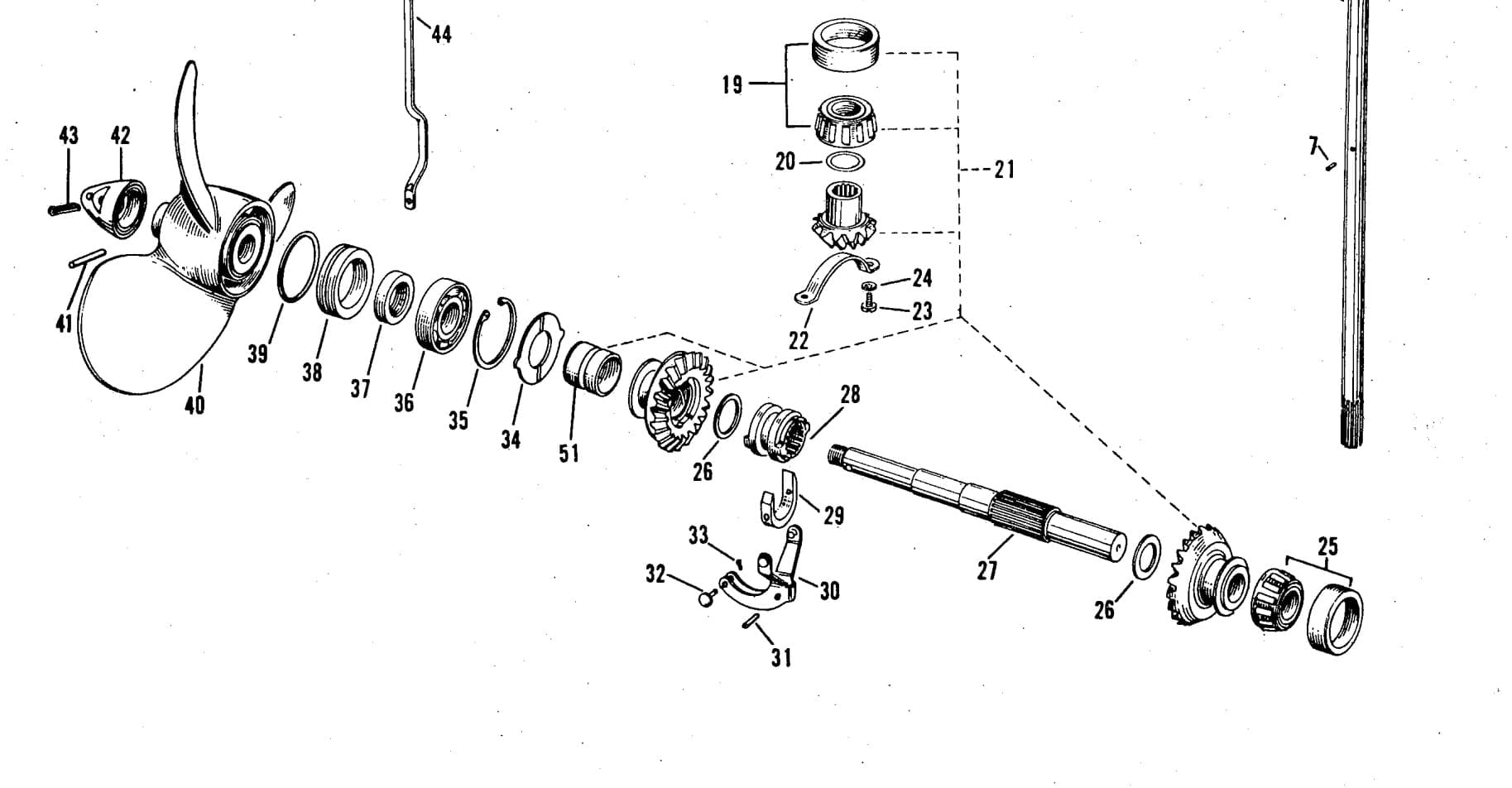

    Which gear interacts with the big thrush washer (#34) correctly ?

    RD-17-LU

    Prepare to be boarded!

    Attachments:
    frankr
    frankr


    Replies: 5216
    Topics: 48
    #210662

    Rule is, the one with a pressed-in bushing (B) is forward. Reverse has a floating bushing because the gear rotates in opposite direction from the prop shaft (when running in forward/high speed).

    outboardnut
    outboardnut

    US Member - 2 Years
    Replies: 694
    Topics: 461
    #210686

    Frank
    Not sure what you mean by floating bushing
    Both bushings do not spin with in the gear.
    Buccaneer
    I get it
    “A” “the reverse gear “The taller brass one-needs the space to accommodated Number 34 and 35
    I’ll make this a short story
    I sent Dan from TN both forward and reverse gears.
    He has a arbor press
    He put the brass bushing from the forward gear into the reverse gear and vice a versa
    Then I installed the clutch dog the opposite way than how it was originally.
    Now everything rides on new lobes.
    Dan from Tn had a Johnson not Evinrude Quick Reference Guide.
    That is how he determine that both gears were the same and the bushings were different.
    In the gear case parts list for RDE-17
    It does not show individual gear part numbers.
    Dan thinks that all RD’s gears will turn around up to 1986
    Does anyone have a PDF of a JOHNSON Quick Reference Guide??????????

    frankr
    frankr


    Replies: 5216
    Topics: 48
    #210693

    You are saying the bushing will not spin within the reverse gear? I think it should. Golly, I hope Dan in Tn don’t fight over this. He knows more than I do.

    outboardnut
    outboardnut

    US Member - 2 Years
    Replies: 694
    Topics: 461
    #210694

    Frank
    All i can tell you is mine does not spin

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 3278
    Topics: 49
    #210700

    Those bushings do look a little different… “B” seems to have a bit of a collar on top of the bushing, maybe I’m just seeing things…

    outboardnut
    outboardnut

    US Member - 2 Years
    Replies: 694
    Topics: 461
    #210702

    they are different
    one bushing has more of a lip than the other

    Avatar
    fleetwin

    US Member - 2 Years
    Replies: 3278
    Topics: 49
    #210706

    I’m thinking “B” is the forward gear…The lip on the bushing should fit inside the bearing, try it and see if it does….
    I agree that the bushing in “A” should be free floating and is the reverse gear…Try tapping the bushing with a rubber/plastic mallet….

    bobw
    bobw

    US Member - 1 Year
    Replies: 1065
    Topics: 41
    #210718

    Similar to my ’56 RD-18, gear “A” is the reverse gear. When I dismantled the gearcase on my RD-18, I did a thorough cleaning of the entire assembly and found the bushing spun freely in the reverse gear.

    Bob

    1954 Johnson CD-11
    1956 Johnson RD-18
    1958 Johnson QD-19
    1959 Johnson QD-20
    1957 Evinrude Fastwin 18

    "Every 20 minute job is only a broken bolt away from a 3-day project."
