  • August 9, 2016 at 3:28 pm #4951
    joe-smerc
    Participant

      Found Old Motor… Evinrude WHAT?? thanks

      Attachments:

      August 9, 2016 at 3:59 pm #41837
      Tom
      Participant

        US Member

        My best guess: ’33 Sea King 4 hp.

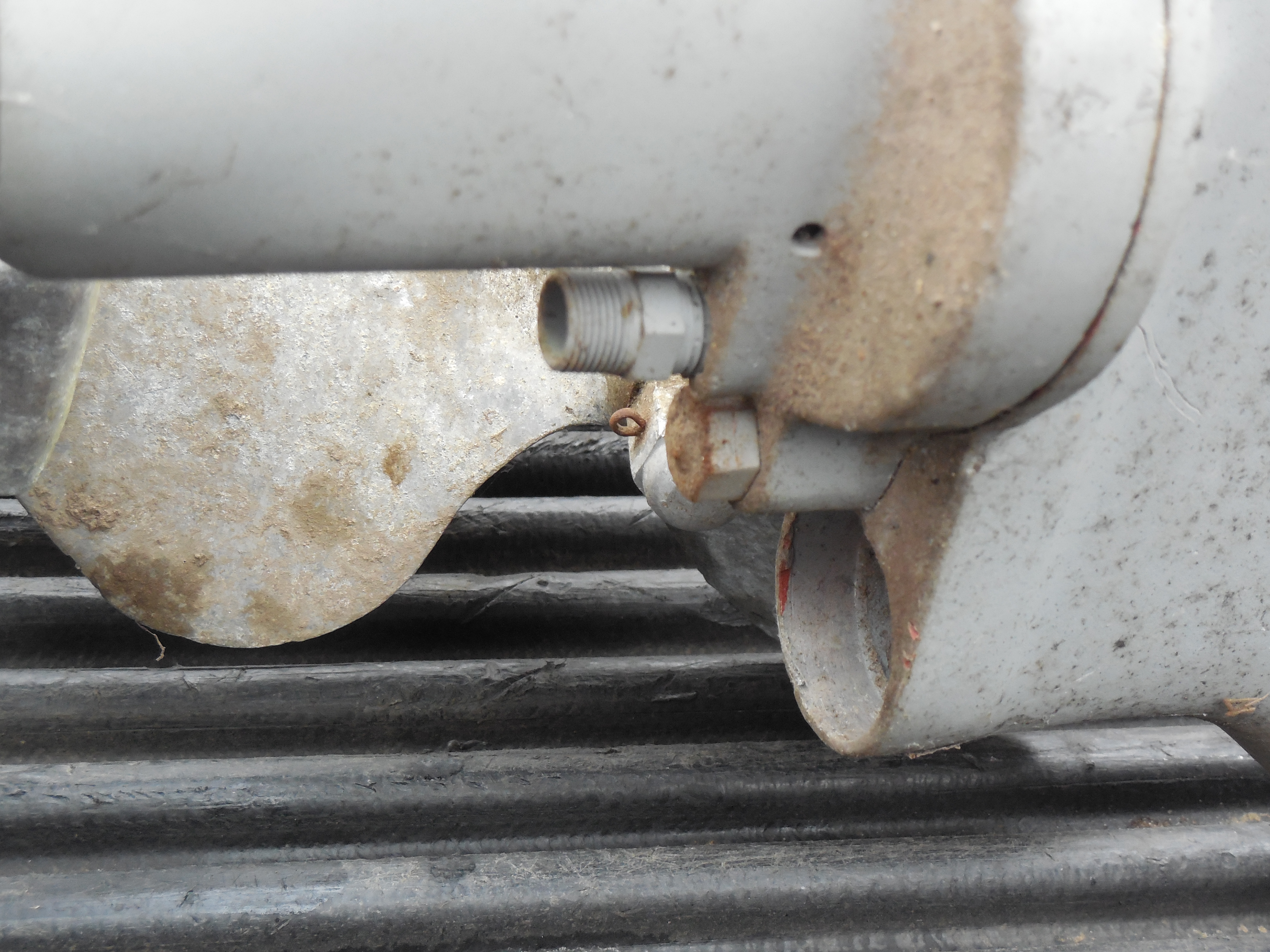

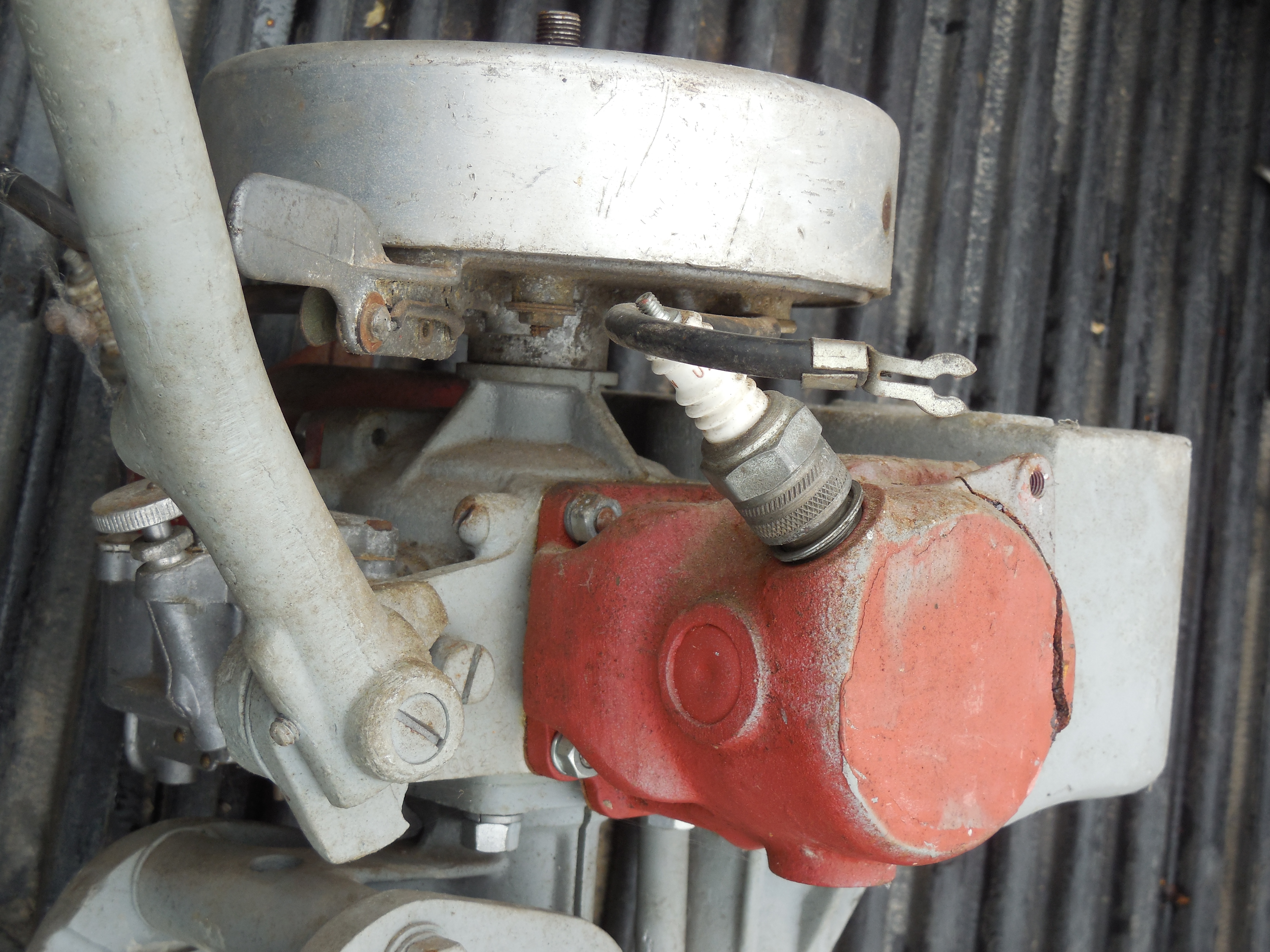

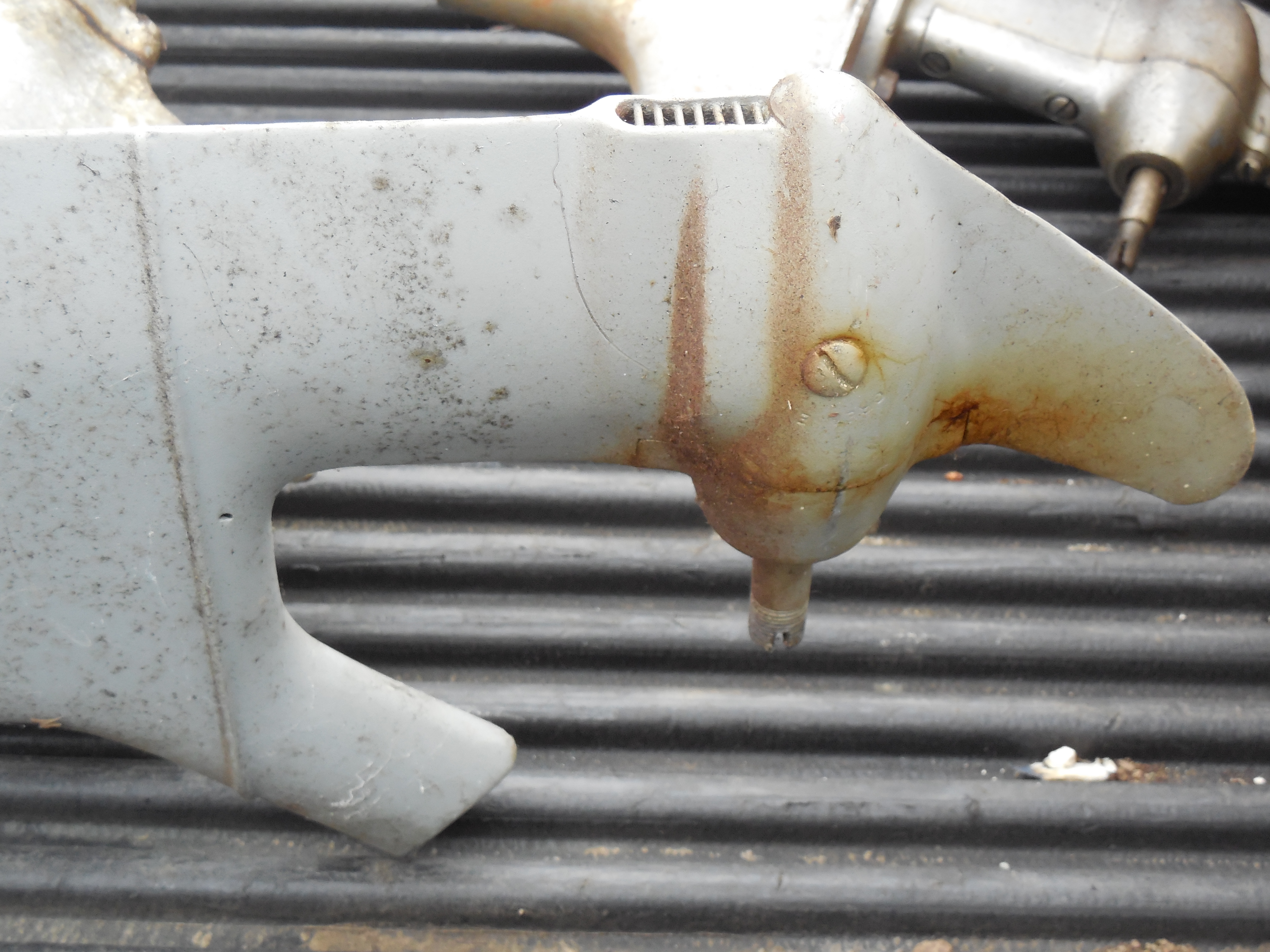

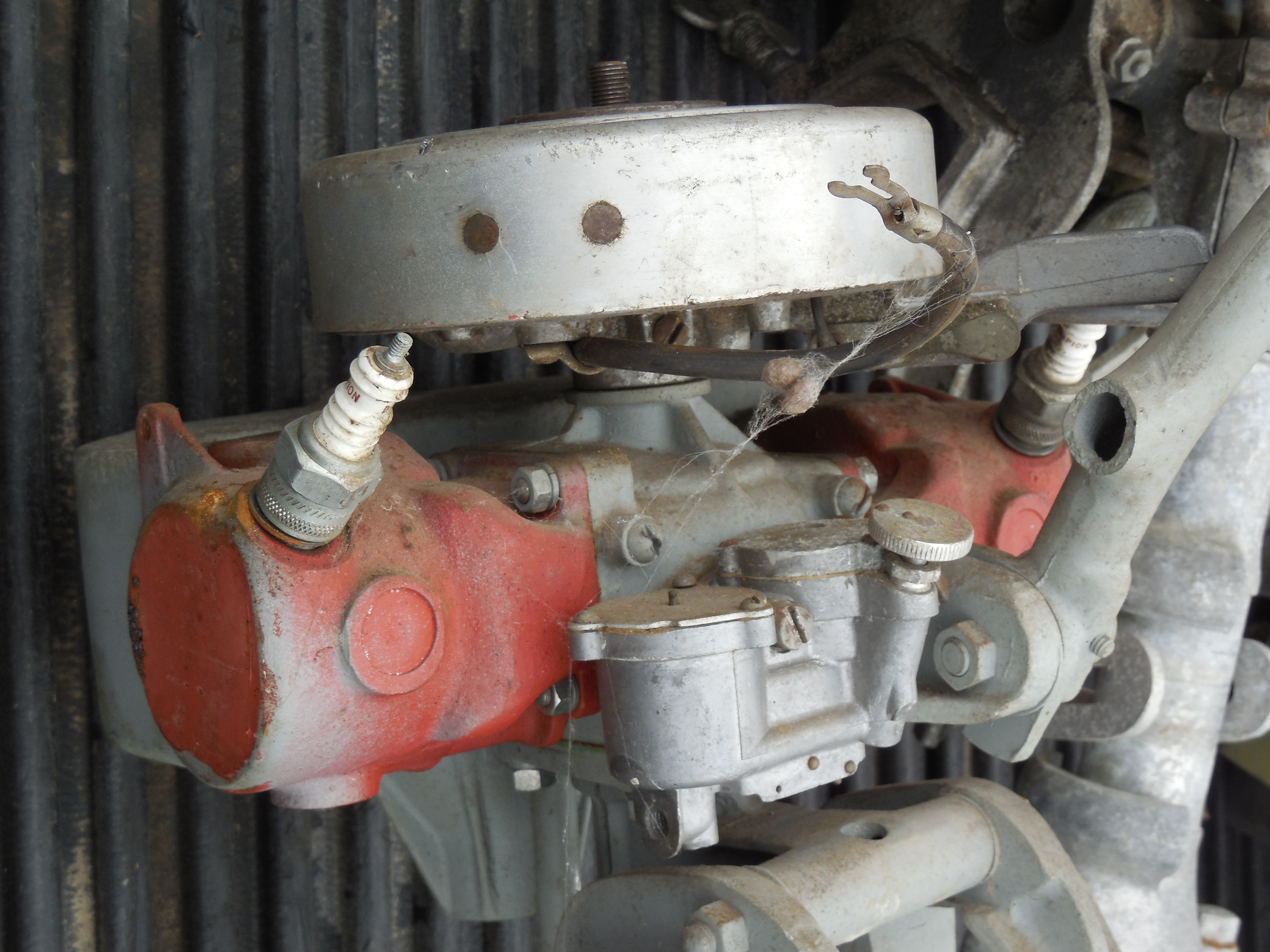

        Based on the powerhead photo, 4 hp, ’31 or later, but not so late that it had the internal rotary valve. Port cylinder is shot, carrying handle is broken off. From what I can see of the lower unit, there is no anti-cav plate, which makes it a Sea King. The motors with Evinrude or Elto on them had the plate. The muffler and lower unit with the underwater exhaust tube makes in post ’31.

        Tom
