  • #205940
    2fast4me
    Participant

      The lower unit looks like my Johnson A-25 but the rope shieve only had the No. A4344. oh yeah I think it has a cast aluminum tank. Still trying to resize pictures. Jim

      2Fast4Me

      #205943
      wbeaton
      Participant

        Canada Member

        Serial number is a 1923 Model A also known as a Waterbug. Photos would help.

        Wayne
        Upper Canada Chapter

        uccaomci.com

        #205946
        2fast4me
        Participant

          Thanks Wayne, i tried attaching photos. I haven’t got the hang of reducing the picture size yet. Ill clean up the little thing tomorrow at work and get some posted. Thanks again. Jim

          2Fast4Me

          #205984
          wbeaton
          Participant

            Canada Member

            1823 should have a cast fuel tank, a stepped flywheel, a timer lever with an aluminium button and an anticavitation plate that is separate from the gearcase. All these things should be different than your A25. Also check to see if the serial number on the block matches the rope sheave. You can email me the photos if you’d like. I can post them for you.

            Wayne
            Upper Canada Chapter

            uccaomci.com

            #206001
            stanley
            Participant

              US Member - 2 Years

              Your serial number makes it a 1923 A model.In addition to features already mentioned,it should have plated steel down tube,steering handle and tiller tube.Later models had those items made of plated brass.

              #206016
              2fast4me
              Participant

                Thanks for all the input guys, sounds like that’s what I’ve got. The chrome is worn away from the tiller and bracket but the down tube looks good, I’ll know more when it’s degreased. spark plug wires are gone so i don’t know what’s under the flywheel.
                Well work wore me out today, to tired to proceed. Maybe I’ll get it cleaned and pictures tomorrow. I’ll be back.

                2Fast4Me

                • This reply was modified 4 years, 6 months ago by 2fast4me.
                #206106
                2fast4me
                Participant

                  picture added

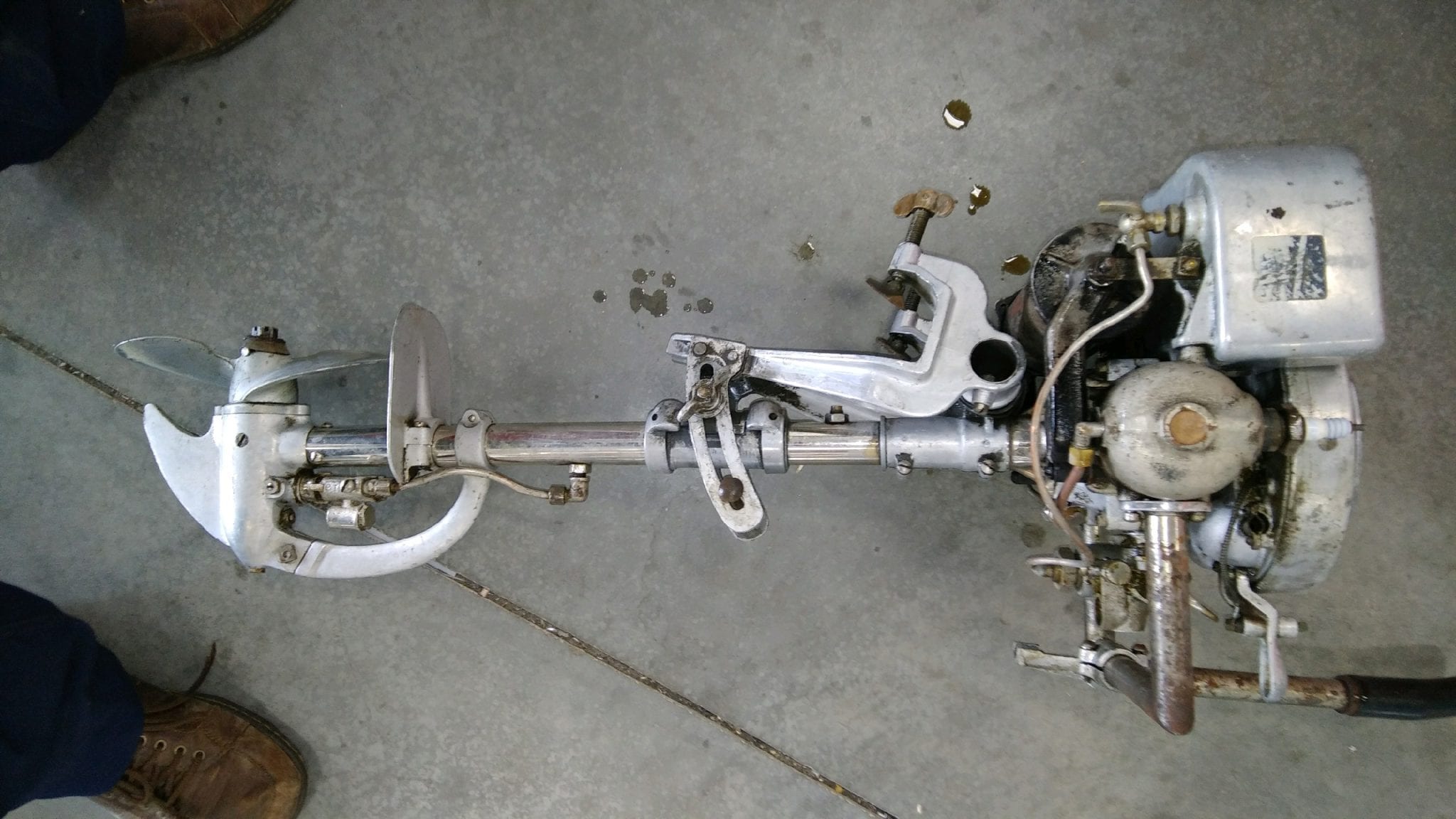

                  20200618_170957

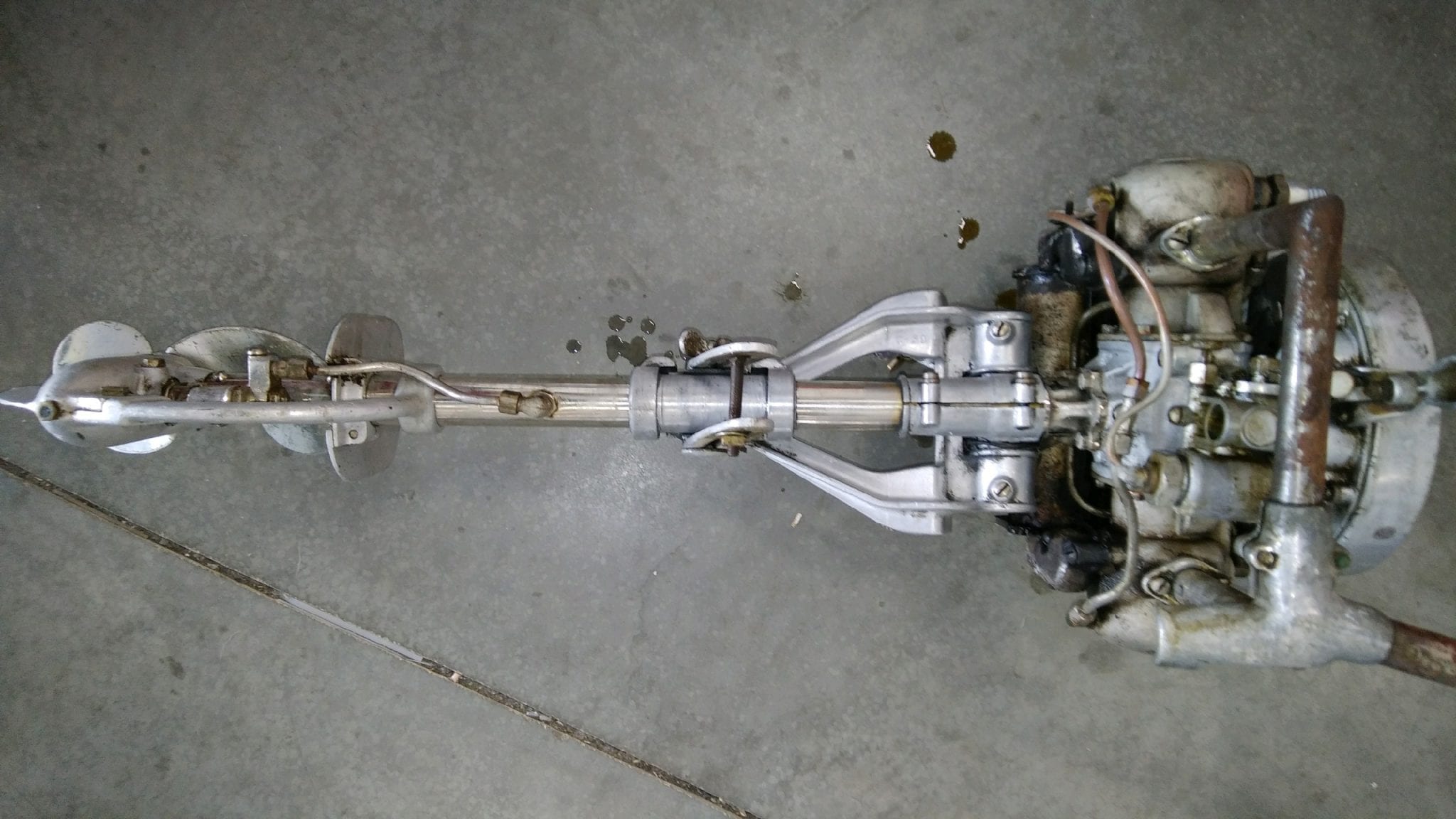

                  20200618_171017

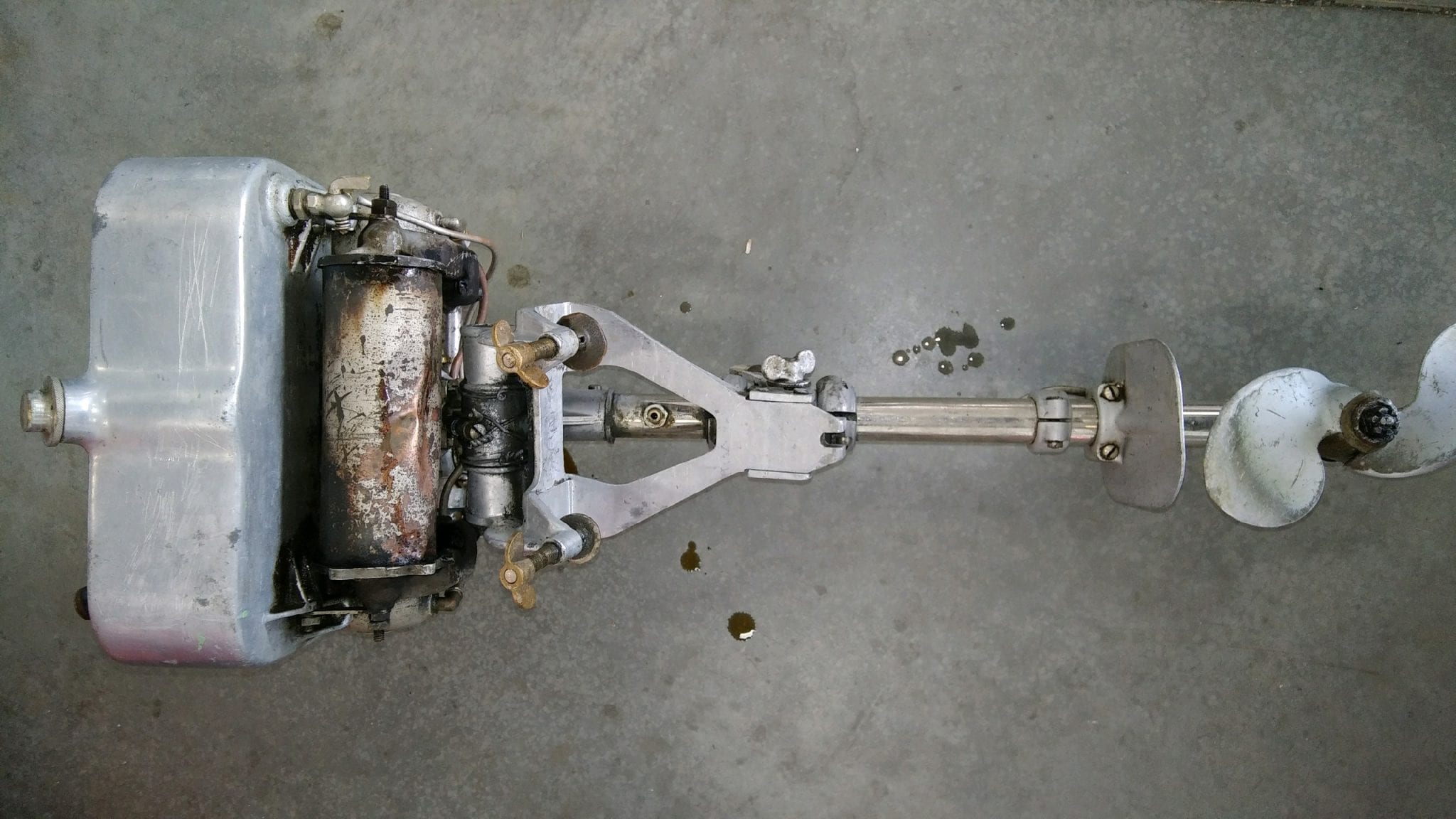

                  20200618_171040

                  2Fast4Me

                  • This reply was modified 4 years, 6 months ago by Mumbles.
                  #206111
                  wbeaton
                  Participant

                    Canada Member

                    Congratulations. You’ve got a bonafide 1923 model A. Great motor. Hard tank model A’s are the most desirable of the series.

                    Wayne
                    Upper Canada Chapter

                    uccaomci.com

                    #206112
                    2fast4me
                    Participant

                      It’s revealed some secrets now that the grease and grime is thinned out. I’ll look under the flywheel tomorrow. I’m sometimes amazed how well these old birds are preserved. Glad to have this one.

                      2Fast4Me

                      #206114
                      wbeaton
                      Participant

                        Canada Member

                        The coils are usually good. The condenser may need to be replaced. Easy motors to start and run. Perfect antique motor without a big price tag.

                        Wayne
                        Upper Canada Chapter

                        uccaomci.com
