  • #48537
    wbeaton
    Participant

      Canada Member

      Interesting to see how the remote controls were connected to the early ELTO/Evinrudes. I’d like to see more photos of the early controls and steering if anyone has some more.

      Wayne
      Upper Canada Chapter

      uccaomci.com

      #48572
      garry-in-michigan
      Participant

        Lifetime Member

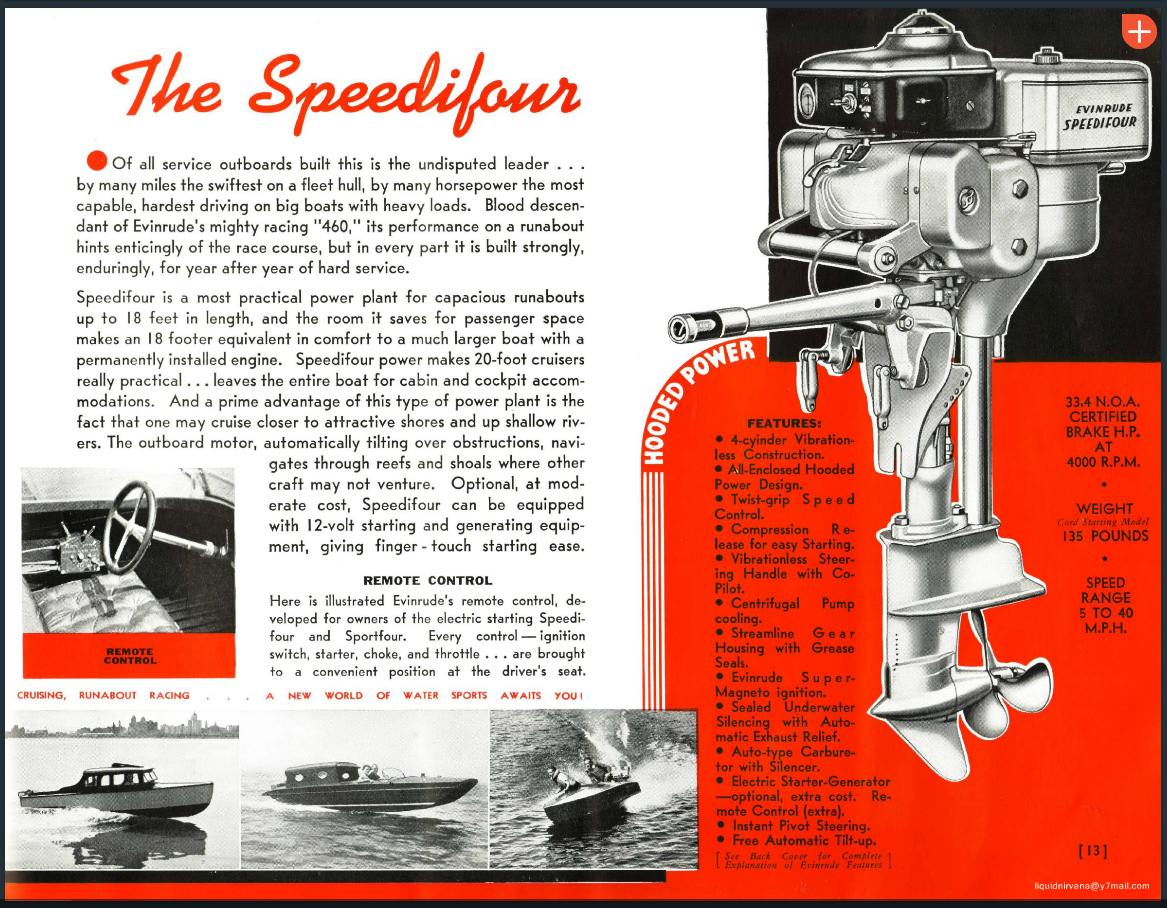

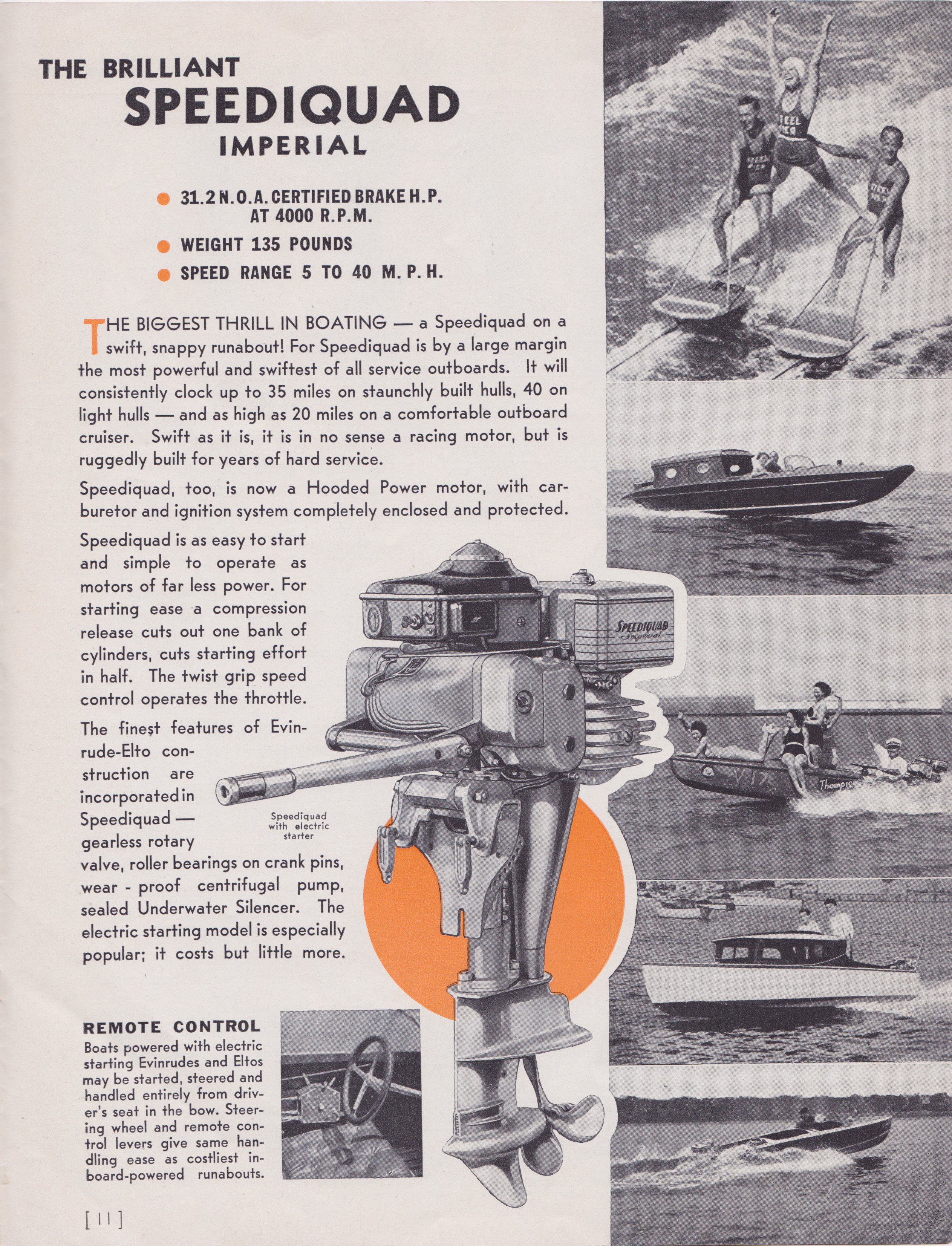

        I have some more pages from the sales brochure. . . 😉

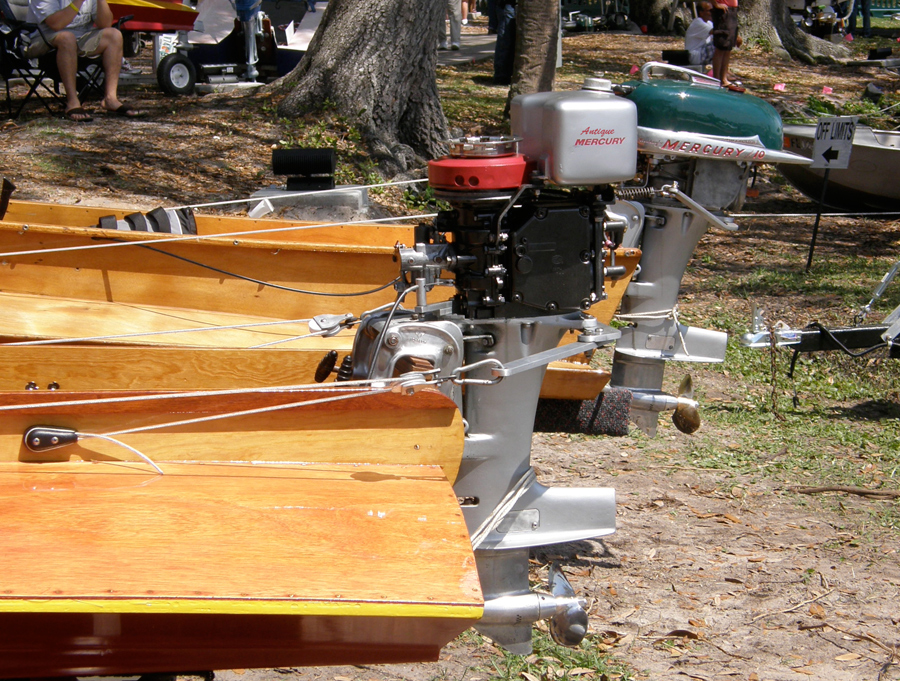

        – and then there is the steering bar. . . 😀

        #48588
        Tubs
        Participant

          A "Boat House Repair" is one that done without having tools or the skills to do it properly.

          #48593
          nali
          Participant

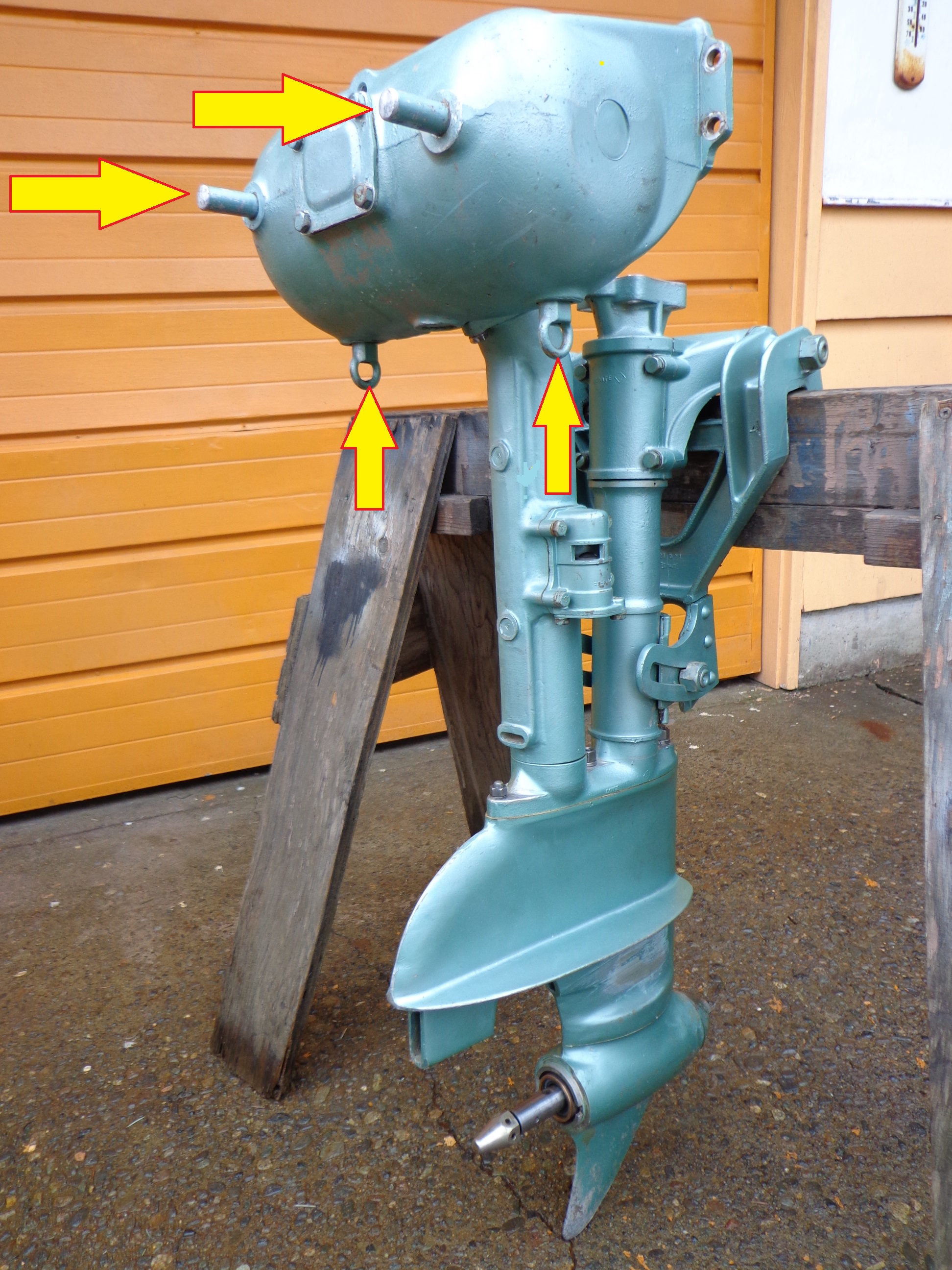

            Same kind under the cylinders on my former 1932 Johnson A-50

            #48595
            Tom
            Participant

              US Member

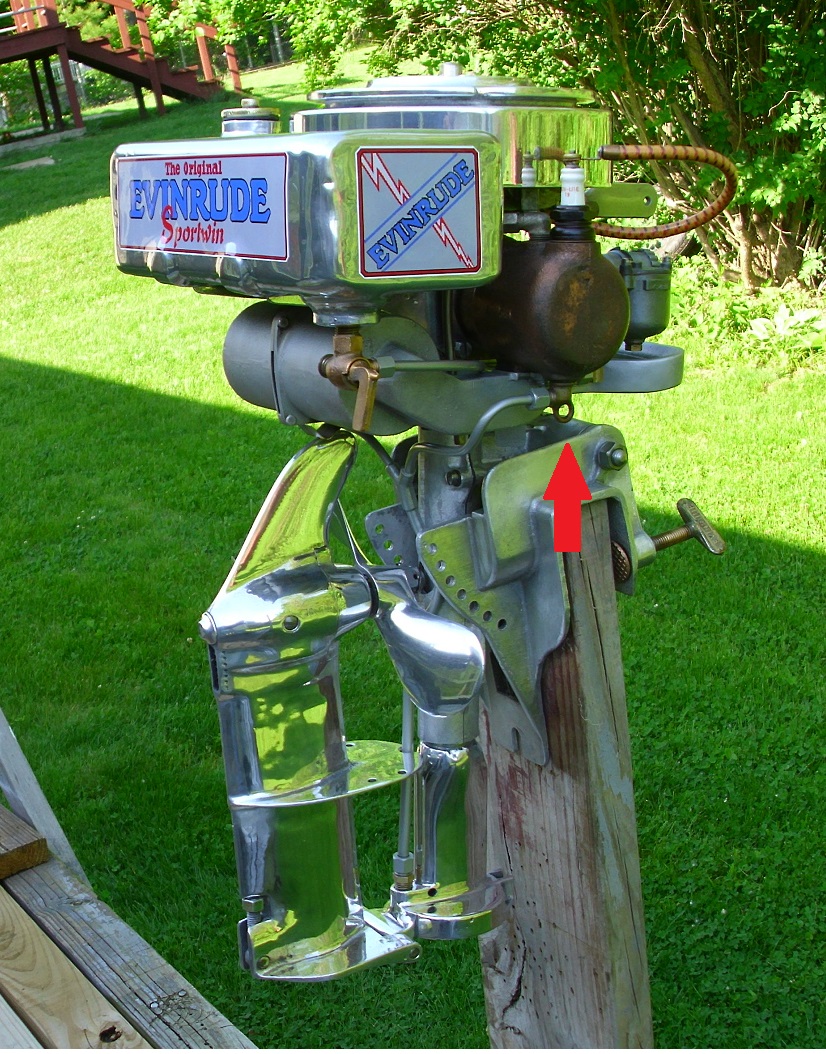

              The Model N Sportwin had loops on the water inlet fittings that could be used for steering.

              T

              #48598
              Mumbles
              Participant

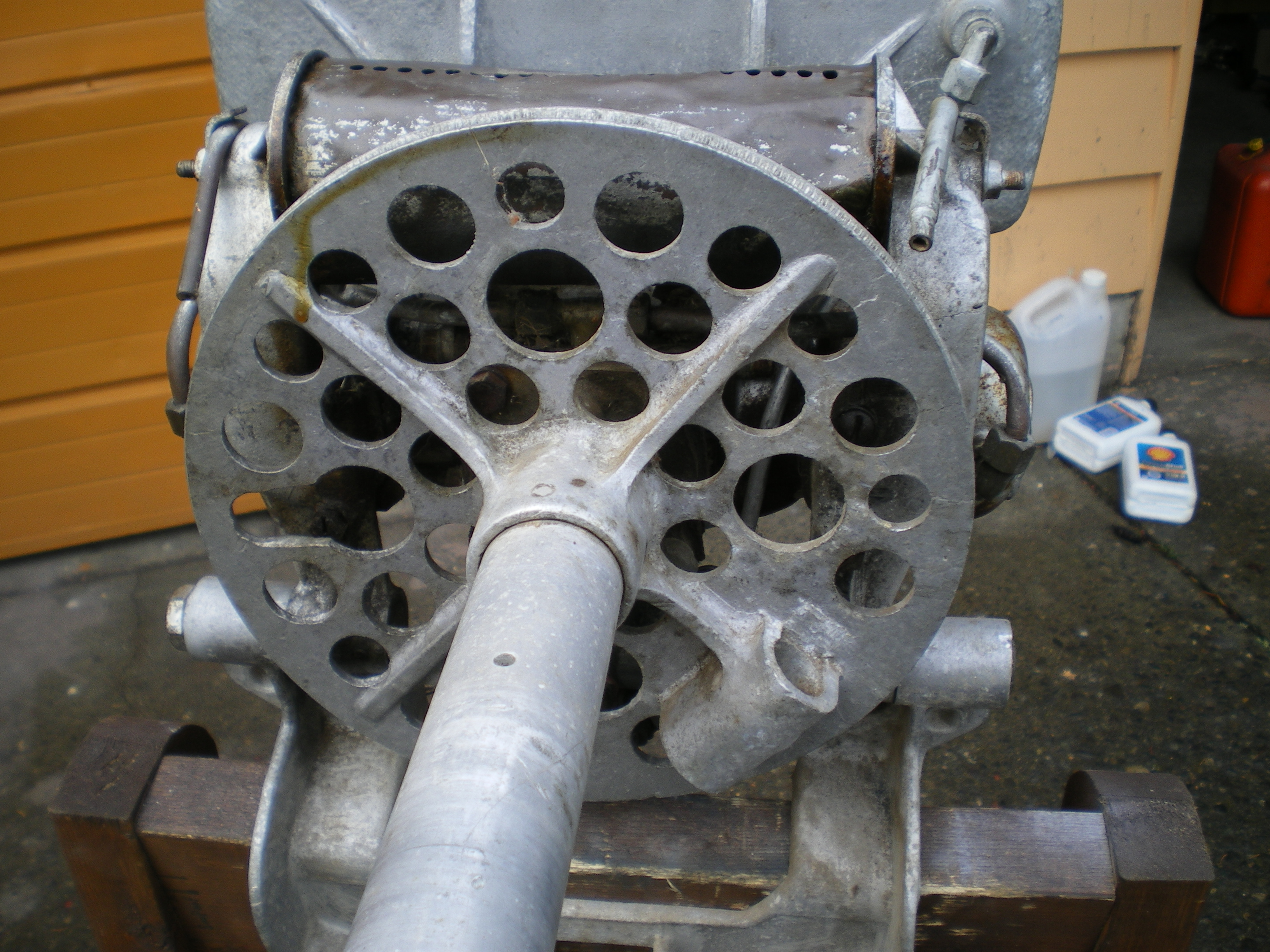

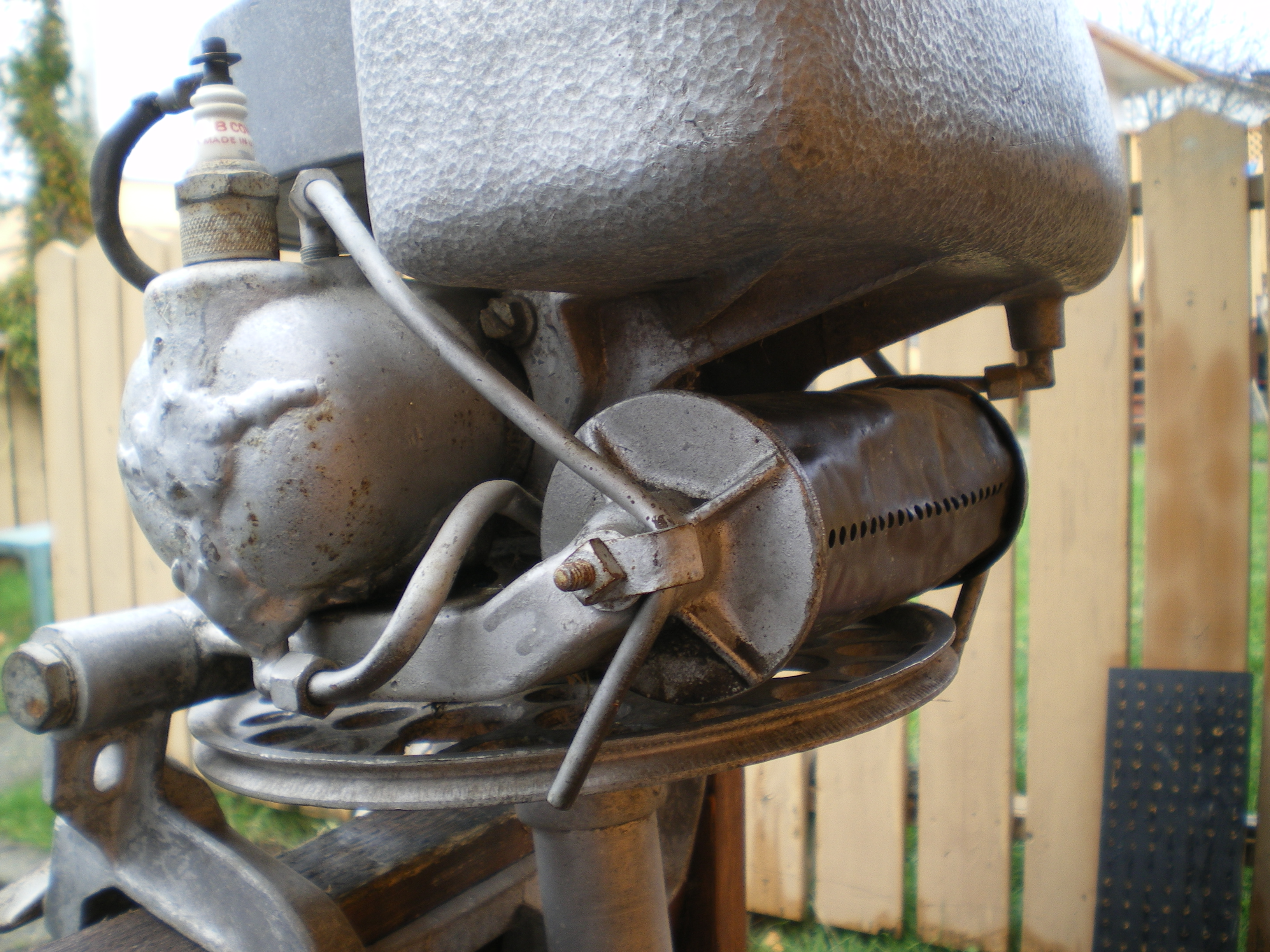

                My 1930 Muncie OB2 has a large grooved pulley type of wheel on it for a steering rope to get wound on. It must have been fun to put the rope back on if it derailed. Especially if it had the factory cover on it.


                Attachments:

                #48835
                Mumbles
                Participant

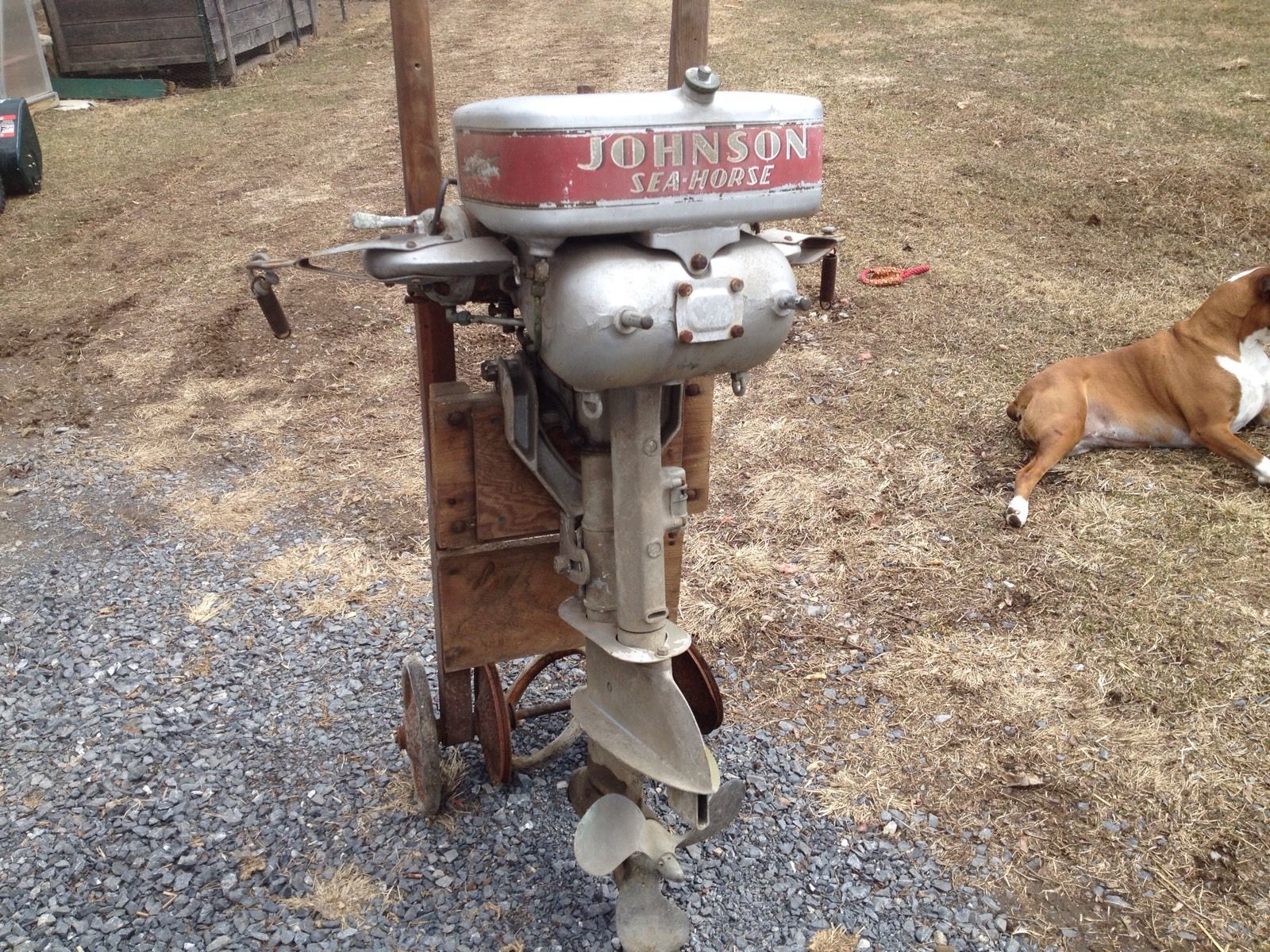

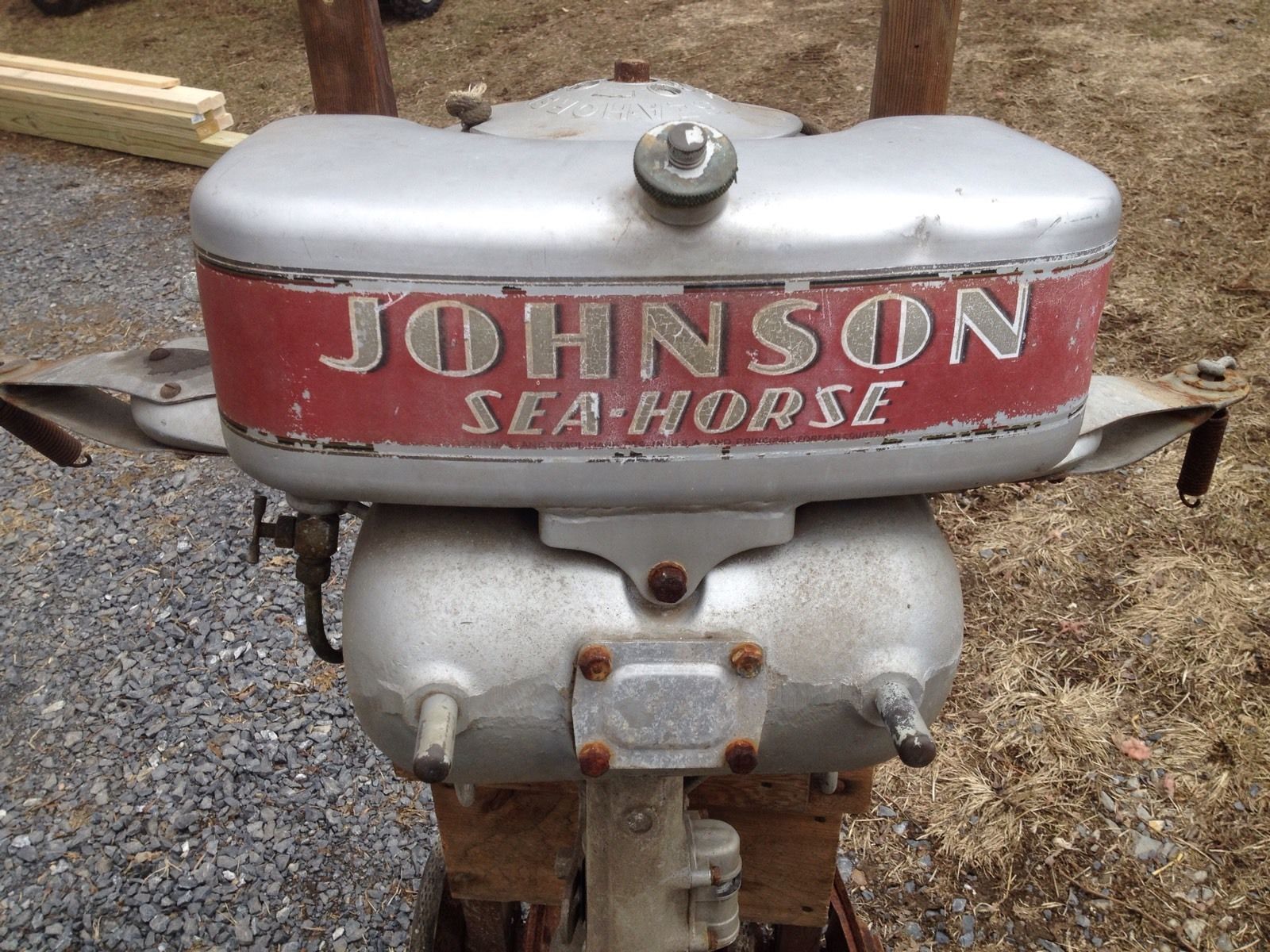

                  Can’t forget this lovely setup seen on a PO. I guess the spark plug covers were easier to get at than the rings under the muffler.


                  Attachments:

                  #48837
                  nali
                  Participant

                    Isn’t it to protect the tank when the motor is on the ground, like on my A-50 above ?

                    #48872
                    Mumbles
                    Participant

                      The rods sticking out the back of the muffler are used to lay the motor down on and the rings on the bottom are for steering hookup. The spark plug covers are to protect the plugs.

                      I’ve heard that back in the day when they raced opposed twins like this with the spark plugs sticking straight out, a competitor would break them off with the bow of his boat, putting you out of the competition. Moral of the story is, if you go racing, it’s best to leave the covers on!


                      Attachments:

                      #48874
                      bill-loveland
                      Participant

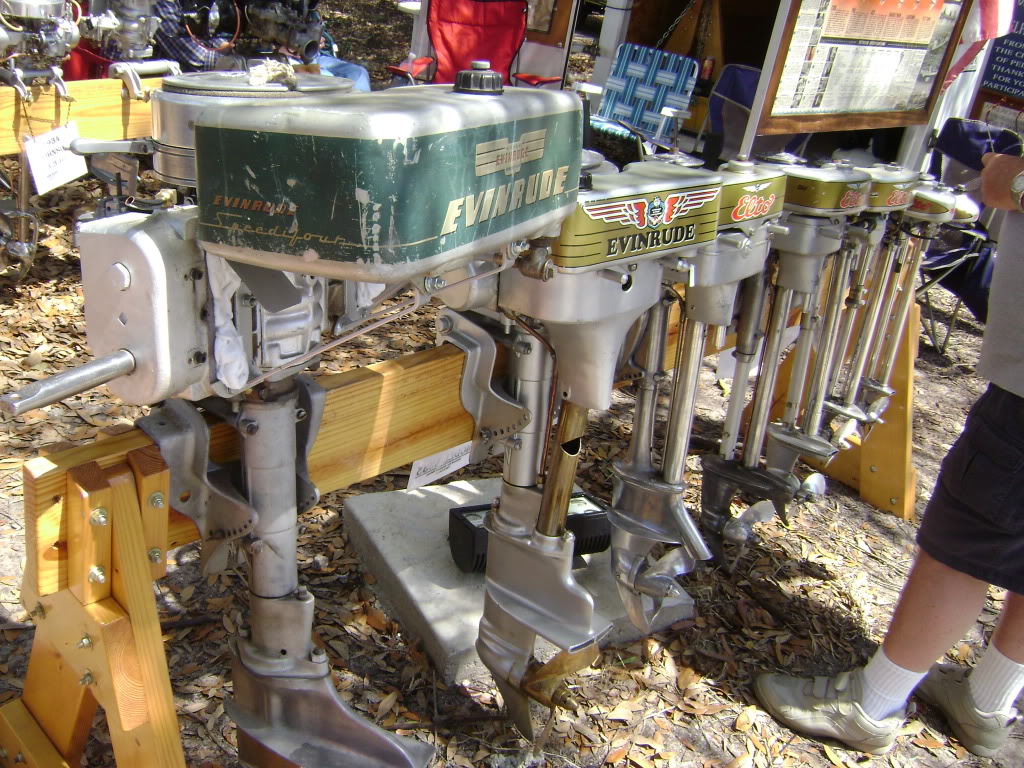

                        had to look at that hotrod Speedifour a couple of times

                        pretty neat idea!
