WEST BEND / EARLY CHRYSLER Parts Catalogues

Home › Forum › Ask A Member › WEST BEND / EARLY CHRYSLER Parts Catalogues

Viewing 10 posts - 1 through 10 (of 22 total)
1 2 3
  • Author
    Posts
  • March 27, 2022 at 1:44 pm #256930
    seakaye12
    Participant

      US Member

      Hi All,

      Anyone have any parts catalogues for the West Bend Motors? Especially the 16-18-20-25-35 models. West Bend or the early Chrysler stuff in the early-60’s thru early 70’s……

      March 27, 2022 at 3:33 pm #256936
      frankr
      Participant

        US MEMBER PAY BY CHECK

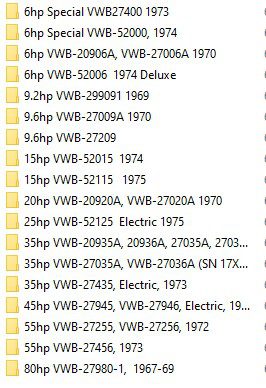

        I have a few of the Sea King variants.

        Chrysler

        March 28, 2022 at 10:40 am #256972
        seakaye12
        Participant

          US Member

          Hi Frank,

          Wonderful! Could we start with the 20 and 25HP models? If you would rather not post them here we can use WeTransfer. I can PM you my e-mail address.

          Thanks! Chuck

          March 28, 2022 at 11:01 am #256974
          frankr
          Participant

            US MEMBER PAY BY CHECK

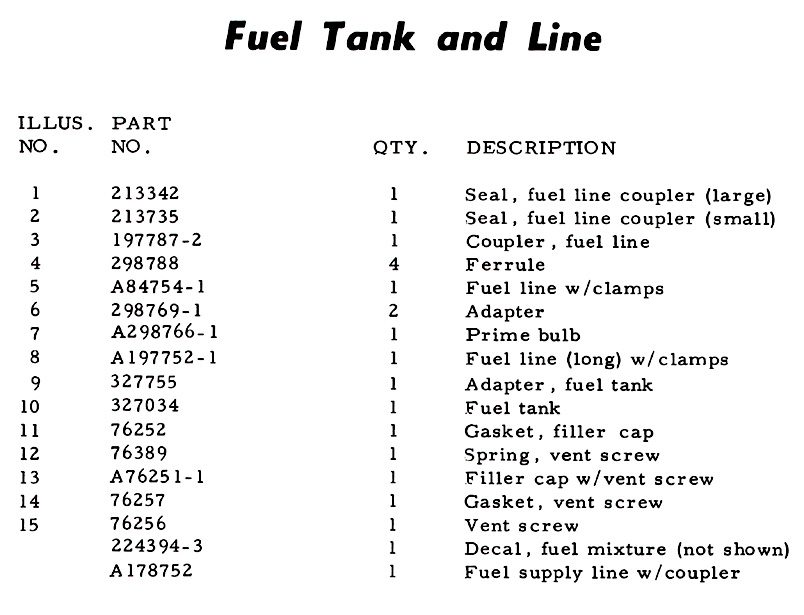

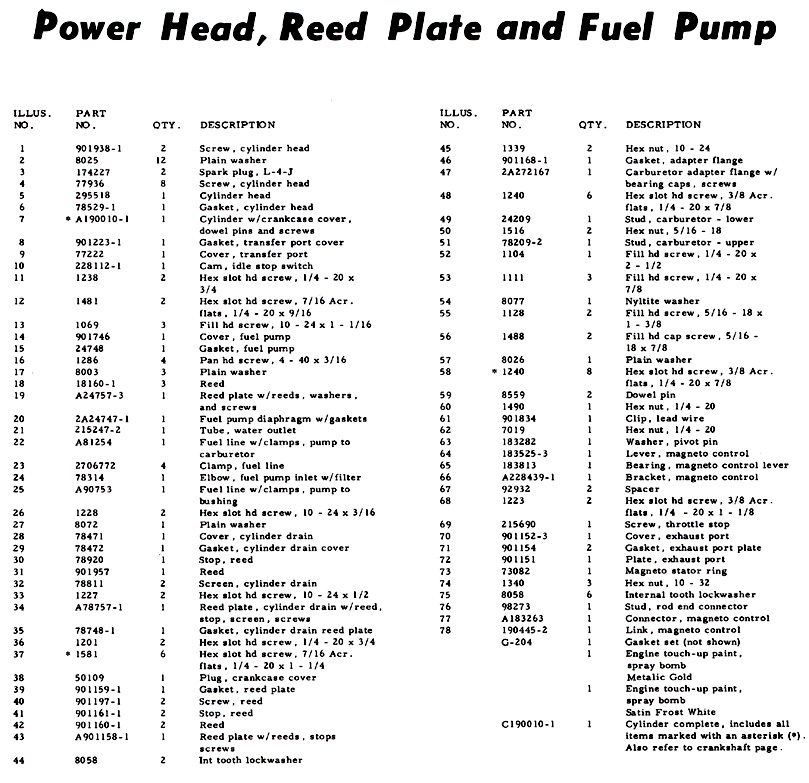

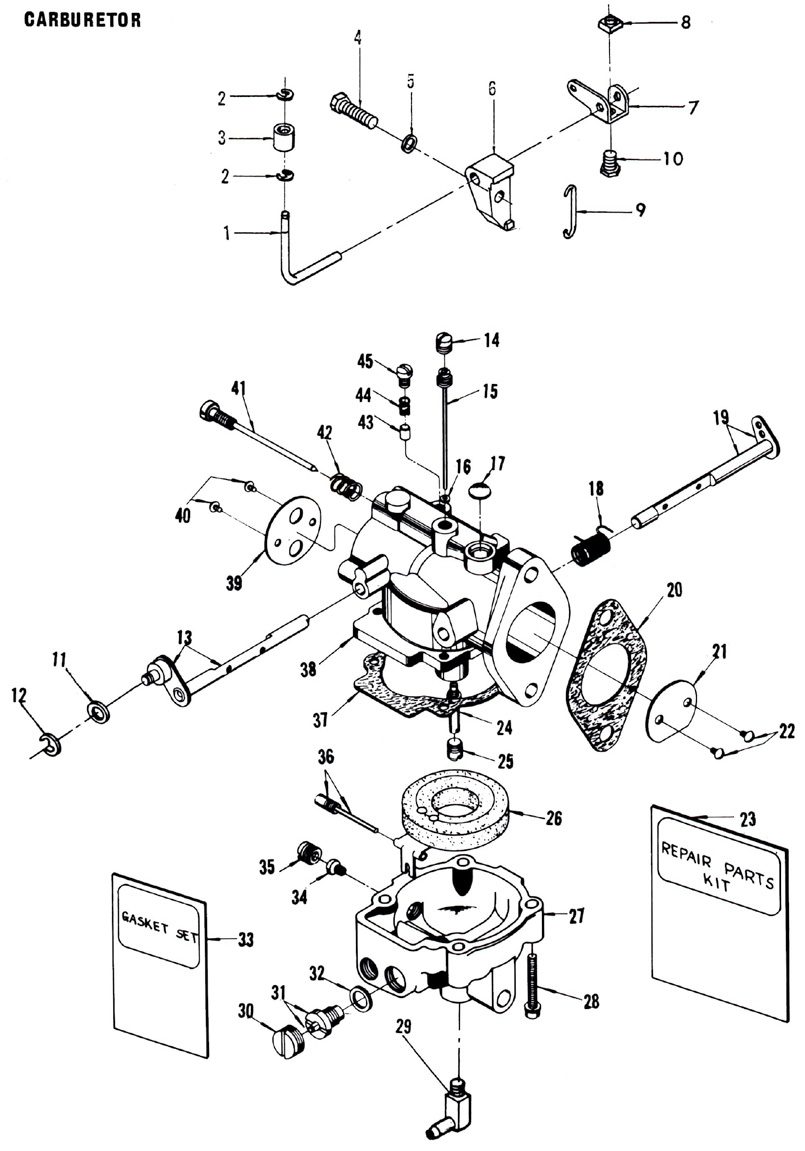

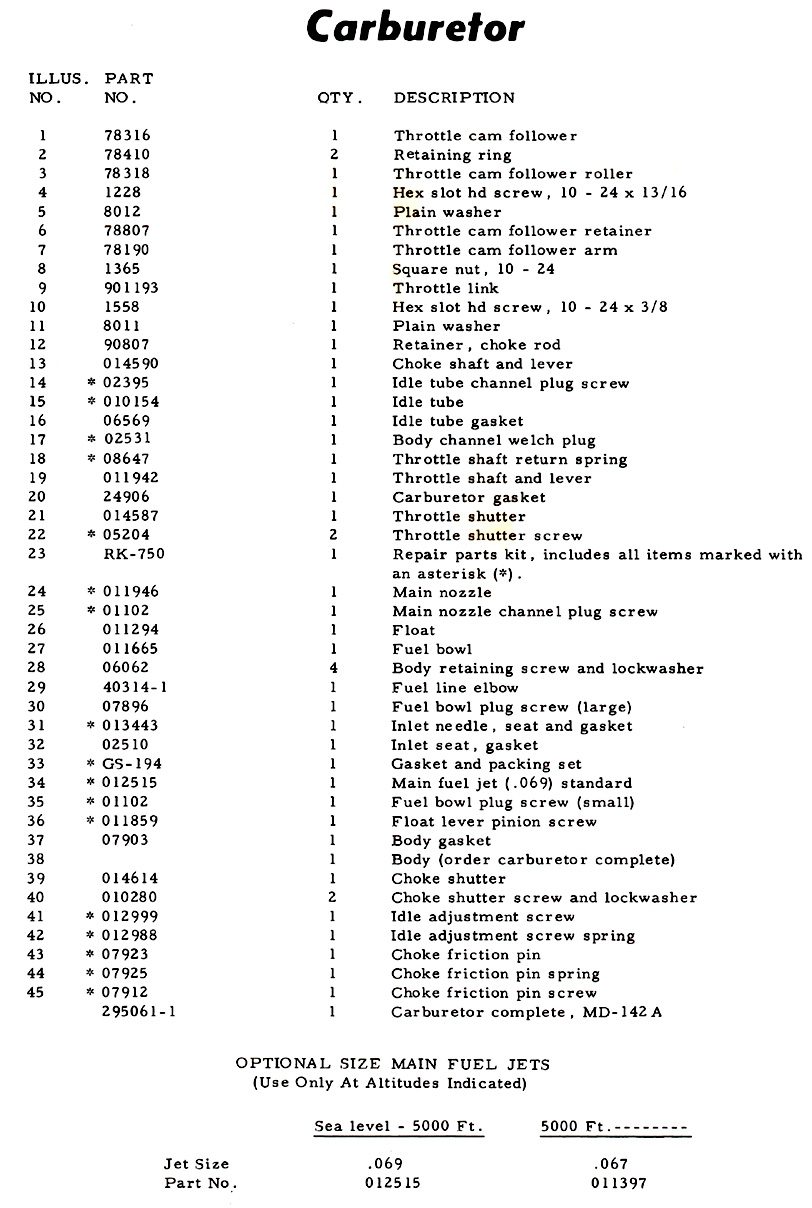

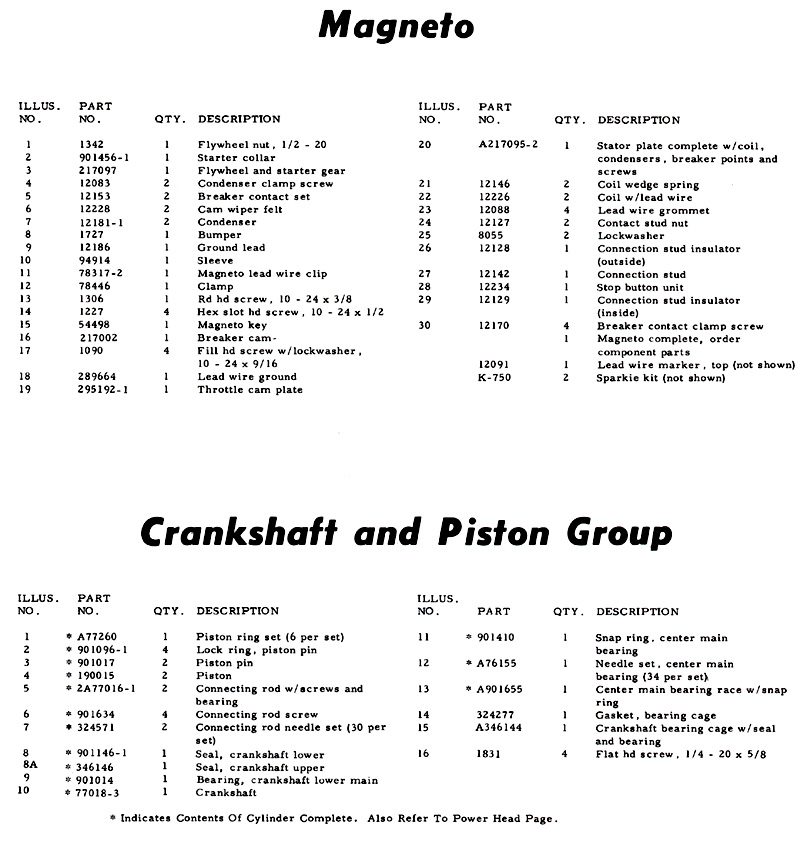

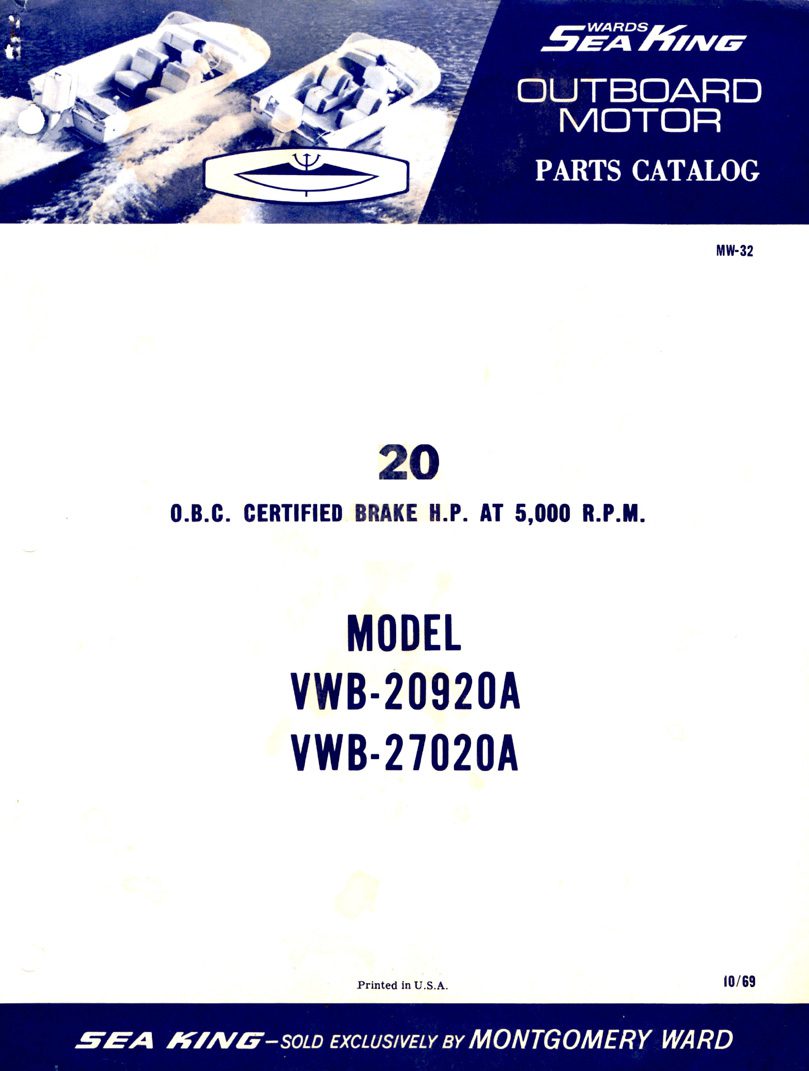

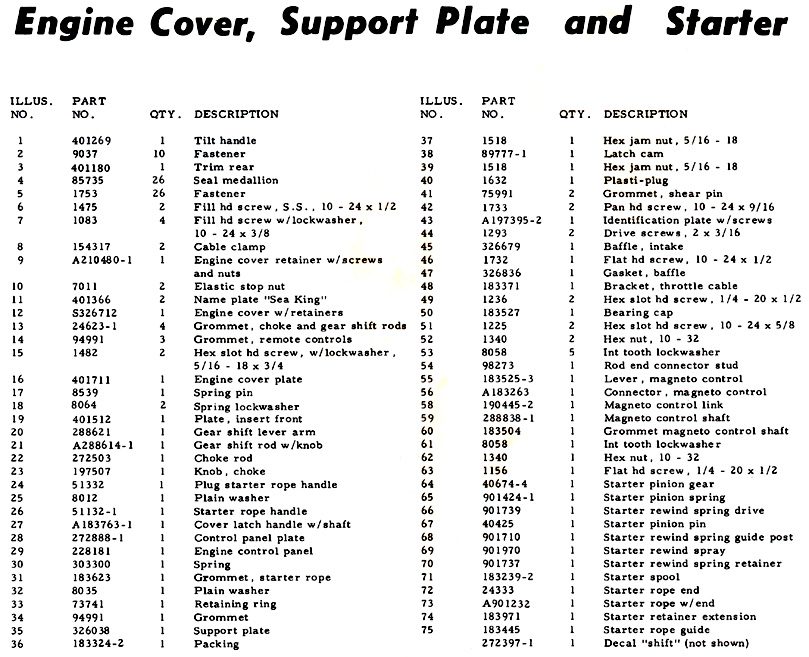

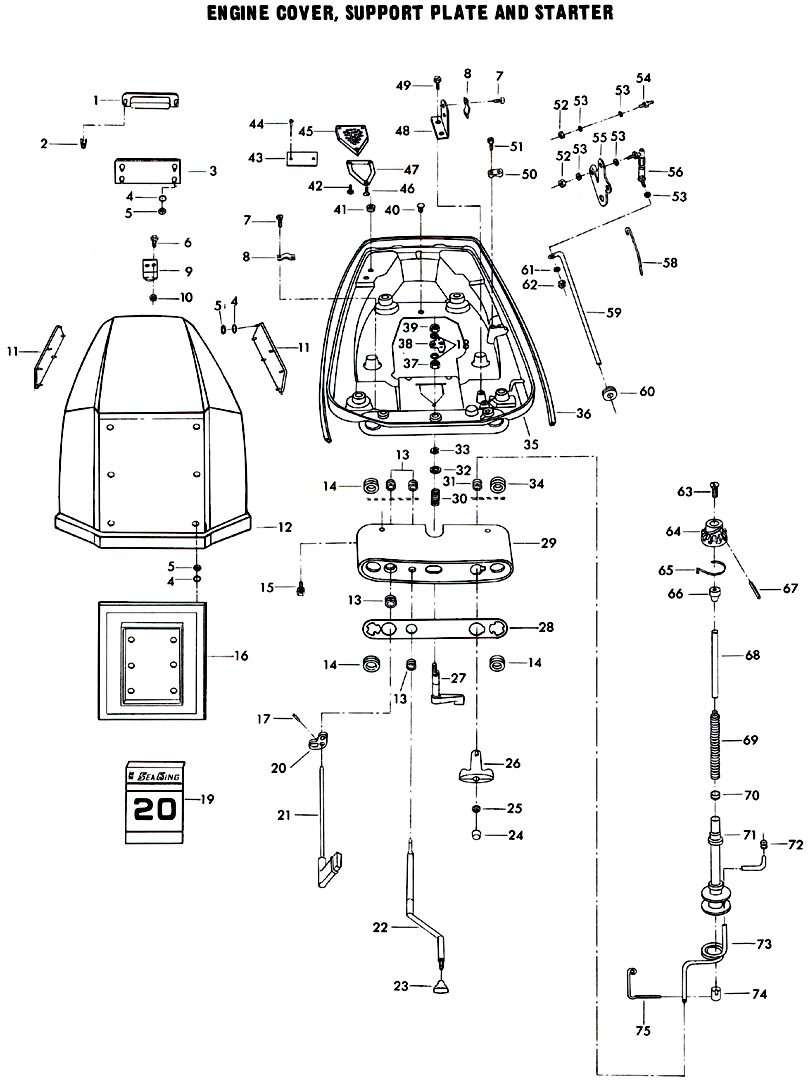

            Might’s well put them here for all to enjoy.  Here’s 20 hp




            March 28, 2022 at 11:03 am #256980
            frankr
            Participant

              US MEMBER PAY BY CHECK


              March 28, 2022 at 11:05 am #256986
              frankr
              Participant

                US MEMBER PAY BY CHECK


                March 28, 2022 at 11:07 am #256992
                frankr
                Participant

                  US MEMBER PAY BY CHECK


                  March 28, 2022 at 11:18 am #256998
                  frankr
                  Participant

                    US MEMBER PAY BY CHECK

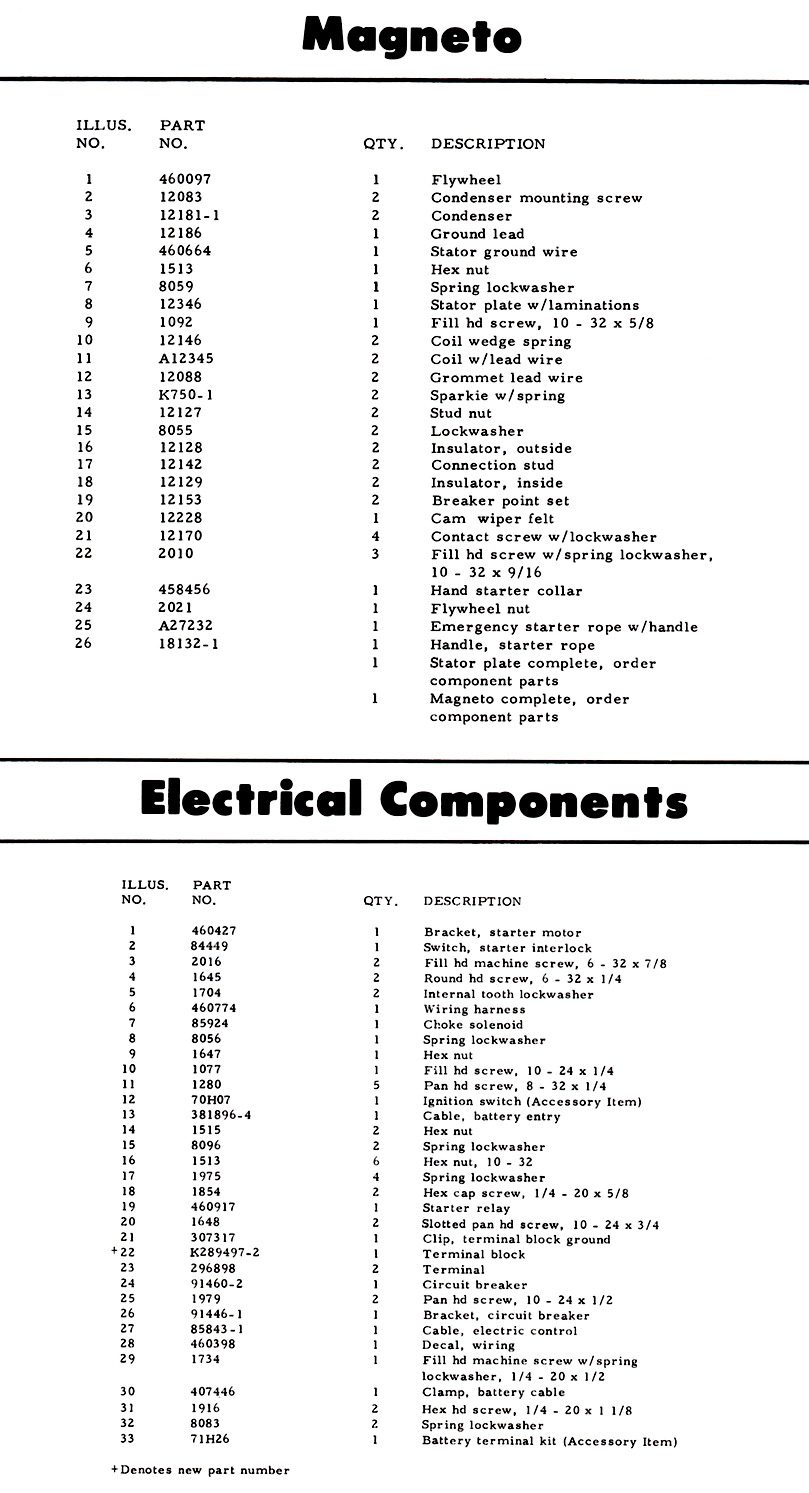

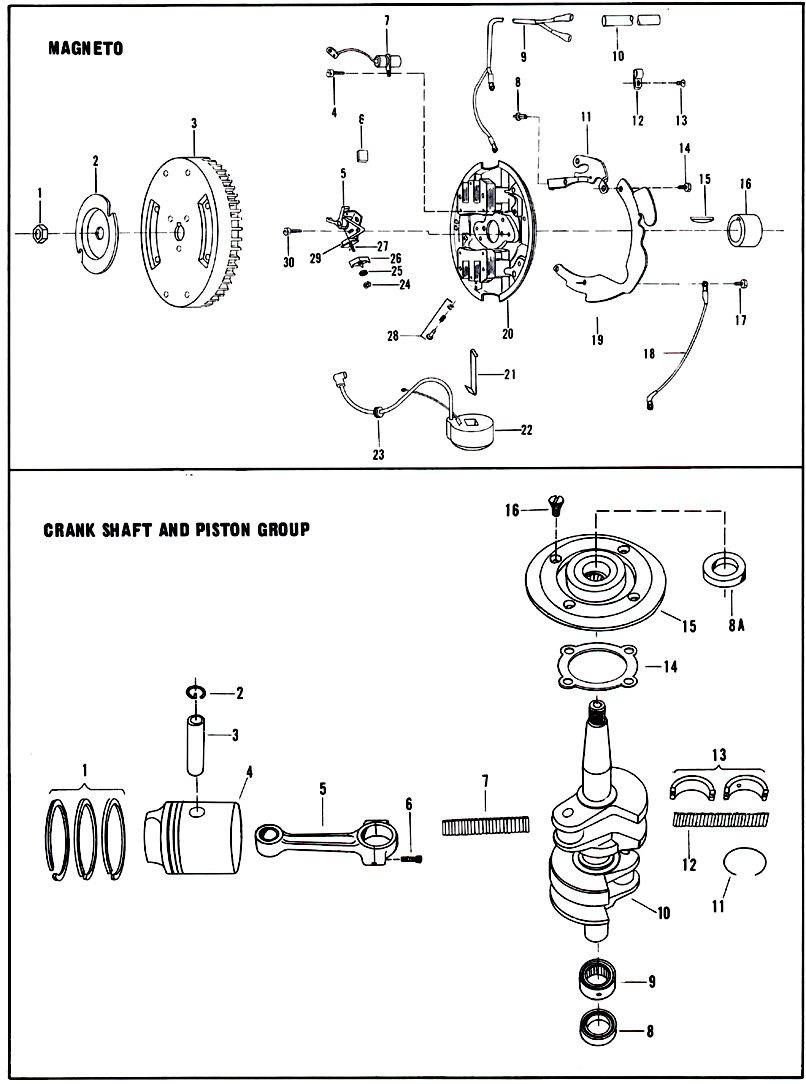

                    img004-1

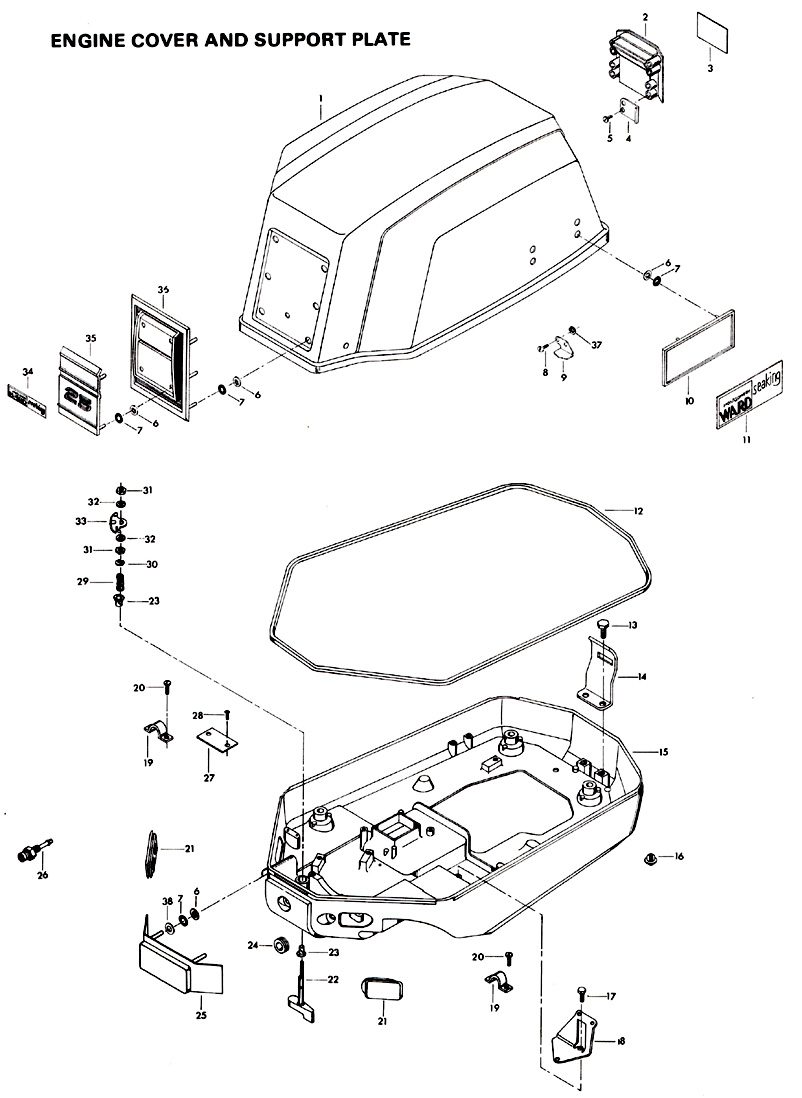

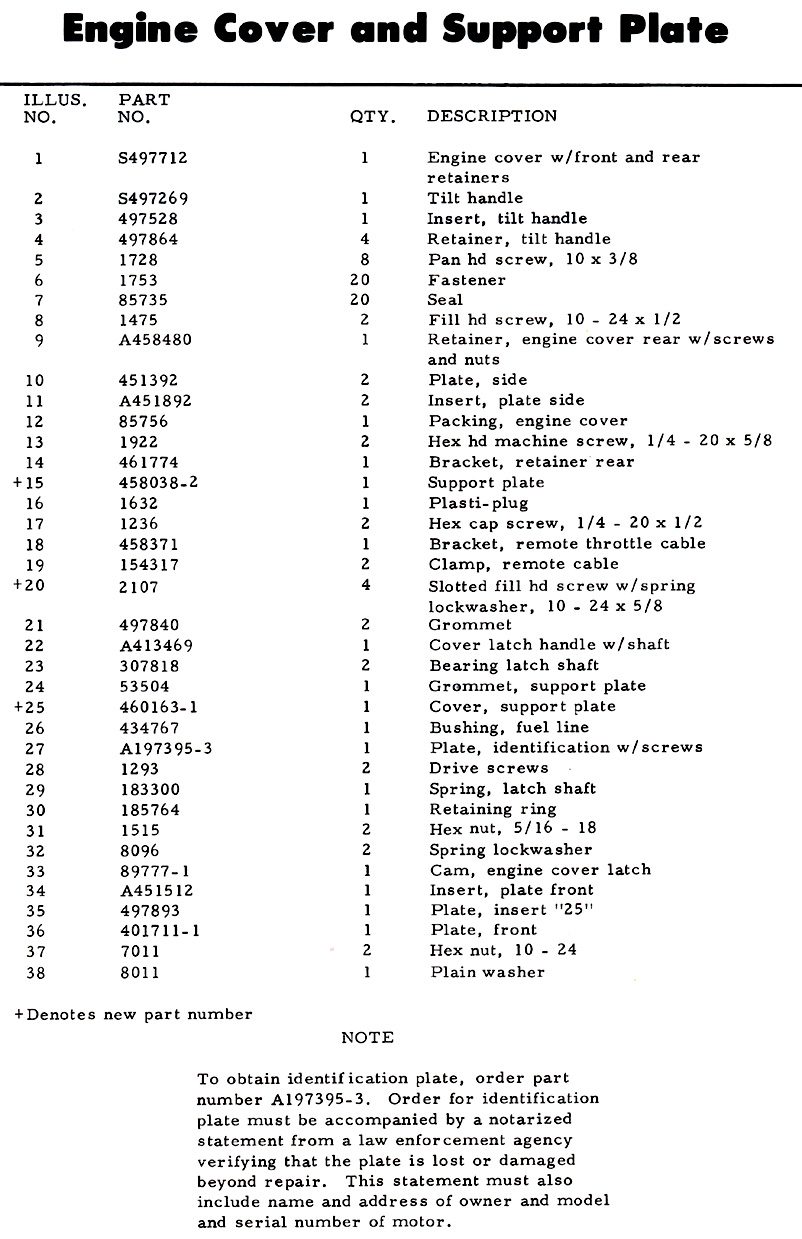

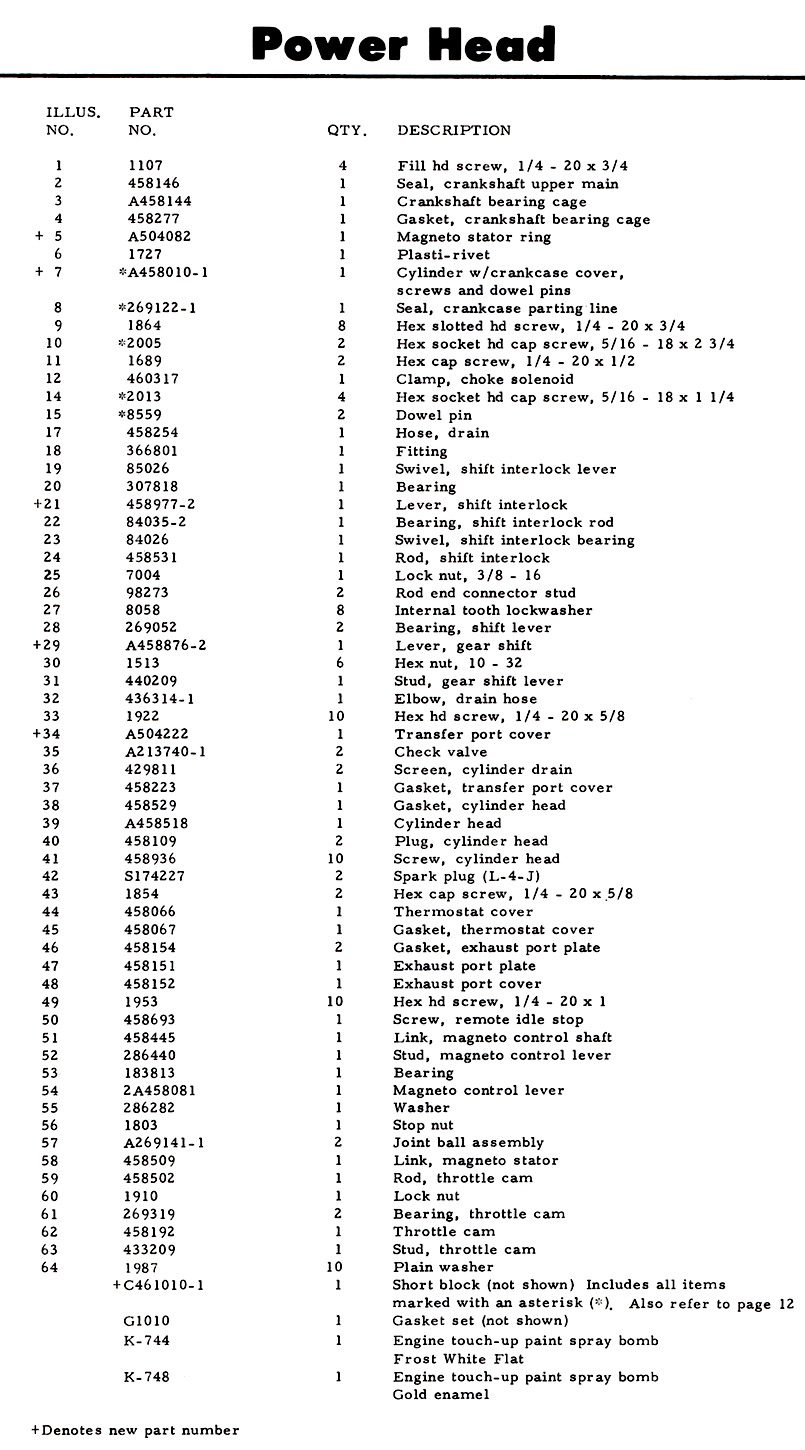

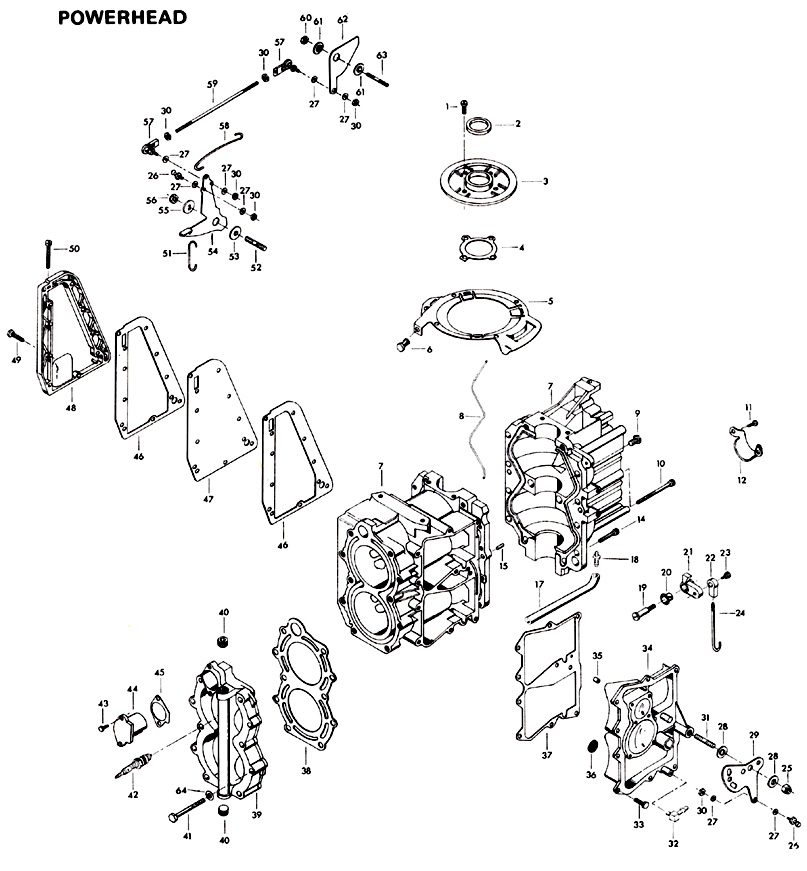

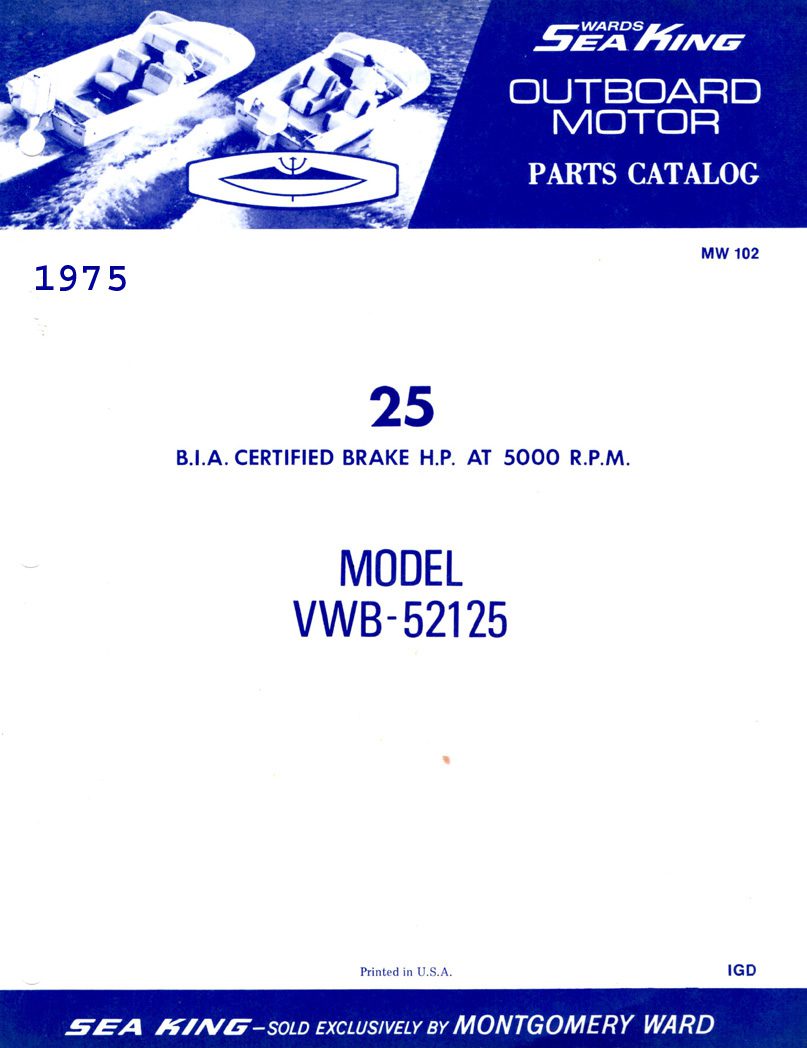

                    And 25hp



                    img001-1
                    img002-1
                    img003-1

                    • This reply was modified 2 years, 10 months ago by frankr.
                    • This reply was modified 2 years, 10 months ago by frankr.
                    March 28, 2022 at 11:21 am #257005
                    frankr
                    Participant

                      US MEMBER PAY BY CHECK

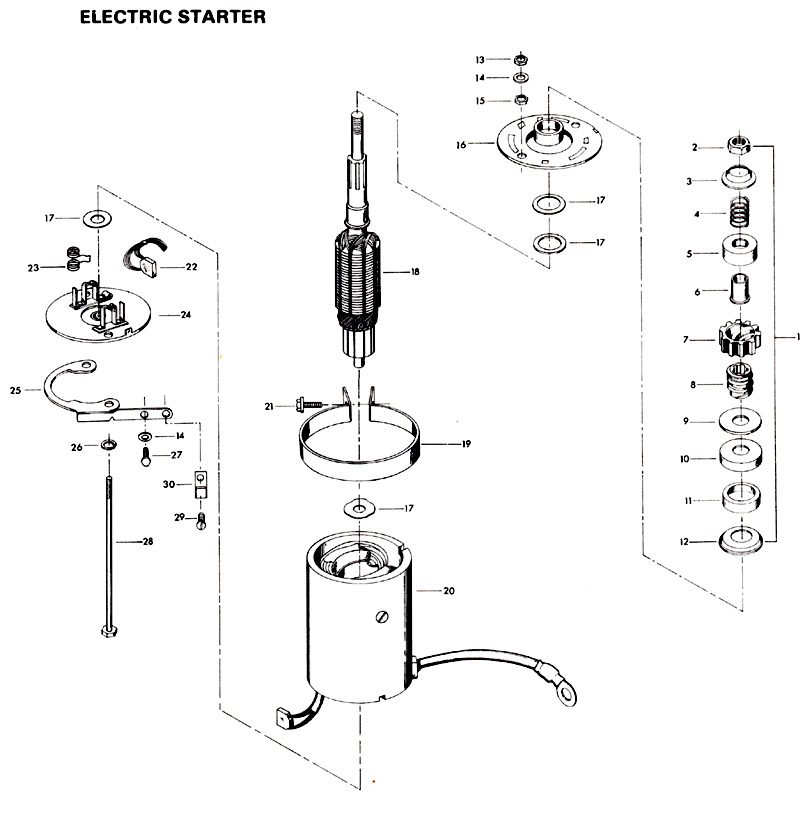

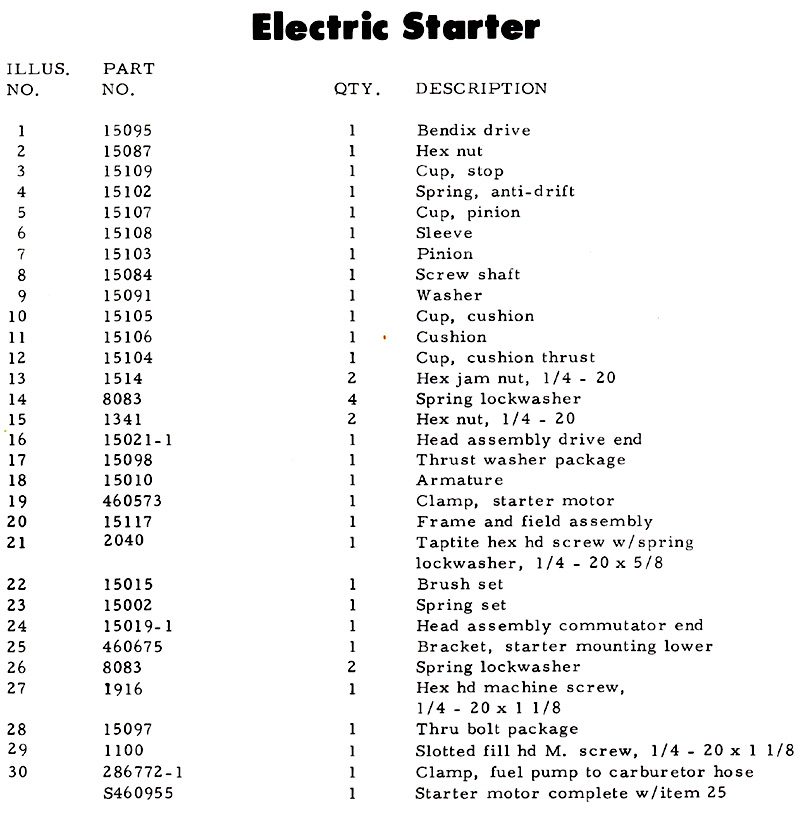

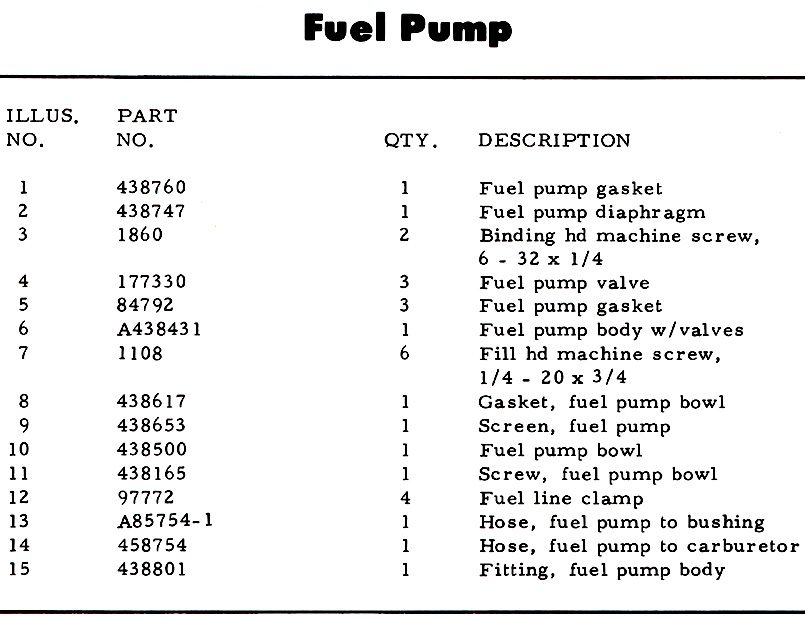

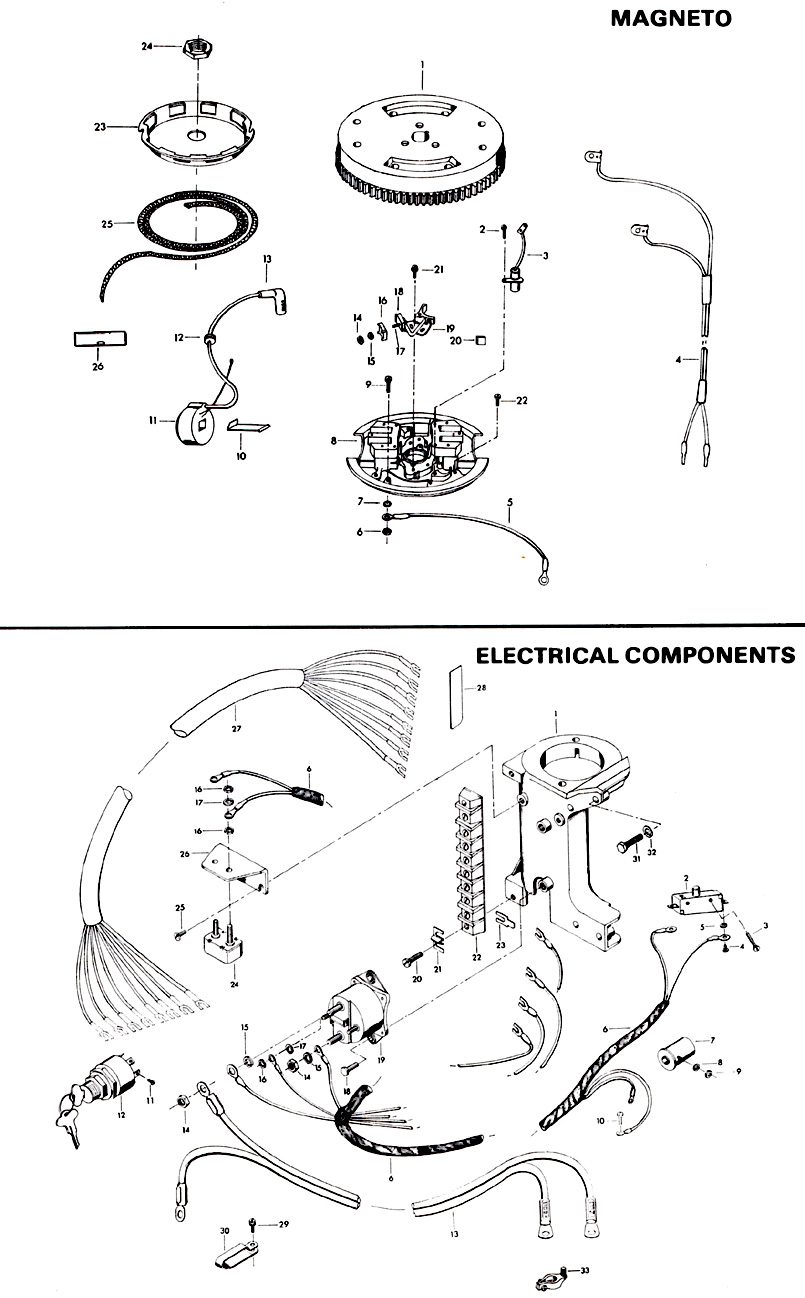

                      img005-1
                      img006-1
                      img007-1
                      img008-1

                      March 28, 2022 at 11:24 am #257011
                      frankr
                      Participant

                        US MEMBER PAY BY CHECK

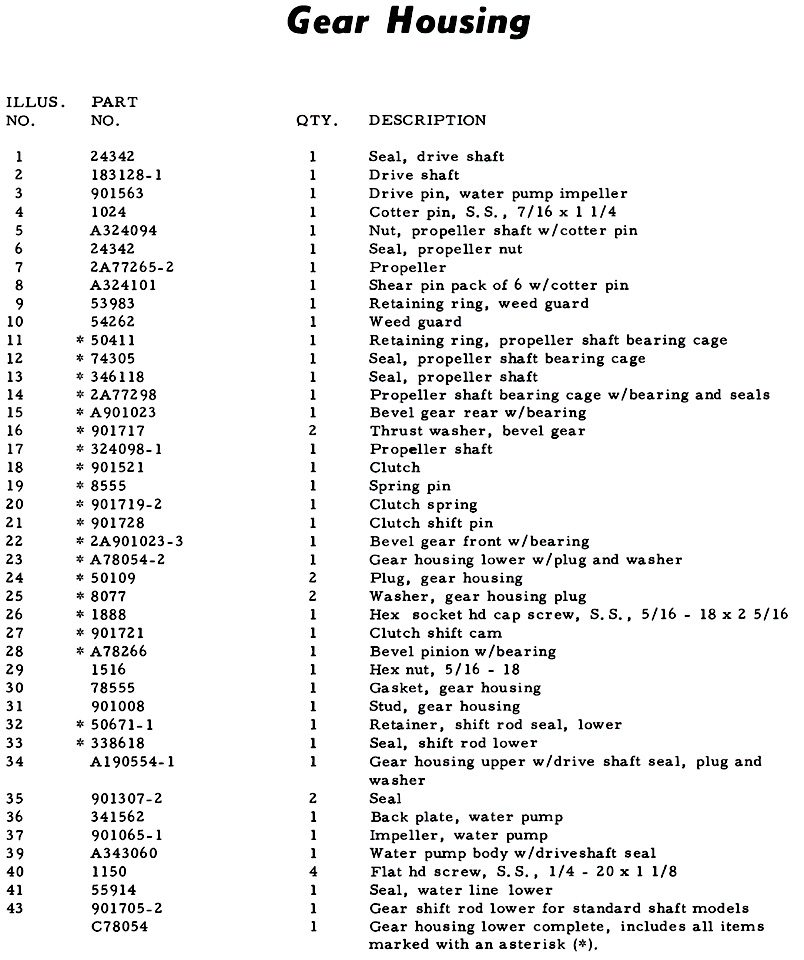

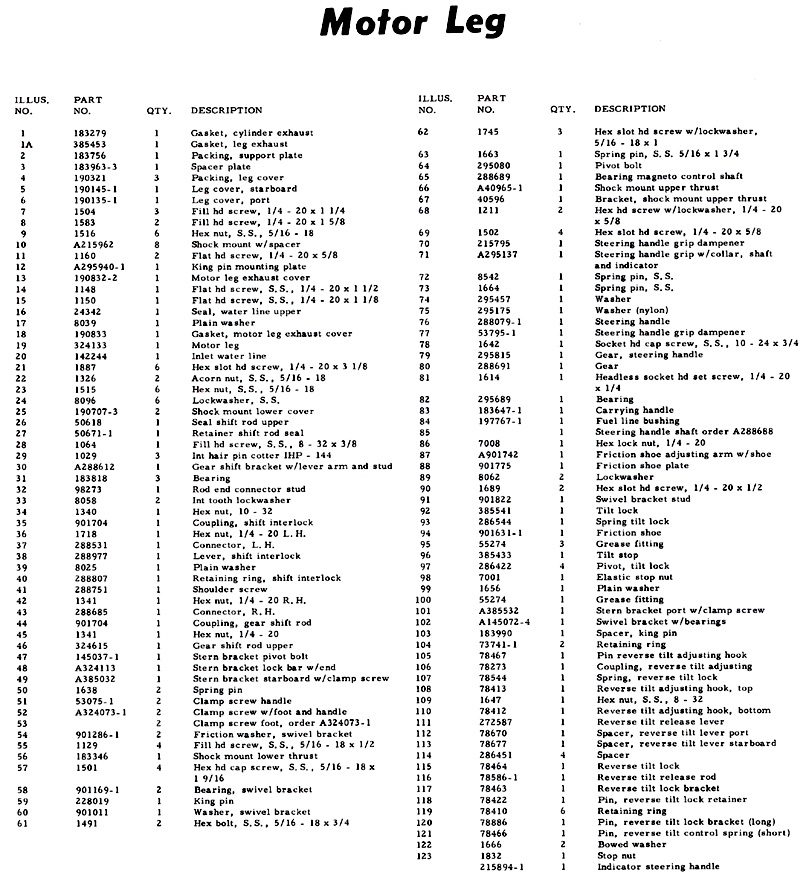

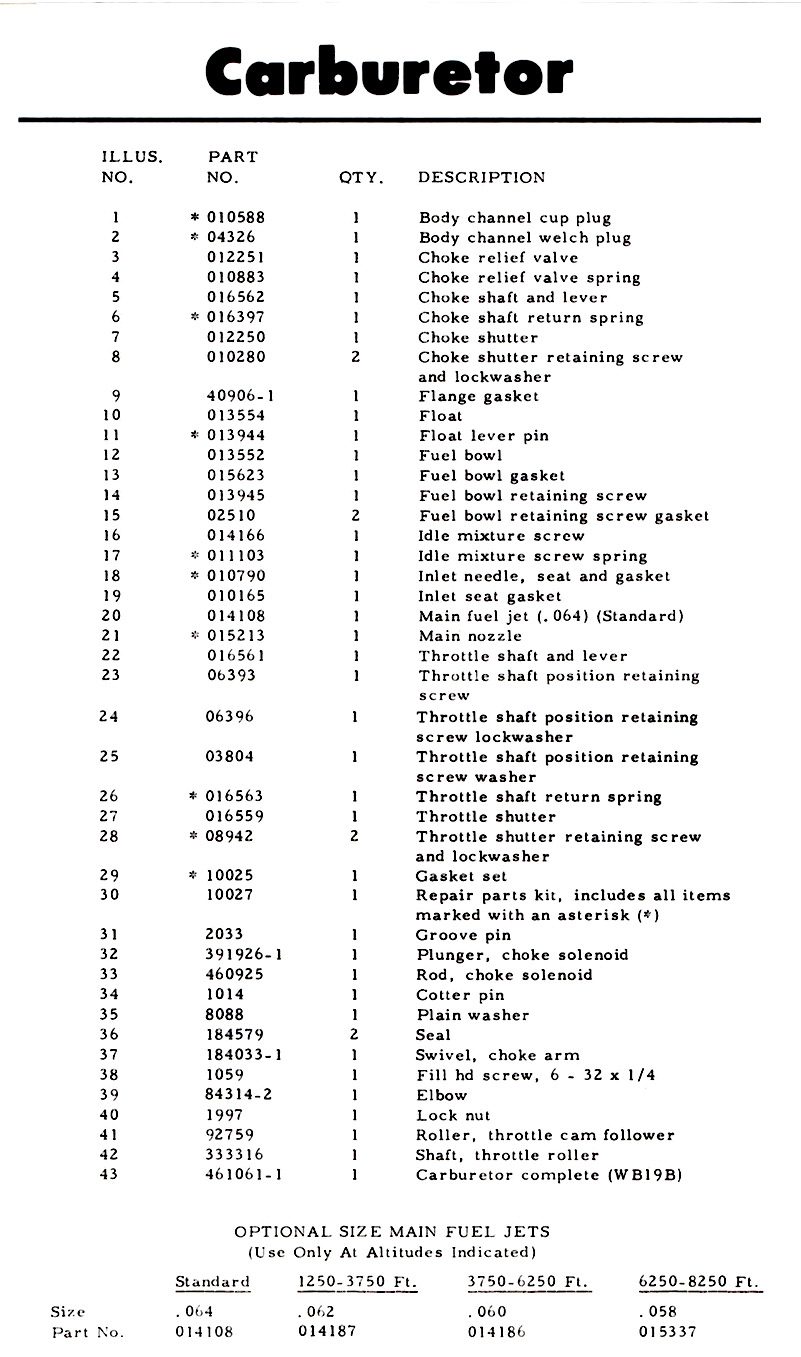

                        img009-1
                        img010-1

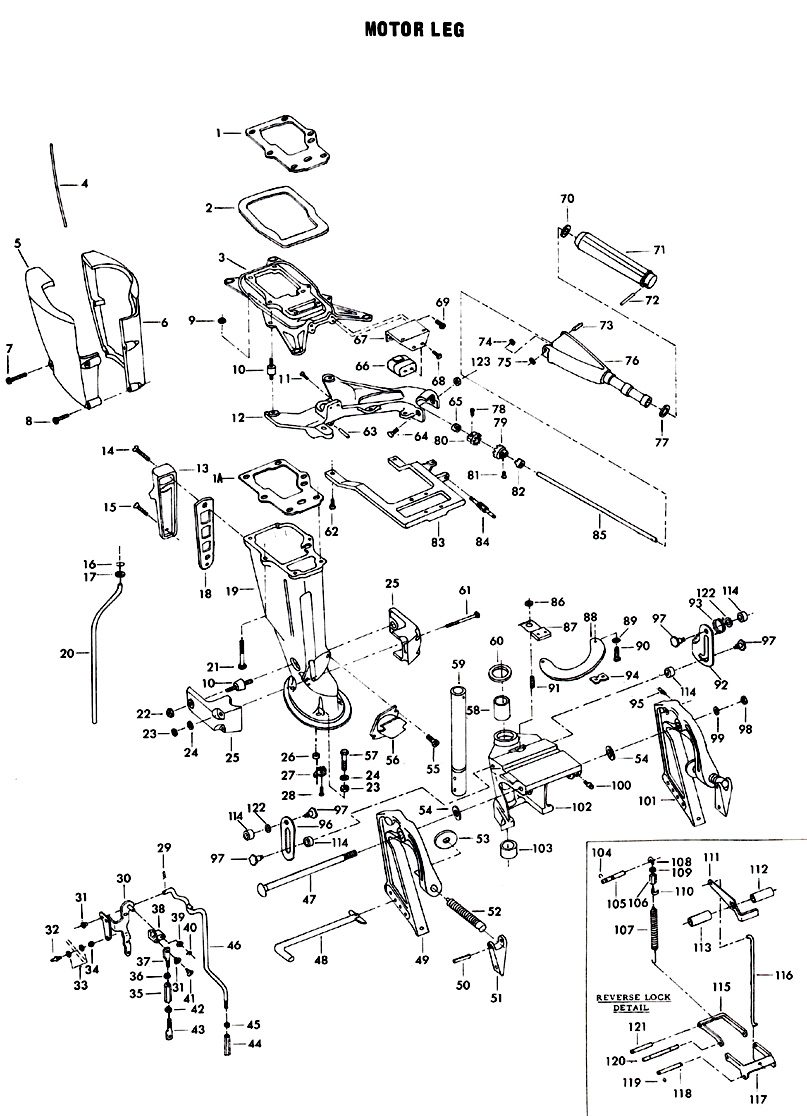

                        img011-1

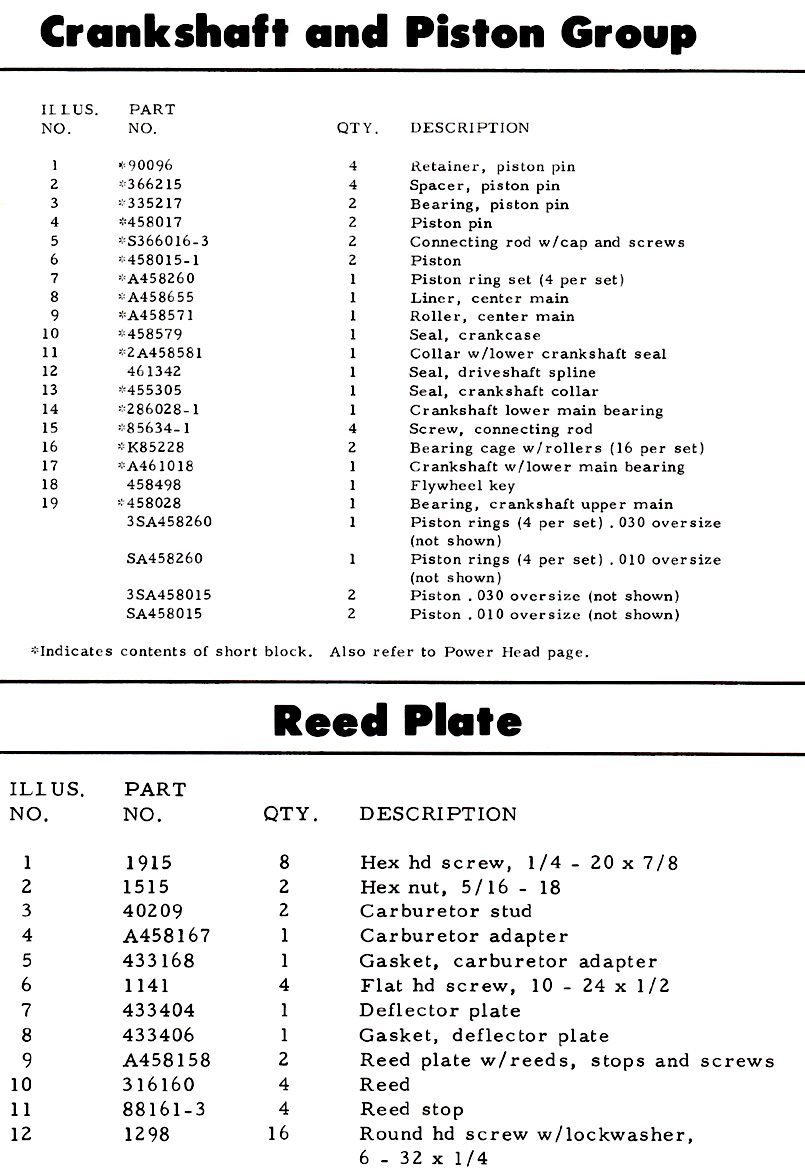

                        img012-1
