West Bend Graphics

Home Forum Ask A Member West Bend Graphics

This topic contains 6 replies, has 3 voices, and was last updated by  slim60 2 days, 13 hours ago.

Viewing 7 posts - 1 through 7 (of 7 total)

  • slim60
    US Member - 1 Year
    Replies: 219
    Topics: 52
    #158869

    I found this Sears 12 hp (571 58931) last summer. When I get around to the cosmetics I would like to apply the correct West Bend graphics to the hood. I’m not sure of the year; maybe ’57-’60. Anyone have a photo? Thanks, Slim

    Attachments:
    Buccaneer
    Buccaneer
    US Member - 1 Year
    Replies: 2682
    Topics: 754
    #158880

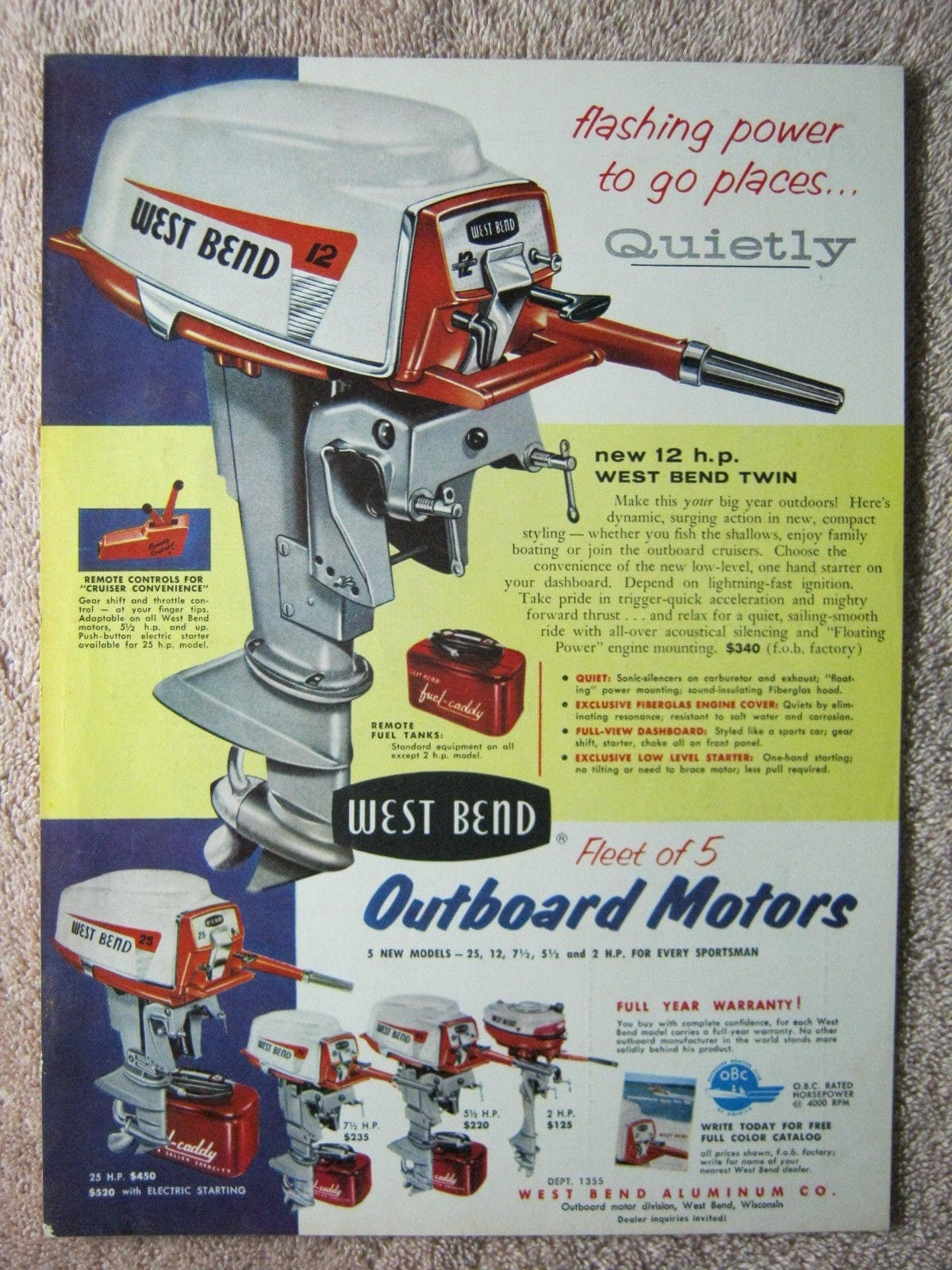

    Here’s a 1956 ad. I believe it’s different than yours,
    but have to say, a nice looking motor.

    Prepare to be boarded!

    • This reply was modified 3 days, 5 hours ago by Buccaneer Buccaneer.
    Attachments:
    Buccaneer
    Buccaneer
    US Member - 1 Year
    Replies: 2682
    Topics: 754
    #158883

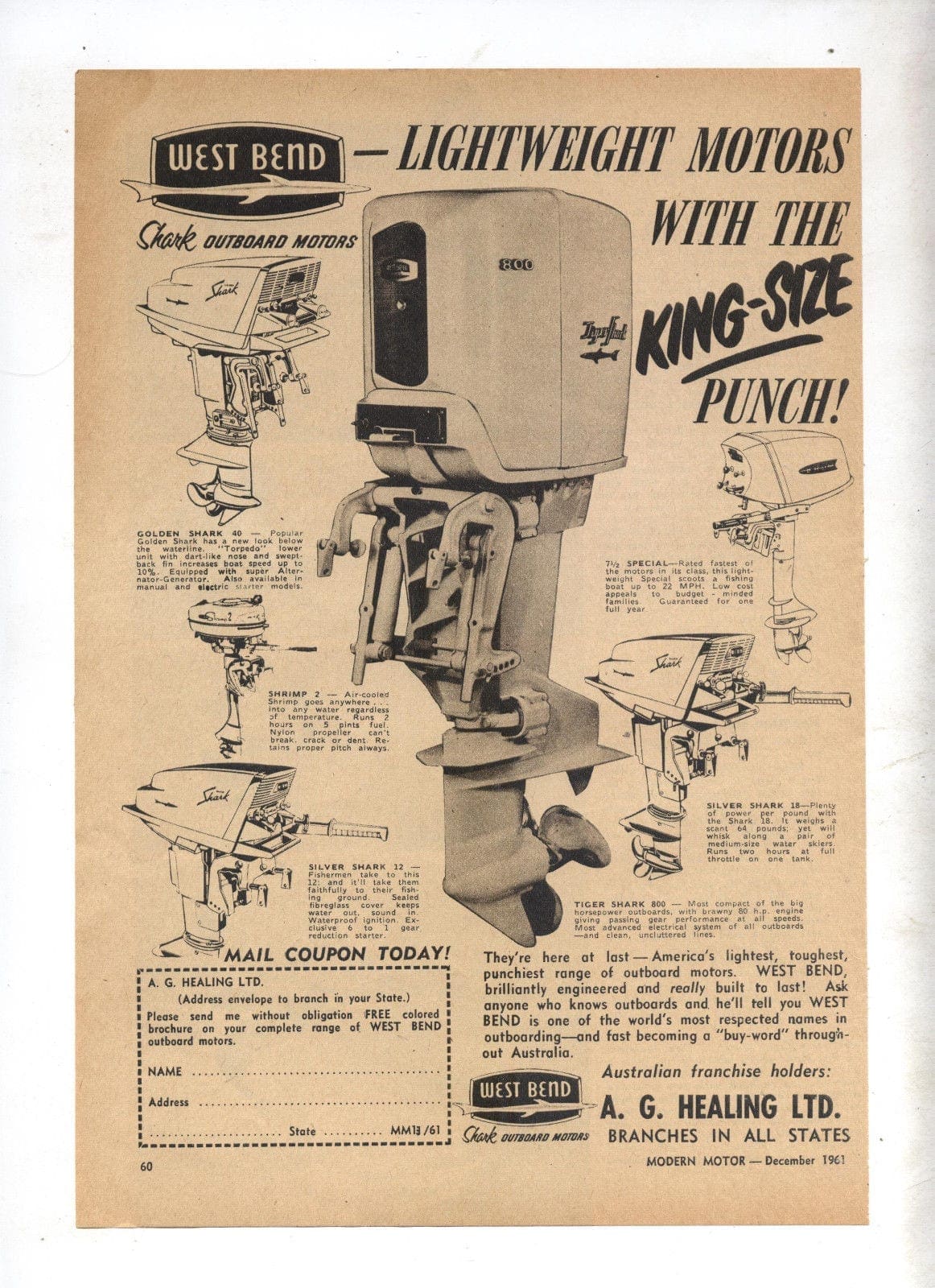

    1961 West Bend Shark line up.
    Those are the closest I can find.

    Prepare to be boarded!

    Attachments:

    frankr
    US Member - 1 Year
    Replies: 3790
    Topics: 42
    #158885

    Slim, 58931 is a 1958 year.


    frankr
    US Member - 1 Year
    Replies: 3790
    Topics: 42
    #158886

    There is a picture of a 1958 35hp Elgin at http://www.yankeeaomci.org/feature_outboard-2.htm
    Bottom of page. Assuming (maybe???) the 12 would have similar graphics.

    • This reply was modified 3 days, 4 hours ago by  frankr.

    frankr
    US Member - 1 Year
    Replies: 3790
    Topics: 42
    #158888

    There is a picture of a 1958 35hp Elgin at http://www.yankeeaomci.org/feature_outboard-2.htm Bottom of page.
    Assuming (maybe???) the 12 would have similar graphics.

    BTW, are you planning to make a West Bend out of your Sears Elgin?


    slim60
    US Member - 1 Year
    Replies: 219
    Topics: 52
    #159028

    Thank you gents; The photos are appreciated. The ’58 Elgin 35’s hood is a match except for the side latches. Mine has a rear latch. And frankr, I’m just trying to make it look like the West Bend it is. The tan paint on the engine and lower does not look like Elgin or WB. I sought out this one because of the hp to weight ratio. And my ’53 Alumacraft E is rated for 12 hp max. Can’t wait to get her out on the lake!
