  • #200072
    Buccaneer
    Participant

      US Member

      I believe your carb is very similar to the H & T series Johnson carbs
      talked about here………
      http://pochefamily.org/outboard/CarbService.html

      The Johnson 3rd Edition manual covers your carb thoroughly.
      I have it in PDF but my email server won’t let me send that
      big of file……. 99.1 mb’s.

      Buc….if you want to send that 99 MB file to someone….I could suggest that you use a free service called WeTransfer.

      https://wetransfer.com/

      It’s completely free 100% Free to both the sender and recipient and requires no registration or other nuisance….and it works very well. It allows free transfer for files up to 2GB.

      I use it so send large image and video files that cannot be sent through e-mail etc.

      Chuck

      Chuck, I think you mentioned “wetransfer” in the past, but weforgot about it!
      I’ll try it someday if they do not ask for the name of my first born child or
      the name of my bank, lol.

      Prepare to be boarded!

      #200083
      crosbyman
      Participant

        Canada Member - 2 Years

        the H & T series carbs are covered in the 10th edition….in the red book just copy the link info above the picture attached…… to do your web search

        select the book stack

        select JOHNSON

        Select ..the RED book

        carb info for h&t begins on page 87

        you can print all you need to your PC in “PDF format” instead of the usual printer output ….. then later print off the PDF pages to paper for your maintenance binder 🙂

        Joining AOMCI has priviledges 🙂

        • This reply was modified 4 years, 8 months ago by crosbyman.
        #200137
        seahuntboater
        Participant

          thanks crosbyman. That boatinfo.no site is amazing. And Chuck. I will try the wetransfer site sometime.

          Thanks. Hope to start soaking and poking on the ’37 motor today.

          #200652
          seahuntboater
          Participant

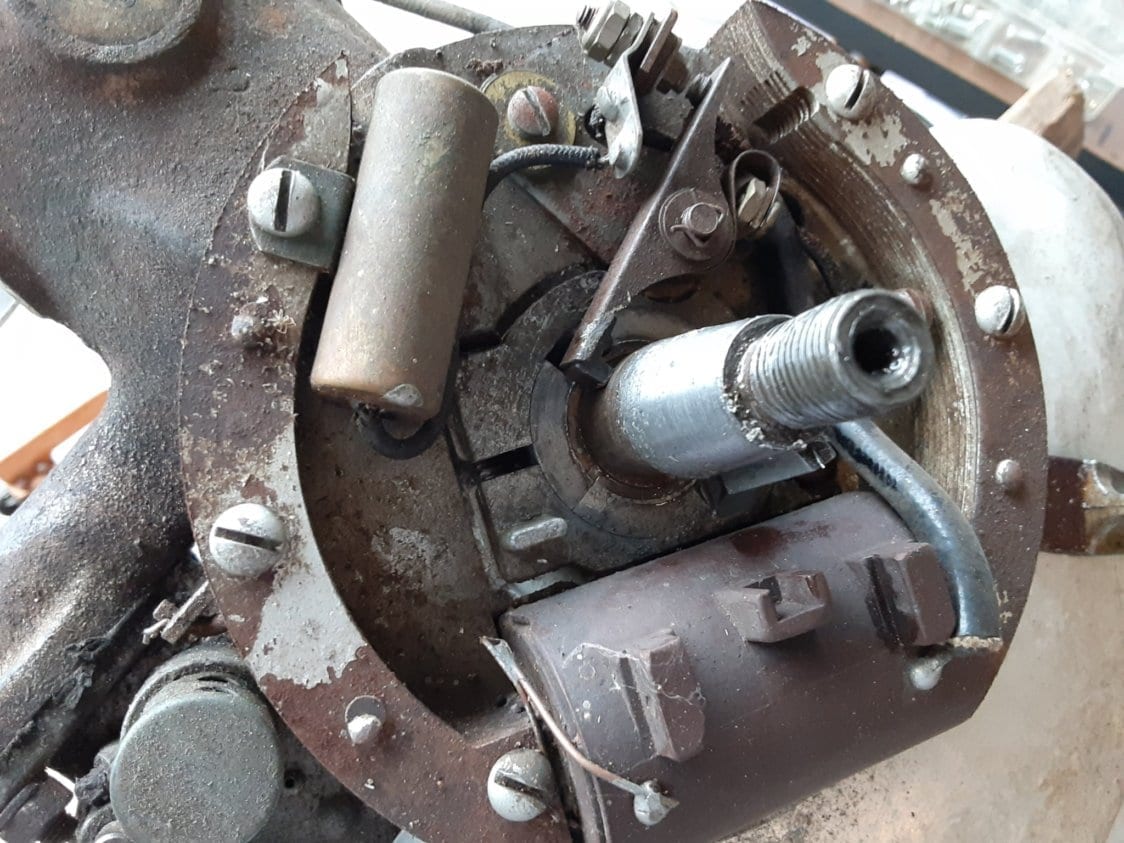

            ohm meter testing this coil. I disconnected all wires from the points and grounds. The coil has 4 solder points. one on each side and two on the top. I see the plug wire so know that is part of secondary

            what readings should i be getting? here is a picture . we could use it for orientation. the side solder points are not visible but can be called side left, side right. Other 2 can be top left and plug.

            It also isn’t that obvious how this coil come off the armature plate. do you take the one side off and then the coil slides out? Hoping I don’t have to go that far if readings work out.

            Thanks

            Ralph

            coil

            #200663
            Buccaneer
            Participant

              US Member

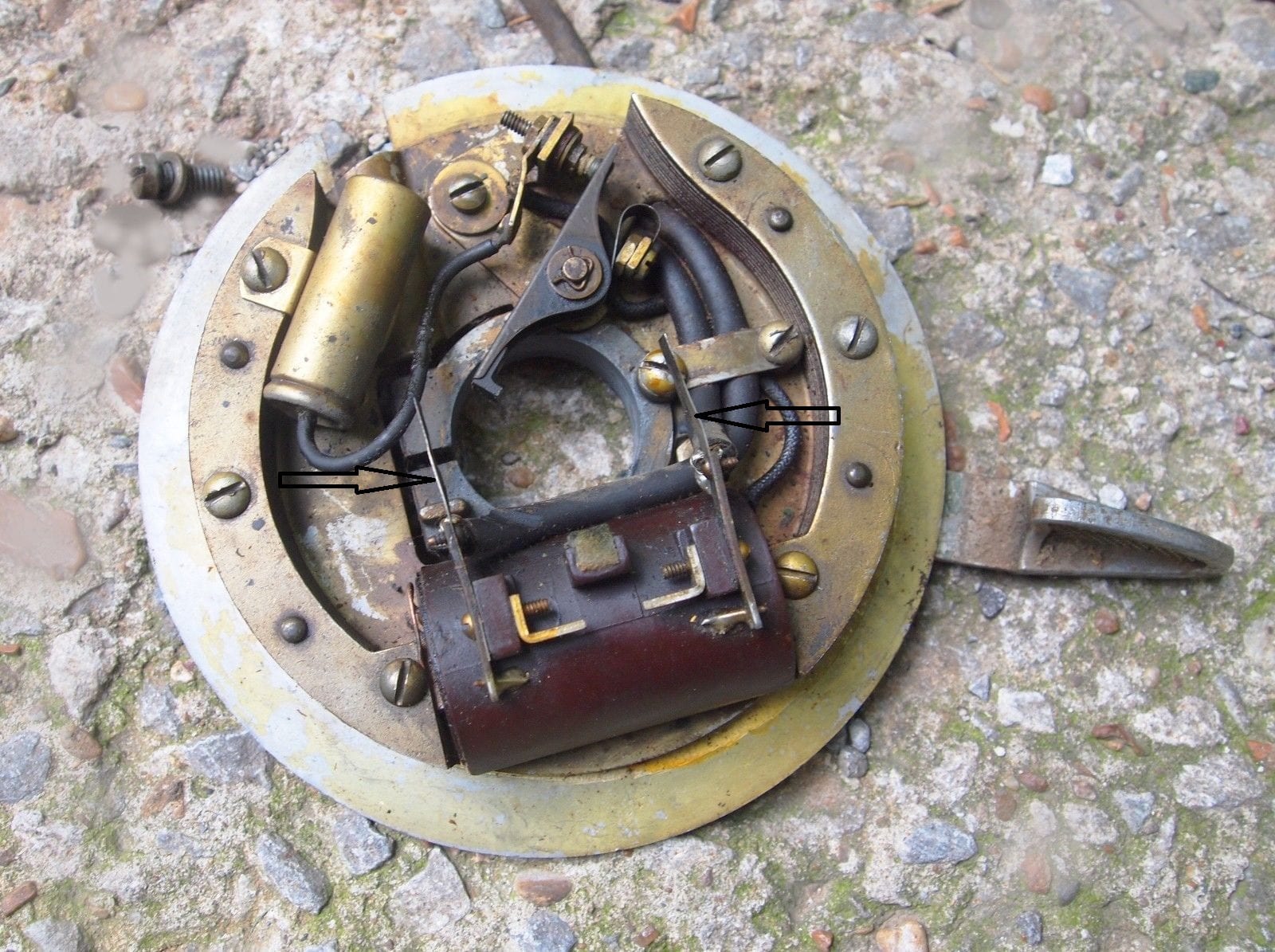

              Looks like someone has done some alterations to your magneto. Photo shows how
              the coil originally had two metal tabs soldered to the coil, and the plug wire were
              soldered to them.

              Mag-plate-file-photo

              Prepare to be boarded!

              • This reply was modified 4 years, 8 months ago by Buccaneer.
              • This reply was modified 4 years, 8 months ago by Buccaneer.
