Wiring Diagram for 1960 Evinrude Lark II 40 ?

[Steven Lichty]

Hello: Would anyone have a wiring diagram for the 1960 Evinrude Lark II 40 for the junction box? It’s a magneto motor, with electric start. Thank you.

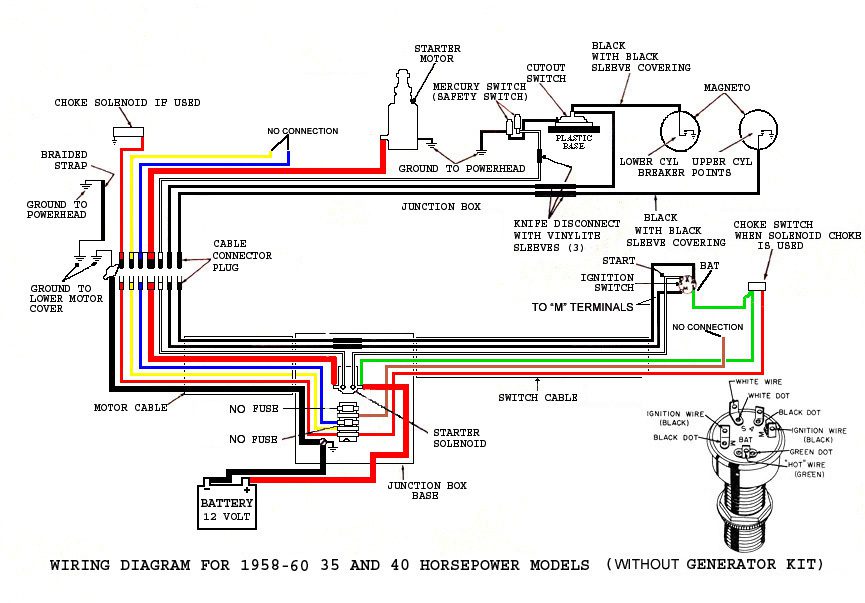

[Buccaneer]

Prepare to be boarded!

1 user thanked author for this post.

Steven Lichty

[Steven Lichty]

Thank you,  Buccaneer, that is perfection and will help me a great deal as I work on all the wiring for my project! Much appreciated.

[crosbyman]

just fyi    you have also access to various wire diagrams  on this iste



EVINRUDE JOHNSON Outboard Wiring Diagrams — MASTERTECH MARINE — (maxrules.com)



Joining AOMCI has priviledges 🙂

1 user thanked author for this post.

Steven Lichty

[jeff-register]

Weird Crosbyman, I don’t see my 78 Evinrude 85??

[crosbyman]

list is not all inclusive  has you noted.



sometimes another year’s model will give good ” clues ”     ex: 78  55hp  all depends  what area of the wiring is the problem.



some sections  are more or less basic.      the 85hp has more coils but the rest may be very similar



but the OEM service manual may be the only solution. or this

https://www.manualboss.com/products/1978-johnson-evinrude-85-hp-outboard-service-shop-repair-manual-pdf-download

Joining AOMCI has priviledges 🙂
